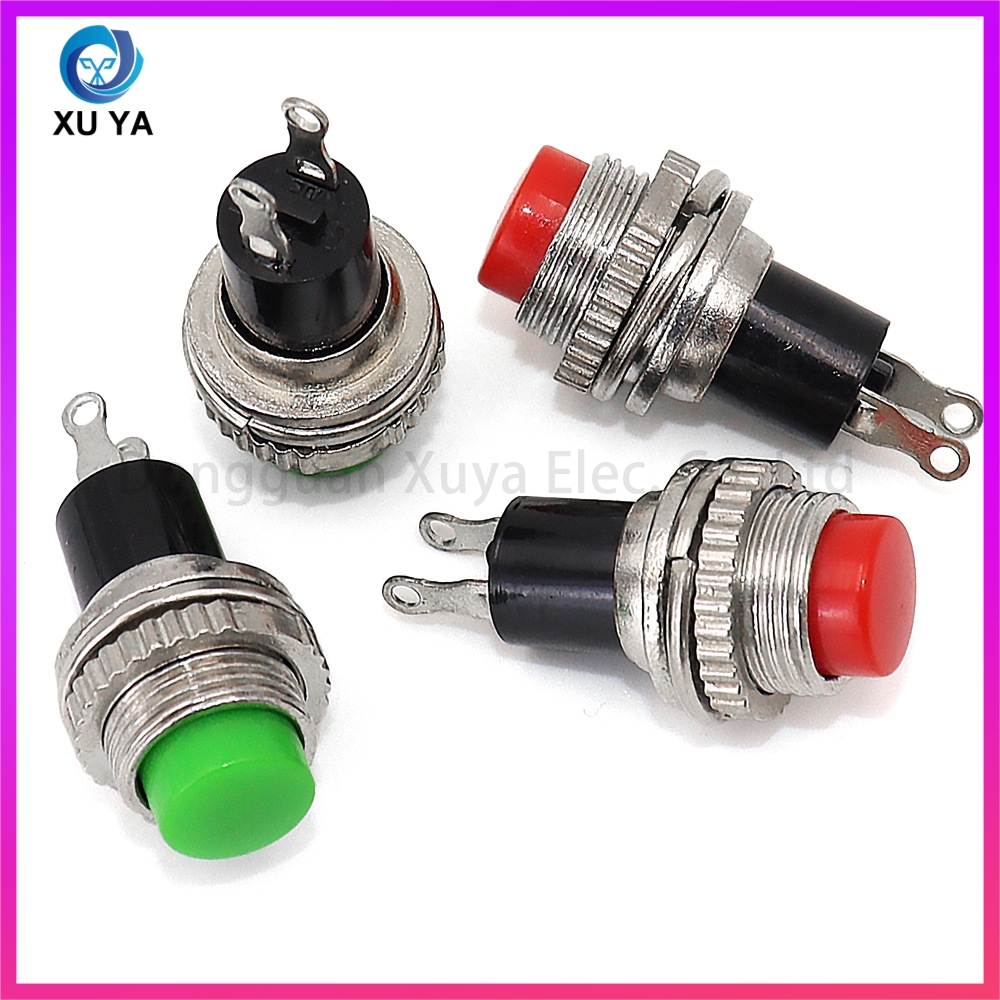

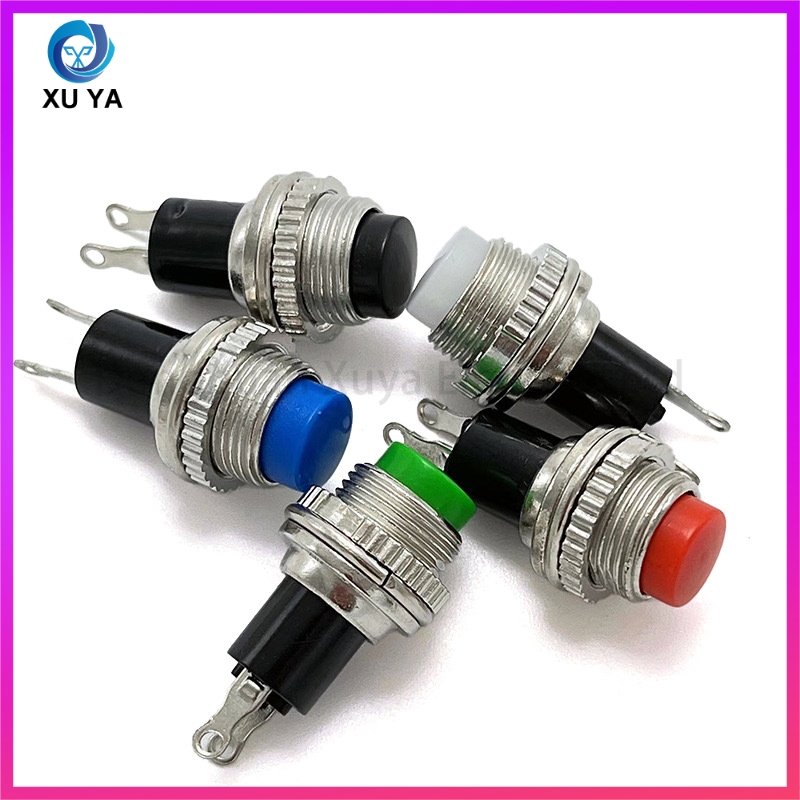

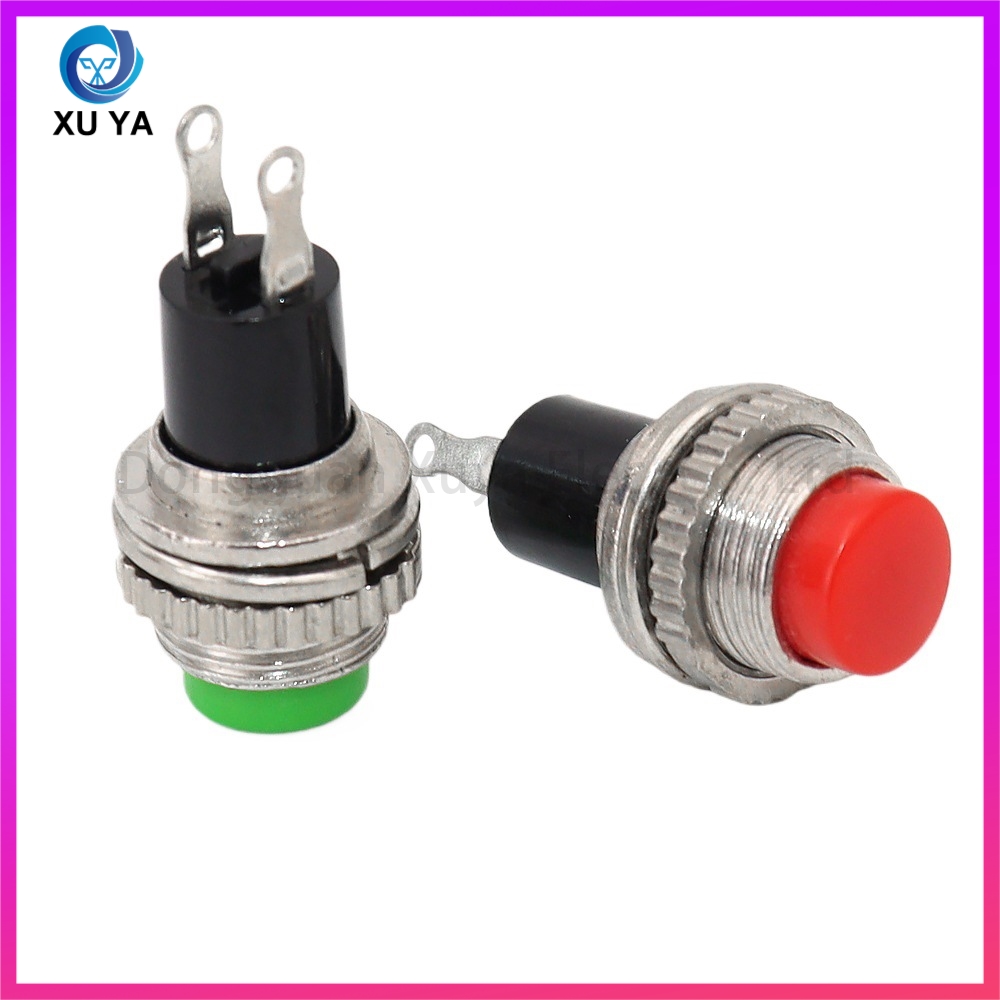

DS314/DS316 按钮开关 10mm 开孔两脚自复位无锁按键
DS314/DS316 Push Button Switch 10mm 2Pin Momentary Unlocked Key
2. 产品描述（中英）
中文：DS314、DS316 小型金属螺纹按钮开关，面板开孔 10mm，两脚端子，无锁自复位结构；DS314 螺母在上，DS316 螺母在下，两种安装结构可选。红、绿、蓝、黑、白多色按钮帽，金属螺纹锁紧安装，适用于仪器、机车、小型电子产品触发控制，支持按通、按断规格。
English: DS314 & DS316 mini threaded push button switch, 10mm mounting hole, 2 terminals, momentary unlocked design. DS314 nut on top, DS316 nut at bottom for different assembly needs. Multi-color caps available, metal thread mounting. Suitable for instruments, motorcycles and electronic equipment trigger control, normally open /normally closed types optional.
3.FAQ 中英双语

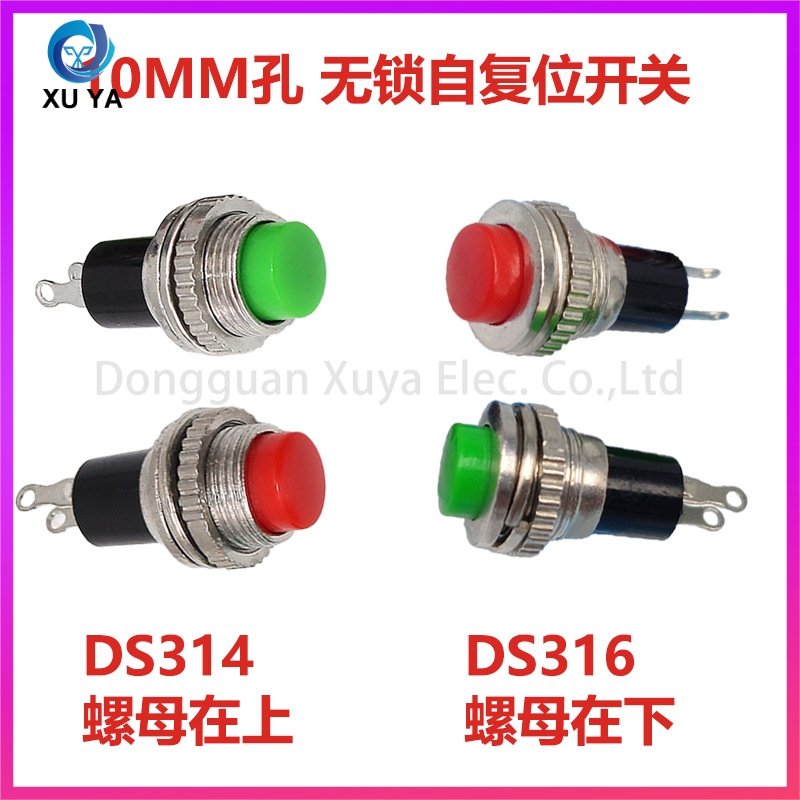

Q1：DS314 和 DS316 主要区别是什么？
A1：DS314 螺母在上，DS316 螺母在下，安装朝向不同。
Q1: What is the difference between DS314 and DS316?
A1: DS314 nut on top, DS316 nut at bottom, different installation direction.
Q2：面板开孔尺寸是多少？
A2：标准面板开孔直径 10mm。
Q2: What is the panel mounting hole size?
A2: Standard mounting hole diameter 10mm.
Q3：开关工作模式？
A3：无锁自复位点动，支持常开按通、常闭按断两种。
Q3: Switch operation mode?
A3: Momentary type, NO (normally open) and NC (normally closed) optional.
Q4：按钮帽可选颜色有哪些？
A4：红色、绿色、蓝色、黑色、白色多种颜色可选。
Q4: What cap colors are available?
A4: Red, green, blue, black, white optional.
Q5：常规交期多久？
A5：现货 3-5 天，定制订单 7-12 天。
Q5: What is the normal lead time?
A5: Stock items:3-5 days, customized orders:7-12 days.
