M12×1.0 六角螺纹 NTC 温度传感器

M12×1.0 六角螺纹 NTC 温度传感器 10K/50K/100K B3950
M12×1.0 Hex Thread NTC Temp Sensor 10K/50K/100K B3950

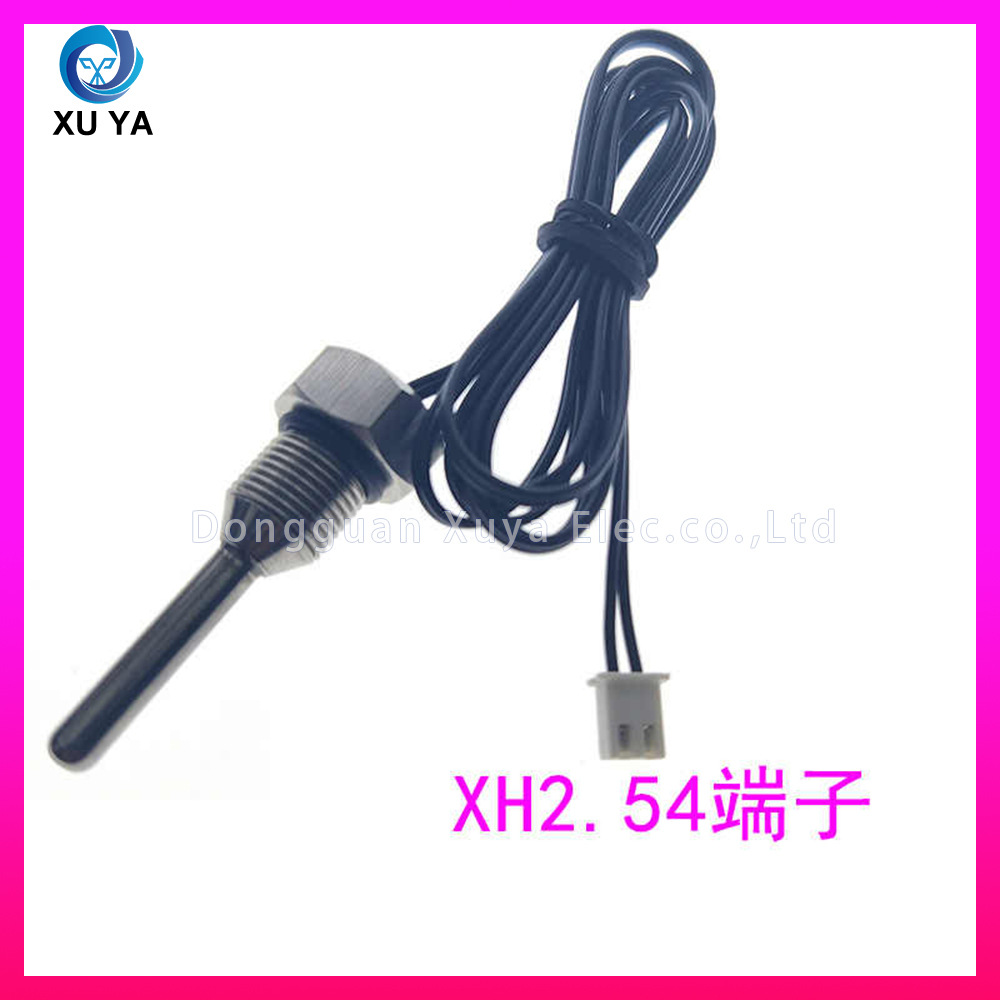

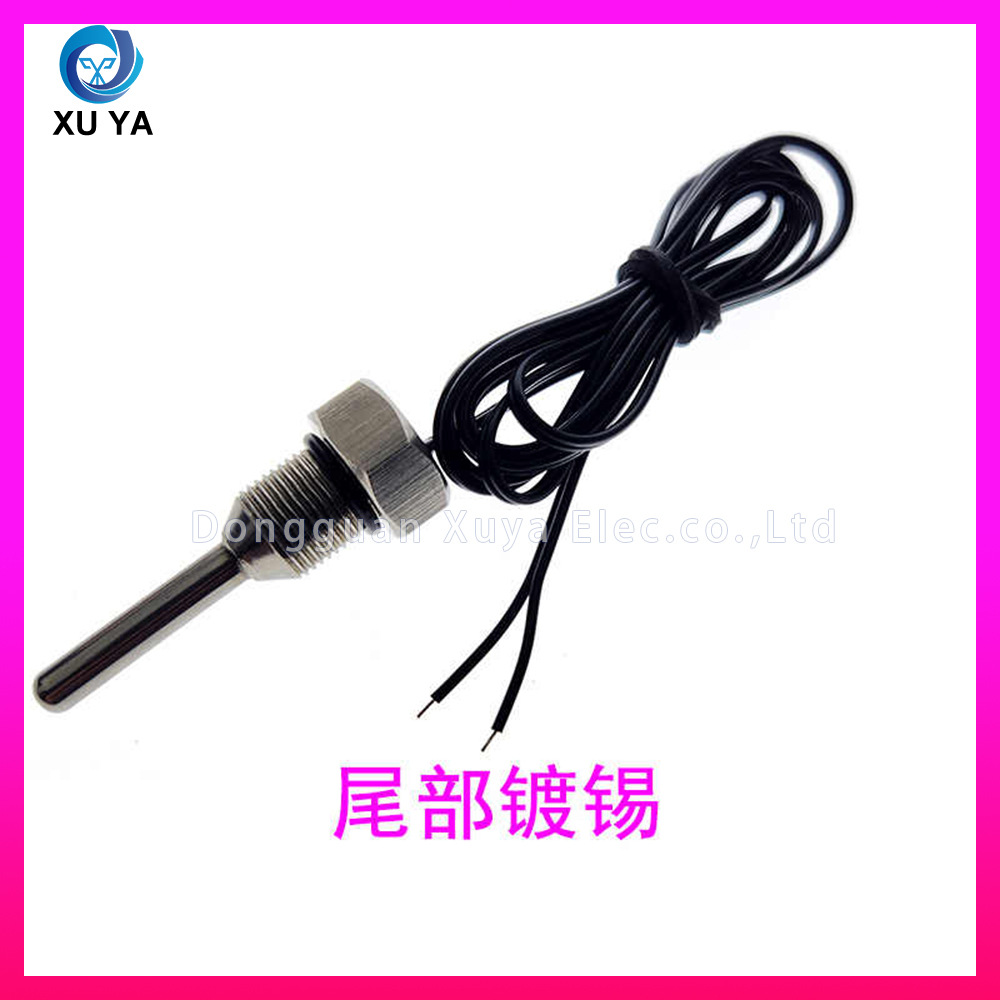

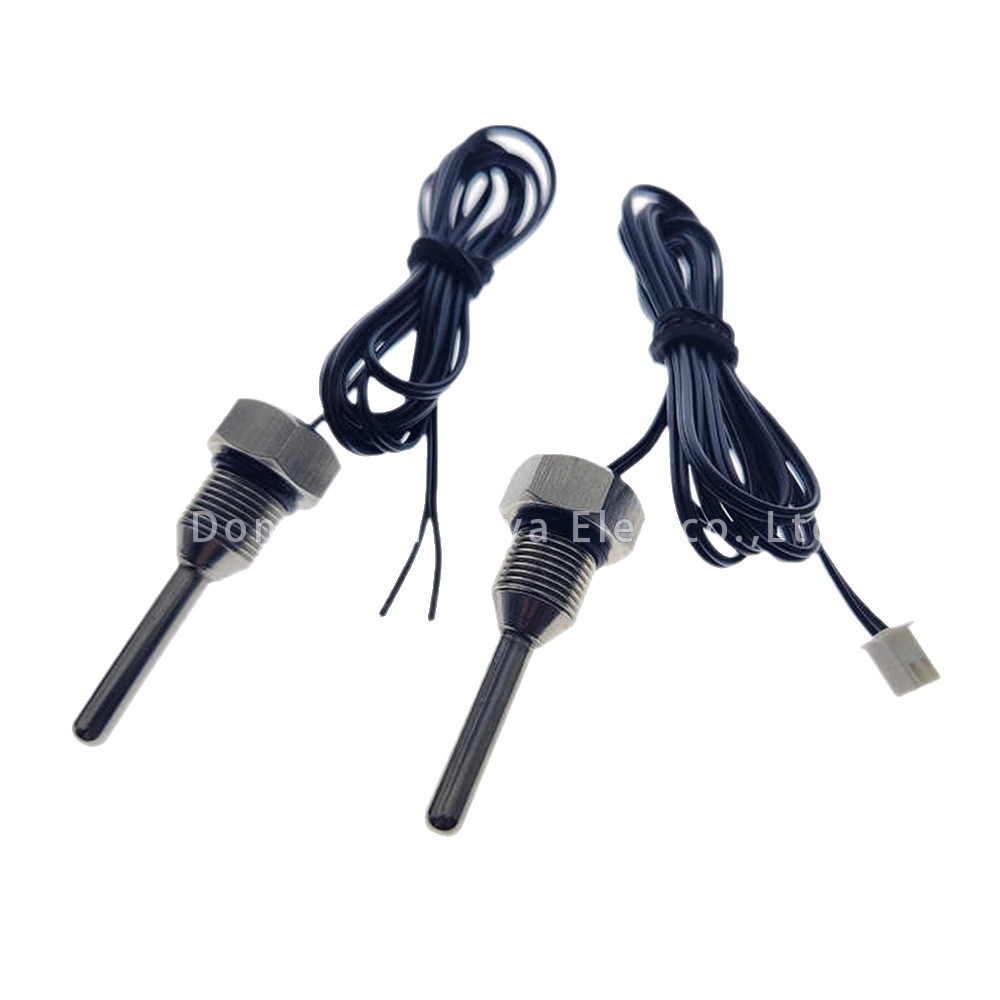

        M12 螺纹固定式 NTC 热敏电阻温度传感器，探头一体不锈钢六角螺纹结构，螺纹规格 M12，牙距 1.0mm，两种出线款式可选：裸线剥皮出线、白色 2P 塑胶端子出线；整线采用黑色耐高低温 PVC 绝缘线材，耐弯折、防水绝缘；内置 NTC 热敏电阻，阻值可选 10K、50K、100K，标准 B 值 3950，测温精度 ±1%；六角螺纹可直接拧入水箱、管道、锅炉预留螺纹孔，安装密封牢固不漏水，导热速度快；常规现货线长 0.5m/1m/2m/3m，可按需定制特殊线长、螺纹规格、阻值 B 值；广泛用于壁挂炉、热水锅炉、管道水温、储能水箱、工业流体温控设备温度采集；标准整箱 700PCS，现货交期 2-3 个工作日，支持定制螺纹尺寸、线长、端子、电阻参数，源头线束工厂批量供货。

       M12 thread fixed NTC thermistor temperature sensor. The probe is integrated stainless steel hex thread structure, thread specification M12 with 1.0mm pitch. Two wire outlet types are optional: stripped bare wire and white 2P plastic terminal. The whole cable adopts black high & low temperature resistant PVC insulated wire, bending resistant, waterproof and insulated. Built-in NTC thermistor with optional resistance values:10K,50K,100K, standard B-value 3950, temperature tolerance ±1%. Hex thread can be directly screwed into reserved threaded holes of water tanks, pipelines and boilers for tight sealed installation without water leakage and fast heat conduction. Standard stock wire lengths:0.5m/1m/2m/3m, custom special wire length, thread specification, resistance and B-value are available. Widely used for temperature detection of wall-hung boilers, hot water boilers, pipeline water temperature, energy storage water tanks and industrial fluid temperature control equipment. 700 pieces per export carton, stock lead time 2-3 working days. Custom thread size, wire length, terminal and resistance parameters are supported, factory provides mass customized wiring harnesses.

Q1. 规格 Spec 这款 M12 螺纹 NTC 温度传感器标准结构与电气规格是什么？

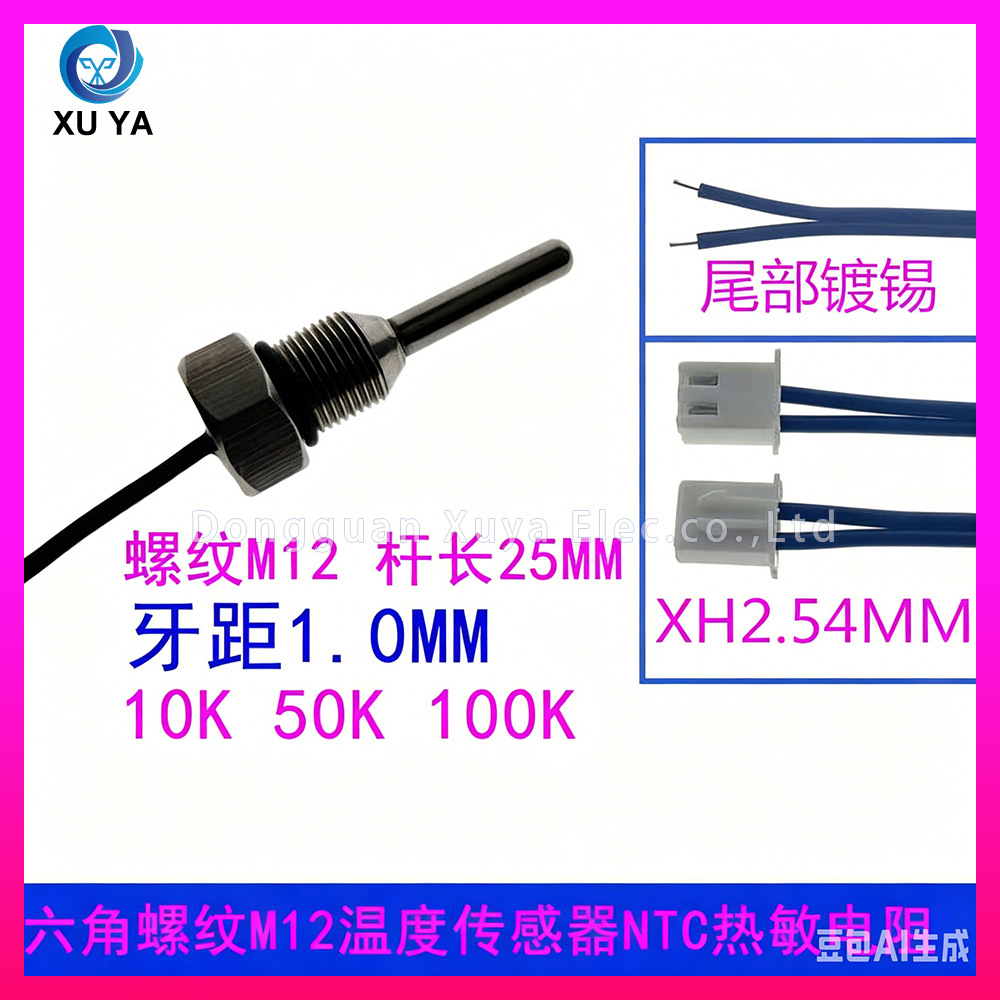

不锈钢六角螺纹 M12×1.0，阻值可选 10K/50K/100K，B 值 3950，精度 ±1%；出线分裸线、2P 白色塑胶端子两款。
What are the standard structural and electrical specifications of this M12 thread NTC temperature sensor?
Stainless steel hex thread M12×1.0, optional resistance 10K/50K/100K, B-value 3950, tolerance ±1%; two outlet types: bare stripped wire and 2P white plastic terminal.

Q2. 颜色材质 Color & Material 螺纹探头、线材、端子分别是什么材质与颜色？
测温螺纹探头银色不锈钢金属；引线黑色耐温 PVC 绝缘线材；配套端子为白色硬质塑胶材质。
What material and color for threaded probe, wire and terminal?
Silver stainless steel metal threaded temperature probe; black temperature-resistant PVC insulated lead wire; matching terminals are white hard plastic material.

Q3. 引线长度 Wire Length M12 螺纹 NTC 热敏电阻常规现货线长有哪些，是否支持定制长度？
常备现货长度 0.5 米、1 米、2 米、3 米，可根据客户需求任意定制其他特殊线材长度。
What standard stock wire lengths are available for this M12 thread NTC thermistor? Is custom wire length supported? Standard stock lengths are 0.5m,1m,2m,3m. Any special wire length can be arbitrarily customized according to customer requirements.

Q4. 用途 Application M12 螺纹 NTC 温度传感器适配哪些设备，实现什么功能？
适配壁挂炉、热水锅炉、储热水箱、管道流体、工业循环温控设备；通过螺纹密封安装，精准检测水 / 流体温度，实现恒温控制与过热保护。
What equipment is this M12 thread NTC temperature sensor compatible with, and what function can it realize?
It fits wall-hung boilers, hot water boilers, heat storage water tanks, pipeline fluids and industrial circulation temperature control equipment. It is installed via threaded seal to accurately detect water/fluid temperature for constant temperature control and overheat protection.

Q5. 装箱数量 Carton Qty 这款 M12 六角螺纹 NTC 温度探头标准出口纸箱一箱可装多少条？
标准出口纸箱每箱 700PCS，线材统一捆扎，不锈钢螺纹探头分层隔离，避免运输磕碰划伤螺纹、端子破损。
How many pieces of this M12 hex thread NTC temperature probe can be packed in one standard export carton?
700 pieces per export carton. All wires are bundled uniformly, stainless steel threaded probes are layered separated to prevent thread scratches and terminal damage caused by collision during transportation.
