U 型叉形耳片 NTC 温度传感器 裸线款

U 型叉形耳片 NTC 温度传感器 裸线款
U Fork Lug NTC Temperature Sensor Bare Wire Type

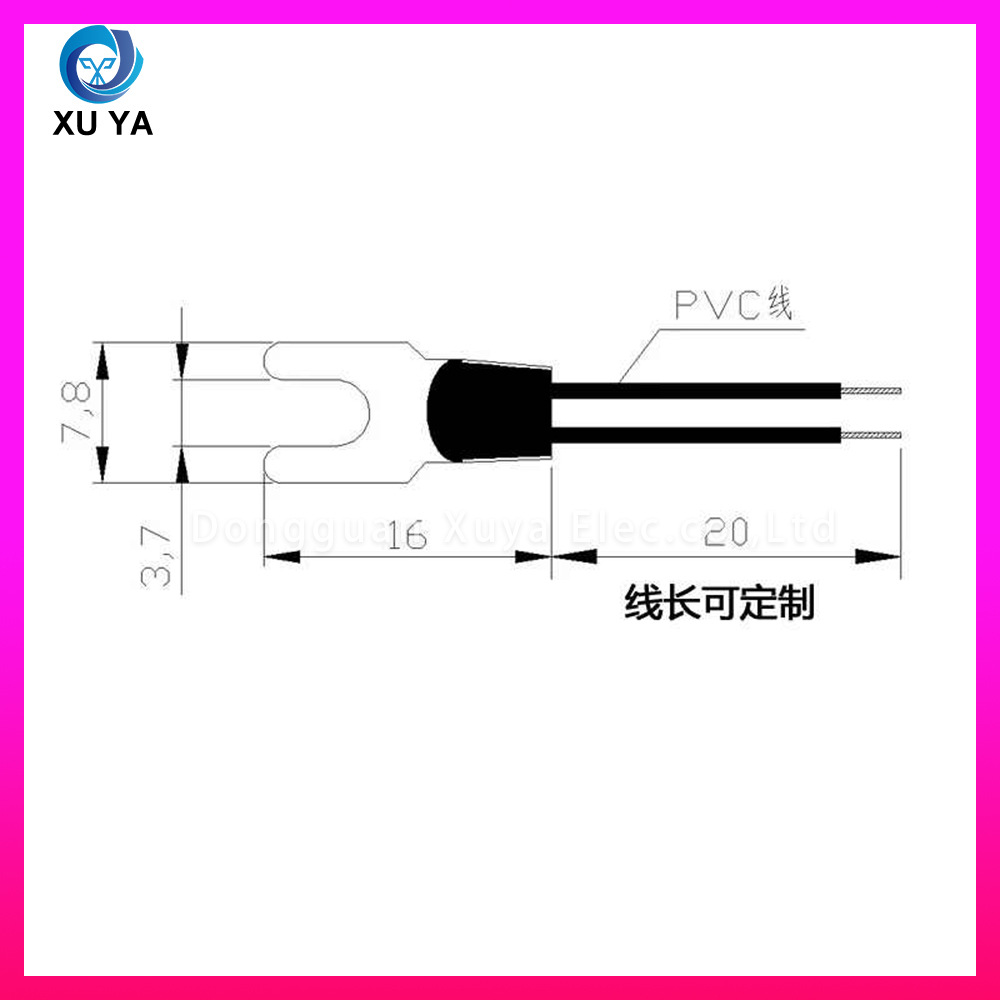

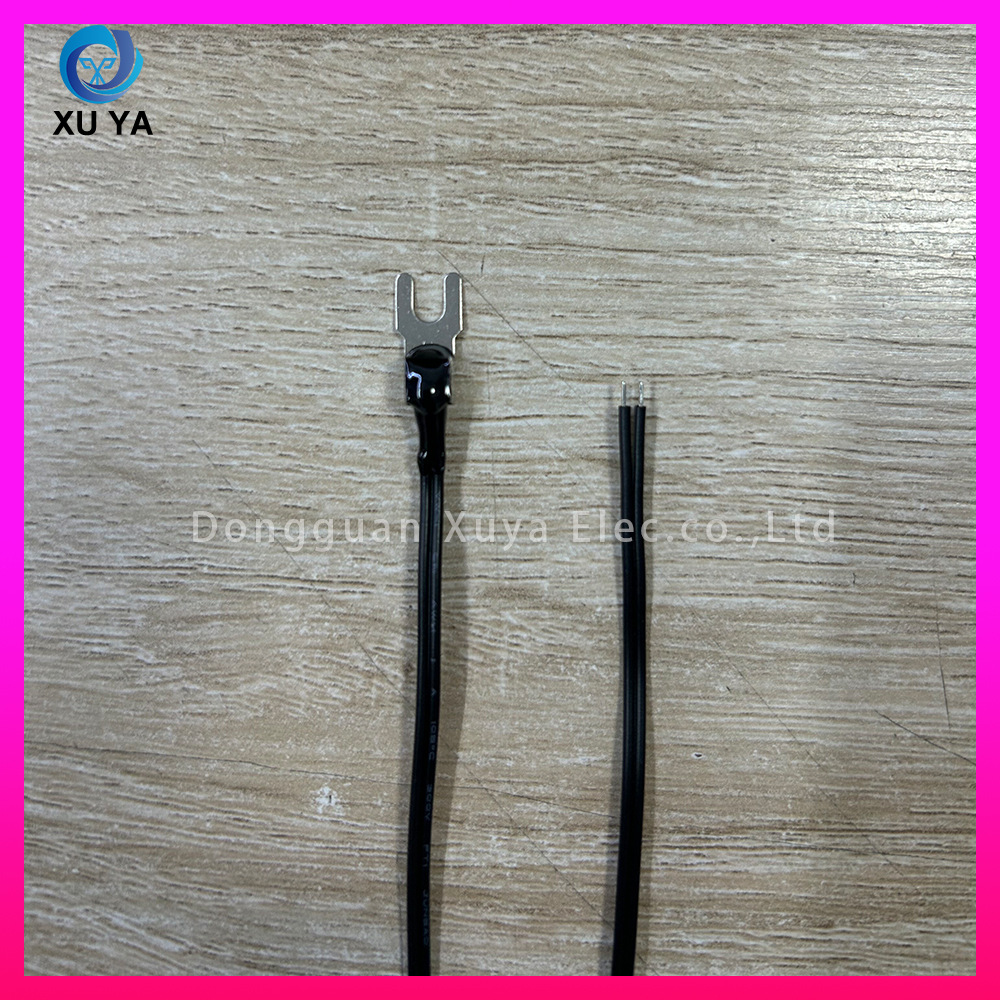

        U 型叉形开口金属耳片 NTC 温度传感器，前端一体冲压成型不锈钢 U 型叉耳，开口式结构可直接卡入螺栓快速锁紧，无需拆卸螺母，安装便捷；内置 NTC 热敏测温元件，金属耳片贴合金属发热面接触面积大，导热快、测温响应灵敏；线材为黑色耐温 PVC 绝缘导线，末端裸线镀锡处理，便于客户直接焊接至 PCB 电路板；标准电气参数 10K@25℃、B 值 3950，精度可选 1%/3%/5%；现货常规线长 0.5m/1m，支持叉耳开口尺寸、线长、阻值、B 值全参数 OEM 定制，适配变频器、电机、功率模块、储能设备金属表面快速测温。
        U-shaped fork open metal lug NTC temperature sensor. The front end is integrally stamped stainless steel U fork lug. The open structure can be directly clipped into bolts for fast locking without removing nuts for easy installation. Built-in NTC thermistor temperature measuring element, the metal lug fits the metal heating surface with large contact area, fast heat conduction and sensitive temperature response. The wire adopts black high temperature resistant PVC insulated cable, with tinned bare wire at the end for customers to solder directly to PCB circuit boards. Standard electrical parameters: 10K resistance at 25℃, B value 3950, tolerance optional 1%/3%/5%. Standard stock wire lengths are 0.5m/1m. Full parameter OEM customization including fork opening size, wire length, resistance and B value is supported, suitable for rapid temperature measurement on metal surfaces of frequency converters, motors, power modules and energy storage equipment.

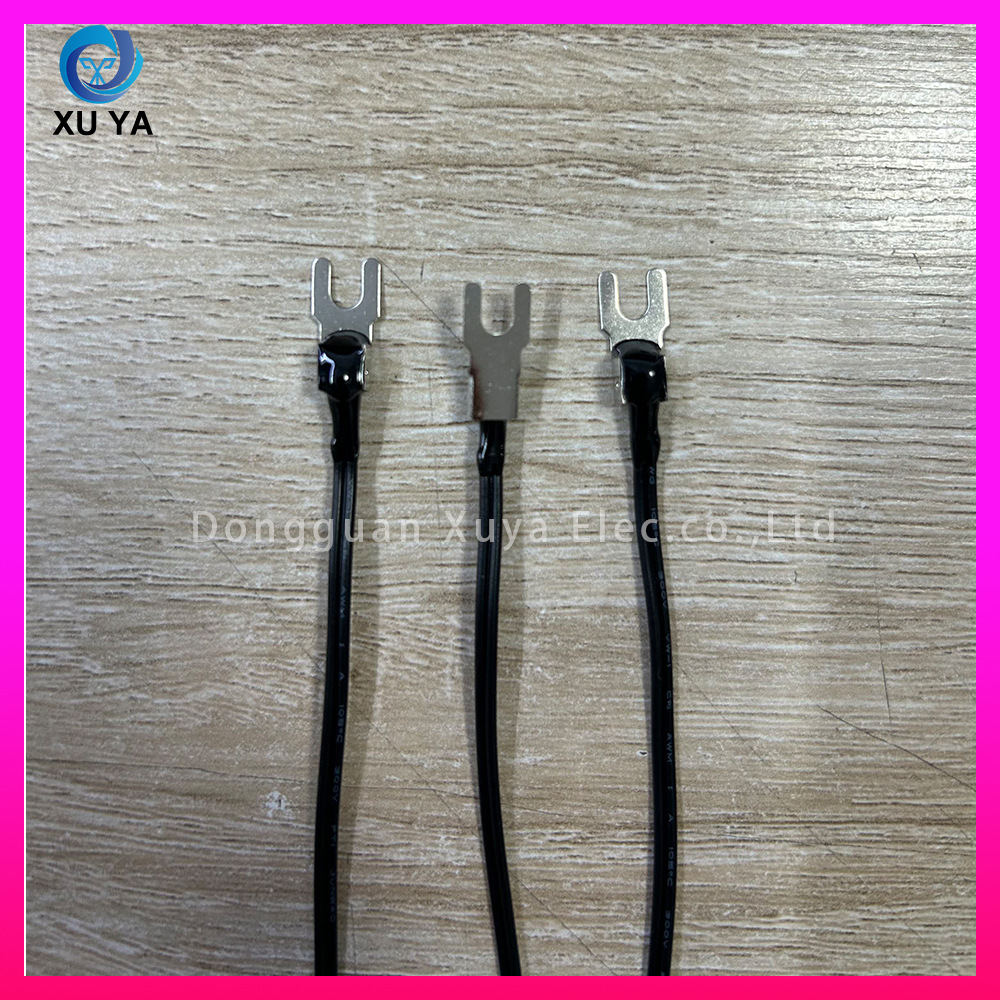

Q1：U 型叉形开口耳片探头相比圆孔耳片有什么结构优势？
U 型开口叉耳为开放式结构，安装时无需完全拧下设备固定螺栓、螺母，直接将叉口卡入螺杆后拧紧螺母即可完成固定，拆装检修效率更高；一体冲压不锈钢材质平整度高，贴合金属发热面无导热空隙；金属防锈耐腐蚀，适配工业油雾、潮湿工况；套管与叉耳压合加固，反复弯折不易开裂断线。
What structural advantages does the U-shaped fork open lug probe have compared with round hole lugs?
The U-shaped open fork lug adopts an open structure. During installation, there is no need to completely unscrew the equipment fixing bolts and nuts. Just clip the fork opening into the screw rod and tighten the nut to complete fixation, with higher disassembly and maintenance efficiency. The integrally stamped stainless steel has high flatness, fitting tightly to metal heating surfaces without heat transfer gaps. The metal material is rust and corrosion resistant, suitable for industrial environments with oil mist and humidity. The crimp joint between sleeve and fork lug is reinforced to prevent cracking and wire breakage after repeated bending.

Q2：线材与出线末端支持哪些定制规格？
线材统一黑色耐温 PVC 护套，长期耐温区间 - 20℃~105℃；末端标准为裸线镀锡，无塑胶端子，可按需更换 XH/PH/ZH 系列塑胶端子、杜邦插头；现货常备线长 0.5m/1m，0.3m~3m 任意总长、铜丝粗细线芯均可定制；护套可改白色、灰色等其他绝缘配色。
What customizable specifications are supported for wires and wire ends?
All wires are covered with black high temperature resistant PVC jacket with long-term temperature resistance from -20℃ to 105℃. The standard wire end is tinned bare wire without plastic terminals, which can be replaced with XH/PH/ZH series plastic terminals or DuPont plugs as required. Standard stock wire lengths include 0.5m/1m, any total length from 0.3m to 3m and copper wire core thickness can be customized. The jacket color can be changed to white, gray and other insulating colors.

Q3：U 叉耳 NTC 温度传感器核心电气参数可定制范围？
全电气参数支持定制，现货标准参数：25℃阻值 10K，B 值 3950，精度 5%；阻值覆盖 1K~200K 全区间；B 值可选 3435/3977/4100/4200；精度分高精度 1%、常规 3%、经济型 5%；同时可调整 U 型叉耳开口宽度、耳片厚度、金属套管直径尺寸。
What is the customizable range of core electrical parameters for U-fork lug NTC temperature sensors?
Full electrical parameter customization is supported. Standard stock parameters: resistance 10K at 25℃, B value 3950, tolerance 5%. Custom resistance covers full range from 1K to 200K; optional B values include 3435/3977/4100/4200; tolerance grades: high precision 1%, standard 3%, economy 5%. The opening width of U-shaped fork lug, lug thickness and metal sleeve diameter size can also be adjusted.

Q4：U 型叉耳 NTC 温度传感器适配哪些测温场景与设备？
1. 工业工控设备：变频器、伺服电机外壳、功率半导体模块、开关电源散热铝片； 2. 新能源储能设备：储能锂电池 PACK、充电桩散热基板、逆变器金属壳体； 3. 流体换热设备：空压机、液压油箱、金属换热管道外壁； 4. 大功率暖通家电：燃气壁挂炉、空气能热泵、采暖炉金属发热部件； U 型开口叉耳无需拆卸螺栓即可快速卡装固定，适合设备批量装配、频繁检修测温场景。
What temperature measurement scenarios and equipment are U-fork lug NTC temperature sensors suitable for?

1. Industrial control equipment: frequency converters, servo motor shells, power semiconductor modules, switching power supply heat dissipation aluminum sheets;
2. New energy storage equipment: energy storage lithium battery PACK, charging pile heat dissipation substrate, inverter metal shell;
3. Fluid heat exchange equipment: air compressors, hydraulic oil tanks, outer walls of metal heat exchange pipes;
4. High-power heating and cooling home appliances: gas wall-hung boilers, air-source heat pumps, metal heating parts of heating furnaces. The U-shaped open fork lug can be quickly clipped and fixed without disassembling bolts, suitable for mass equipment assembly and temperature measurement scenarios requiring frequent maintenance.

Q5：现货订单、全规格定制 OEM 交期以及标准装箱数量是多少？

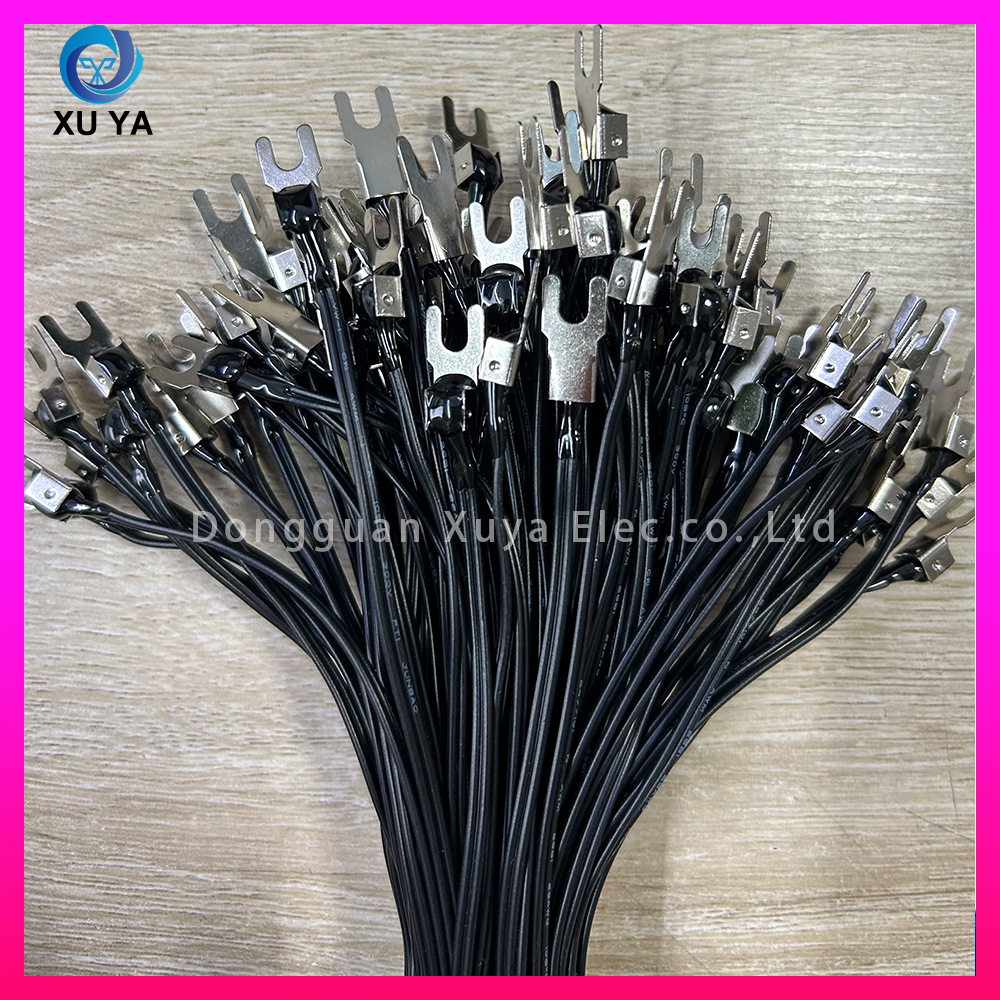

标准叉耳尺寸、10K 标准阻值现货订单 3 个工作日内完成发货；叉耳开口尺寸、线长、阻值、端子全规格定制 OEM 批量订单交期 5-8 个工作日；单支独立中性塑料袋分装，标准出口纸箱每箱 9000PCS。
What are the delivery time for stock orders, lead time for fully customized OEM orders and standard packing quantity?
In-stock orders with standard fork lug size and 10K standard resistance will be shipped within 3 working days. Bulk OEM orders with fully customized fork opening size, wire length, resistance and terminal take 5-8 working days. Each sensor is packed in independent neutral polybag, 9000 PCS per standard export carton.
