双款式 NTC 温度传感器

颜色：
重量：
长度：
产品描述：双款式 NTC 温度传感器铜圆柱 / 水滴胶头 XH 端子黑色阻燃引线 Dual Style NTC Temp Sensor Copper Cylinder / Water Drop Epoxy Head XH Terminal Black Flame Retardant Wire 提供两种探头可选：不锈钢铜头圆柱探头...

在线购买

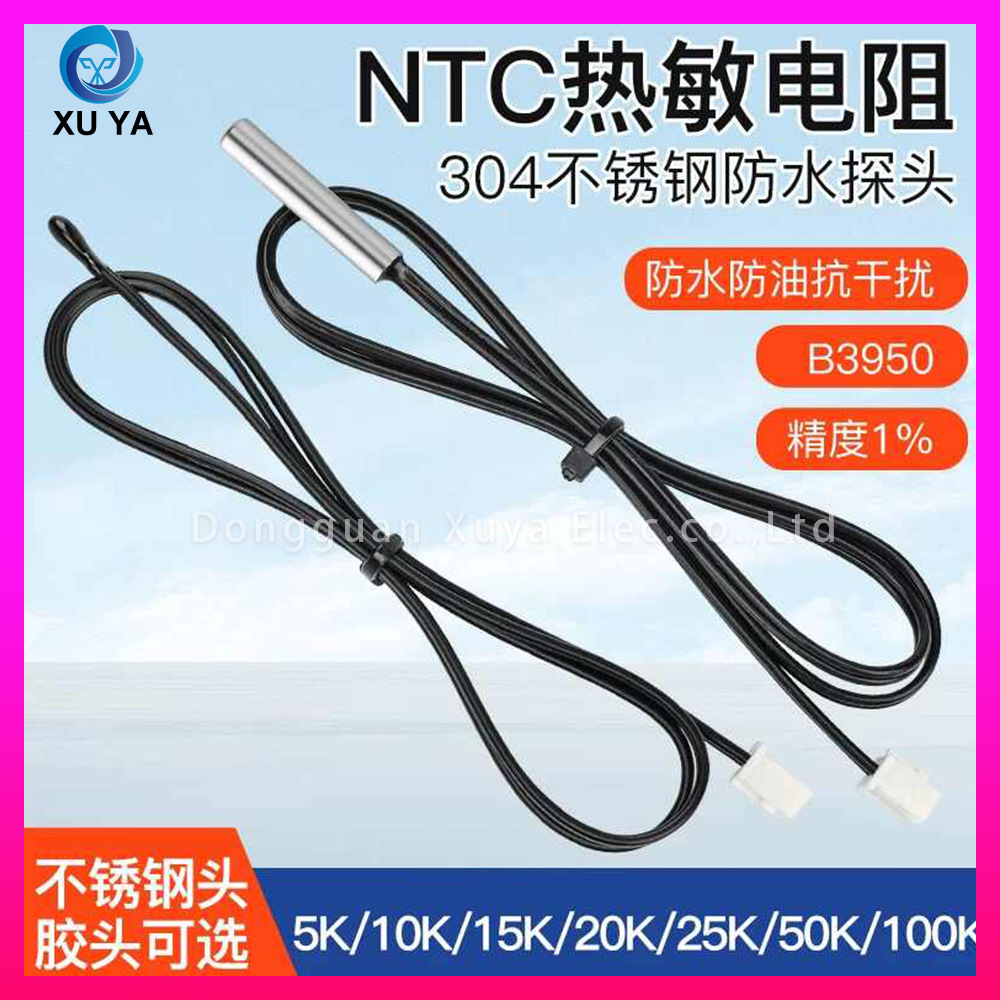

双款式 NTC 温度传感器铜圆柱 / 水滴胶头 XH 端子黑色阻燃引线
Dual Style NTC Temp Sensor Copper Cylinder / Water Drop Epoxy Head XH Terminal Black Flame Retardant Wire

提供两种探头可选：不锈钢铜头圆柱探头导热快测温精准；水滴环氧胶头耐腐蚀稳定性高；黑色绝缘阻燃 PVC 引线，末端配 XH 塑胶直插端子，远距离测温装配便捷；标准参数 10K B3950，探头尺寸、线长、阻值、端子均可定制，适配家电、工控、暖通各类设备测温。
Two optional probe types: stainless steel copper cylinder probe delivers fast heat conduction and accurate temperature reading; water drop epoxy head features corrosion resistance and high stability; black flame-retardant insulated PVC wire equipped with XH pluggable plastic terminal for convenient long-distance temperature measurement assembly; standard 10K B3950. Customizable probe size, wire length, resistance and terminals for temperature detection of home appliances, industrial control and HVAC equipment.

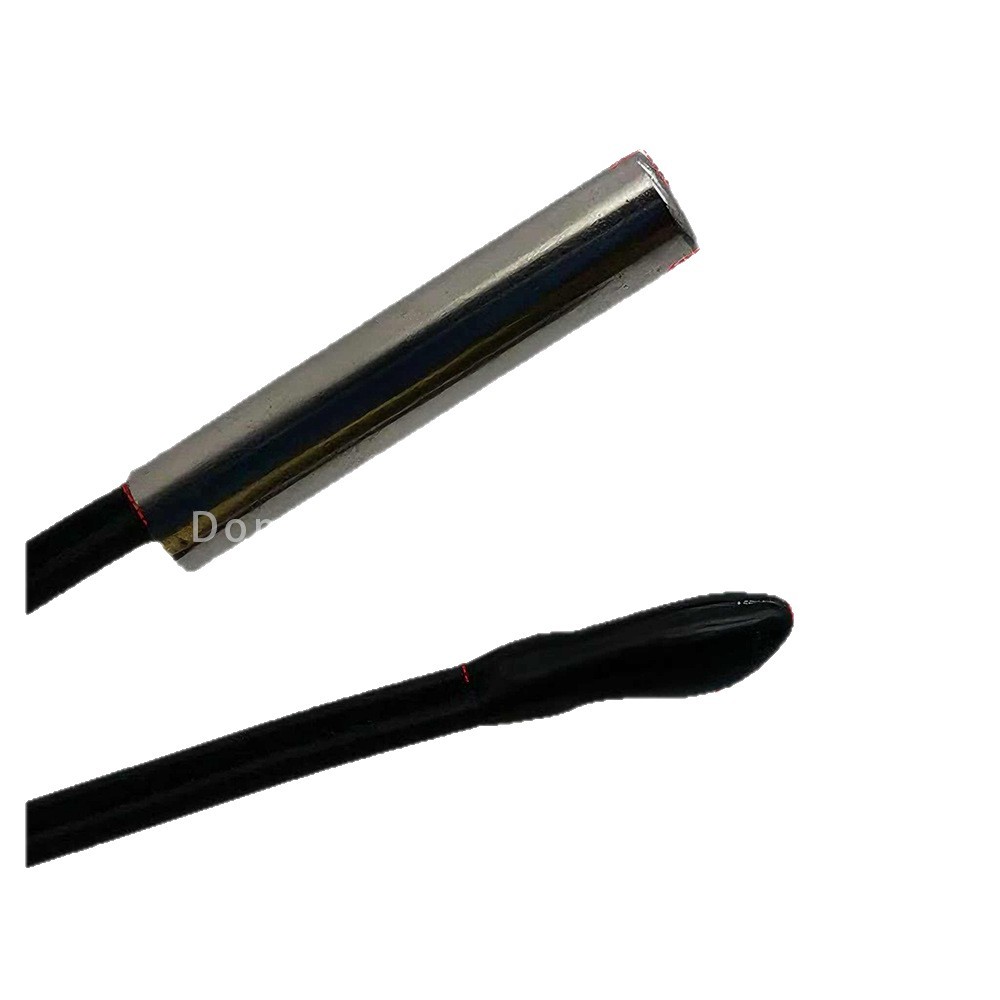

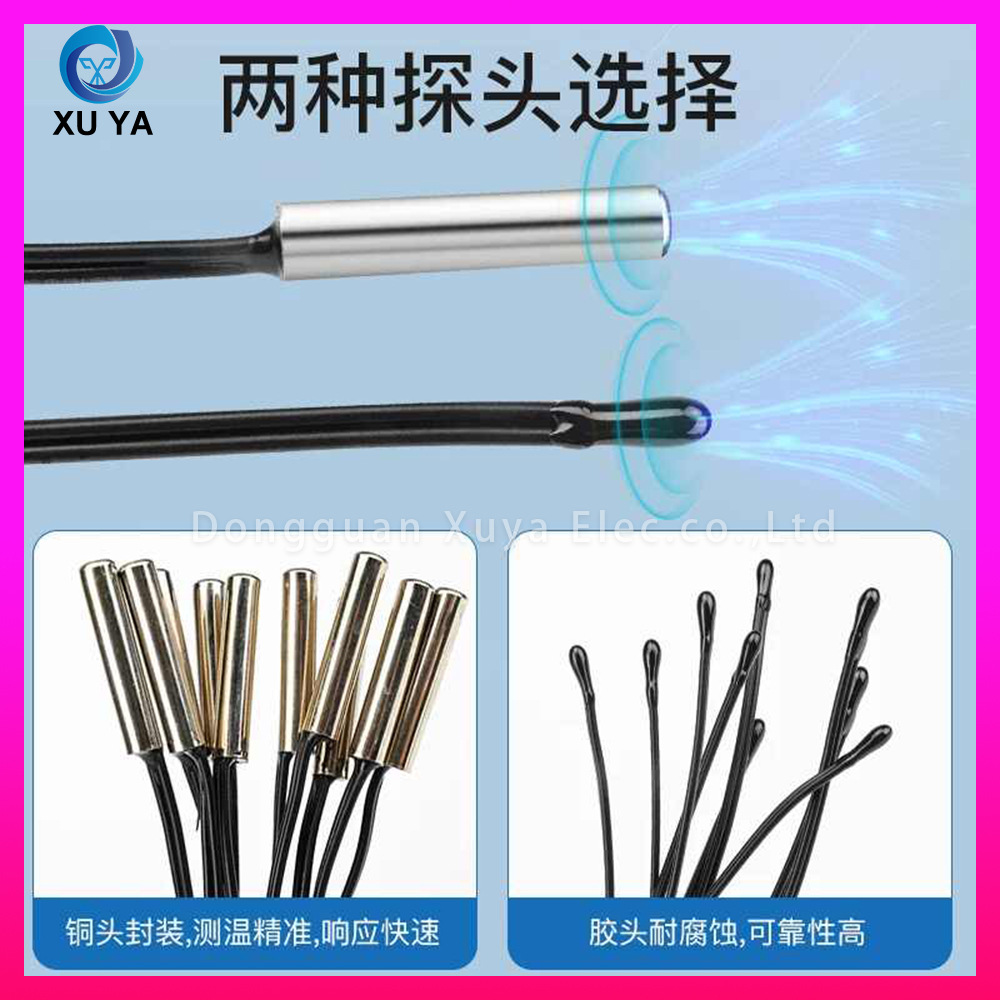

1. 探头优势
双封装方案灵活选型；金属圆柱密封防水，导热灵敏响应迅速；环氧水滴胶头耐酸碱潮湿，绝缘防护可靠，适配空气、液体多类测温环境。
Dual encapsulation options for flexible selection; sealed metal cylinder is waterproof with sensitive heat conduction and fast response; epoxy water drop head resists acid, alkali and moisture with reliable insulation protection, suitable for various air and liquid temperature measurement environments.

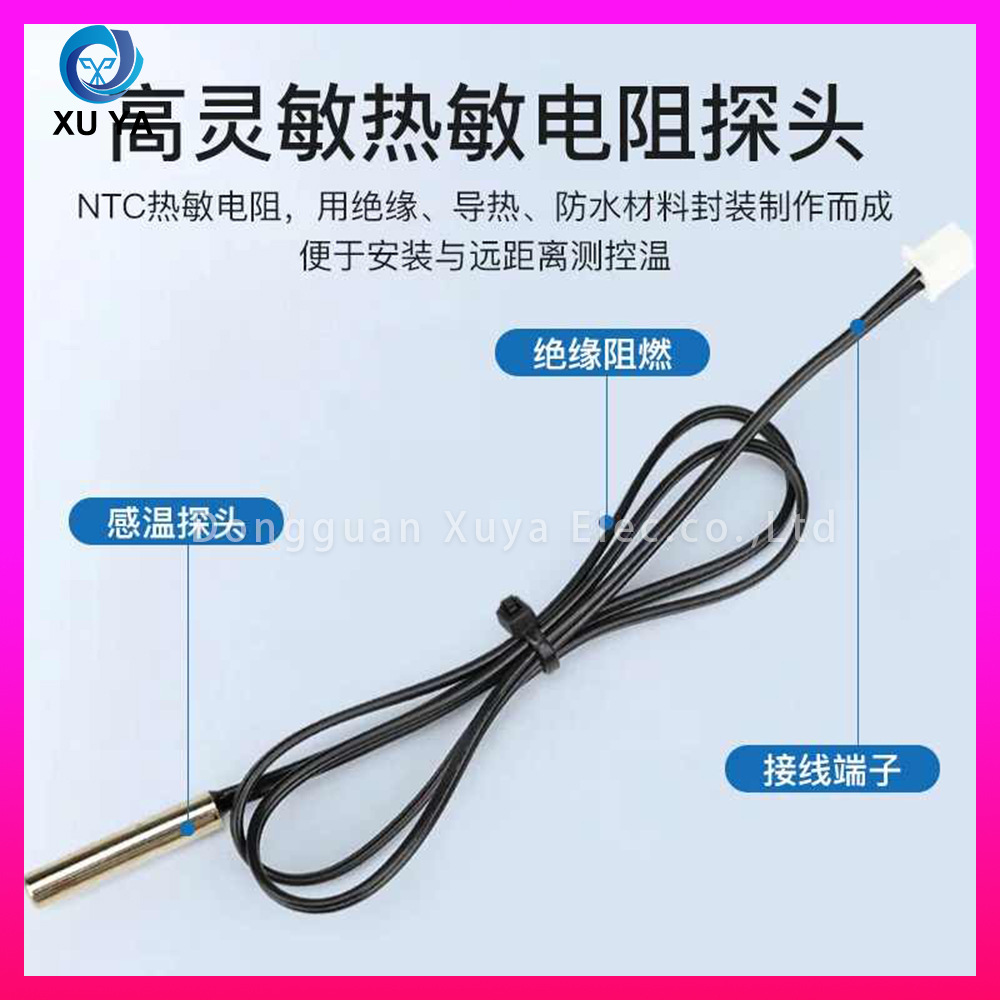

2. 引线末端优势
黑色阻燃绝缘线材，耐高温不易老化，安全系数高；配套通用 XH 插接端子，无需焊接，适配绝大多数温控主板，简化整机装配流程。
Black flame-retardant insulated wire features high temperature resistance and anti-aging property for high safety factor; matched universal XH plug terminal eliminates soldering, compatible with most temperature control mainboards to simplify machine assembly procedures.

3. 可定制范围

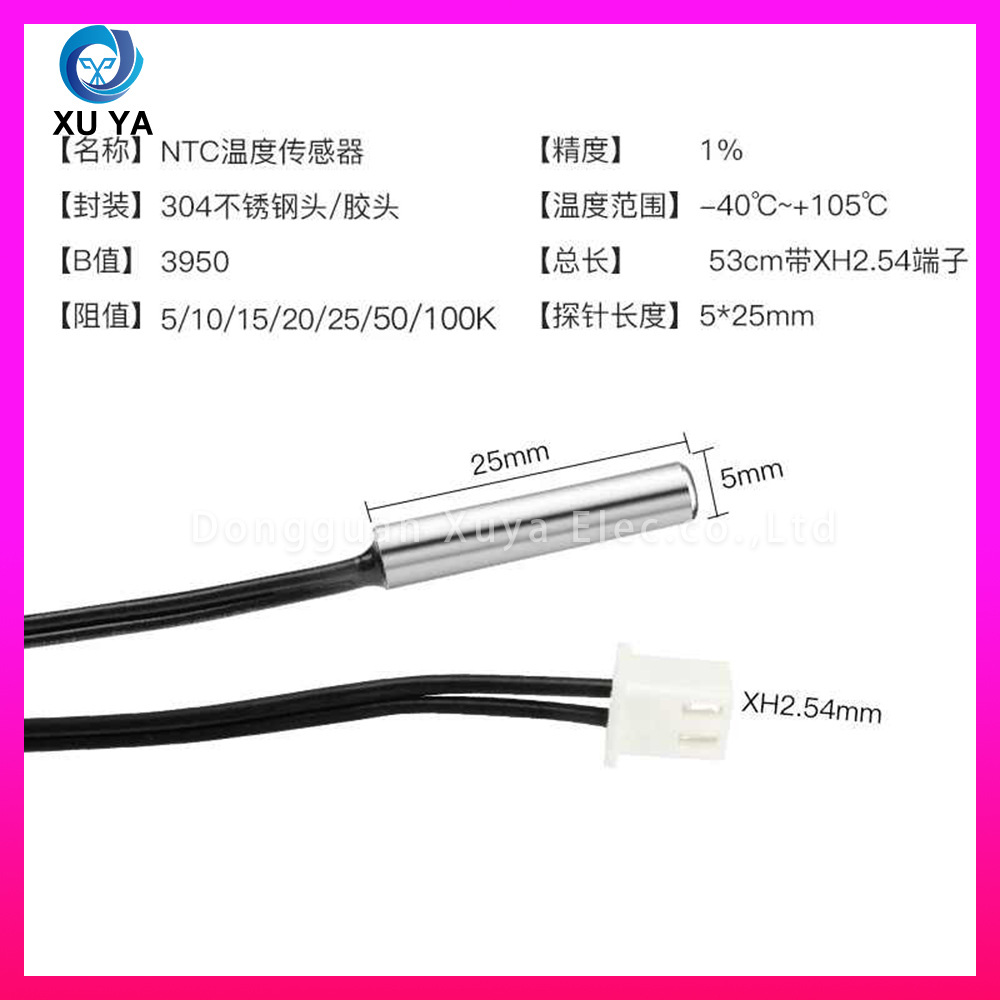

电气参数可改，阻值 1K~200K、B 值 3435/3950/4100、精度 1%/3%/5%；外形可改，圆柱管径长度、水滴头尺寸、线材总长、护套配色、末端各类塑胶端子。
Electric specs customizable, resistance 1K~200K, B value 3435/3950/4100, tolerance 1%/3%/5%; Shape customizable, cylinder diameter & length, water drop head size, total wire length, jacket color and various plastic terminals at wire ends.

4. 适用设备
适配壁挂炉、热水器、空压机、变频器、伺服电机、恒温机箱、除湿机、中央空调、小型电控设备。
Suitable for wall-hung boilers, water heaters, air compressors, inverters, servo motors, constant temperature chassis, dehumidifiers, central air conditioning and small electric control equipment.

5. 交期包装
现货 3 工作日发货；OEM 全规格定制 5~8 工作日；单支独立塑料袋分装，9200 支 / 箱。
Stock deliver in 3 workdays; OEM customization 5~8 workdays; single pack plastic bag, 9200PCS per carton.
