CCLINK 三菱总线通讯电缆
CCNC-SB110H Mitsubishi CCLINK Bus Communication Cable
核心要点
型号 CCNC-SB110H/FANC-110SBH，兼容三菱 CCLINK 现场总线设备

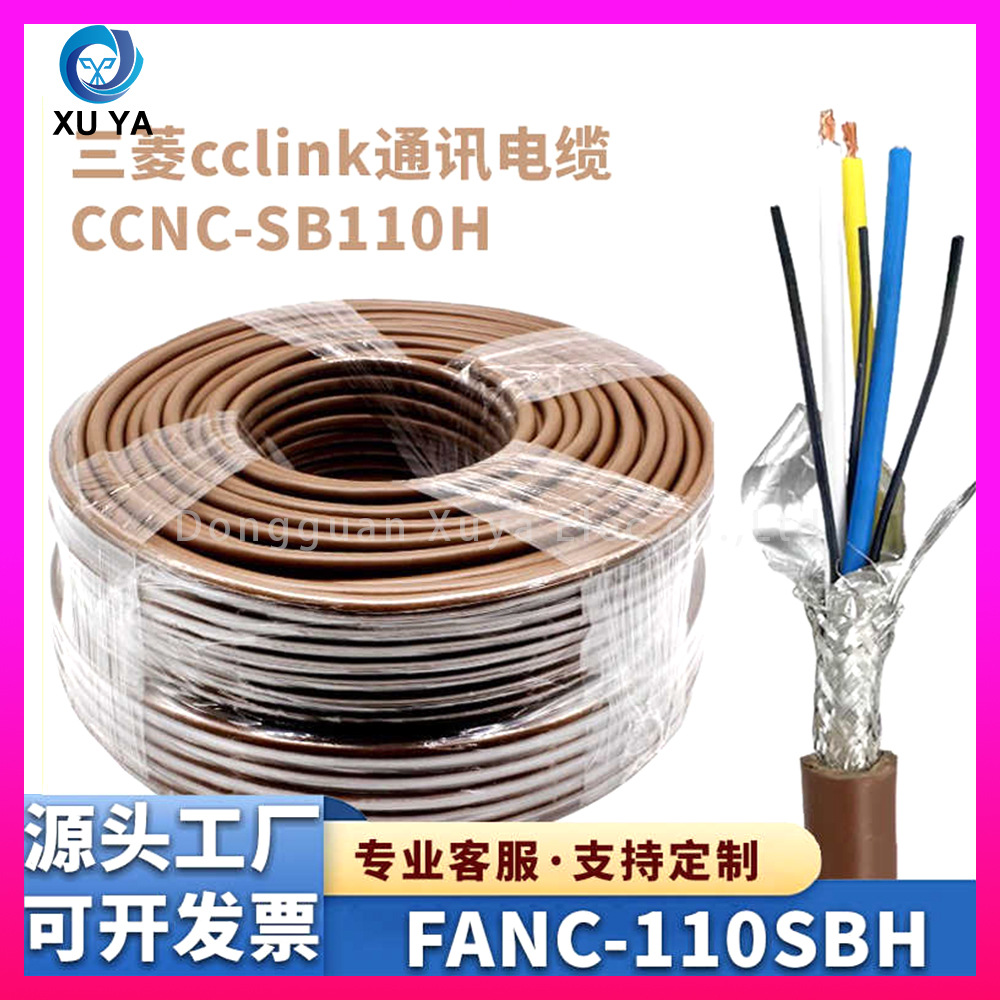

双差分信号线 + 双层屏蔽结构，传输稳定抗工业电磁干扰

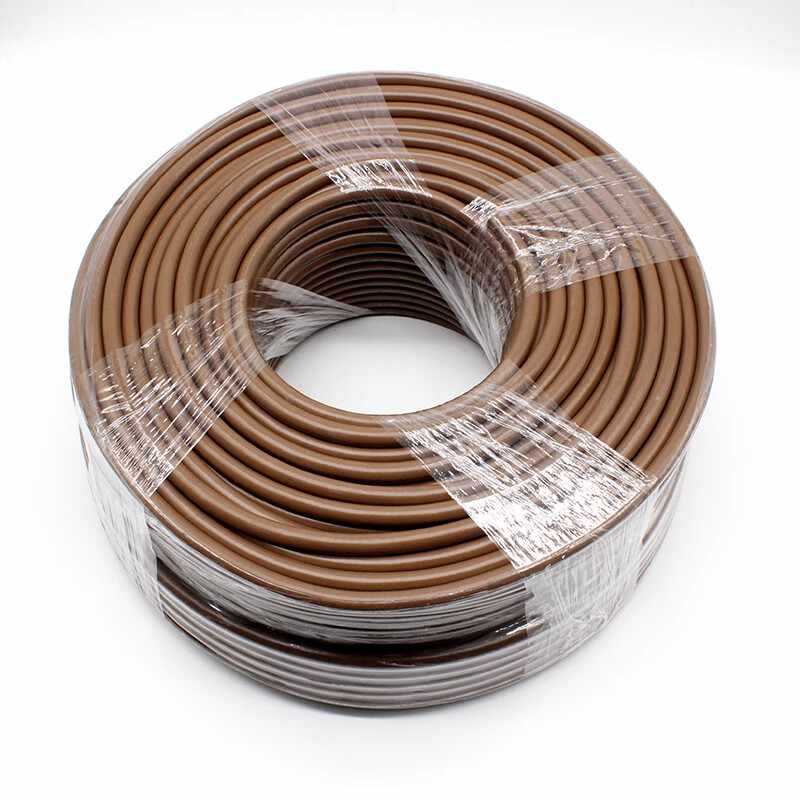

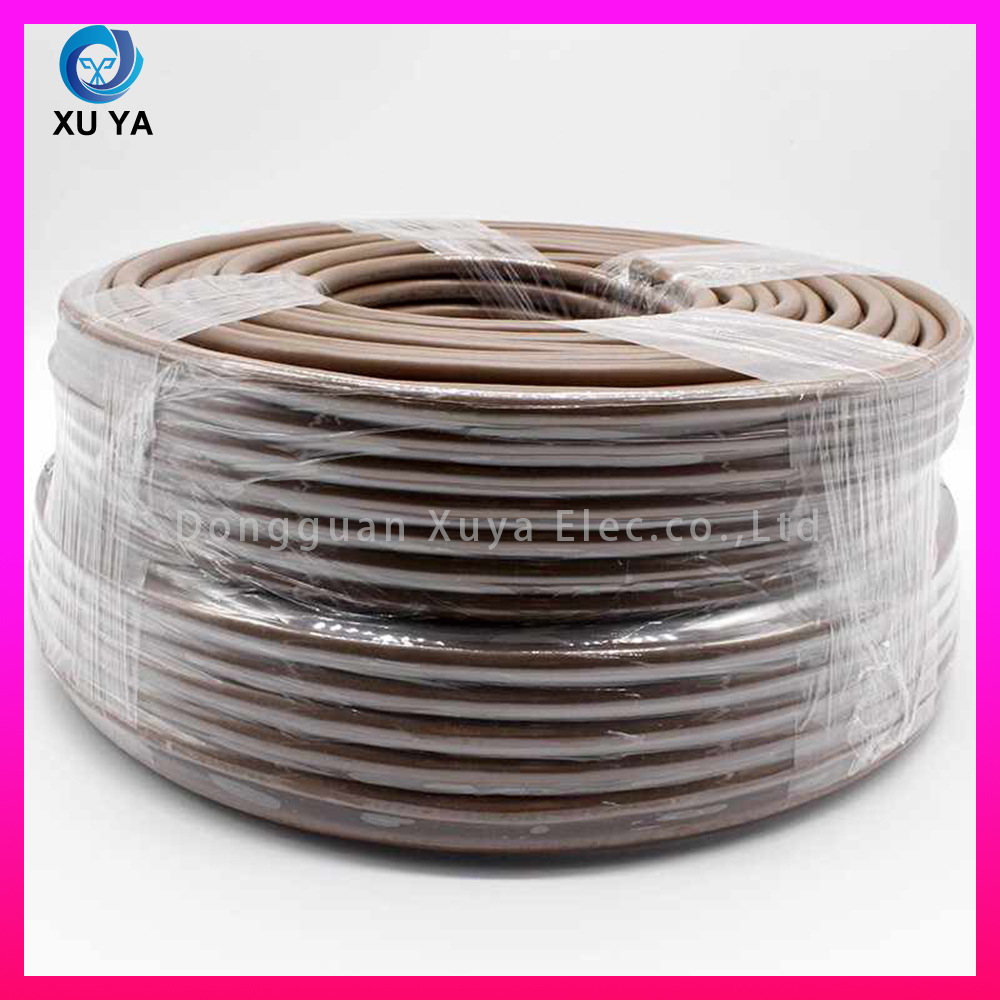

标准棕褐色工业外被，适配三菱 PLC、远程 IO、伺服组网通讯
对标日本太阳电缆标准，电气参数匹配原厂线缆，可直接替代
产品描述
中文：三菱 CCLINK 专用通讯线缆，型号 CCNC-SB110H，对标 FANC-110SBH 日本太阳电缆规格；内置差分通讯线芯搭配铝箔 + 铜网双层屏蔽，隔绝车间变频器、电机干扰，广泛用于三菱 PLC、远程 IO 模块、伺服驱动器 CCLINK 总线组网，支持按需裁切、加工成品通讯线束。
English: Special communication cable for Mitsubishi CCLINK, model CCNC-SB110H, conforms to Japanese Taiyo cable standard FANC-110SBH. Built-in differential cores with double shielding of aluminum foil and copper mesh to block EMI from inverters and motors. Widely used for CCLINK networking of Mitsubishi PLC, remote IO modules and servo drives. Custom cutting and finished communication harness processing are available.
1.Q：这款线缆可以直接替换三菱原装 CCLINK 电缆吗？
Q: Can this cable replace original Mitsubishi CCLINK cable directly?
A：参数完全对标原厂及太阳电缆 FANC-110SBH，兼容全系列三菱 CCLINK 总线设备。
A: Fully matched parameters with original cable and Taiyo FANC-110SBH, compatible with all Mitsubishi CCLINK devices.
2.Q：双层屏蔽结构对 CCLINK 通讯有什么作用？
Q: What is the function of double shielding for CCLINK communication?
A：双层屏蔽阻隔变频器、伺服电机产生的电磁杂波，避免总线掉线、通讯报错、数据传输异常。
A: Double shielding blocks EMI from inverters and servos to prevent bus disconnection, communication errors and abnormal data transmission.
3.Q：该线缆适配哪些三菱自动化设备？
Q: What Mitsubishi automation devices fit this cable?
A：三菱 Q/L/R 系列 PLC、远程 IO 模块、伺服驱动器、人机界面 CCLINK 总线组网。
A: Mitsubishi Q/L/R series PLC, remote IO modules, servo drives and HMI for CCLINK bus networking.
4.Q：线缆棕褐色外皮有什么特殊用途？
Q: What is the special purpose of the brown jacket?
A：棕褐色为 CCLINK 总线专用识别色，车间布线可快速区分 CCLINK 通讯线与其他动力、控制线。
A: Brown is exclusive identification color for CCLINK bus, convenient to distinguish CCLINK cable from power and control wires during wiring.
5.Q：整卷现货和定制成品线束发货周期？
Q: Lead time for full reel stock and custom finished harnesses?
A：标准整卷现货 1-2 天发出；按需裁切、压接总线接头成品线束交期 3-7 个工作日。
A: Standard full reel stocks ship in 1-2 days; custom cut harnesses with bus connectors take 3-7 working days.
