4.90mm 扁针千兆 RJ45 插座

源头厂家直供 4.90mm 扁针千兆 RJ45 插座 带 LED 指示灯以太网连接器
Direct Sales Gigabit RJ45 Network Jack with LED Indicator, Flat Pins 4.90mm Manufacturer

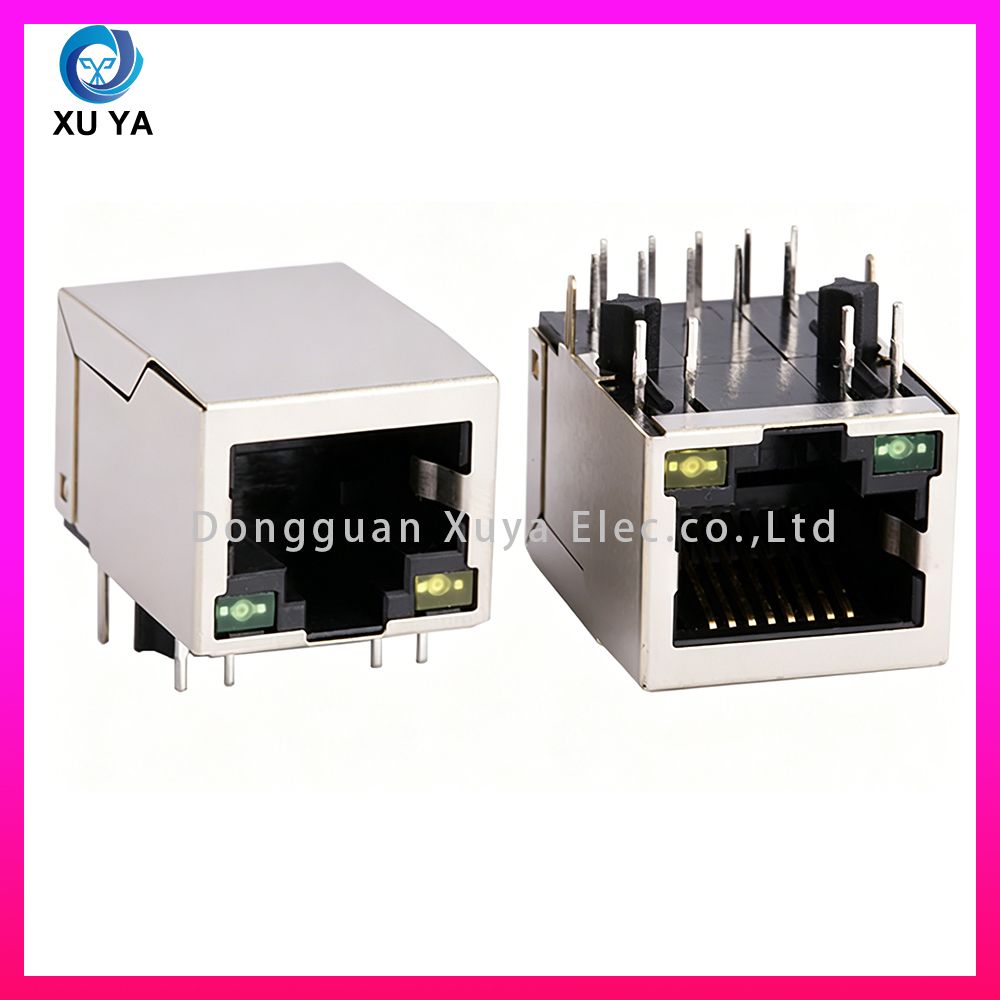

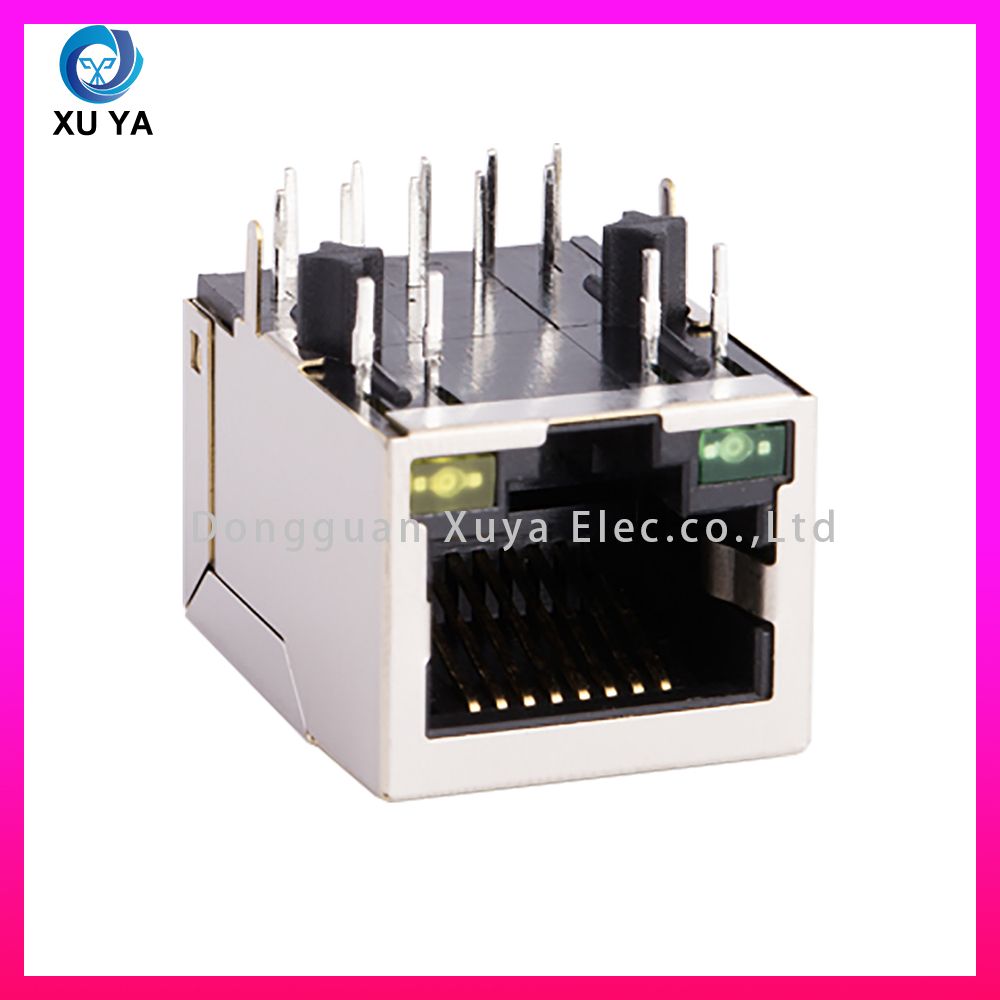

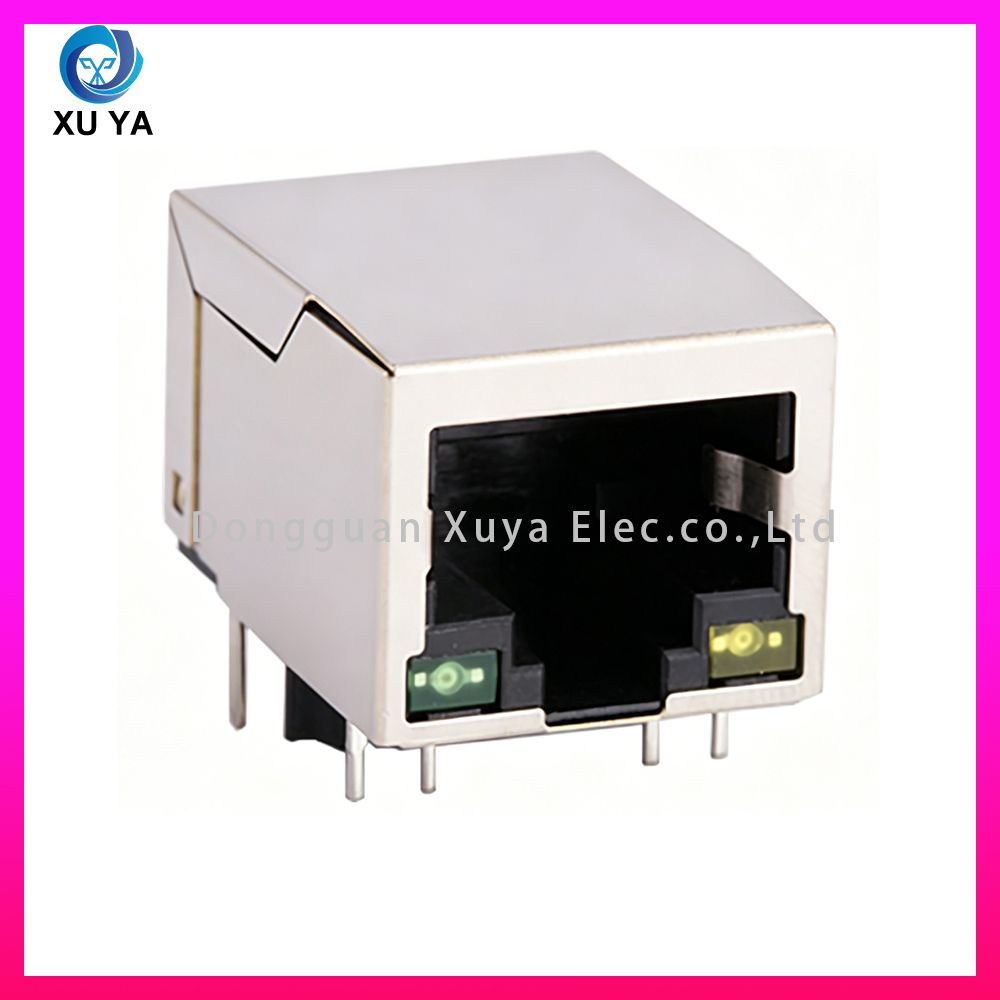

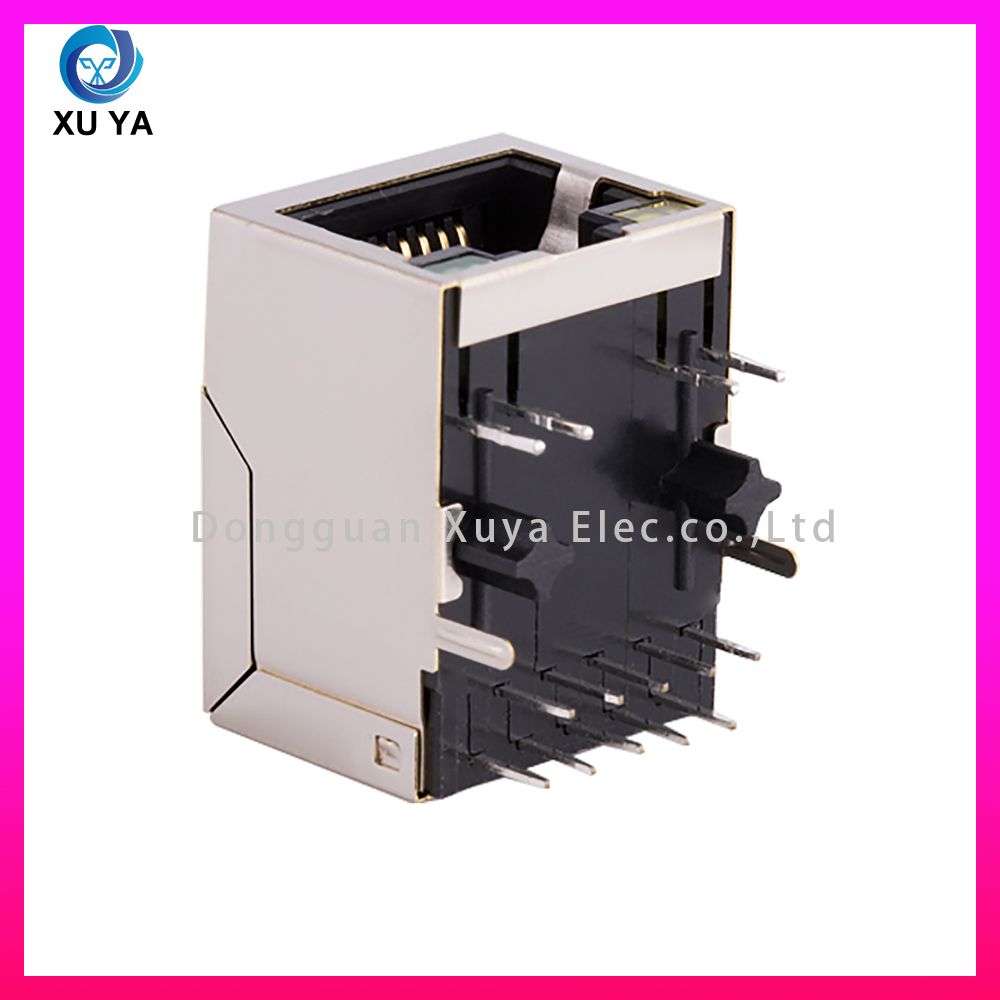

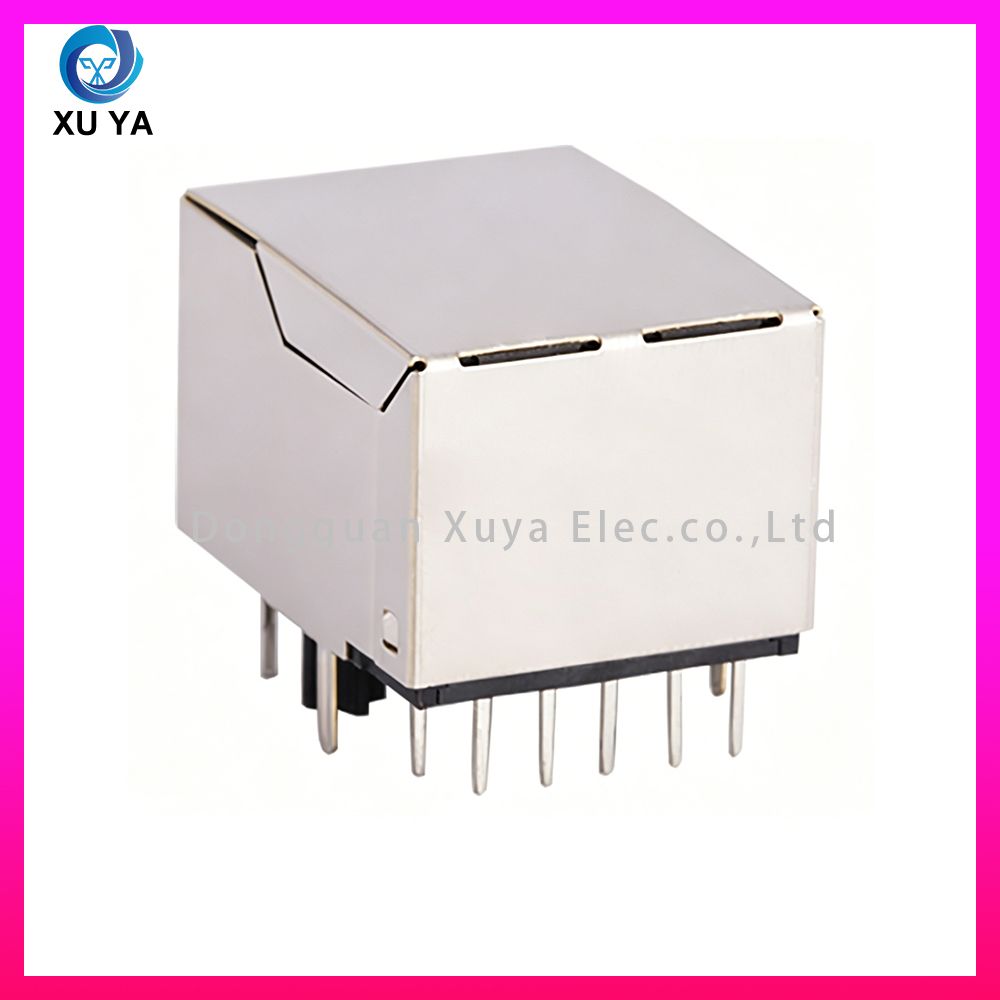

        4.90mm 扁针单口金属屏蔽千兆 RJ45 网口插座，标准 8P8C 镀金触点，4.90mm 扁平通孔针脚设计，端口标配绿、黄双色 LED 状态指示灯；一体式镀锌钢全包屏蔽外壳，内部集成千兆隔离滤波变压器，支持 10/100/1000M 自适应网络传输，可有效阻隔电磁干扰、静电浪涌，保护后端主控芯片；扁针加宽焊接接触面，上锡均匀牢固，搭配侧边定位卡扣，PCB 过炉焊接不易偏移、虚焊，批量生产良品率更高；绿灯常亮代表网线链路稳定连通，黄灯闪烁直观反馈设备数据收发状态；适配千兆交换机、工业网关、工控主板、安防 NVR 录像机、物联网通讯设备；标准整箱 3600PCS，现货交期 2-3 个工作日，可定制无灯款、不同长度扁针、贴片式结构，源头生产厂家直销，支持批量定制。
       Single-port metal shielded gigabit RJ45 jack with 4.90mm flat through-hole pins, standard 8P8C gold-plated contacts, each port equipped with green & yellow dual LED indicator lights. Integrated full galvanized steel shielding shell with built-in gigabit isolation filter transformer supports 10/100/1000M adaptive transmission, blocks electromagnetic interference and static surge to protect main control chips. Flat pins expand soldering contact area for even tin adhesion, matched with side positioning buckles to prevent shifting and cold solder joints during PCB reflow, improving mass production yield. Solid green light indicates stable network link, flashing yellow light shows real-time data transceiving status. Widely used for gigabit switches, industrial gateways, industrial control boards, surveillance NVR and IoT communication equipment. 3600 pieces per export carton, stock lead time 2-3 working days. Custom non-LED, variable-length flat pin and SMD versions are available, direct supply from manufacturer with bulk customization supported.

Q1. 规格参数 Spec
      这款 RJ45 插座针脚尺寸、传输规格与灯效配置是什么？
     4.90mm 扁平通孔针脚，标准 8P8C 触点，内置千兆隔离变压器，端口带黄绿双色 LED 指示灯，兼容 10/100/1000M 千兆网络。
What are pin size, transmission spec and LED configuration of this RJ45 jack?
4.90mm flat through-hole pins, standard 8P8C contacts, built-in gigabit isolation transformer, dual green & yellow LED per port, compatible with 10/100/1000M gigabit network.

Q2. 扁针结构优势 Flat Pin Advantage
      4.90mm 扁针对比传统圆针有哪些焊接优势？
      扁针焊接接触面积更大，焊锡附着力强，抗拉性能好，能有效减少批量生产时虚焊、掉针等不良问题。
      What welding advantages do 4.90mm flat pins have compared with round pins?
      Flat pins have larger soldering contact area with strong solder adhesion and good tensile resistance, effectively reducing defects like cold solder and pin drop during mass production.

Q3. 屏蔽滤波性能 Shield & Filter
      金属屏蔽外壳与内置变压器能否用于工业设备场景？
      全包镀锌钢屏蔽罩搭配隔离变压器，强效抑制 EMI 电磁干扰，适用于工控、安防等复杂电磁环境设备。
      Can the metal shield shell and built-in transformer be used for industrial equipment scenarios?
     Full galvanized steel shield with isolation transformer strongly suppresses EMI, suitable for industrial control, surveillance and other devices under complex electromagnetic environment.

Q4. 指示灯功能 LED Function
      黄绿两个指示灯分别代表什么网络运行状态？
      绿色常亮：网线链路正常连接；黄色闪烁：端口正在接收、发送网络数据。
      What network operation status do green and yellow LED lights represent respectively?
Solid green light: Normal cable link connection; Flashing yellow light: The port is receiving and transmitting network data.

Q5. 装箱规格 Carton Spec
      标准出口纸箱一箱可容纳多少个 4.90mm 扁针 RJ45 连接器？
      每箱 3600 个，独立防静电袋分装，防止运输过程中金属外壳刮花、扁针弯折变形。
      How many pieces of 4.90mm flat pin RJ45 connectors can be loaded in one export carton?
      3600 pieces per carton, packed by separate anti-static bags to avoid shell scratch and flat pin bending during transportation.
