产品描述：厂家批发直供 180 度单口 RJ45 以太网插座，11 8P8C 直插直通带 LED 指示灯与固定双耳 180Wholesale Direct Single Port Connector, Ethernet Jack, 1X1 8p8c DIP RJ45 Straight Through, with LED Mounting Wings 180 度立式单...

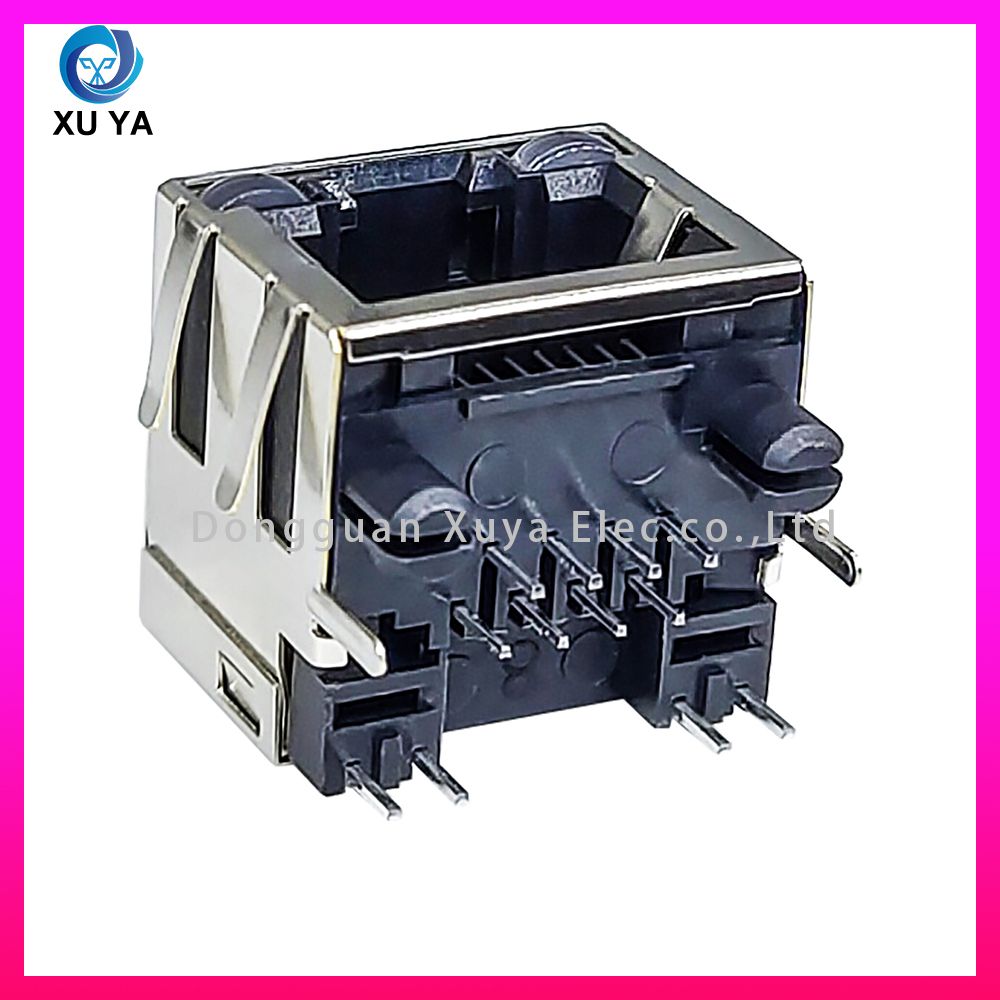

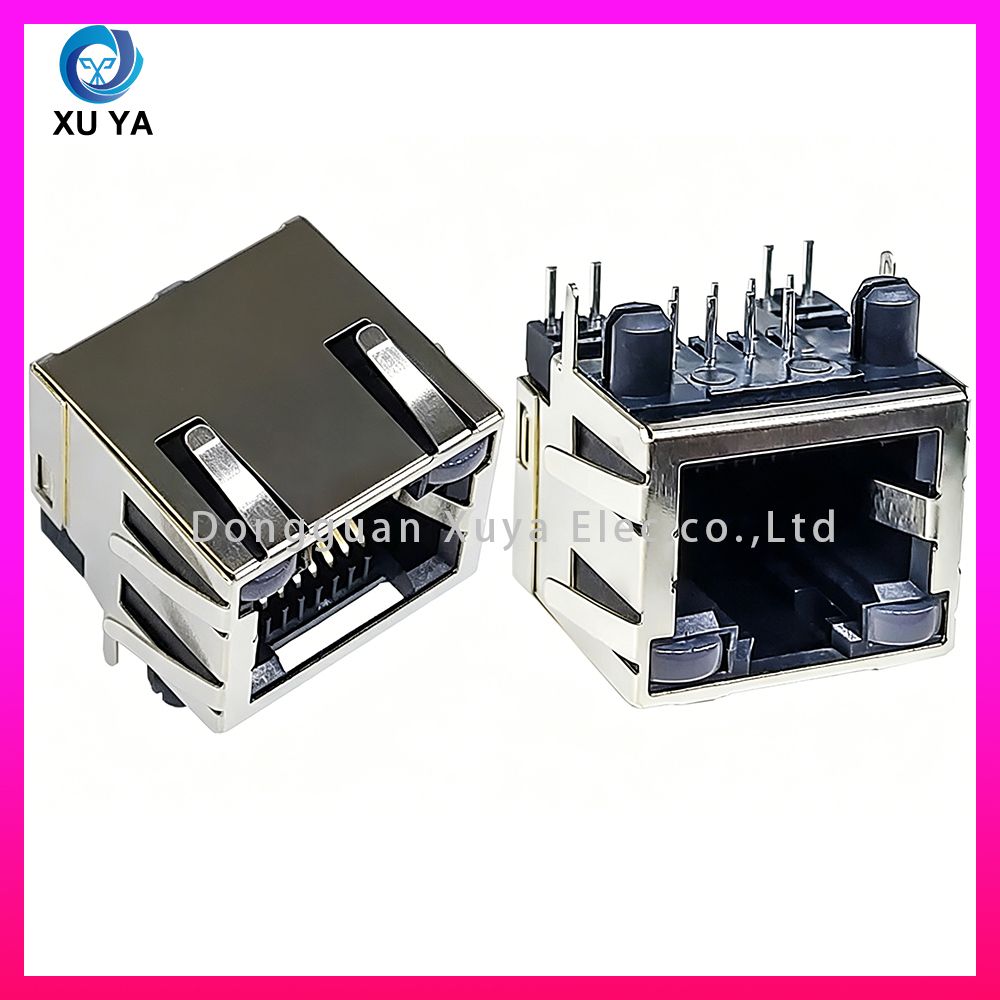

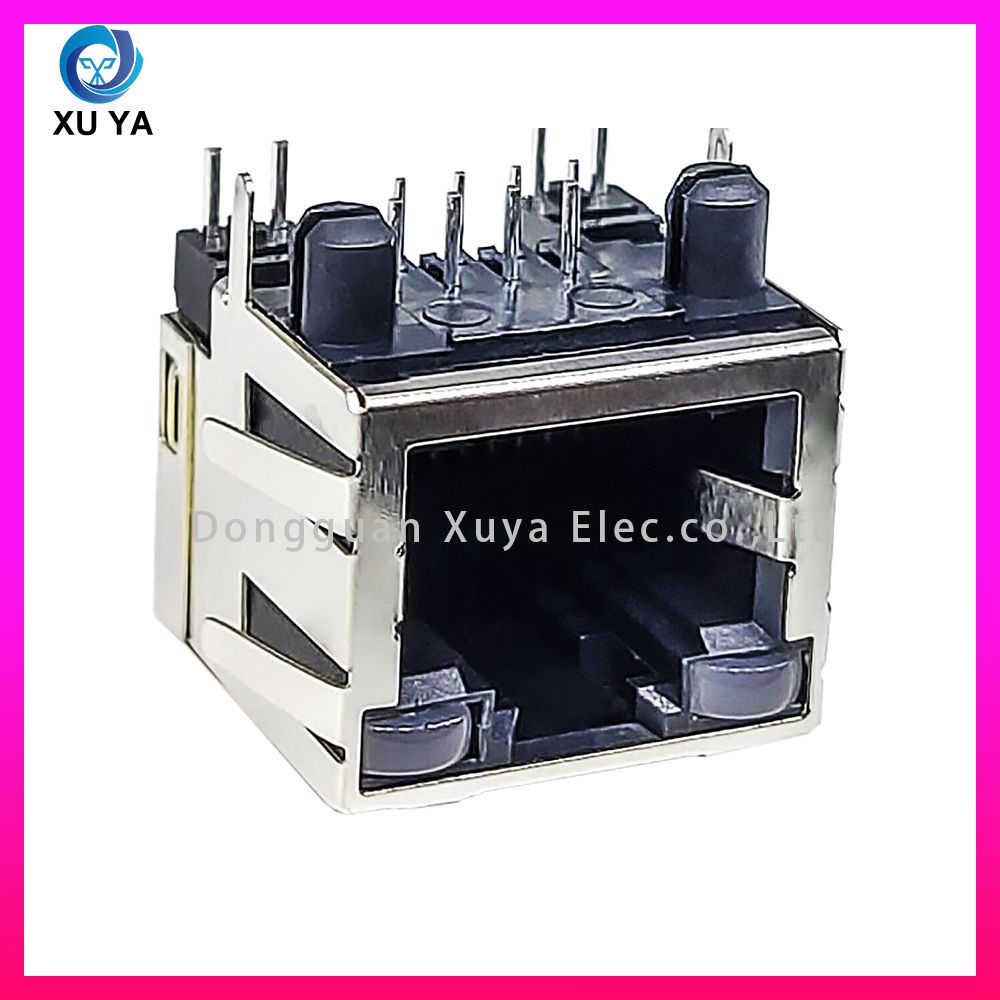

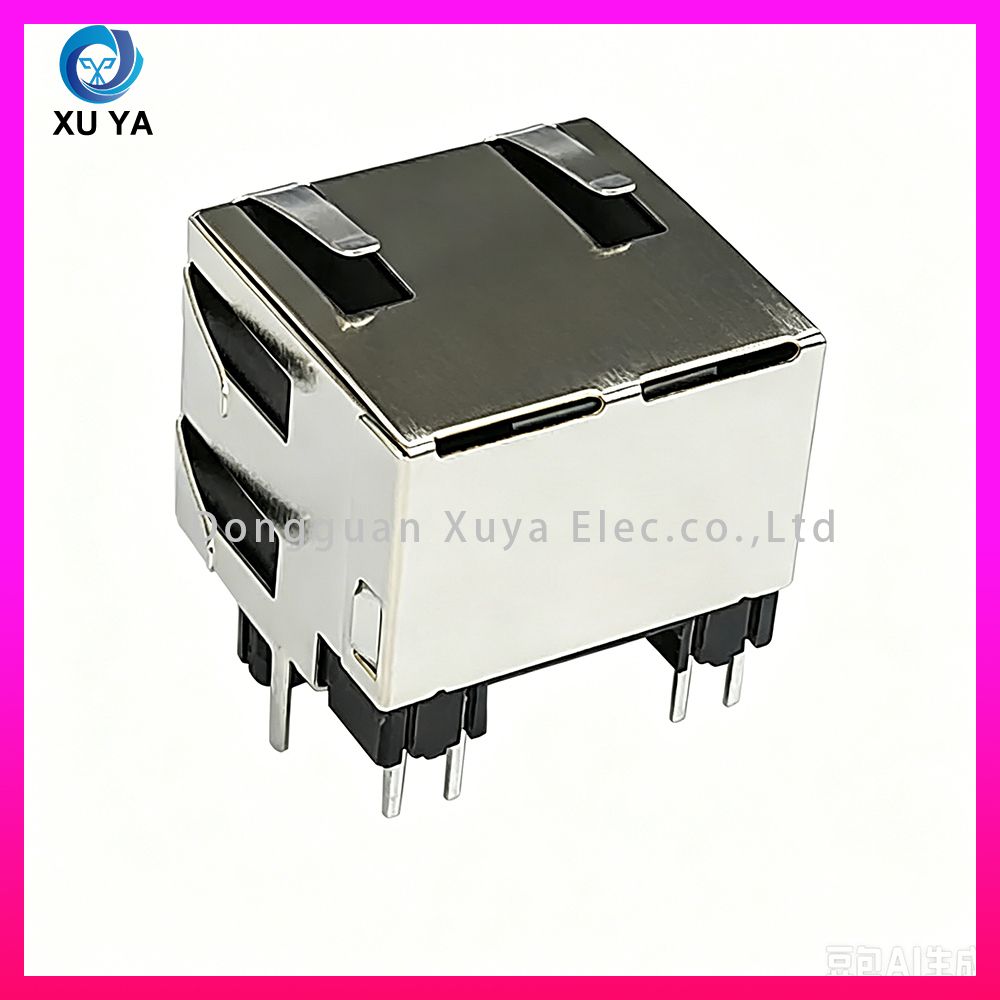

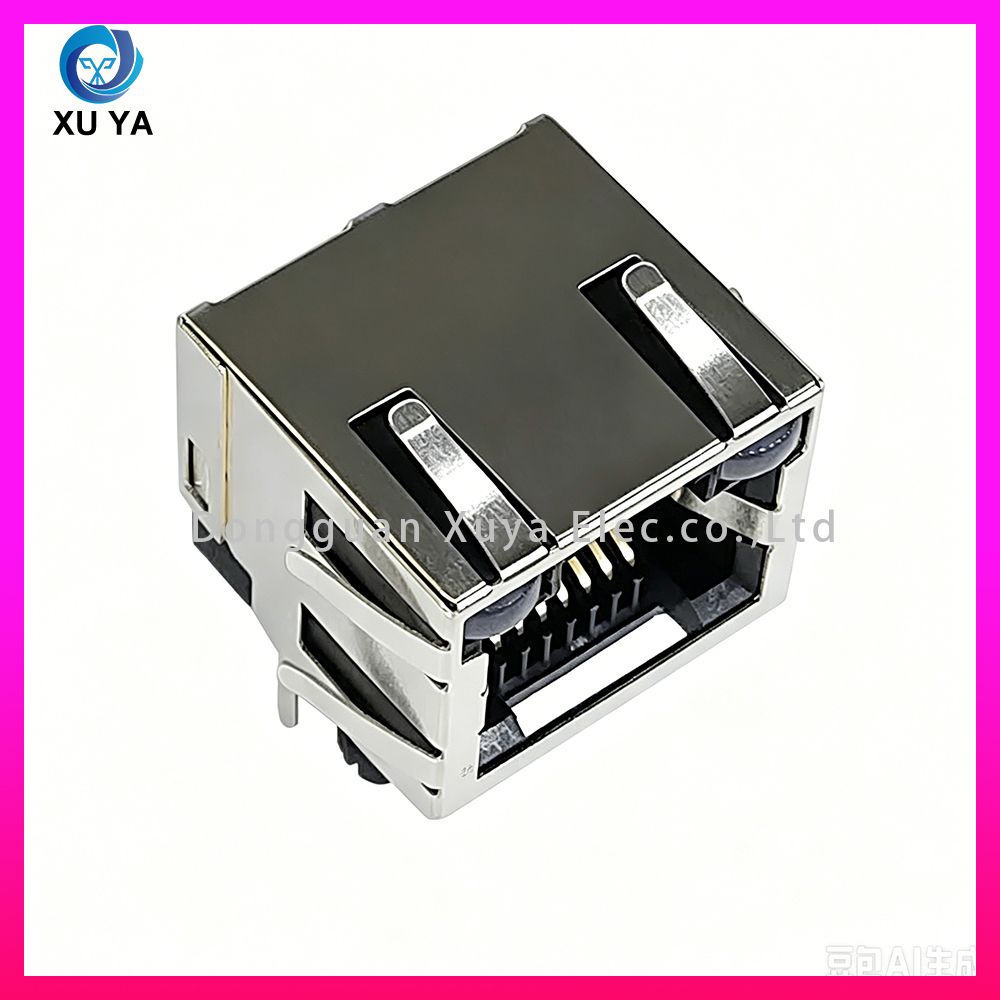

180 度立式单口屏蔽 RJ45 网口，1×1 单口布局，标准 8P8C 八针八芯一对一直通线路；端口内置双色 LED 指示灯，可直观显示网络链路连通与数据传输状态；外壳配备两侧安装固定双耳，搭配全包金属屏蔽壳与接地弹片，有效降低电磁干扰；触点采用镀金工艺，耐磨抗氧化，长期插拔信号传输稳定；DIP 立式直插针脚适配 PCB 波峰焊工艺，耐高温塑胶内芯，适用于交换机、路由器、工控主板、安防监控设备；标准装箱 1250PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
180-degree vertical single-port shielded RJ45 jack with 1×1 single-port layout and standard 8P8C 8-pin 1-to-1 straight-through circuit. Dual-color built-in LED indicators visually display network link status and data transmission. The shell is equipped with double side mounting wings, full metal shielding shell and grounding springs to effectively reduce electromagnetic interference. Gold-plated contacts are wear-resistant and anti-oxidation to ensure stable signal transmission after long-term plugging. DIP vertical through-hole pins are compatible with PCB wave soldering process, matched with high-temperature resistant plastic inner housing. Widely used in switches, routers, industrial control mainboards and security monitoring equipment. Standard packing: 1250 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器插板角度、端口与针脚规格是什么？
180 度立式插板，1×1 单口结构，8P8C 八芯针脚一对一直通导通。
What are the PCB mounting angle, port and pin specifications of this RJ45 connector?
180-degree vertical PCB mounting, 1×1 single-port structure, 8P8C 8-core pins with 1-to-1 straight-through conduction.
Q2：产品是否带指示灯与固定结构，屏蔽效果如何？
端口自带双色 LED 指示灯，外壳两侧配有安装固定双耳；全包金属屏蔽外壳搭配接地弹片，抗电磁干扰性能优异。
Does the product have indicator lights and fixing structures, and how is its shielding effect?
The port is equipped with dual-color LED indicators, and mounting wings are set on both sides of the shell. The full metal shielding shell with grounding springs delivers excellent anti-electromagnetic interference performance.
Q3：适配哪种 PCB 焊接工艺？
DIP 立式直插针脚设计，适配 PCB 波峰焊批量焊接加工。
Which PCB soldering process is it compatible with?
Designed with DIP vertical through-hole pins, suitable for mass PCB wave soldering processing.
所有端子胶壳线材执行MIL-STD 105E检验标准，按照来料检验标准检验，确保上生产线的每一个端子、连接器、线材都是合格品；
所有端子线、成型线都制定清晰明确的制程检验标准、IPQC巡检标准，每款线束制定作业指导标准，确保线束制程品质可靠；
严格按照APQP流程，研发设计每一款电线组件、端子线、音视频线，提高电线产品可靠性、方案可落实性、质量可控性；
遵照每款端子线、啤头线的成品检验标准，对产品实行功能测试、外观检查、成品检验，确保出厂的每款成品质量可靠。
