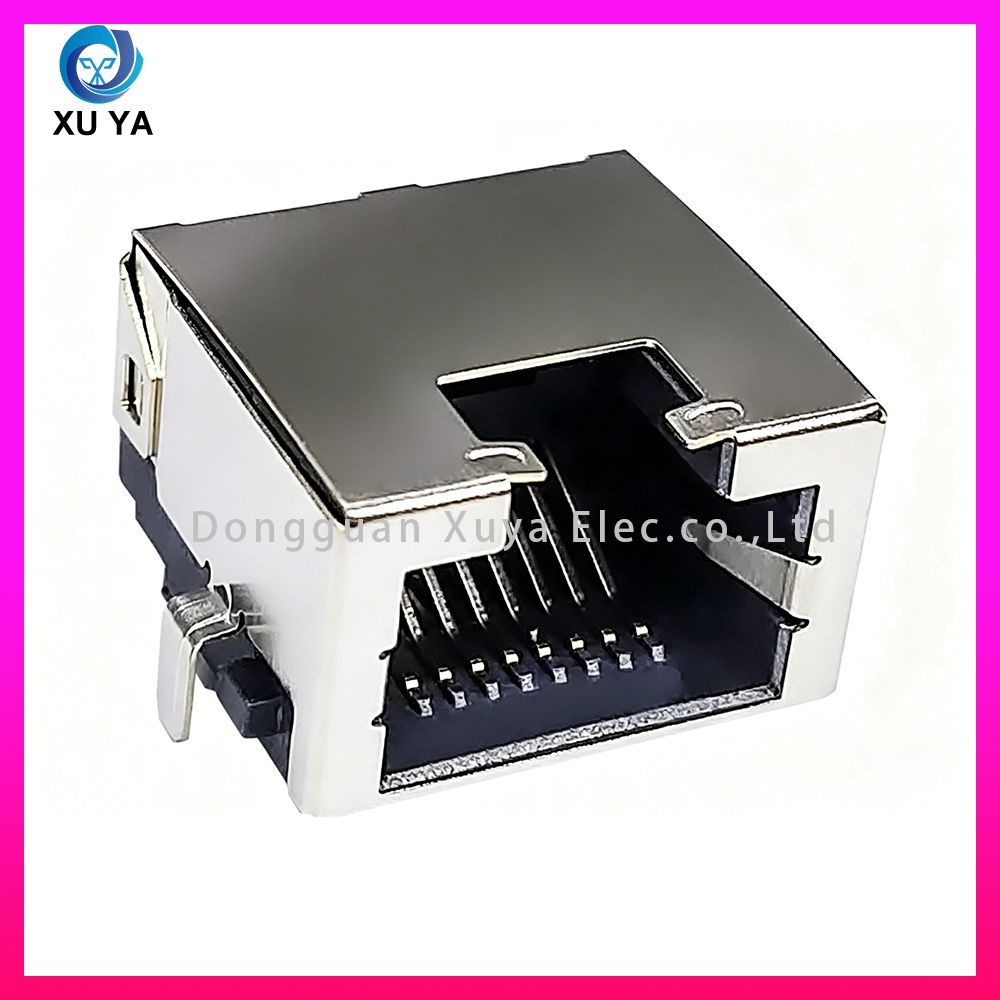

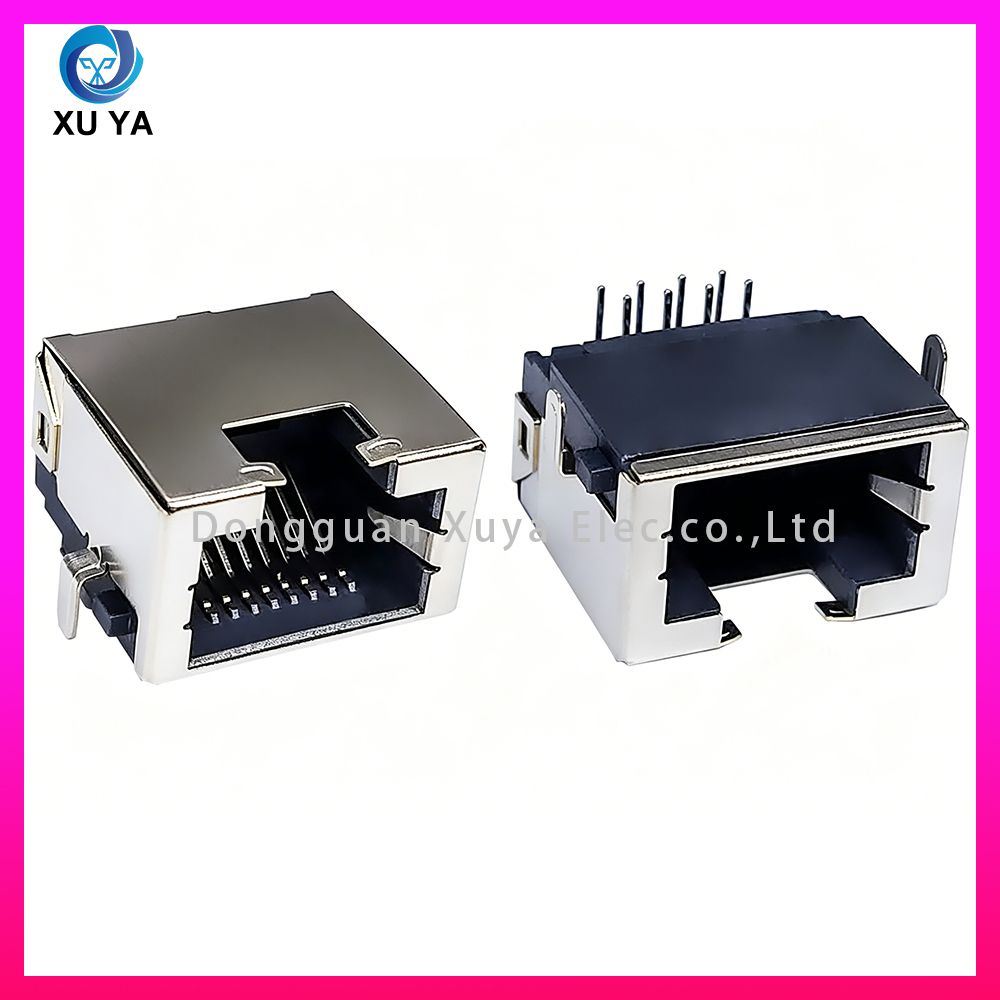

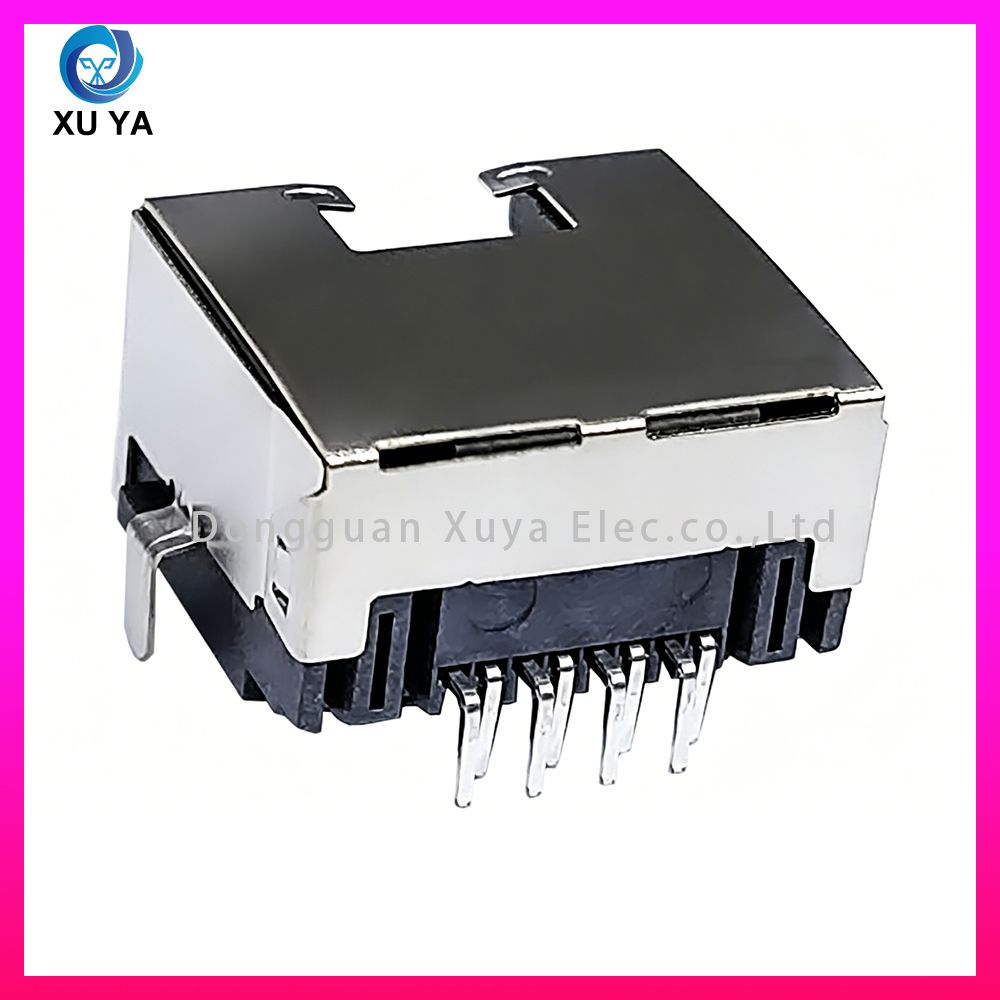

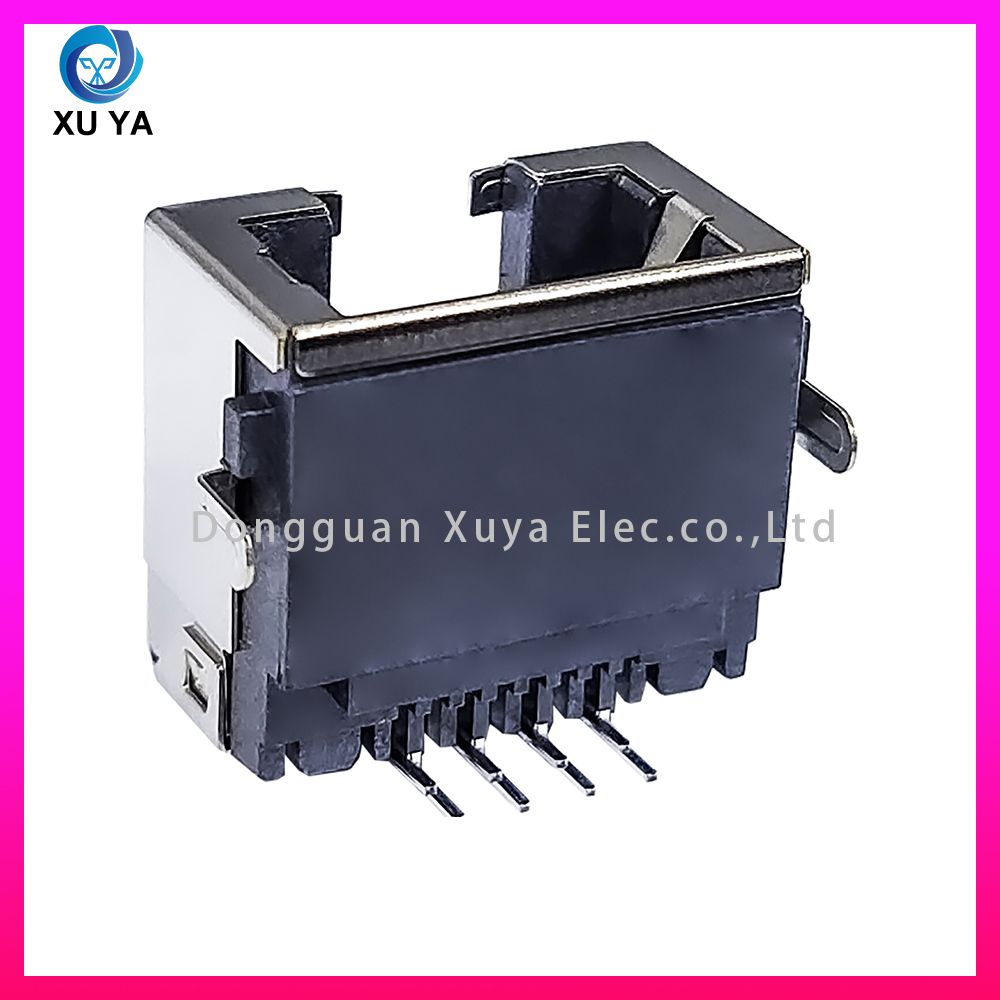

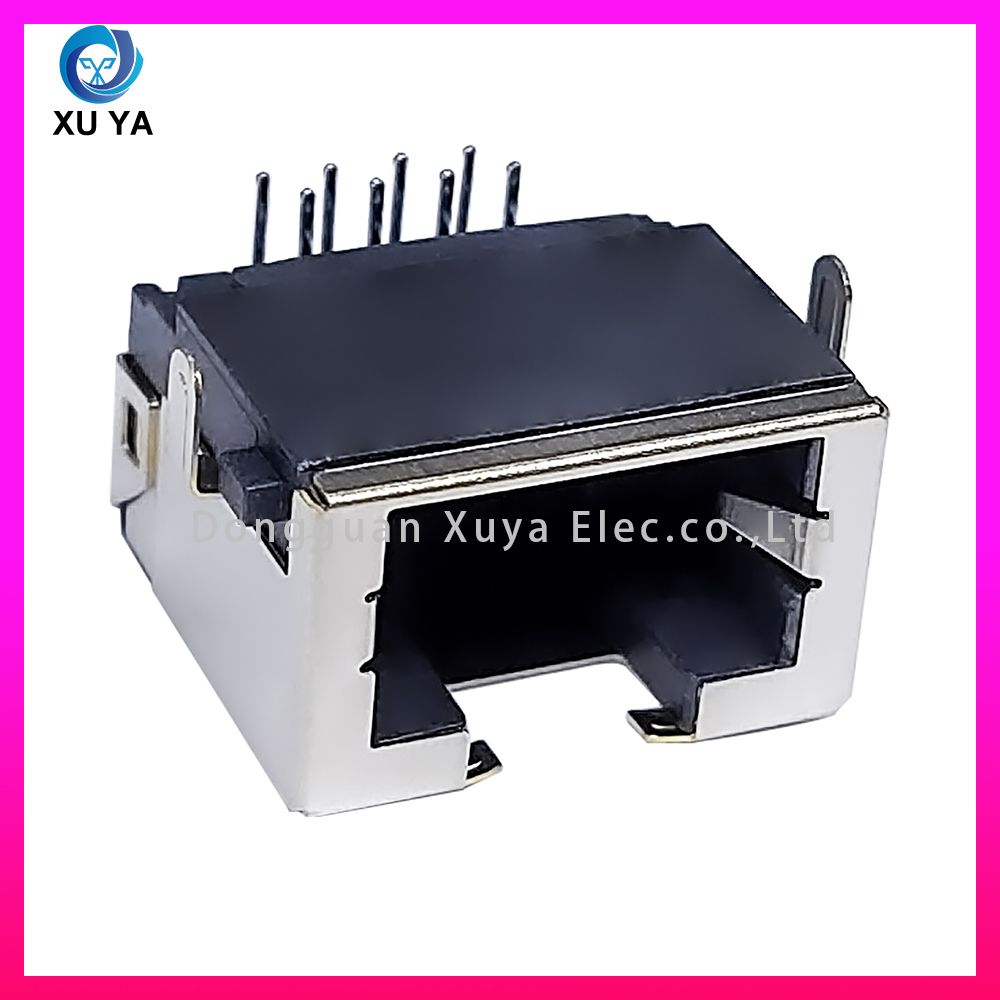

8.8 沉板 RJ45 连接器，金属屏蔽无 LED，8P8C 直插式网口
RJ45 Sink Plate 8.8, Shielded No LED, 8p8c Straight Insert Type
8.8mm 沉板式直插 RJ45 屏蔽网口，沉板深度 8.8mm，插座主体下沉嵌入 PCB 内部，有效缩减整机设备厚度；全包金属屏蔽外壳搭配侧边接地弹片，可有效抑制电磁干扰，保障网络信号稳定传输；端口无 LED 状态指示灯，结构简约紧凑；内部标准 8P8C 镀金接触弹片，线路一对一直通，插拔耐磨、导电稳定，兼容百兆、千兆网线传输；内部采用耐高温阻燃黑色塑胶，耐高低温，不易变形开裂；DIP 立式直插针脚适配 PCB 波峰焊工艺，适用于超薄交换机、轻薄工控主板、小型网关、便携网络通信设备；标准装箱 1150PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
8.8mm sink plate straight insert shielded RJ45 jack with 8.8mm sinking depth. The socket body sinks and embeds inside PCB to effectively reduce the overall thickness of equipment. Full metal shielding shell with side grounding springs can restrain electromagnetic interference and guarantee stable network signal transmission. No LED status indicators on port for simple and compact structure. Standard 8P8C gold-plated internal contact shrapnel with 1-to-1 straight-through circuit features wear-resistant plugging and stable conductivity, compatible with fast ethernet and gigabit network cables. High-temperature resistant flame-retardant black plastic inside withstands high and low temperatures and resists deformation and cracking. DIP vertical through-hole pins are compatible with PCB wave soldering process. Widely applied to ultra-thin switches, slim industrial control mainboards, compact gateways and portable network communication equipment. Standard packing: 1150 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器沉板深度、屏蔽与指示灯配置是什么？
沉板深度 8.8mm，全包金属屏蔽外壳带接地弹片，端口无 LED 指示灯，8P8C 直插结构。
What are the sinking depth, shielding and indicator configuration of this RJ45 connector?
8.8mm sinking depth, full metal shielding shell with grounding springs, no LED indicators on port, 8P8C straight insert structure.
Q2：线路、弹片与外壳材质优势？
标准 8P8C 一对一直通线路，镀金接触弹片耐磨导电稳定；阻燃耐高温黑色塑胶内壳，耐高低温不易开裂。
What are the advantages of circuit, shrapnel and housing material?
Standard 8P8C 1-to-1 straight-through circuit, gold-plated contact shrapnel with wear resistance and stable conductivity. Flame-retardant high-temperature resistant black plastic inner housing resists high and low temperatures and cracking.
Q3：适配焊接工艺与适用设备？
DIP 立式直插针脚适配 PCB 波峰焊；适用于超薄交换机、轻薄工控板、小型网关、便携网络设备。
Which PCB soldering process is it compatible with, and what applicable equipment?
DIP vertical through-hole pins compatible with PCB wave soldering.
Suitable for ultra-thin switches, slim industrial control boards, compact gateways and portable network devices.
