2×4 双排八口 RJ45 连接器，带 LED 指示灯金属屏蔽网络插座
RJ45 Connector, 2X4, with LED & Shield, Network Socket Factory

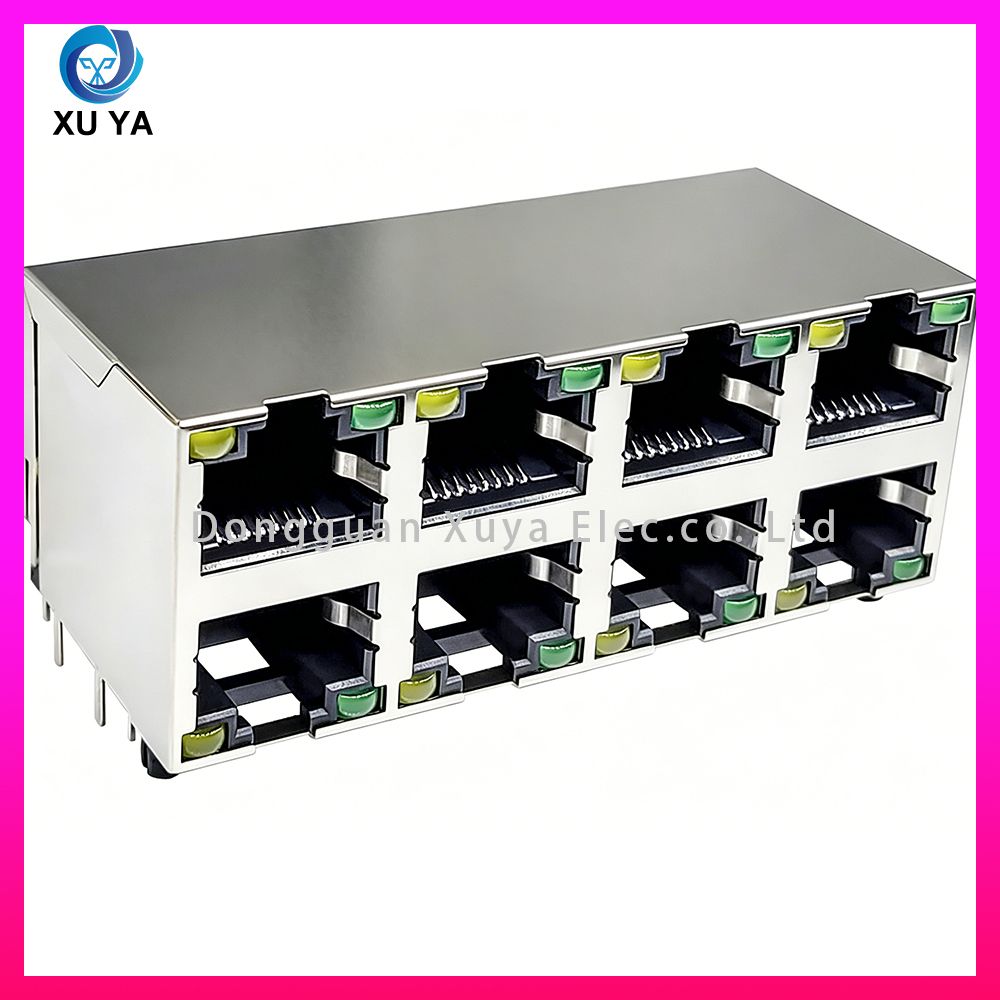

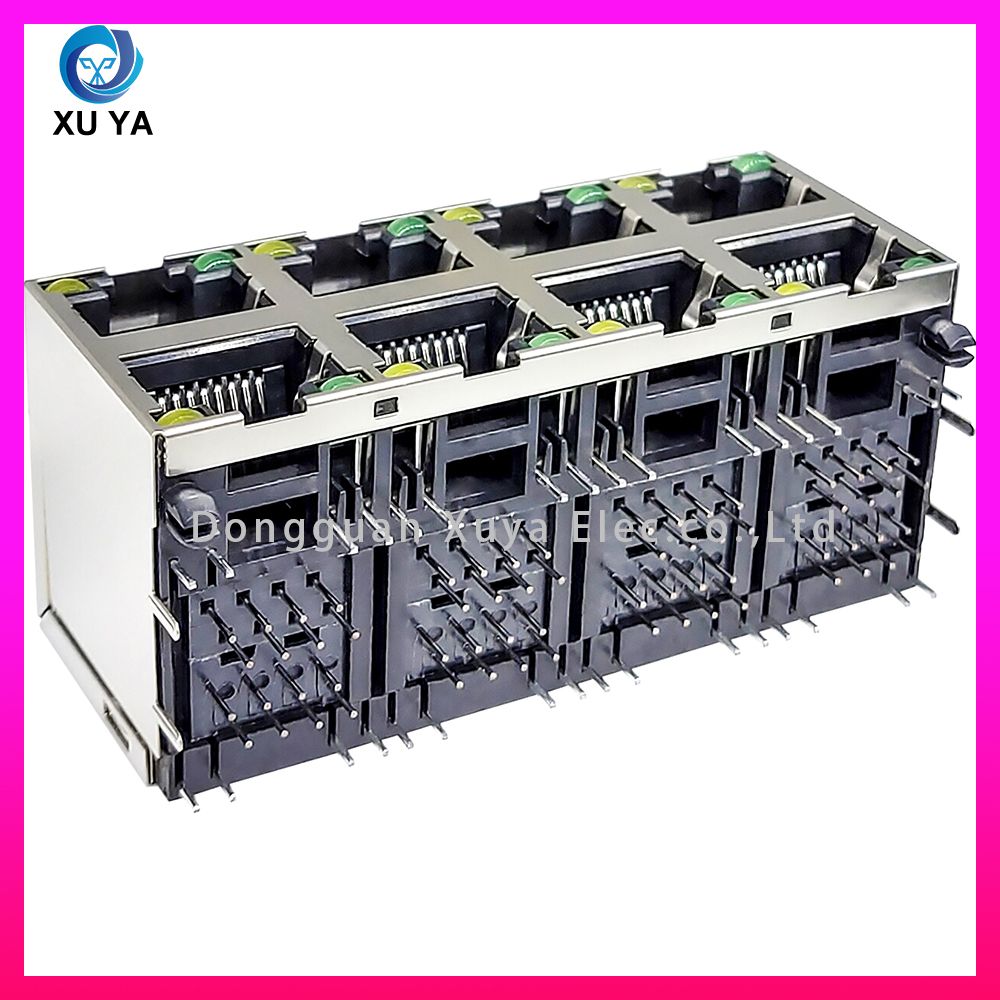

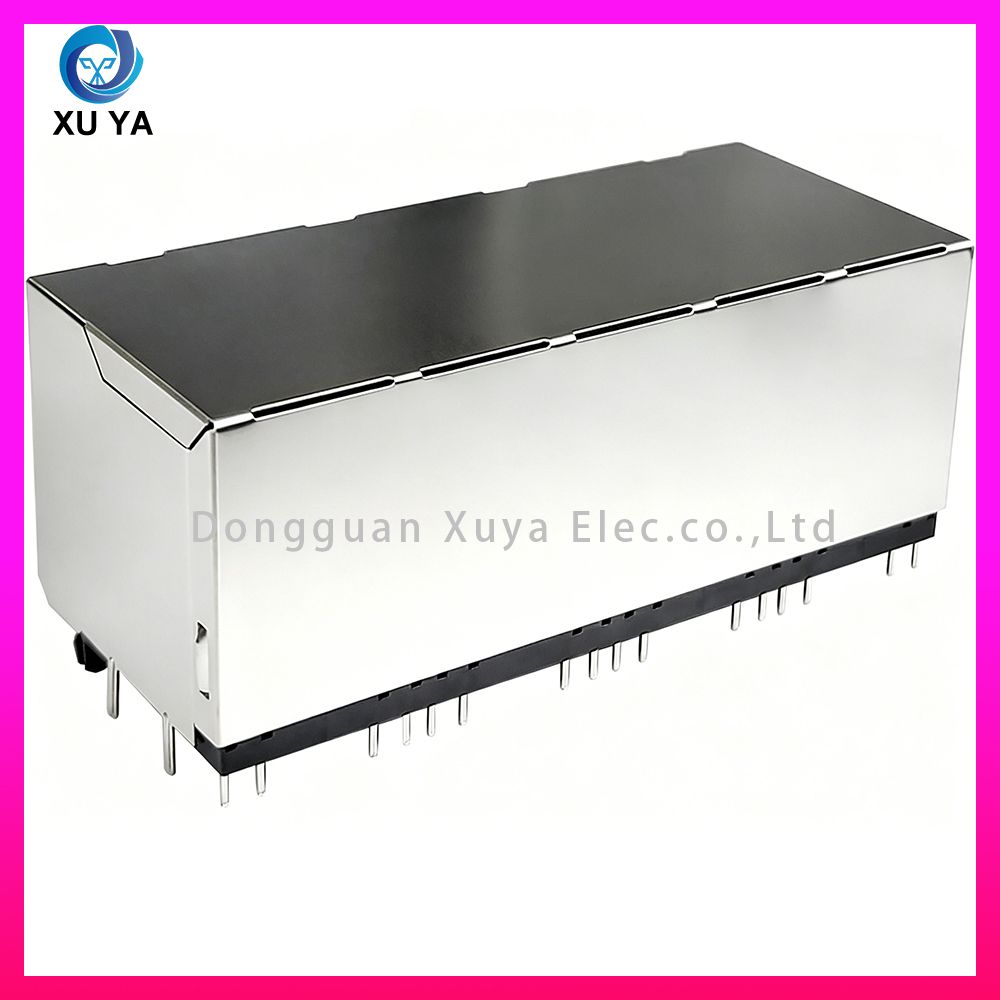

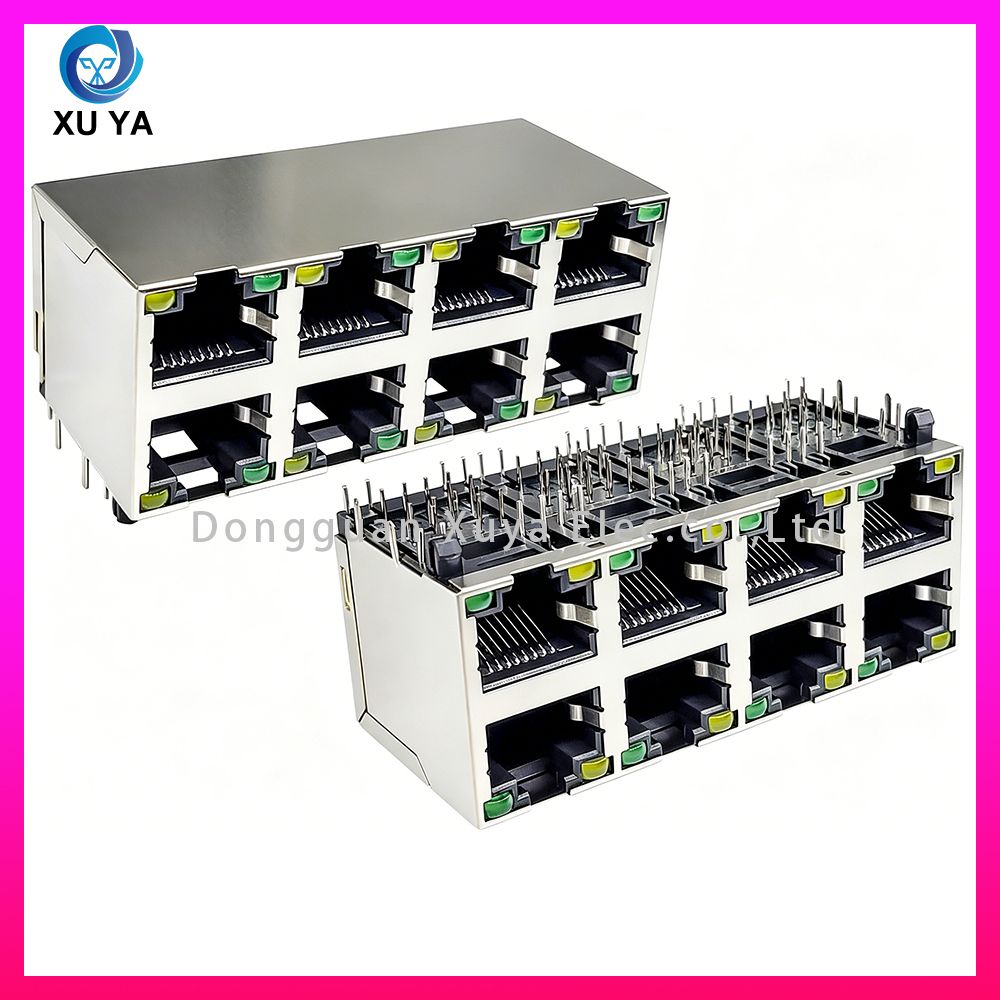

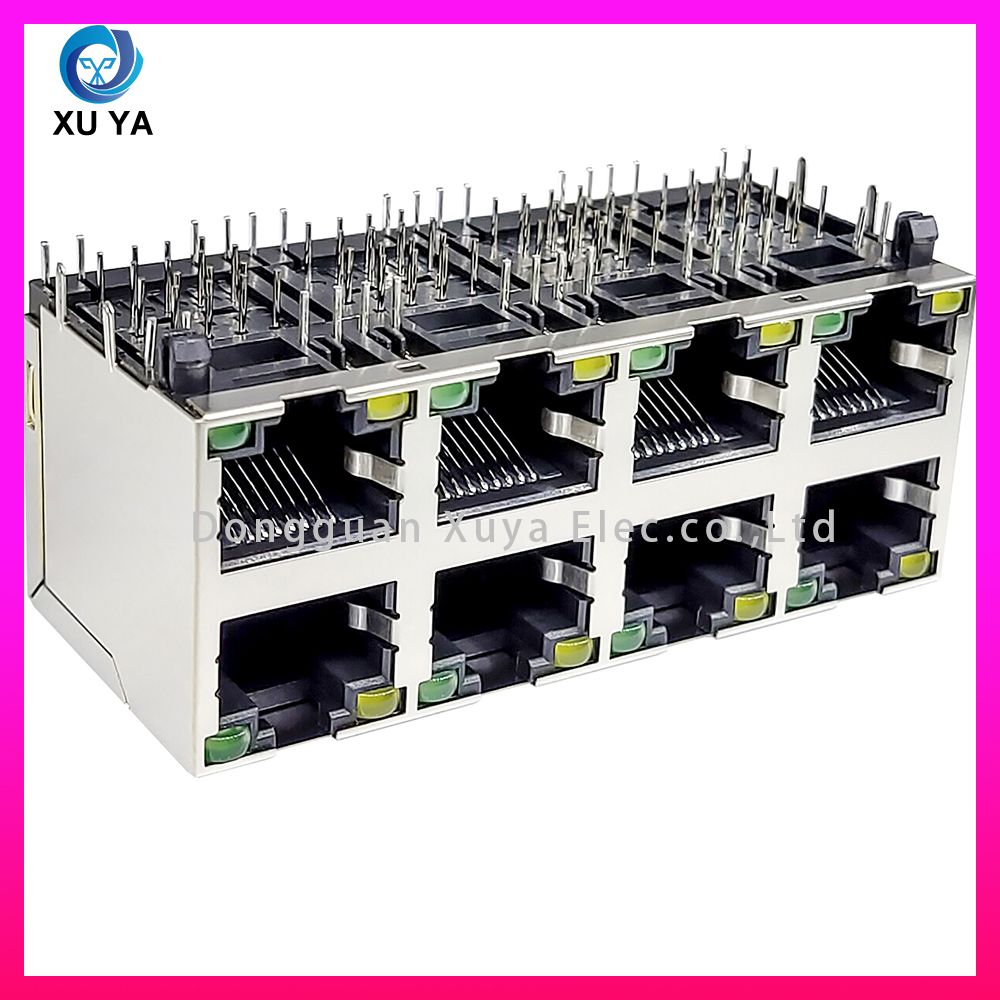

2 行 4 列一体化双排 8 口屏蔽 RJ45 以太网插座，上下两层各 4 端口集成一体成型，高密度布局大幅节省 PCB 空间；全包金属屏蔽壳体搭配多组侧边接地弹片，全方位屏蔽电磁干扰，保障 8 路网络信号同步稳定传输；每个独立端口均配备绿、黄双色分离式 LED 指示灯，可单独显示每一路网口链路连通与数据收发状态；内部标准 8P8C 加厚镀金接触弹片，线路一对一直通导通，插拔顺滑耐磨、抗氧化耐腐蚀，兼容百兆、千兆网络传输；内置一体式千兆隔离滤波磁环，过滤杂波干扰，提升多路高速通信抗干扰性能；卧式 DIP 直插针脚适配 PCB 波峰焊批量焊接工艺，内部耐高温阻燃黑色塑胶，耐高低温、抗形变开裂，适配多口交换机、安防监控主机、工业多通道通信设备；标准装箱 600PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
2-row 4-column integrated double-row 8-port shielded RJ45 ethernet jack. 4 ports on each upper and lower layer are integrally molded, and the high-density layout greatly saves PCB space. Full metal shielding shell with multiple groups of side grounding springs fully shields electromagnetic interference to ensure synchronous and stable transmission of 8-channel network signals. Each independent port is equipped with separate green and yellow dual-color LED indicators, which can separately display the link connection and data transmission status of each network port. The internal standard 8P8C thick gold-plated contact shrapnel adopts 1-to-1 straight-through circuit conduction, featuring smooth and wear-resistant plugging, oxidation and corrosion resistance, and compatible with fast ethernet and gigabit network transmission. Built-in integrated gigabit isolation filter magnetic ring filters clutter interference and improves anti-interference performance of multi-channel high-speed communication. Horizontal DIP through-hole pins are compatible with mass PCB wave soldering processing. The inner high-temperature resistant flame-retardant black plastic withstands high and low temperatures and resists deformation and cracking, suitable for multi-port switches, security monitoring hosts and industrial multi-channel communication equipment. Standard packing: 600 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器端口排布、屏蔽与指示灯配置是什么？
2×4 双排八端口高密度一体化结构，全包金属屏蔽外壳带接地弹片，每个端口独立配备黄绿双色 LED 状态指示灯，标准 8P8C 直通线路。
What are the port layout, shielding and indicator configuration of this RJ45 connector?
High-density integrated structure with 2×4 double-row 8 ports, full metal shielding shell with grounding springs, each port independently equipped with green and yellow dual-color LED status indicators, standard 8P8C straight-through circuit.
Q2：线路导通、弹片与内置配件性能优势？
8P8C 一对一完全直通线路，加厚镀金弹片耐磨抗氧化，兼容百兆 / 千兆传输；内置千兆滤波磁环，过滤杂波，多路通信信号更稳定。
What are the performance advantages of circuit conduction, shrapnel and built-in accessories?
8P8C 1-to-1 full straight-through circuit, thick gold-plated shrapnel with wear resistance and anti-oxidation, compatible with fast ethernet and gigabit transmission. Built-in gigabit filter magnetic ring filters clutter for more stable multi-channel communication signals.
Q3：适配焊接工艺与适用设备场景？
卧式 DIP 直插针脚适配 PCB 波峰焊；适用于商用多口交换机、安防监控主机、工业多通道网络拓展设备。
Which PCB soldering process is it compatible with, and what applicable equipment scenarios?
Horizontal DIP through-hole pins compatible with PCB wave soldering.
Suitable for commercial multi-port switches, security monitoring hosts and industrial multi-channel network expansion equipment.
