8.6 沉板 1×1 单口 RJ45 连接器，8P8C 弹片 3 微米镀金网口
RJ45 Connector, 1X1, 8p8c, 8.6 Sunken Board, 3u Interface Factory

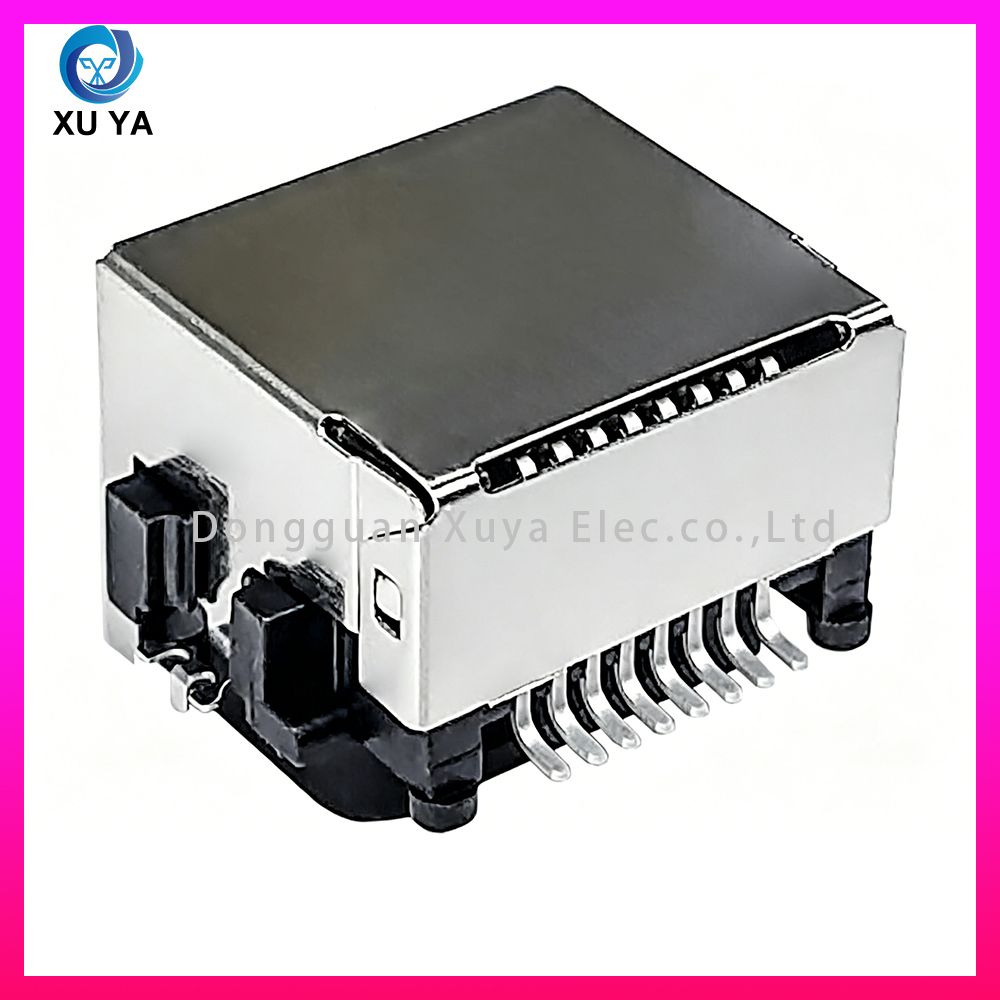

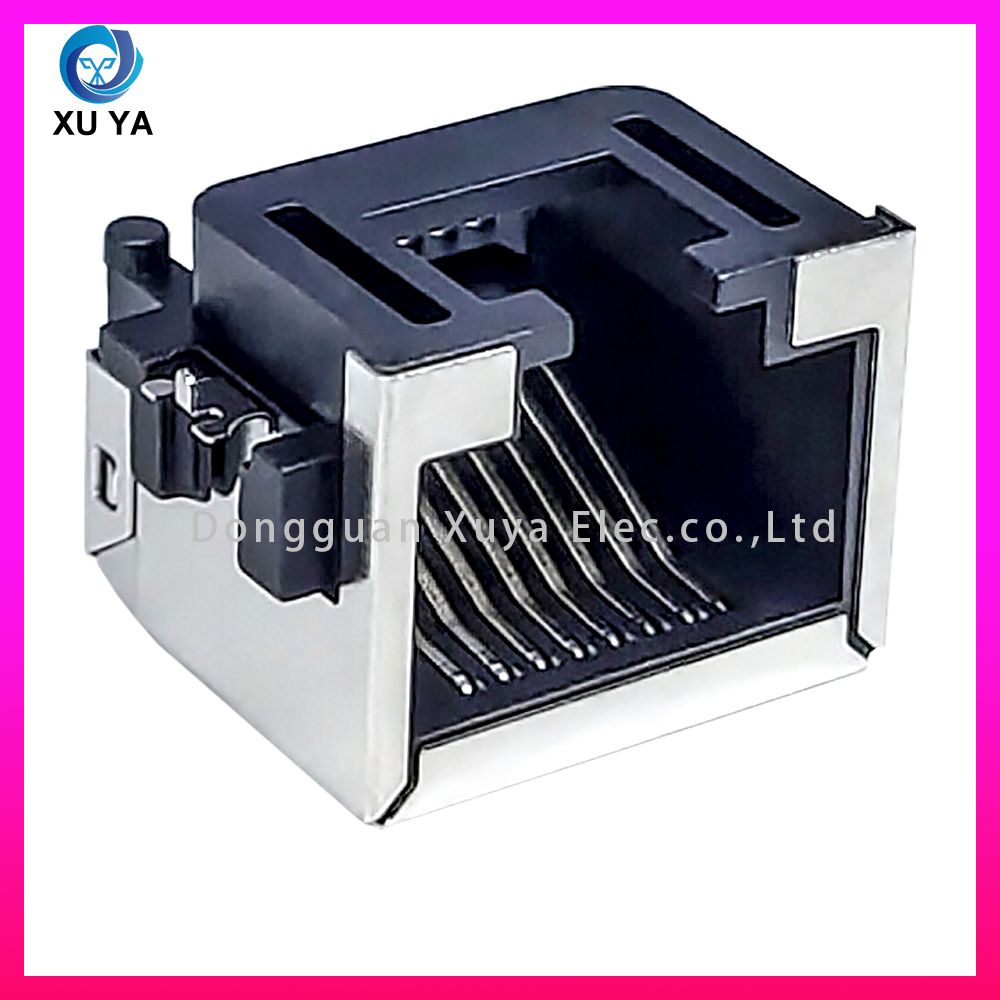

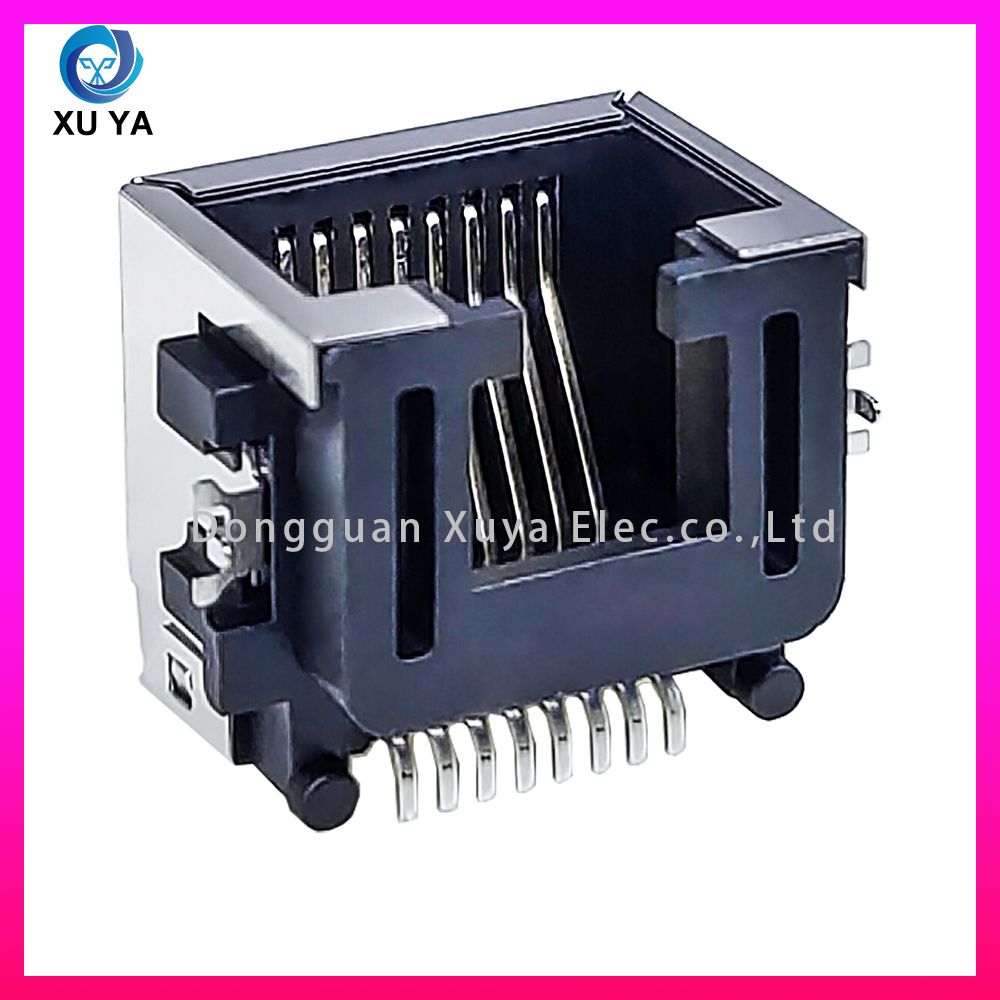

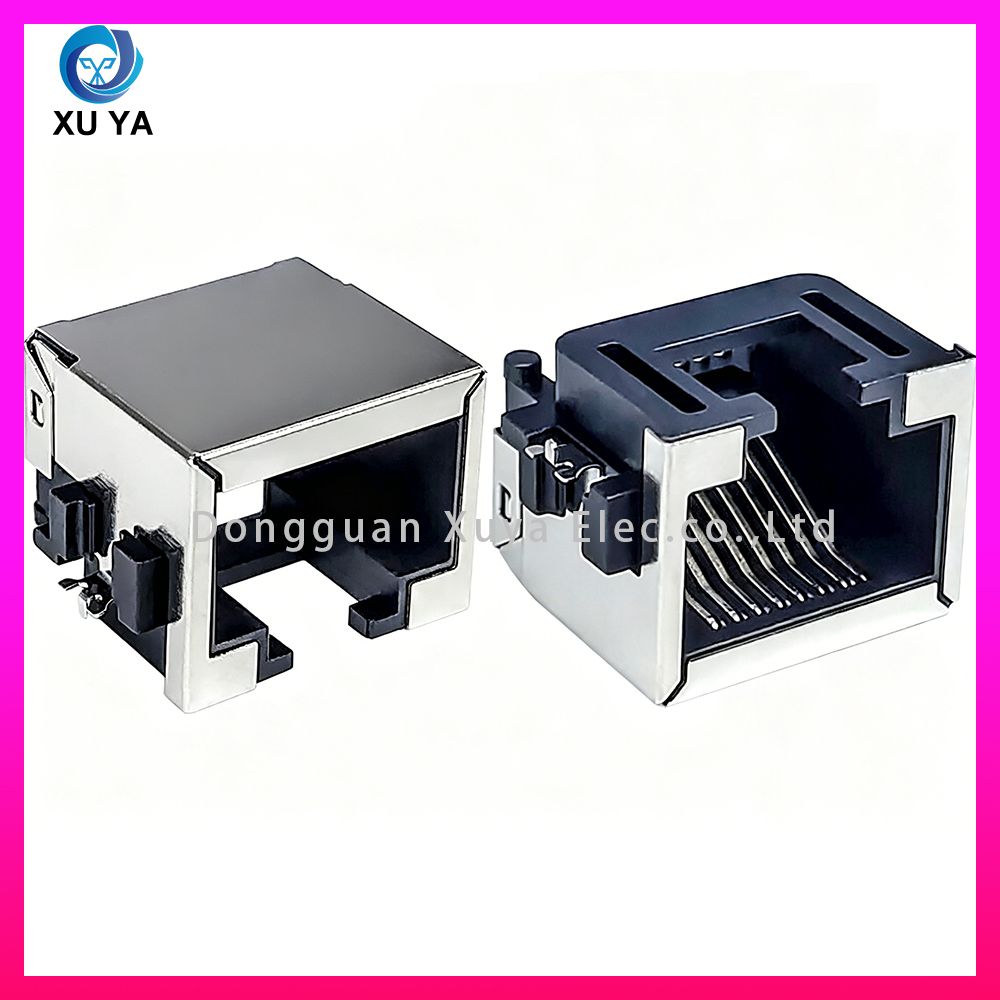

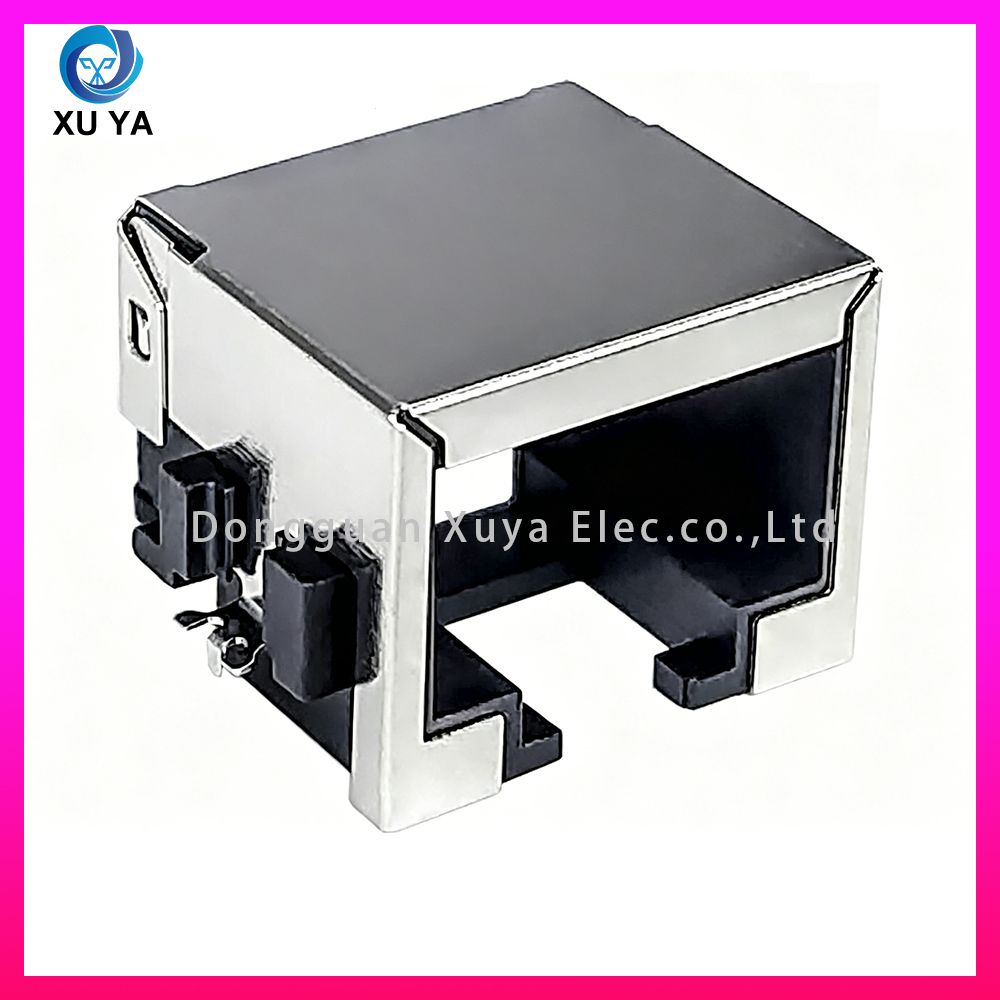

8.6mm 沉板式单口屏蔽 RJ45 以太网插座，1×1 独立单端口结构，8.6mm 下沉深度设计，插座嵌入 PCB 板内部，有效缩减整机设备厚度，适配轻薄型电子产品；全包金属屏蔽壳体搭配侧边接地弹片，抑制空间电磁干扰，保障网络信号稳定传输；端口无 LED 状态指示灯，整体结构简约紧凑，节省设备内部空间；内部标准 8P8C 接触弹片采用 3μm 镀金工艺，镀层均匀平整，抗氧化、耐腐蚀，线路一对一直通导通，稳定支持百兆网络信号传输；无内置千兆隔离滤波变压器，生产成本更低，适合无强电磁干扰的民用简易网络设备；DIP 立式直插针脚适配 PCB 波峰焊批量焊接工艺，内部耐高温阻燃黑色塑胶，耐高低温、抗弯折形变，长期使用不易开裂老化；广泛用于轻薄型家用路由器、小型桌面拓展网口、简易监控终端、小家电内置通信模块；标准装箱 1300PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
8.6mm sink plate single-port shielded RJ45 ethernet jack with 1×1 independent single-port structure. The 8.6mm sinking depth design embeds the socket inside the PCB to effectively reduce the overall thickness of equipment, suitable for slim electronic products. Full metal shielding shell with side grounding springs suppresses spatial electromagnetic interference to ensure stable network signal transmission. No LED status indicators on the port, the overall structure is simple and compact to save internal equipment space. The internal standard 8P8C contact shrapnel adopts 3μm gold plating process with uniform and flat coating, oxidation and corrosion resistance. The 1-to-1 straight-through circuit stably supports fast ethernet signal transmission. There is no built-in gigabit isolation filter transformer for lower production cost, suitable for civil simple network equipment without strong electromagnetic interference. Vertical DIP through-hole pins are compatible with mass PCB wave soldering processing. The inner high-temperature resistant flame-retardant black plastic withstands high and low temperatures, bending and deformation without cracking or aging after long-term use. Widely applied to slim household routers, small desktop network expansion ports, simple monitoring terminals and built-in communication modules of small home appliances. Standard packing: 1300 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器沉板深度、端口规格、屏蔽与镀金参数是什么？
沉板深度 8.6mm，1×1 单口结构，标准 8P8C 直通线路，全包金属屏蔽外壳带接地弹片，接触弹片 3 微米镀金，无 LED 指示灯、无内置滤波变压器。
What are the sinking depth, port specifications, shielding and gold plating parameters of this RJ45 connector?
8.6mm sinking depth, 1×1 single-port structure, standard 8P8C straight-through circuit, full metal shielding shell with grounding springs, 3-micron gold plating on contact shrapnel, no LED indicators and no built-in filter transformer.
Q2：弹片镀金规格、壳体沉板结构与适用传输规格优势？
弹片 3u 薄镀金，满足常规百兆传输需求；8.6mm 沉板设计嵌入 PCB，大幅降低整机厚度；无内置变压器，结构简易，性价比高。
What are the advantages of shrapnel gold plating specification, sink plate housing structure and applicable transmission specification?
3u thin gold plating on shrapnel meets conventional fast ethernet transmission requirements. The 8.6mm sink plate design embeds into PCB to greatly reduce equipment thickness. No built-in transformer brings simple structure and high cost performance.
Q3：适配焊接工艺与适用设备场景？
立式 DIP 直插针脚适配 PCB 波峰焊；适用于轻薄家用路由器、桌面拓展网口、简易监控终端、小家电通信模块。
Which PCB soldering process is it compatible with, and what applicable equipment scenarios?
Vertical DIP through-hole pins compatible with PCB wave soldering.
Suitable for slim household routers, desktop network expansion ports, simple monitoring terminals and communication modules of small home appliances.
