XS8/XS9/XS10 推拉自锁母头带线航空连接线

XS8/XS9/XS10 推拉自锁母头带线航空连接线

Cable-mounted female aviation connectors with push-pull self-locking: XS8/XS9/XS10

核心要点

规格型号：XS8、XS9、XS10 三种推拉自锁航空母头规格，适配不同面板开孔尺寸；芯数可选 2 芯、3 芯、4 芯、5 芯，插头针式、插座孔式结构清晰。

推拉自锁结构：无需螺纹旋紧，一插自动锁止，拔出即可分离，适合狭小空间、快速装配、频繁插拔场景。

材质工艺：金属外壳镀镍处理，防锈耐磨；导电插针铜镀金或铜镀银，接触稳定、抗氧化、低阻抗；成品线束工厂预焊，另一端裸线方便接线。

线缆配置：黑色柔性 PVC 护套线，耐弯折、耐磨抗老化；多色分芯内线便于区分线路，降低接线与检修难度。

标准与定制：常规现货长度 2 米，支持 0.1m–15m 任意长度定制；广泛用于小型传感器、检测探头、医疗设备、微型工控仪器信号供电连接。

产品描述

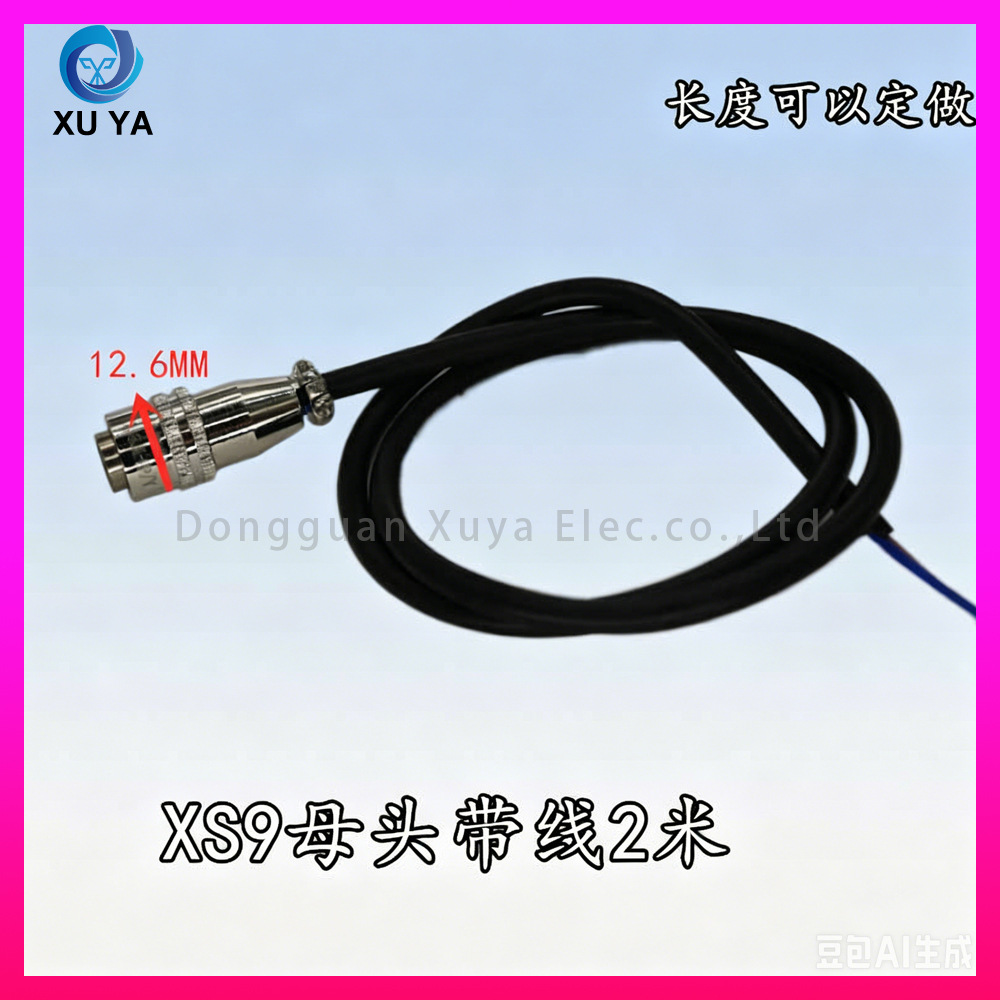

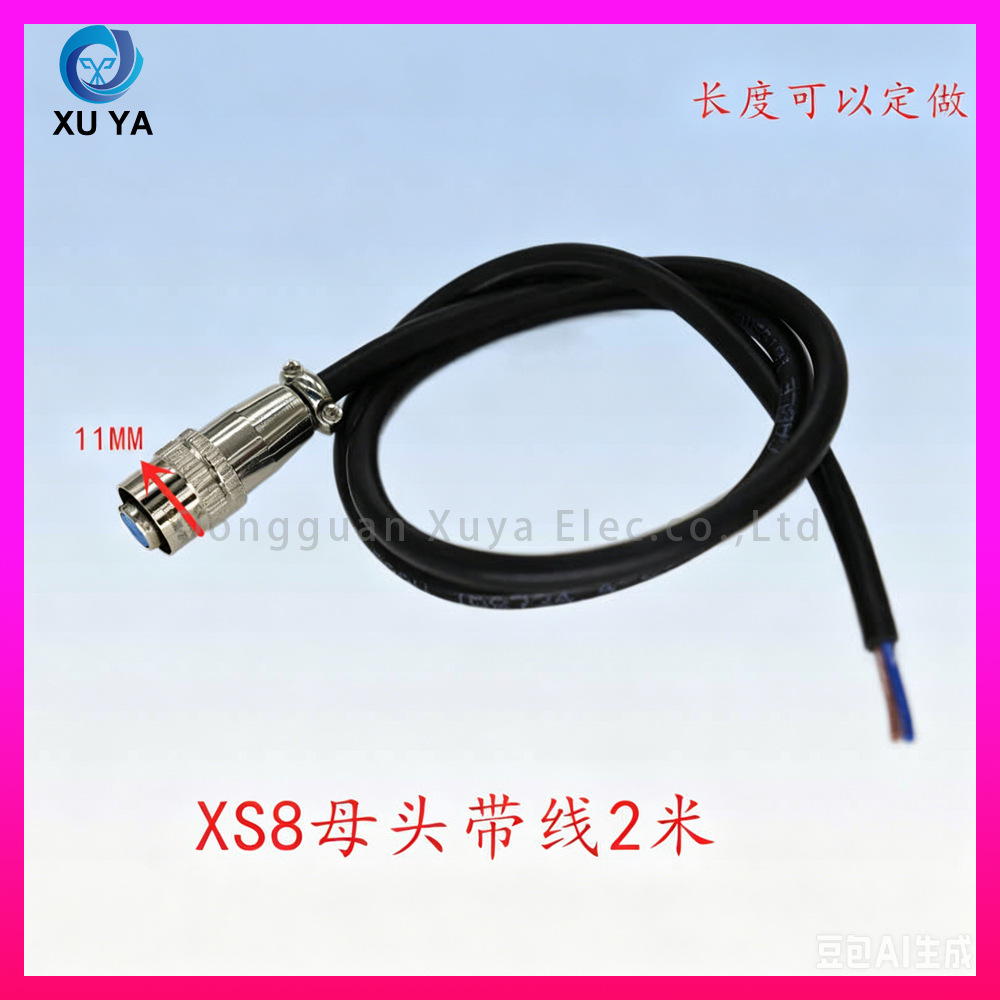

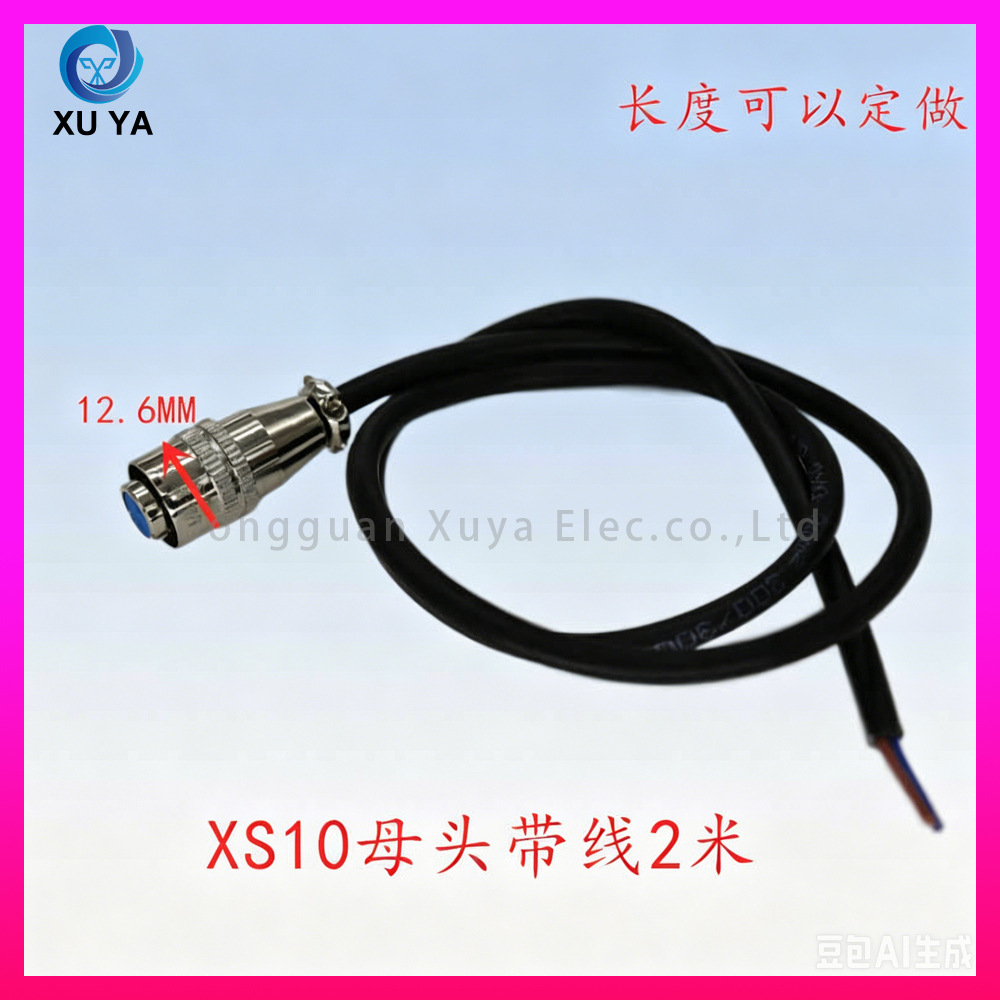

        XS8/XS9/XS10 推拉自锁航空母头成品线束，采用快插自锁结构，插入自动锁紧，拔起即可释放，省去螺纹旋转操作，装配效率更高；产品为母头带线款式，搭配对应公头插头使用，适配 XS8、XS9、XS10 不同安装尺寸需求。连接器外壳采用金属镀镍工艺，防锈耐腐蚀，外壳坚固耐用；内部导电插针采用铜镀金或铜镀银工艺，接触稳定、抗氧化、低阻抗，长期使用信号传输稳定。可选 2 芯、3 芯、4 芯、5 芯规格，满足小电流传感器供电与微弱信号传输需求。线缆采用黑色柔性 PVC 护套，耐反复弯折、耐磨抗老化，内部多色分线清晰易辨，方便接线与检修。工厂一体化焊接成型，成品线束无需二次加工，长度支持按需定制，广泛用于微型传感器、精密检测探头、小型医疗设备、微型自动化仪器的电源与信号连接。

       XS8/XS9/XS10 push-pull self-locking aviation female finished cable adopts quick-insert locking structure, which locks automatically after insertion and releases directly when pulled out, without screw rotation for higher assembly efficiency. It is a female socket cable designed to mate with corresponding male plugs, and fits different installation sizes of XS8, XS9 and XS10. The metal nickel-plated housing provides rust resistance, corrosion resistance and durable protection. Internal gold-plated or silver-plated copper contact pins ensure stable contact, oxidation resistance and low impedance for long-term reliable signal transmission. Available in 2Pin, 3Pin, 4Pin and 5Pin options to meet low-current sensor power supply and weak signal transmission requirements. The cable adopts flexible black PVC sheath with excellent bending resistance, wear resistance and aging resistance. Multi-color inner wires are clearly identified for easy wiring and maintenance. Factory integrated welding and molding eliminates secondary processing, and custom cable lengths are available. Widely used for power and signal connection in miniature sensors, precision probes, small medical equipment and micro automation instruments.

FAQ


1.  Q：XS8/XS9/XS10 推拉航空线有哪些芯数？
     Q: What pin counts are available for XS8/XS9/XS10 push-pull aviation cable?
     A：2 芯、3 芯、4 芯、5 芯现货齐全。
     A: Full stock pin counts: 2Pin, 3Pin, 4Pin, 5Pin.

2.Q：推拉自锁结构对比螺纹款有什么优势？
  Q: What are the advantages of push-pull self-locking structure compared with threaded type?
  A：一插即锁，拔起即开，插拔更快；狭小空间操作方便；震动场景不易松脱。
  A: Lock on insertion and release by pulling, faster plug/unplug; easy operation in narrow space; resistant to loosening under vibration.

3.Q：XS8、XS9、XS10 主要区别是什么？
  Q: What are the main differences between XS8, XS9 and XS10?

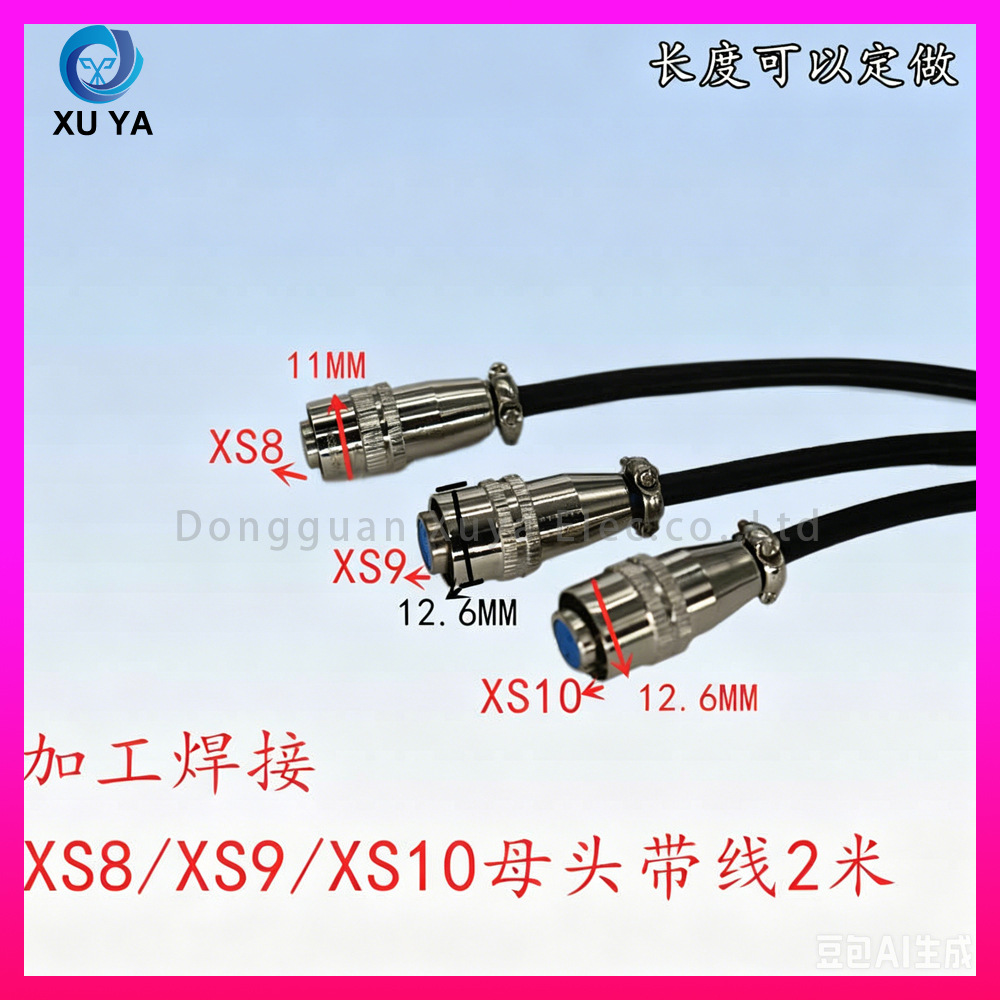

  A：主要区别在于接头尺寸和面板开孔尺寸不同，分别适配 8mm、9mm、10mm 左右安装孔位。
  A: Mainly different in connector size and panel opening size, suitable for approximately 8mm, 9mm and 10mm mounting holes.
 4. Q：成品线束长度可以定制吗？
   . Q: Can the finished cable length be customized?
     A：可以，常规现货 2 米，0.1 米至 15 米均可定做。
     A: Yes, standard stock length is 2m, and custom lengths from 0.1m to 15m are available.

5. Q：这类推拉航空线适配哪些设备？
    Q: What equipment is compatible with this push-pull aviation cable?

    A：小型传感器、检测探头、医疗设备、微型工控仪器、精密检测设备信号线。
    A: Miniature sensors, detection probes, medical equipment, micro industrial control instruments and precision testing equipment signal wires.
