WS16/WS20 圆形航空插头成品线束
Finished wire harnesses with WS16/WS20 circular aviation plugs
核心要点
1. 产品规格

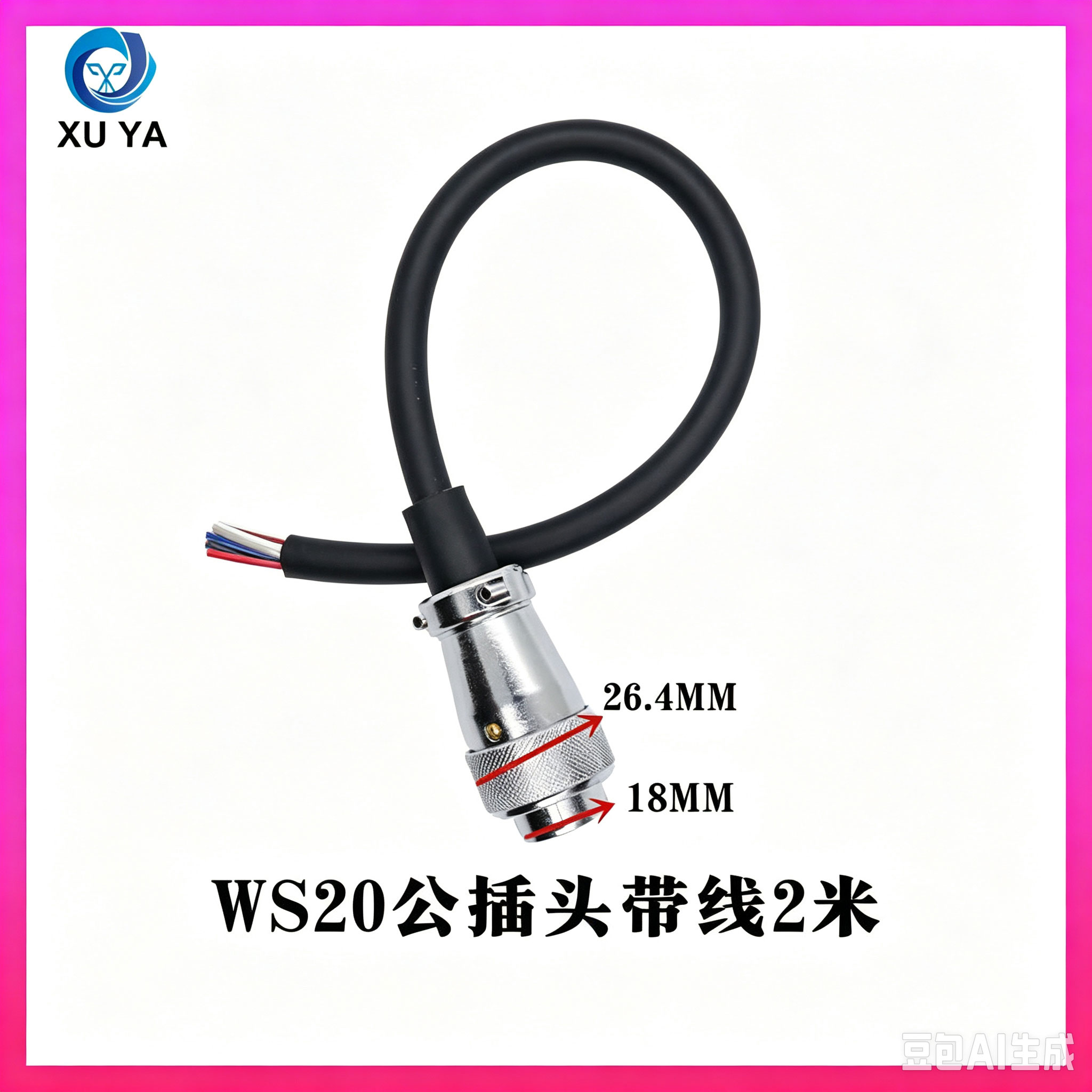

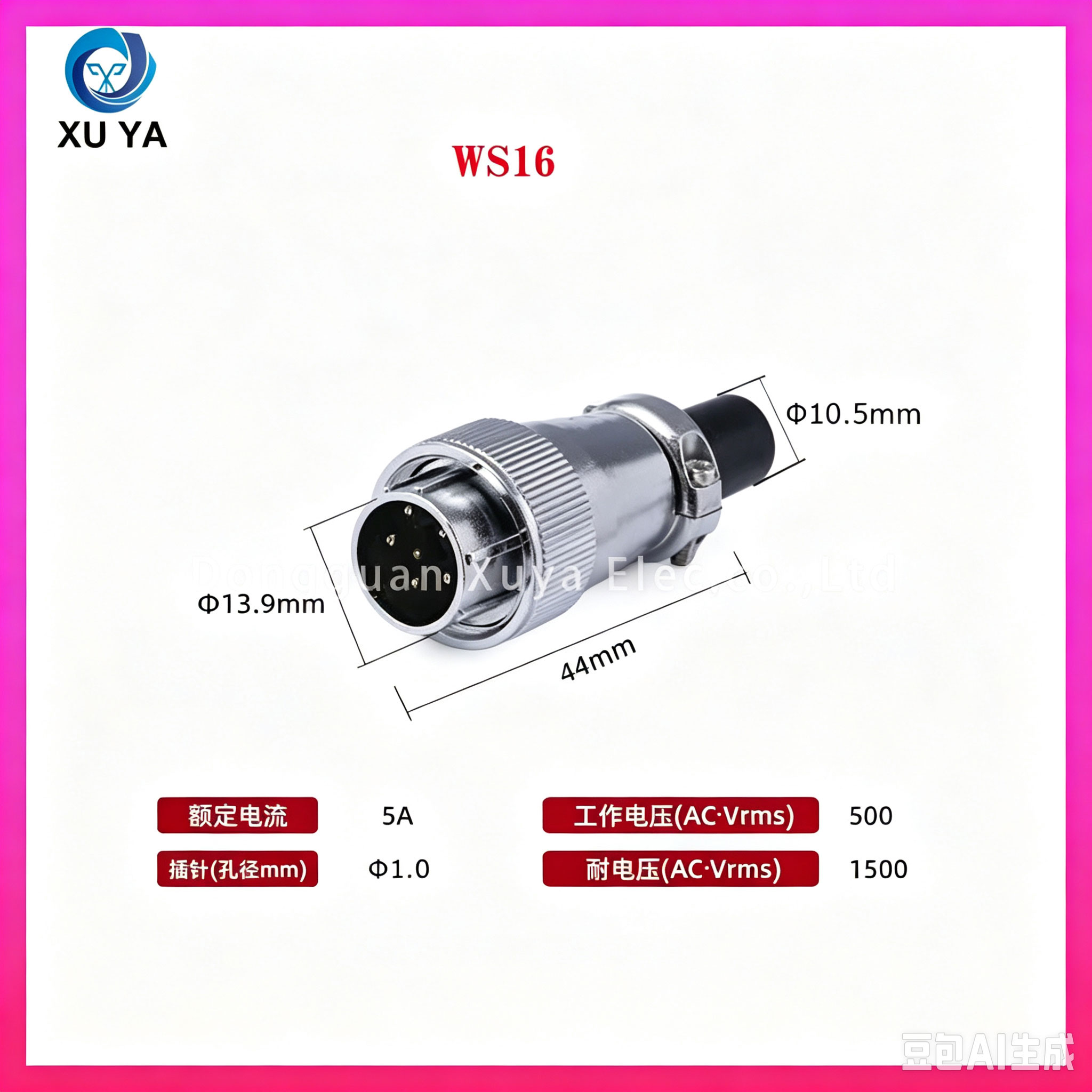

型号分 WS16、WS20 两款；WS20 插头外径 26.4mm，插合端 18mm；针数齐全：2/4/5/6/7/8/9/10/12/14/15 芯可选，公头 TQ、母头 Z 两种接头款式，成品标配 2 米线缆，支持定制长度。
2. 金属锁紧防水结构
全金属镀镍外壳，防锈耐腐蚀；螺纹旋紧 + 定位弹珠双重锁止，设备震动工况不松脱；尾部一体成型防水缓冲胶套，防尘防潮，抗弯折抗拉扯。
3. 线束与焊接工艺
多芯多色国标铜芯软线，区分线路便于接线检修；插头内部高温焊锡满焊，焊点饱满无虚焊、脱焊，导电稳定；PVC 阻燃护套，耐磨耐老化，适配室内外工业环境。
4. 灵活定制方案
针脚数量、公母头、线缆长度（0.3m~50m）、线径均可按需定制；支持单头出线、双头对接成品线批量加工焊接。
5. 适用场景
工控设备、仪器仪表、检测设备、医疗器械、自动化设备、户外灯光设备、小型机械设备电源 / 信号传输。
产品描述

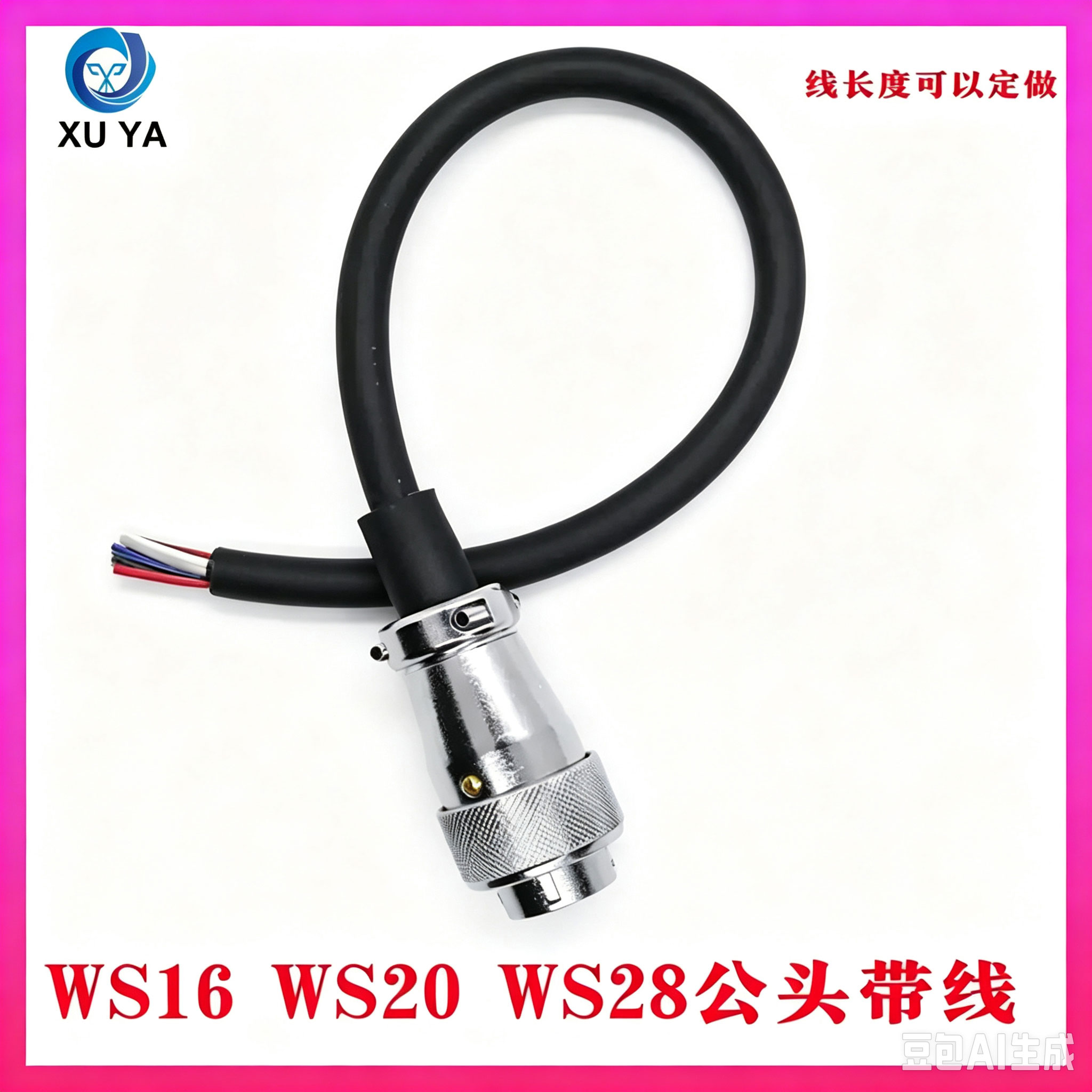

WS16/WS20 圆形航空插头成品带线，TQ 公头、Z 母头全覆盖，针位规格丰富，可选 2/4/5/6/7/8/9/10/12/14/15 芯，常规成品线缆长度 2 米，支持全尺寸定制。插头整体采用金属镀镍壳体，抗氧化防锈，搭配螺纹滚花锁紧结构，旋紧后牢牢锁合，配合定位钢珠防松脱，防尘防水防护效果优异；尾部加厚缓冲防水胶套，有效分散线缆拉扯力，杜绝根部弯折断线。内部多色分股无氧纯铜导线，导电性能稳定，区分线路便于现场接线、检修；插头内部人工高温满焊，焊点扎实饱满，无虚焊、断路隐患。线缆外层为环保阻燃 PVC 绝缘护套，耐磨耐弯折、耐老化，适配各类工业复杂工况。厂家可承接插头焊接加工业务，按需定制针数、公母头、线缆长度、线径，广泛用于自动化设备、检测仪器、工控设备、医疗设备、户外设备的电源与信号连接传输。
WS16/WS20 circular aviation connector finished cable, fully covered with TQ male plug and Z female socket. Complete pin configurations are available: 2/4/5/6/7/8/9/10/12/14/15 pins. Standard stock cable length is 2 meters, full custom lengths are supported. The plug adopts nickel-plated metal shell for anti-oxidation and rust resistance, equipped with knurled threaded locking structure. It locks tightly after tightening, with positioning steel balls to prevent loosening, providing excellent dustproof and waterproof performance. The thickened buffer waterproof rubber sleeve at the tail effectively disperses cable pulling force and avoids wire breakage caused by bending at the root. Internal multi-color stranded oxygen-free copper wires deliver stable conductivity, and color separation facilitates on-site wiring and maintenance. The plug interior is fully soldered manually with high-temperature solder, creating solid, full solder joints to eliminate risks of cold solder joints and open circuits. The outer cable sheath is eco-friendly flame-retardant PVC, wear-resistant, bending-resistant and anti-aging, suitable for various complex industrial working conditions. We provide custom connector soldering processing service, customizable pin count, male/female type, cable length and wire gauge. Widely applied for power and signal connection transmission of automation equipment, testing instruments, industrial control devices, medical equipment and outdoor equipment.
