4mm 线耳 NTC 温度传感器 XH2.54 端子

4mm 线耳 NTC 温度传感器 XH2.54 端子 10K/100K B3435/B3950

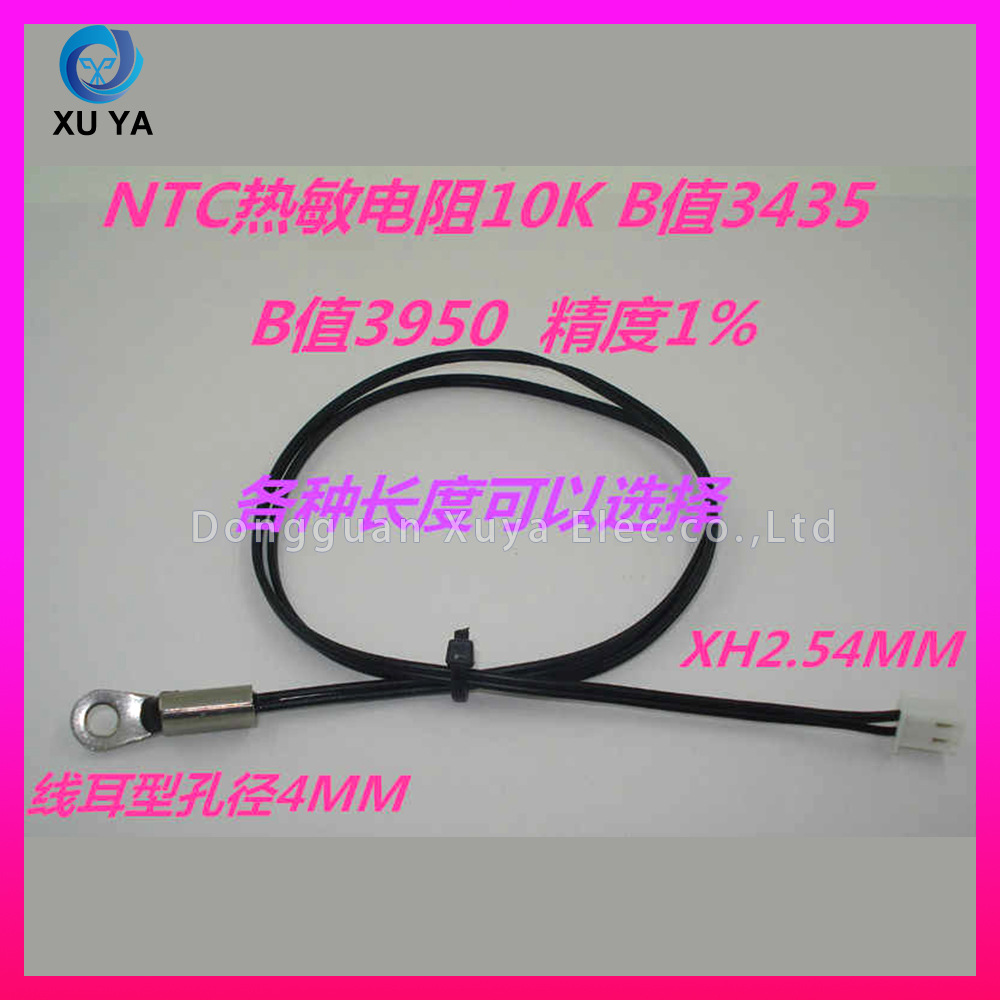

4mm Lug NTC Temp Sensor With XH2.54 Terminal 10K/100K B3435/B3950

        新能源线耳固定型 NTC 热敏电阻温度传感器，一端 4mm 孔径金属 O 型线耳，金属套管一体封装测温芯体，另一端配套 XH2.54mm 间距白色 2P 塑胶端子；线材为黑色耐温超细 PVC 绝缘引线，柔韧耐弯折、绝缘稳定；电气参数可选：阻值 10K、100K，B 值 3435/3950，测温精度 ±1%；4mm 圆孔线耳可通过螺丝锁紧固定在新能源电池模组、金属散热片、电控外壳表面，导热快、安装牢固；常规现货线长 0.3m/0.5m/1m/1.5m，可按需定制特殊线长、线耳孔径、阻值 B 值；广泛用于储能锂电池包、新能源动力电池 BMS、逆变器、充电桩、工业电源温控测温；标准整箱 900PCS，现货交期 2-3 个工作日，支持定制线耳尺寸、线长、端子型号、电阻参数，源头线束工厂批量供货。

       New energy lug-fixed NTC thermistor temperature sensor. One end is metal O-type lug with 4mm inner diameter, the temperature sensing core is integrally packaged by metal sleeve, the other end is matched with white 2P plastic terminal with XH2.54mm pitch. The wire is black temperature-resistant ultra-fine PVC insulated cable, flexible, bending-resistant and stable insulation. Optional electrical parameters: resistance 10K/100K, B-value 3435/3950, temperature tolerance ±1%. The 4mm round-hole lug can be locked on the surface of new energy battery modules, metal heat sinks and electric control housings by screws, featuring fast heat conduction and firm installation. Standard stock wire lengths:0.3m/0.5m/1m/1.5m, custom special wire length, lug aperture, resistance and B-value are available. Widely used for temperature detection of energy storage lithium battery packs, new energy power battery BMS, inverters, charging piles and industrial power supplies. 900 pieces per export carton, stock lead time 2-3 working days. Custom lug size, wire length, terminal type and resistance parameters are supported, factory provides mass customized wiring harnesses.

Q1. 规格 Spec 这款线耳式 NTC 温度传感器标准结构与电气参数是什么？
4mm 孔径 O 型金属线耳，末端 XH2.54mm 2P 白色端子；阻值 10K/100K 可选，B 值 3435/3950，测温精度 ±1%。
What are the standard structural and electrical parameters of this lug-type NTC temperature sensor?
O-shaped metal lug with 4mm inner diameter, 2P white terminal with XH2.54mm pitch at the wire end; optional resistance 10K/100K, B-value 3435/3950, temperature tolerance ±1%.

Q2. 颜色材质 Color & Material 线耳、引线、端子分别是什么材质与颜色？
固定测温线耳为银色镀锌金属；引线黑色耐高低温 PVC 绝缘细线；连接端子为白色硬质塑胶材质。
What material and color for lug, lead wire and connecting terminal? The fixed temperature measuring lug is silver galvanized metal; the lead wire is thin black high and low temperature resistant PVC insulated cable; the connecting terminal is white hard plastic material.

Q3. 引线长度 Wire Length 新能源线耳 NTC 热敏电阻常规现货线长有哪些，支持定制长度吗？
常备现货长度 0.3m、0.5m、1m、1.5m，可根据客户需求任意定制其他特殊线材长度。
What standard stock wire lengths are available for this new energy lug NTC thermistor?
Is custom wire length acceptable? Standard stock lengths are 0.3m,0.5m,1m,1.5m. Any special wire length can be arbitrarily customized according to customer requirements.

Q4. 用途 Application 4mm 线耳 NTC 温度传感器适配哪些新能源设备，实现什么功能？
适配储能锂电池 PACK、新能源汽车动力电池 BMS、逆变器、充电桩、工业功率电源；螺丝固定于金属壳体、散热片，实时采集表面温度，用于电池过热预警、设备恒温保护。
What new energy equipment is this 4mm lug NTC temperature sensor compatible with, and what function can it realize?
It fits energy storage lithium battery PACK, new energy vehicle power battery BMS, inverters, charging piles and industrial power supplies. It is fixed on metal shells and heat sinks by screws to collect real-time surface temperature for battery overheating early warning and equipment constant temperature protection.

Q5. 装箱数量 Carton Qty 线耳 XH 端子 NTC 温度探头标准出口纸箱一箱可装多少条？
标准出口纸箱每箱 900PCS，线材分类捆扎，金属线耳分层隔离，防止运输挤压变形、塑胶端子碎裂。
How many pieces of this lug & XH terminal NTC temperature probe can be packed in one standard export carton?
900 pieces per export carton. All wires are bundled separately, metal lugs are layered separated to prevent extrusion deformation and plastic terminal cracking during transportation.
