U 型叉耳 NTC 温度传感器

U 型叉耳 NTC 温度传感器 总长 40mm 10K B3950 精度 1%
U-Shaped Lug NTC Temp Sensor Total Length 40mm 10K B3950 1% Tolerance

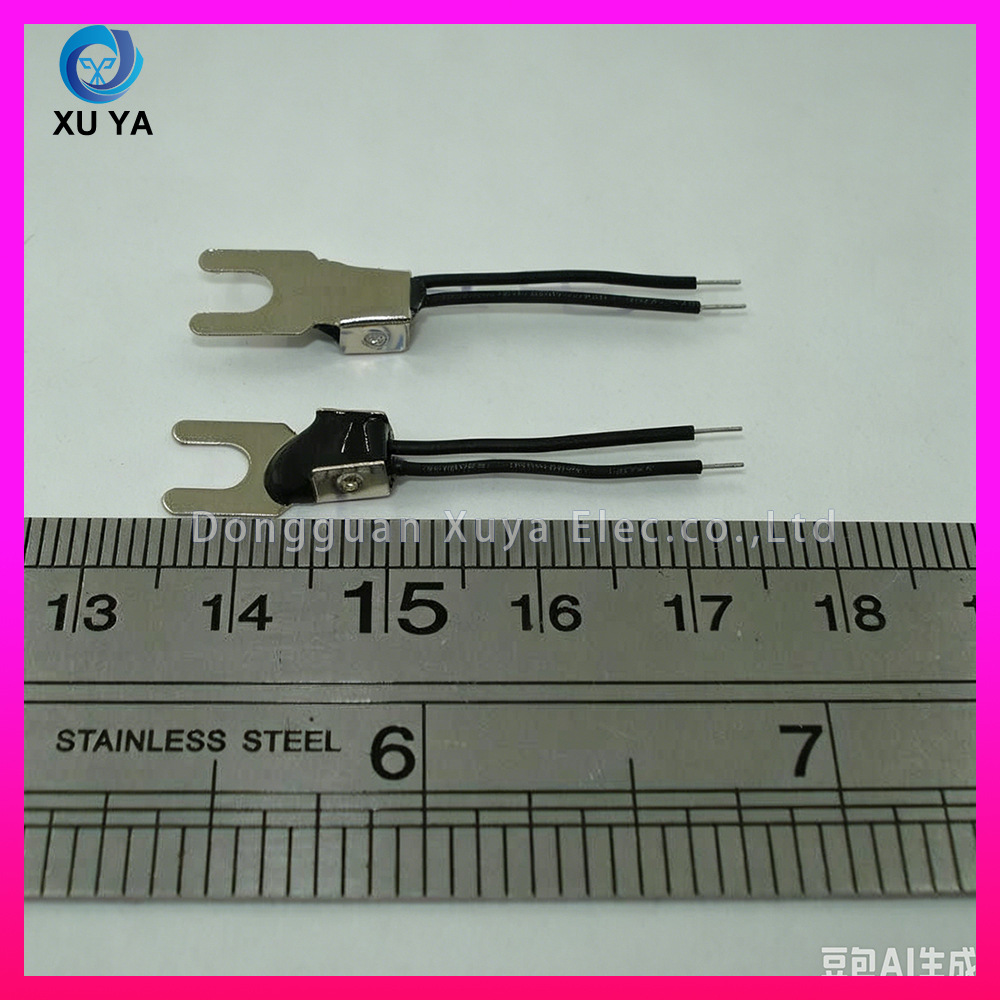

        迷你 U 型叉耳固定 NTC 热敏电阻温度传感器，金属 U 型叉耳一体封装测温芯体，线材末端双线剥皮镀锡；产品总长度 40mm，体积小巧节省安装空间；线材采用黑色超细耐温 PVC 绝缘引线，柔韧耐弯折；标准电气参数：阻值 10K，B 值 3950，测温精度 ±1%；U 型叉耳预留螺丝固定位，可锁紧在散热片、电控外壳、锂电池模组金属表面，导热效率高，安装牢固；常规现货总长 40mm，可按需定制其他总长、叉耳尺寸、阻值 B 值；广泛用于新能源 BMS、逆变器、小型电源、工控电路板、热水器控制板表面测温；标准整箱 12000PCS，现货交期 2-3 个工作日，支持定制线长、封装样式、电阻参数，源头线束工厂批量供货。

       Mini U-shaped lug fixed NTC thermistor temperature sensor. The temperature sensing core is integrally packaged with metal U-shaped fork lug, and the wire ends are stripped and tinned double wires. The total product length is 40mm, compact size to save installation space. The wire is ultra-thin black temperature-resistant PVC insulated cable with good bending resistance. Standard electrical parameters: resistance 10KΩ, B-value 3950, temperature tolerance ±1%. The U-shaped fork lug has reserved screw fixing holes, which can be locked on metal surfaces such as heat sinks, electric control housings and lithium battery modules, featuring high heat conduction efficiency and firm installation. Standard total length 40mm in stock, other total lengths, lug sizes, resistance and B-value can be customized. Widely used for surface temperature detection of new energy BMS, inverters, small power supplies, industrial control circuit boards and water heater control boards. 12000 pieces per export carton, stock lead time 2-3 working days. Custom wire length, packaging style and resistance parameters are supported, factory provides mass customized wiring harnesses.

Q1. 规格 Spec 这款迷你 U 型 NTC 温度传感器标准规格参数是什么？
金属 U 型叉耳封装，产品总长 40mm，阻值 10K，B 值 3950，测温精度 ±1%，出线双线剥皮上锡。
What are the standard specification parameters of this mini U-shaped NTC temperature sensor?
Packaged with metal U-shaped fork lug, total product length 40mm, resistance 10KΩ, B-value 3950, temperature tolerance ±1%, double stripped & tinned wire outlets.

Q2. 颜色材质 Color & Material U 型叉耳、引线分别是什么材质与颜色？
测温固定 U 型叉耳为银色镀锌金属材质；引线是黑色超细耐高低温 PVC 绝缘细线。
What material and color for U-shaped lug and lead wire?
The temperature fixing U-shaped fork lug is silver galvanized metal; the lead wire is ultra-thin black high and low temperature resistant PVC insulated cable.

Q3. 引线长度 Wire Length 这款 40mm 总长 U 型 NTC 热敏电阻现货标准总长是多少，能否定制尺寸？
标准现货产品总长度 40 毫米，可根据客户需求任意定制其他整体长度、叉耳孔径尺寸。
What is the standard total stock length of this 40mm U-shaped NTC thermistor?
Can dimensions be customized? The standard total length of stock products is 40mm. Other overall lengths and lug hole sizes can be arbitrarily customized according to customer requirements.

Q4. 用途 Application U 型叉耳迷你 NTC 温度传感器适配哪些设备，起到什么作用？
适配储能锂电池 BMS、逆变器、小型开关电源、工控 PCB 板、热水器控制主板；螺丝固定于金属散热面，精准采集表面温度，实现设备过热保护、恒温控制。
What equipment is this mini U-lug NTC temperature sensor compatible with, and what is its function?
It fits energy storage lithium battery BMS, inverters, small switching power supplies, industrial control PCB boards and water heater main control boards. It is fixed on metal heat dissipation surfaces by screws to accurately collect surface temperature and realize equipment overheat protection and constant temperature control.

Q5. 装箱数量 Carton Qty 迷你 U 型 40mm NTC 热敏电阻标准出口纸箱一箱可装多少个？
标准出口纸箱每箱 12000PCS，线材分捆整齐收纳，金属 U 型叉耳分层隔开，避免大批量堆叠挤压变形、刮花金属接触面。 How many pieces of this mini 40mm U-shaped NTC thermistor can be packed in one standard export carton?
12000 pieces per export carton. All wires are neatly bundled, metal U-lugs are layered separated to prevent extrusion deformation and scratches on metal contact surfaces caused by mass stacking during transportation.
