O 型线耳 NTC 温度传感器 白色端子

O 型线耳 NTC 温度传感器 100K 带 2.54mm 白色端子
O Lug NTC Temp Sensor 100K With 2.54mm White Terminal

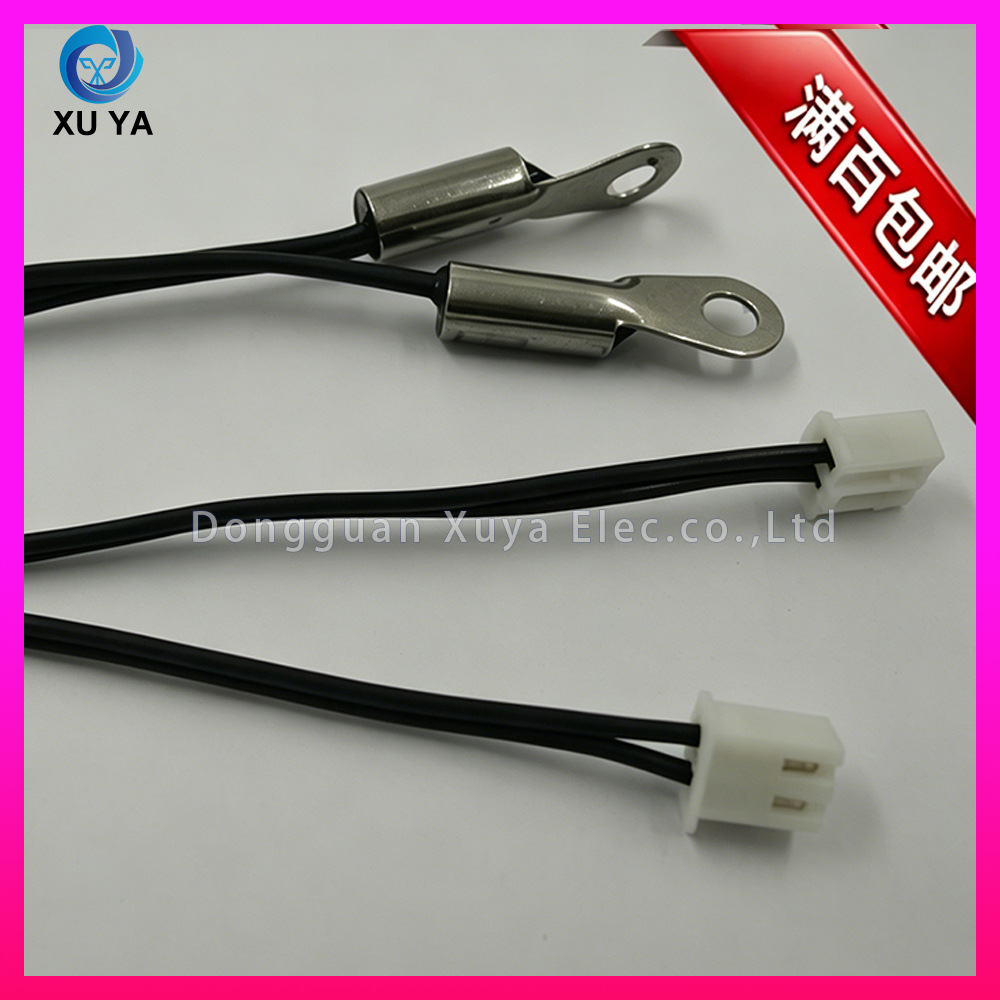

        O 型线耳固定式 NTC 热敏电阻温度传感器，一端金属圆孔径 O 型线耳，金属套管密封封装 NTC 测温芯体，另一端配备间距 2.54mm 白色 2P 塑胶直插端子；线材采用黑色耐高低温 PVC 绝缘引线，线材柔韧耐弯折、绝缘防水；标准电气参数：阻值 100K，可定制 B 值 3435/3950，测温精度 ±1%；O 型圆孔线耳可通过螺丝锁紧固定在新能源电池模组、金属散热片、电控外壳表面，导热速度快，安装稳固不松动；常规现货线长 0.3m/0.5m/1m/1.5m，可按需定制特殊线长、线耳孔径、电阻 B 值；广泛用于储能锂电池 PACK、新能源动力电池 BMS、逆变器、充电桩、工业电源、热水器温控测温；标准整箱 850PCS，现货交期 2-3 个工作日，支持定制线耳尺寸、线材长度、端子型号、电阻参数，源头线束工厂批量供货。

       O-lug fixed NTC thermistor temperature sensor. One end is metal O-type lug with round hole, the NTC temperature sensing core is hermetically packaged by metal sleeve, and the other end is equipped with white 2P plastic plug terminal with 2.54mm pitch. The wire is black high & low temperature resistant PVC insulated cable, flexible, bending-resistant, insulated and waterproof. Standard electrical parameter: resistance 100KΩ, customizable B-value 3435/3950, temperature tolerance ±1%. The O-type round-hole lug can be locked on the surface of new energy battery modules, metal heat sinks and electric control housings by screws, with fast heat conduction and stable installation without loosening. Standard stock wire lengths:0.3m/0.5m/1m/1.5m, custom special wire length, lug aperture and resistance B-value are available. Widely used for temperature detection of energy storage lithium battery PACK, new energy power battery BMS, inverters, charging piles, industrial power supplies and water heaters. 850 pieces per export carton, stock lead time 2-3 working days. Custom lug size, wire length, terminal type and resistance parameters are supported, factory provides mass customized wiring harnesses.

Q1. 规格 Spec 这款 O 型线耳 NTC 温度传感器标准结构与电气参数是什么？
金属 O 型圆孔线耳，套管封装 NTC；末端 2.54mm 间距 2P 白色塑胶端子；标准阻值 100K，B 值可选 3435/3950，测温精度 ±1%。
What are the standard structural and electrical parameters of this O-lug NTC temperature sensor?
Metal O-type round-hole lug, sleeve packaged NTC; 2P white plastic terminal with 2.54mm pitch at wire end; standard resistance 100KΩ, optional B-value 3435/3950, temperature tolerance ±1%.

Q2. 颜色材质 Color & Material 线耳、引线、端子分别是什么材质与颜色？
测温固定 O 型线耳为银色镀锌金属；引线黑色耐高低温 PVC 绝缘线材；连接端子为白色硬质塑胶材质。
What material and color for lug, lead wire and connecting terminal?
The temperature fixing O-type lug is silver galvanized metal; the lead wire is black high and low temperature resistant PVC insulated cable; the connecting terminal is white hard plastic material.

Q3. 引线长度 Wire Length 100K 线耳 NTC 热敏电阻常规现货线长有哪些，支持定制长度吗？
常备现货长度 0.3m、0.5m、1m、1.5m，可根据客户需求任意定制其他特殊线材长度。
What standard stock wire lengths are available for this 100K lug NTC thermistor? Is custom wire length acceptable? Standard stock lengths are 0.3m,0.5m,1m,1.5m. Any special wire length can be arbitrarily customized according to customer requirements.

Q4. 用途 Application O 型线耳 100K NTC 温度传感器适配哪些设备，实现什么功能？
适配储能锂电池 PACK、新能源汽车动力电池 BMS、逆变器、充电桩、工业开关电源、热水器控制板；螺丝固定于金属散热壳体、散热片，实时采集表面温度，用于电池过热预警、设备恒温温控保护。
What equipment is this O-lug 100K NTC temperature sensor compatible with, and what function can it realize?
It fits energy storage lithium battery PACK, new energy vehicle power battery BMS, inverters, charging piles, industrial switching power supplies and water heater control boards. It is fixed on metal heat dissipation shells and heat sinks by screws to collect real-time surface temperature for battery overheating early warning and equipment constant temperature protection.

Q5. 装箱数量 Carton Qty 带 2.54mm 端子 O 型线耳 NTC 温度探头标准出口纸箱一箱可装多少条？
标准出口纸箱每箱 850PCS，线材分类捆扎，金属 O 型线耳分层隔离，防止运输挤压变形、白色塑胶端子碎裂破损。
How many pieces of this O-lug NTC temperature probe with 2.54mm terminal can be packed in one standard export carton?
850 pieces per export carton. All wires are bundled separately, metal O-lugs are layered separated to prevent extrusion deformation and cracking damage of white plastic terminals during transportation.
