多孔径 OT 线耳 NTC 温度传感器

多孔径 OT 线耳 NTC 温度传感器 10K B3950 线长 500mm

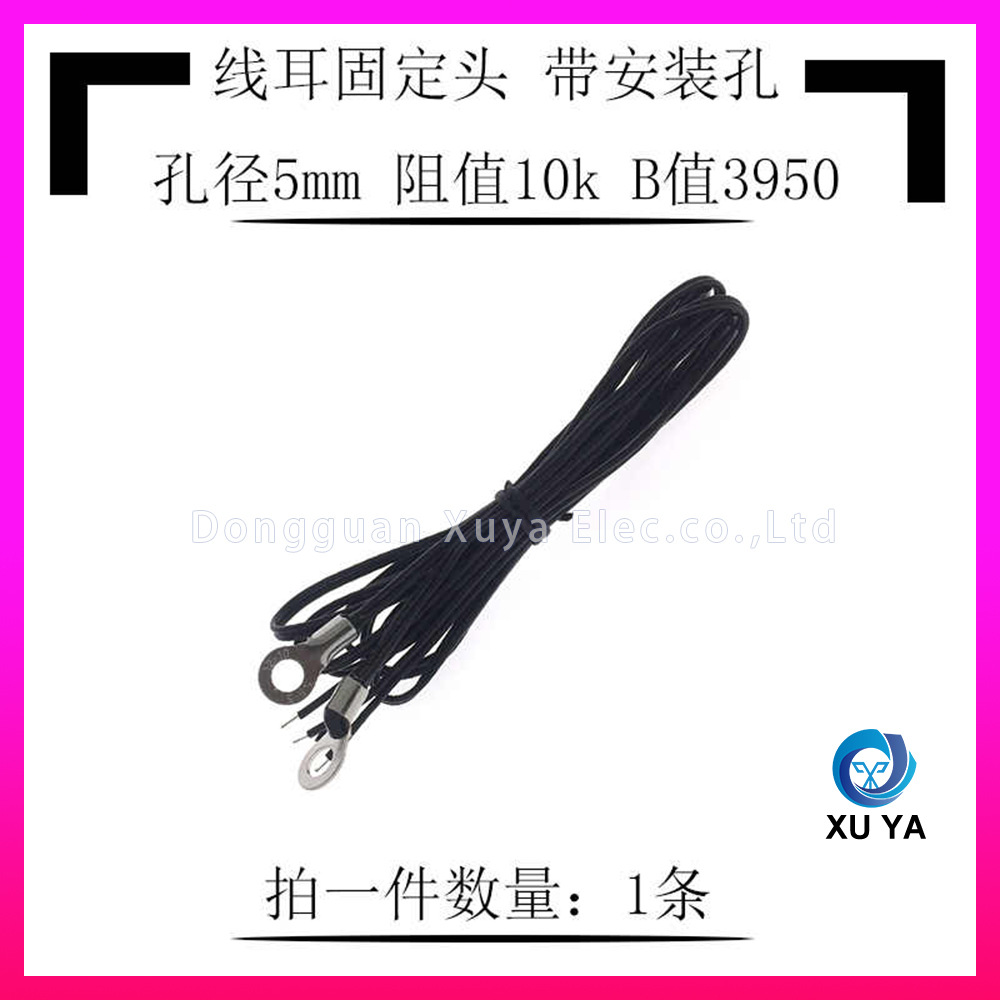

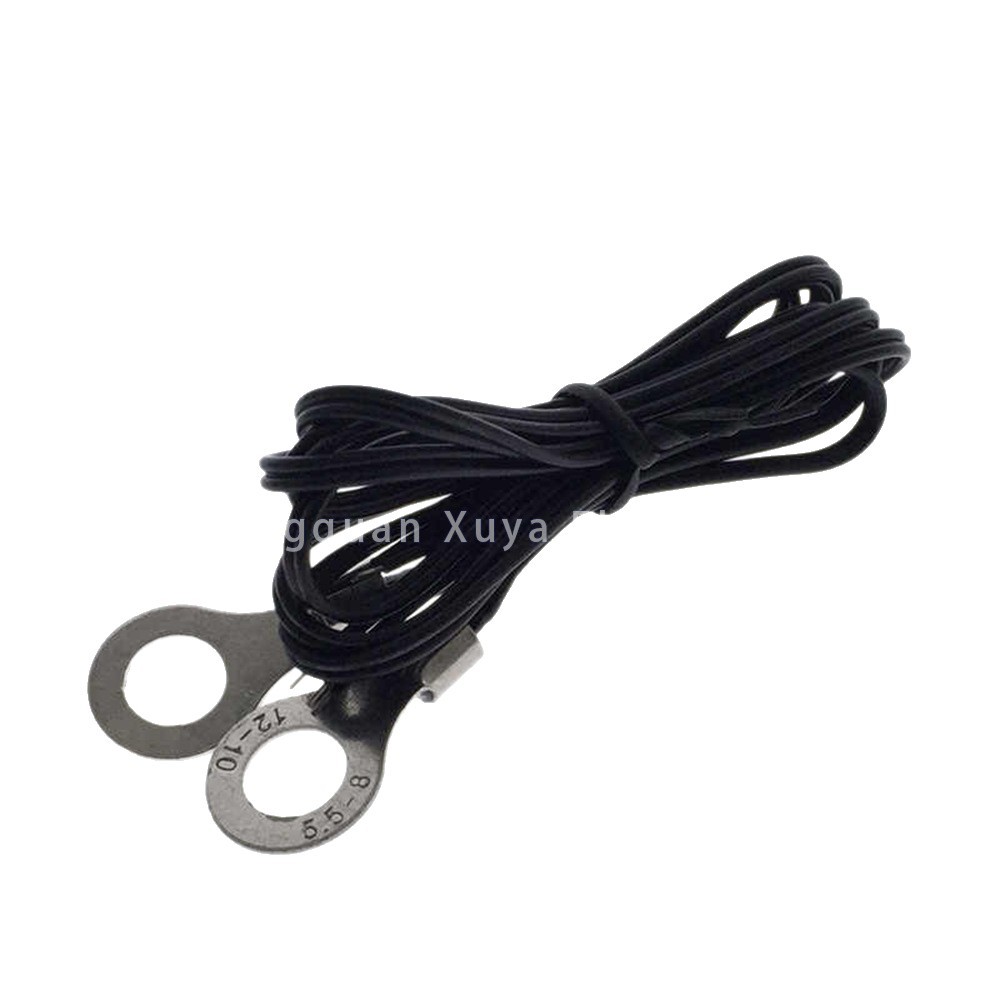

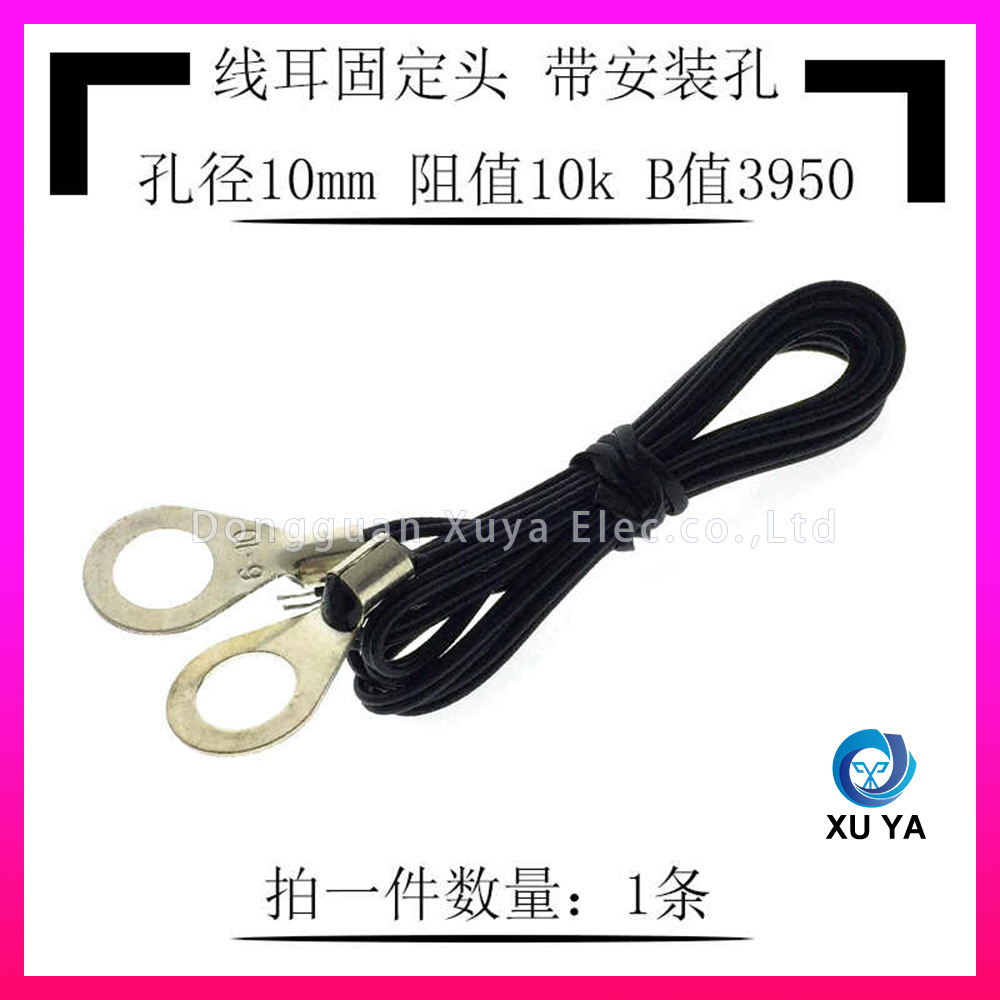

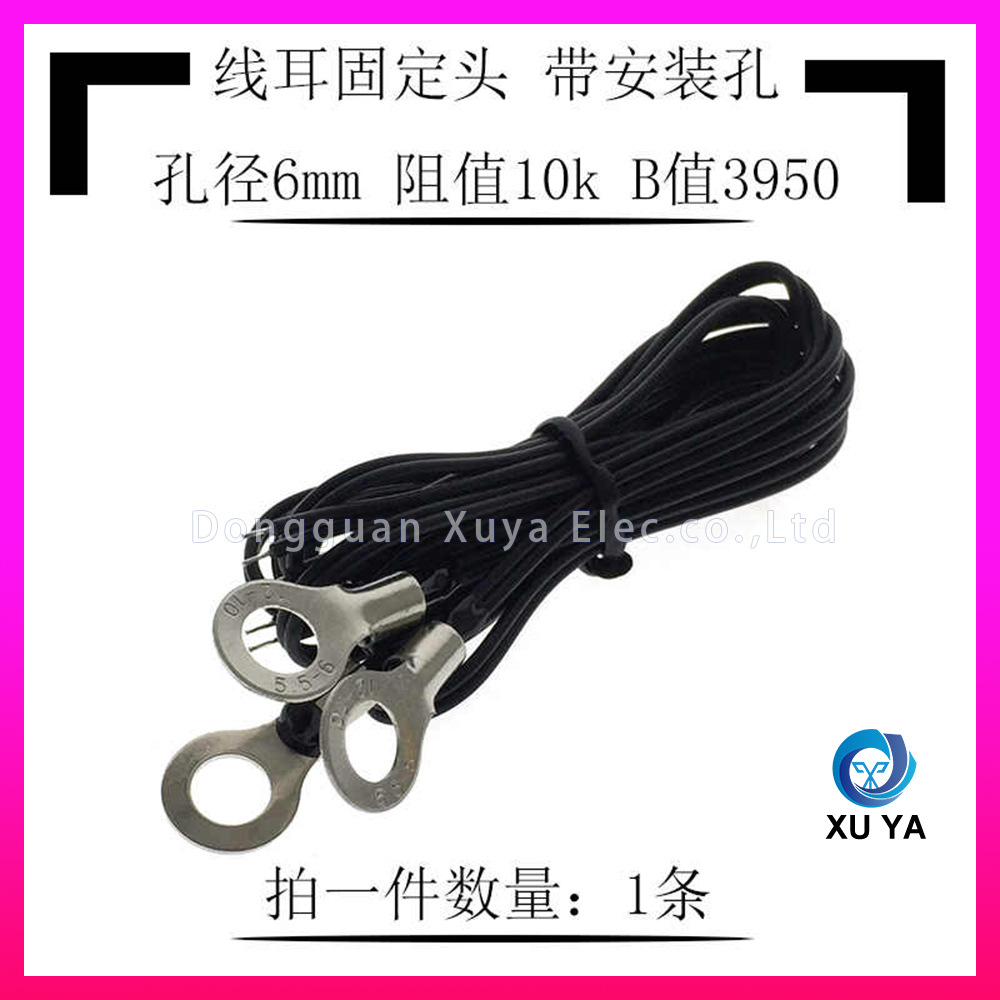

Multi-size OT Lug NTC Temp Sensor 10K B3950 500mm Cable

         多规格 OT 圆线耳固定式 NTC 热敏电阻温度传感器，金属 OT 线耳可选孔径 3/4/5/6/8/10/12mm，金属套管一体封装 NTC 测温芯，引线末端双线剥皮镀锡；标配线材长度 500mm，线材采用黑色耐温 PVC 绝缘细线，柔韧耐弯折、绝缘稳定；标准电气参数：阻值 10K，B 值 3950，测温精度 ±1%；多尺寸 OT 圆孔适配各类设备螺丝安装位，螺丝锁紧后紧密贴合金属壳体、散热片，导热快、安装牢固；可按需定制线耳孔径、线材总长、阻值、B 值；广泛用于各类家用电器、工业温控设备、储能 BMS、电源、热水器、逆变器表面温度采集；标准整箱 800PCS，现货交期 2-3 个工作日，支持定制线耳规格、线长、端子、电阻参数，源头线束工厂批量供货。

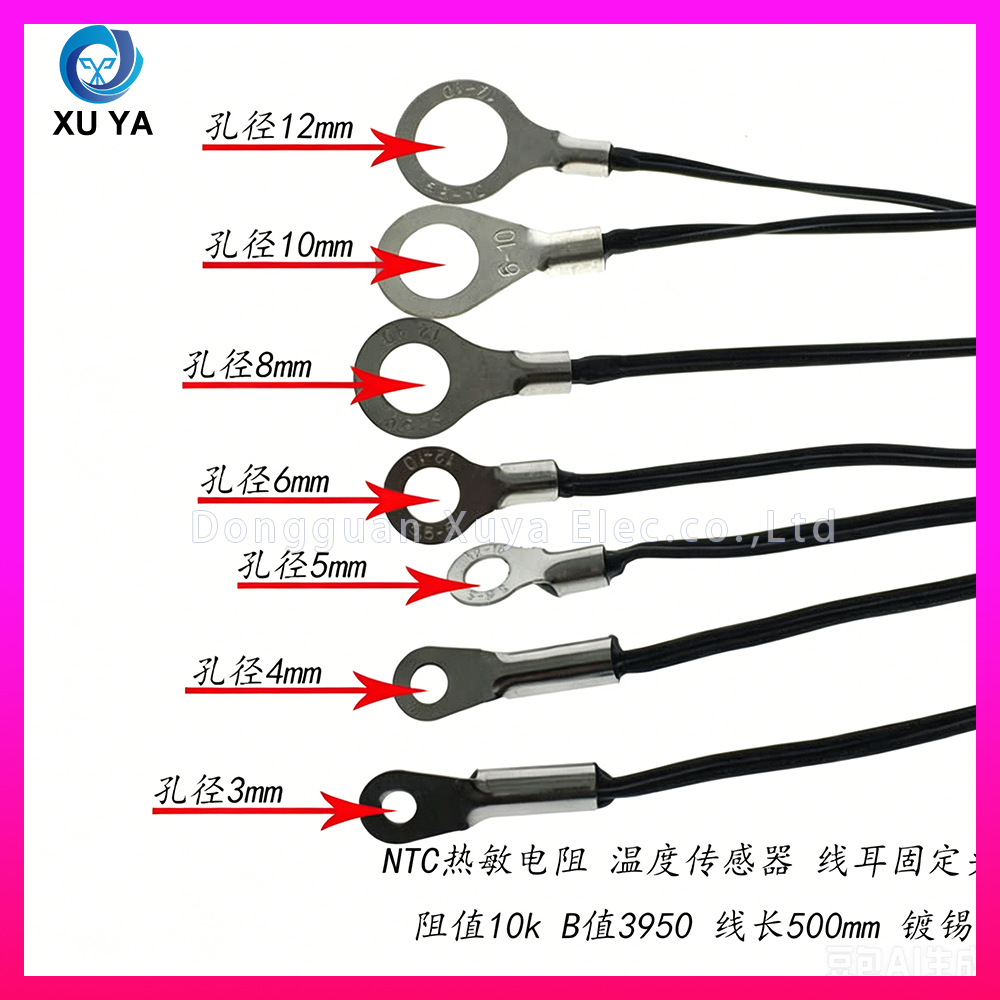

         Multi-size OT round lug fixed NTC thermistor temperature sensor. Metal OT lugs with optional inner diameters: 3/4/5/6/8/10/12mm. The NTC temperature sensing core is integrally packaged with metal sleeve, double stripped and tin-plated wires at cable ends. Standard cable length is 500mm. The wire adopts thin black temperature-resistant PVC insulated cable, flexible, bending-resistant and stable insulation. Standard electrical parameters: resistance 10KΩ, B-value 3950, temperature tolerance ±1%. Multi-size OT round holes fit screw mounting positions of various equipment. After screw locking, it closely fits metal shells and heat sinks with fast heat conduction and firm installation. Custom lug inner diameter, total cable length, resistance and B-value are available. Widely used for surface temperature detection of household appliances, industrial temperature control equipment, energy storage BMS, power supplies, water heaters and inverters. 800 pieces per export carton, stock lead time 2-3 working days. Custom lug specification, wire length, terminal and resistance parameters are supported, factory provides mass customized wiring harnesses.

Q1. 规格 Spec 这款多孔径 OT 线耳 NTC 传感器标准规格参数是什么？
OT 线耳孔径可选 3/4/5/6/8/10/12mm，标准阻值 10K，B 值 3950，标配线长 500mm，双线末端剥皮镀锡。
What are the standard specification parameters of this multi-size OT lug NTC sensor?
OT lug inner diameters optional:3/4/5/6/8/10/12mm, standard resistance 10KΩ, B-value 3950, standard cable length 500mm, double wires stripped and tin-plated at ends.

Q2. 颜色材质 Color & Material OT 线耳、引线分别是什么材质与颜色？
测温固定 OT 线耳为银色镀锌金属材质；引线为黑色耐高低温 PVC 绝缘细线，内部纯铜导体。
What material and color for OT lug and lead wire?
The temperature fixing OT lug is silver galvanized metal; the lead wire is thin black high & low temperature resistant PVC insulated cable with pure copper inner conductor.

Q3. 引线长度 Wire Length 多规格 OT 线耳 NTC 热敏电阻标准现货线长是多少，能否定制长度？
标准标配线材长度 500 毫米，可根据客户需求任意定制其他不同线材总长。
What is the standard stock wire length of this multi-size OT lug NTC thermistor?
Can custom wire length be made? The standard default cable length is 500mm, other different total wire lengths can be arbitrarily customized according to customer requirements.

Q4. 用途 Application 多孔径 OT 线耳 NTC 温度传感器适配哪些设备，实现什么功能？
适配各类家用电器、工业温控设备、储能锂电池 BMS、开关电源、壁挂炉、逆变器；通过 OT 线耳螺丝固定在金属散热面，实时采集设备表面温度，用于恒温控制、设备过热保护。
What equipment is this multi-size OT lug NTC temperature sensor compatible with, and what function can it realize?
It fits all kinds of household appliances, industrial temperature control equipment, energy storage lithium battery BMS, switching power supplies, wall-hung boilers and inverters. It is fixed on metal heat dissipation surfaces via OT lug screws to collect real-time surface temperature for constant temperature control and equipment overheat protection.

Q5. 装箱数量 Carton Qty 多孔径 OT 线耳 NTC 温度探头标准出口纸箱一箱可装多少条？
标准出口纸箱每箱 800PCS，线材统一捆扎，不同孔径金属 OT 线耳分类分层隔离，防止运输挤压变形、金属接触面刮花。 How many pieces of this multi-size OT lug NTC temperature probe can be packed in one standard export carton?
800 pieces per export carton. All wires are bundled uniformly, metal OT lugs of different sizes are sorted and layered separated to prevent extrusion deformation and scratches on metal contact surfaces during transportation.
