多款式不锈钢 NTC 温度传感器

多款式不锈钢 NTC 温度传感器 5K/10K/50K/100K B3950
Multi-Type Stainless Steel NTC Temp Sensor 5K/10K/50K/100K B3950

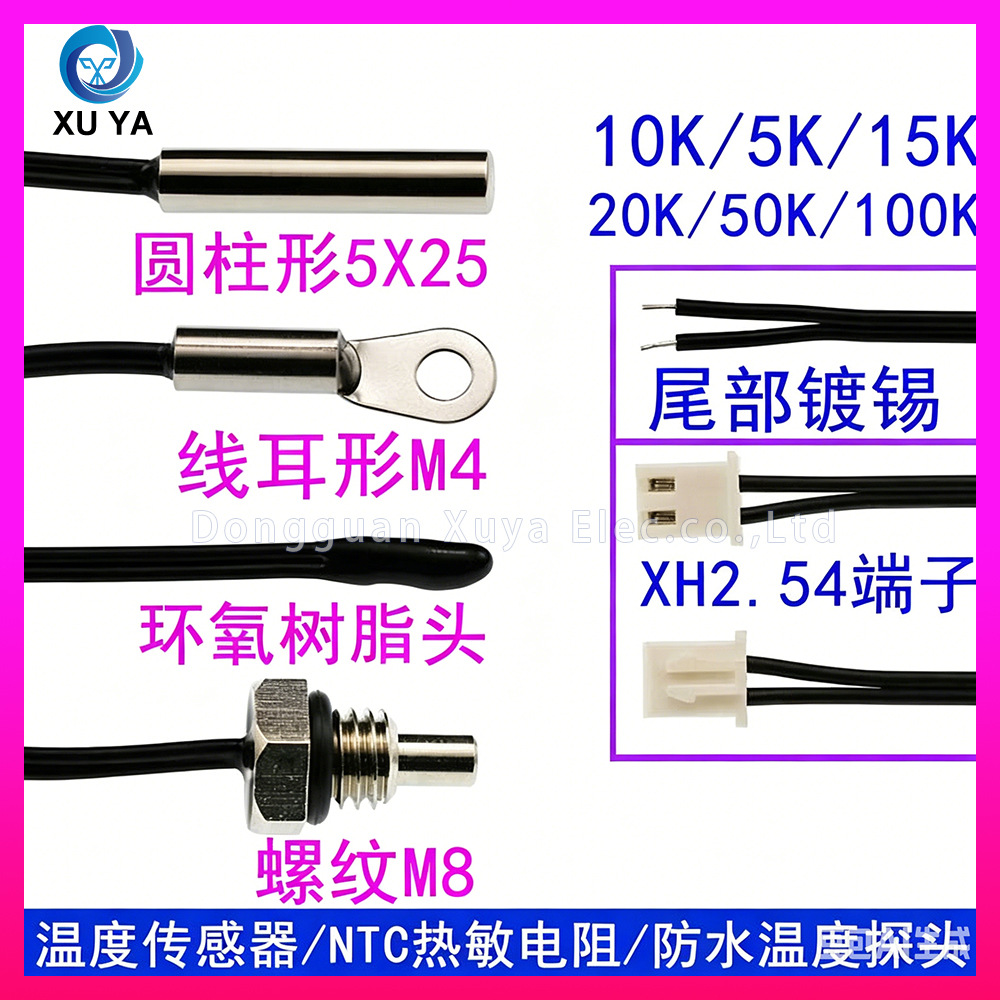

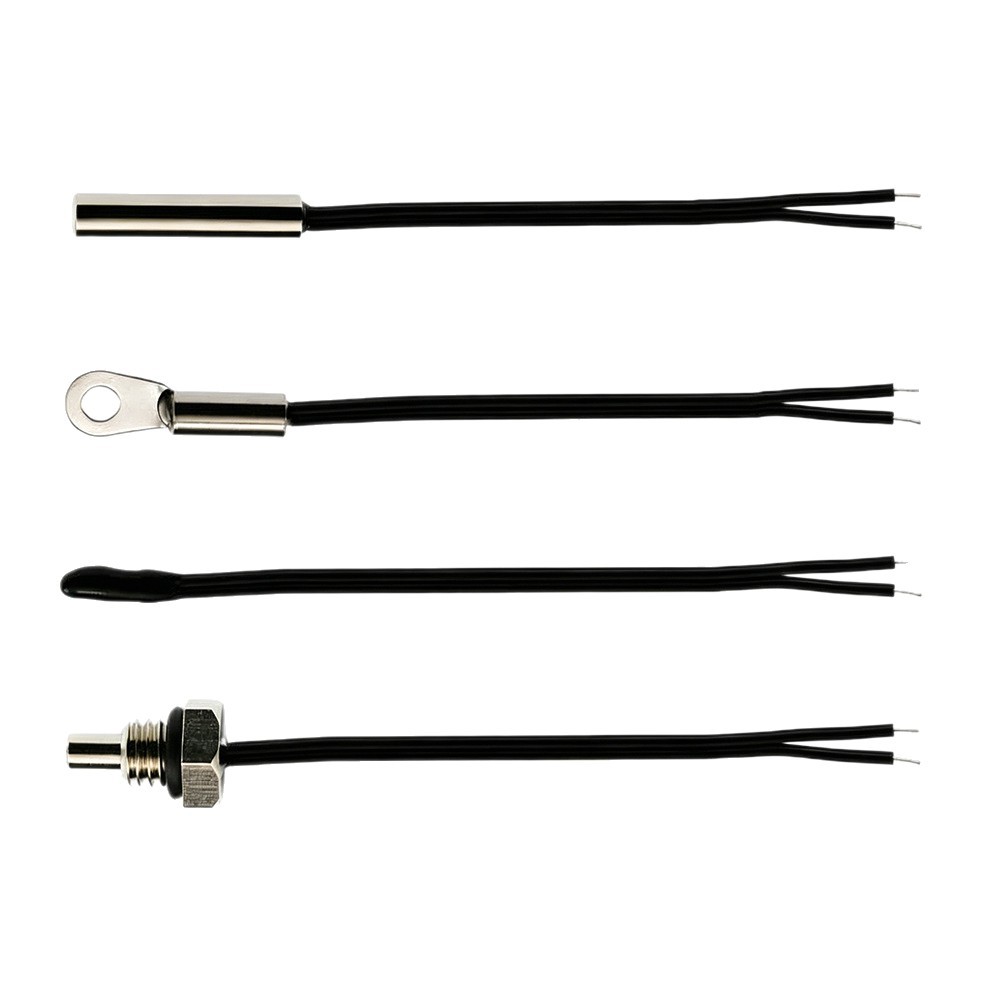

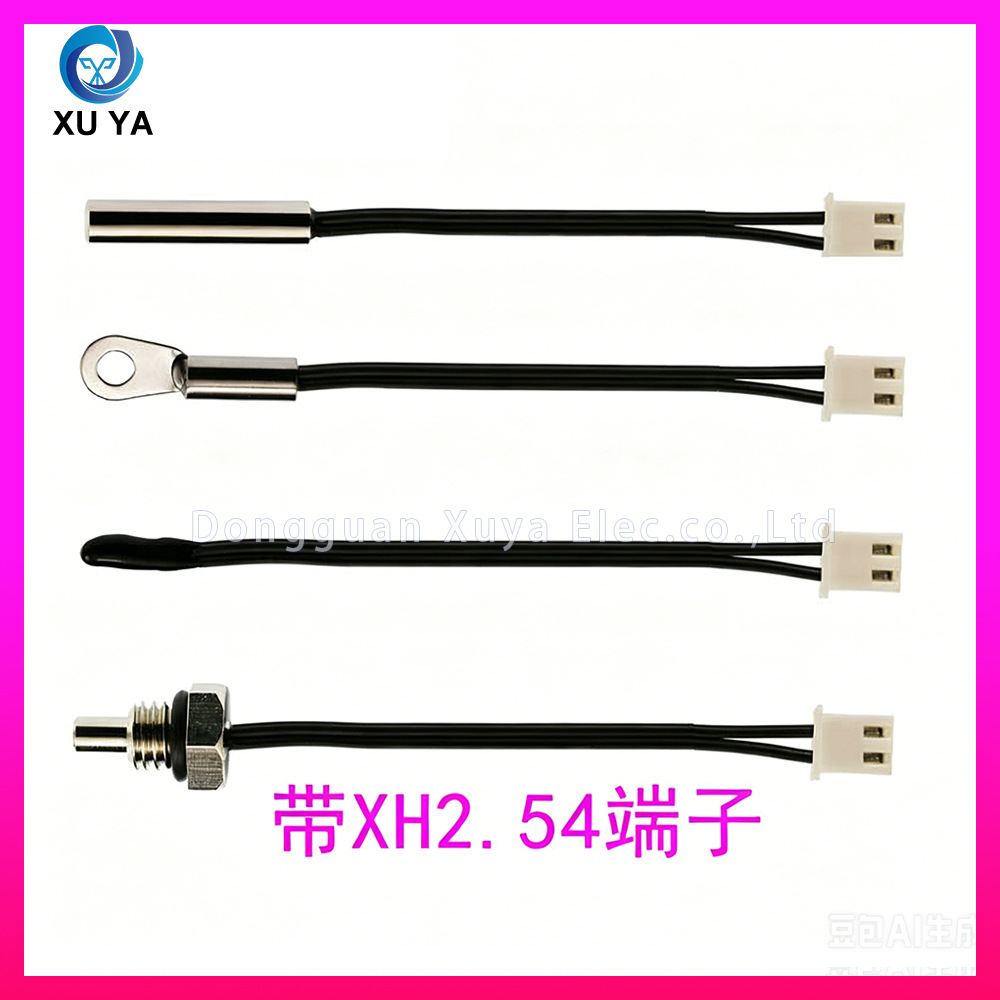

        多结构不锈钢 NTC 热敏电阻测温探头，含直管、OT 线耳、水滴头、螺纹四种封装；不锈钢外壳导热快、防水防锈，黑色耐温引线末端镀锡；阻值 5K~100K 可选，标准 B 值 3950，精度 ±1%；标准线长 500mm，支持定制尺寸、阻值；适配储能 BMS、壁挂炉、工控、制冷设备各类测温场景。

        Multi-structure stainless steel NTC thermistor probe, 4 packages: straight tube, OT lug, epoxy drop, threaded head. Stainless steel shell features fast heat conduction, waterproof and rust-proof. Black temperature-resistant wires with tinned ends. Resistance optional 5K~100K, standard B-value 3950, tolerance ±1%. Standard wire length 500mm, custom size & resistance available. Widely used for energy storage BMS, boilers, industrial control and refrigeration equipment temperature detection.

Q1. 规格 Spec

这款 NTC 传感器有哪些阻值与探头款式？
阻值 5K/10K/15K/20K/50K/100K，B 值 3950；探头分不锈钢直管、OT 线耳、环氧水滴、M12 螺纹 4 款，标配 500mm 镀锡双线。
What resistances and probe types does this NTC sensor have?
Resistance 5K/10K/15K/20K/50K/100K, B-value 3950. Four probe types: stainless steel straight tube, OT lug, epoxy drop, M12 thread, standard 500mm tinned double wires.

Q2. 颜色材质 Color & Material

探头、线材材质颜色是什么？
探头银色不锈钢，引线黑色耐温 PVC 绝缘线，内芯纯铜。
What material and color for probe and wire?
Silver stainless steel probe; black temperature-resistant PVC insulated wire with pure copper inner core.

Q3. 引线长度 Wire Length

标准线长多少，能否改长度？
标准 500mm，可定制 0.3m-5m 任意长度。
What is standard wire length, can length be customized?
Standard 500mm, any length from 0.3m to 5m can be customized.

Q4. 用途 Application

该传感器适用什么设备？
储能锂电池 BMS、壁挂炉、热水器、工业管道、空调制冷、工控电源，用于恒温、过热保护测温。
What equipment is this sensor suitable for?
Energy storage BMS, wall boilers, water heaters, industrial pipelines, air conditioners, industrial power supplies, for constant temperature control and overheat protection temperature measurement.

Q5. 装箱数量 Carton Qty

一箱标准装多少个？
标准纸箱 750PCS，分类捆扎，探头分层防护防刮花。
How many pieces per carton?
750 pieces per export carton, bundled by types, probes layered protected to avoid scratches.
