M8 六角加长螺纹 NTC 温度探头

颜色：
重量：
长度：
产品描述：M8 六角加长螺纹 NTC 温度探头 10K/50K/100K B3950 M8 Hex Long Thread NTC Temp Probe 10K/50K/100K B3950 M8 六角加长杆螺纹 NTC 热敏电阻，不锈钢加长探杆一体密封防水；黑色耐温 PVC 引线，出线可选裸线剥...

在线购买

M8 六角加长螺纹 NTC 温度探头 10K/50K/100K B3950
M8 Hex Long Thread NTC Temp Probe 10K/50K/100K B3950

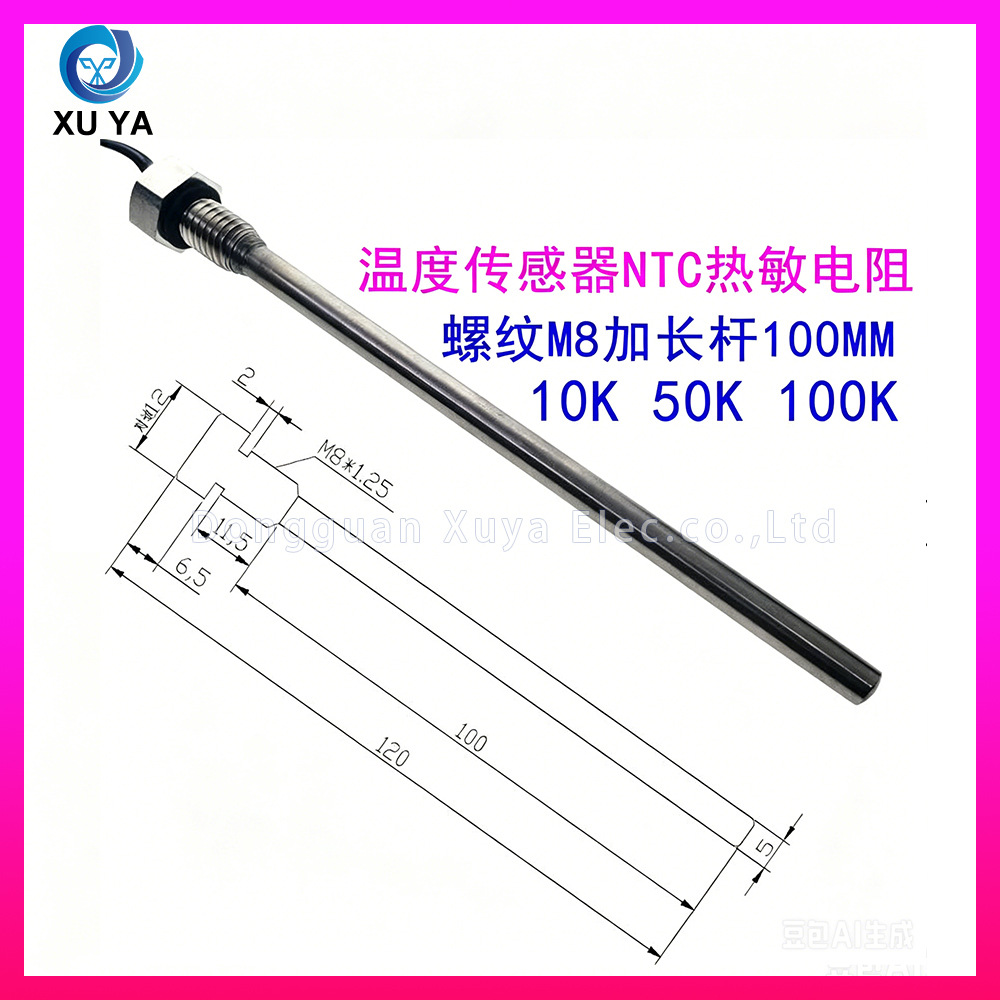

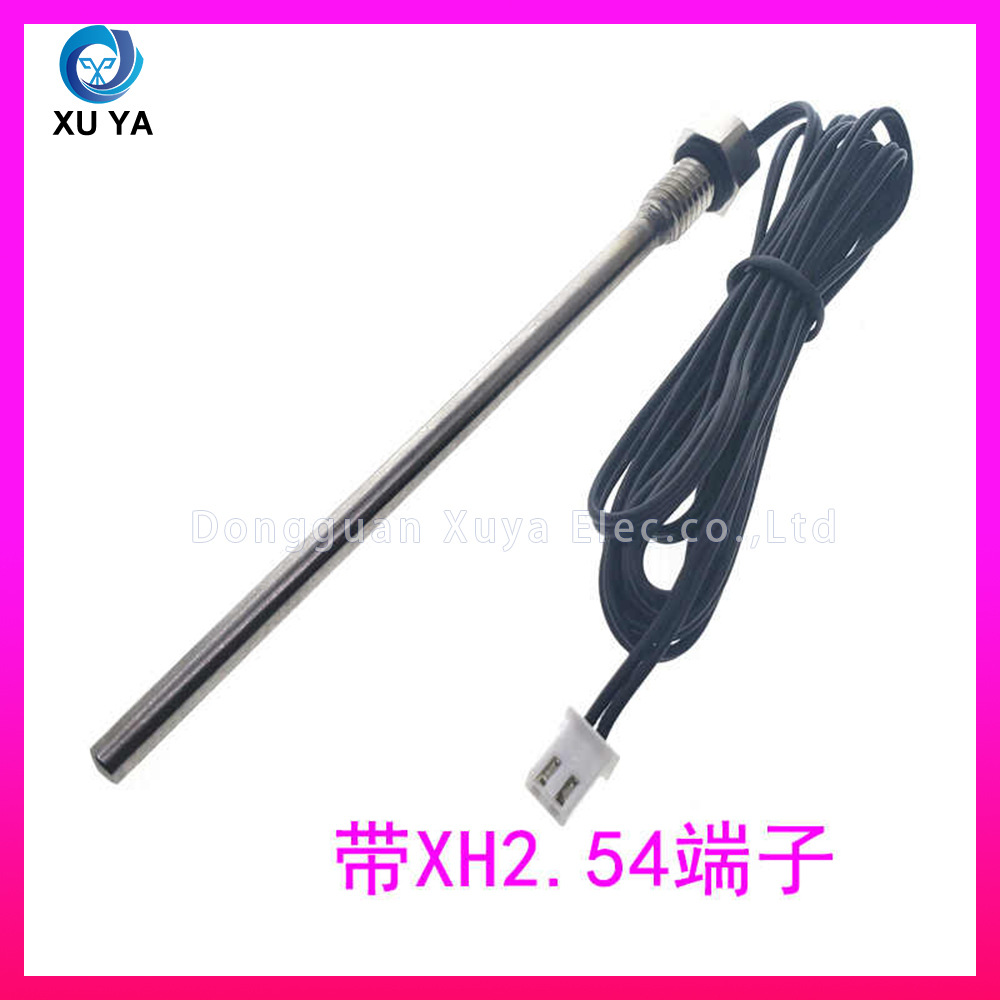

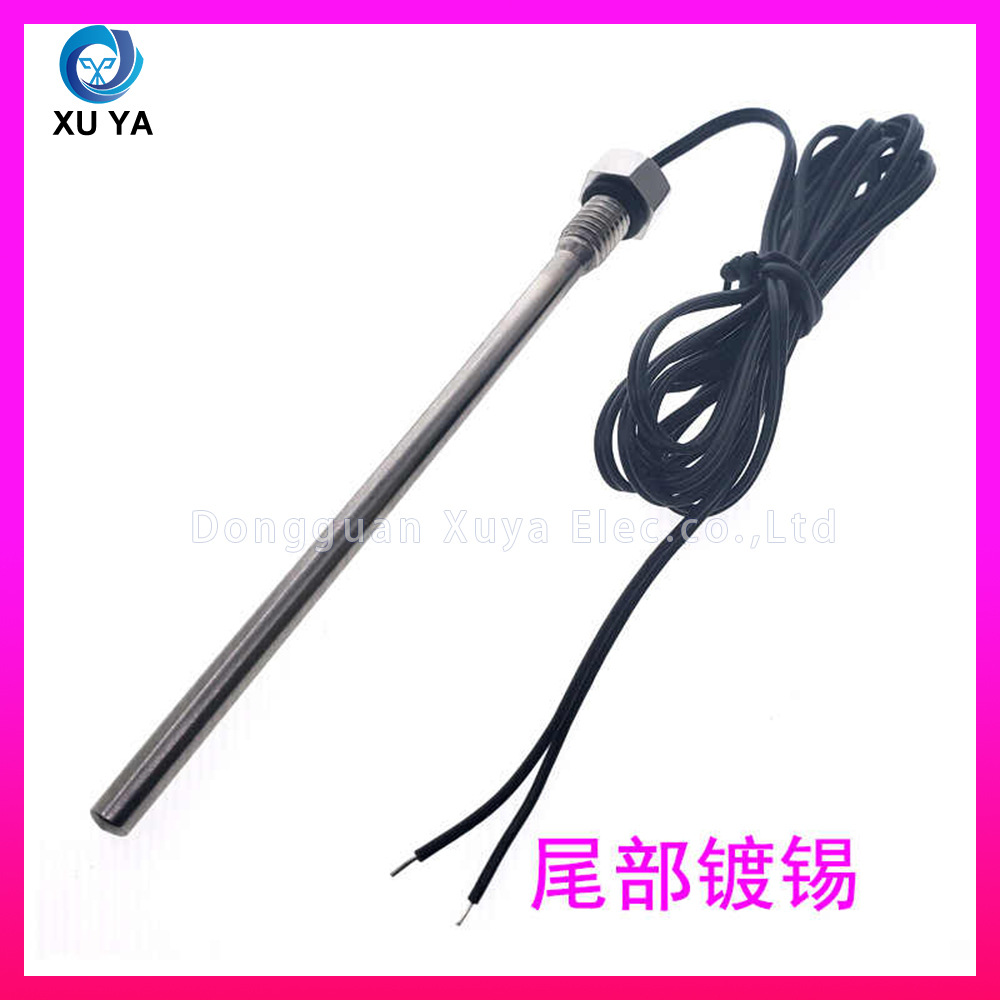

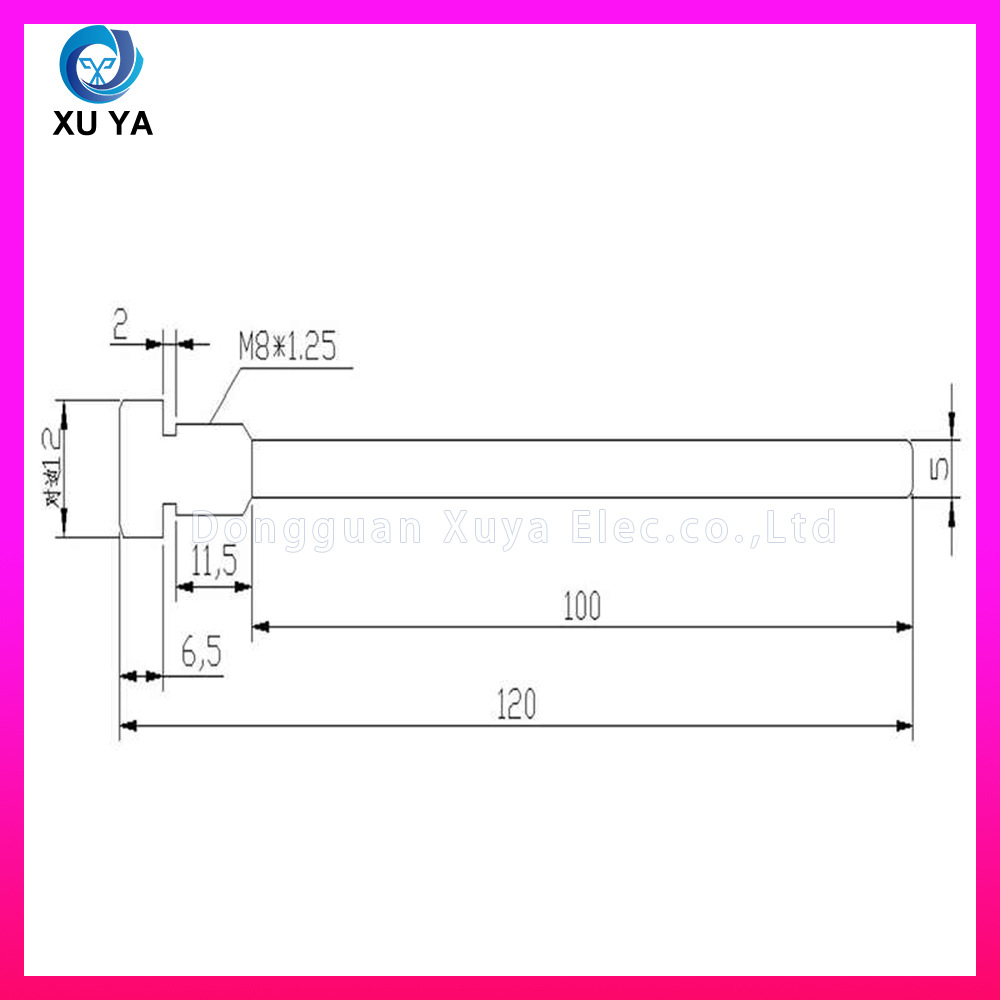

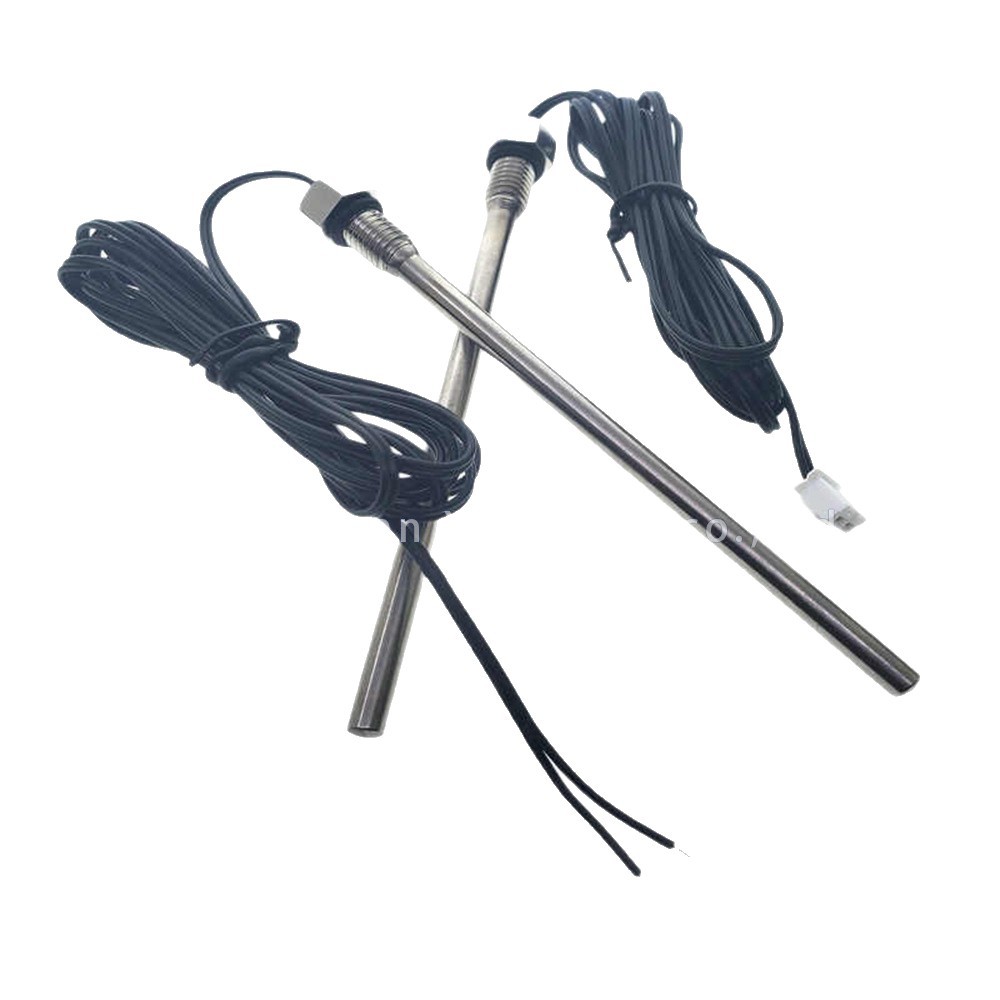

M8 六角加长杆螺纹 NTC 热敏电阻，不锈钢加长探杆一体密封防水；黑色耐温 PVC 引线，出线可选裸线剥皮、白色 2P 塑胶端子；阻值 10K/50K/100K 可选，标准 B 值 3950，测温精度 ±1%；标配多规格长线，支持定制杆长、线长、阻值；适配热水器、管道、壁挂炉、工业流体设备螺纹密封测温，用于恒温与过热保护。
M8 hex long rod threaded NTC thermistor, integrated sealed waterproof stainless steel long probe rod. Black temperature-resistant PVC wire, two outlet types: stripped bare wire & white 2P plastic terminal. Optional resistance:10K/50K/100K, standard B-value 3950, temperature tolerance ±1%. Multiple standard long wire lengths, custom rod length, cable length and resistance available. Suitable for threaded sealed temperature measurement of water heaters, pipelines, wall-hung boilers and industrial fluid equipment for constant temperature control and overheat protection.

Q1. 规格 Spec

这款 M8 加长螺纹 NTC 探头核心参数是什么？
M8 六角螺纹加长不锈钢探杆，阻值 10K/50K/100K，B 值 3950，精度 ±1%；出线分裸线、2P 白色端子两款。
What are the core parameters of this M8 long threaded NTC probe?
M8 hex thread long stainless steel probe rod, resistance optional 10K/50K/100K, B-value 3950, tolerance ±1%. Two wire outlets: bare stripped wire & 2P white plastic terminal.

Q2. 颜色材质 Color & Material

探杆、引线、端子分别是什么材质颜色？
测温探杆银色不锈钢；引线黑色耐高低温 PVC 绝缘线；配套端子为白色硬质塑胶。
What material and color for probe rod, wire and terminal?
Silver stainless steel temperature probe rod; black high-low temperature resistant PVC insulated wire; matching terminals are white hard plastic.

Q3. 引线长度 Wire Length

M8 加长螺纹 NTC 现货标配线长有哪些，支持定制吗？
常备 0.5m/1m/2m/3m 长线，可按需定制任意线材总长与不锈钢探杆长度。
What standard stock wire lengths for M8 long thread NTC? Customization available?
Standard stock lengths:0.5m/1m/2m/3m. Any total wire length and stainless steel rod length can be customized as required.

Q4. 用途 Application

M8 加长螺纹 NTC 温度传感器适配哪些设备，作用是什么？
适配储水热水器、供水管道、燃气壁挂炉、工业流体温控设备；螺纹拧紧密封防水，精准采集液体温度，实现设备恒温控制、高温过热断电保护。
What equipment is M8 long thread NTC temperature sensor compatible with, and what is its function?
It fits water storage heaters, water supply pipelines, gas wall-hung boilers and industrial fluid temperature control equipment. Tightened thread realizes waterproof sealing, accurately collects liquid temperature to realize equipment constant temperature control and power-off protection against high temperature overheating.

Q5. 装箱数量 Carton Qty

M8 加长螺纹 NTC 探头标准出口纸箱一箱可装多少条？
标准纸箱每箱 680PCS，线材整齐捆扎，不锈钢加长探杆分层隔离，运输避免磕碰刮花、螺纹受损。
How many pieces of M8 long thread NTC probe per standard export carton?
680 pieces per export carton. All wires are neatly bundled, stainless steel long probe rods are layered separated to avoid scratches and thread damage caused by collision during transportation.
