YC8 航空公座连接线 8 芯

YC8 航空公座连接线 8 芯 20cm 多色分线

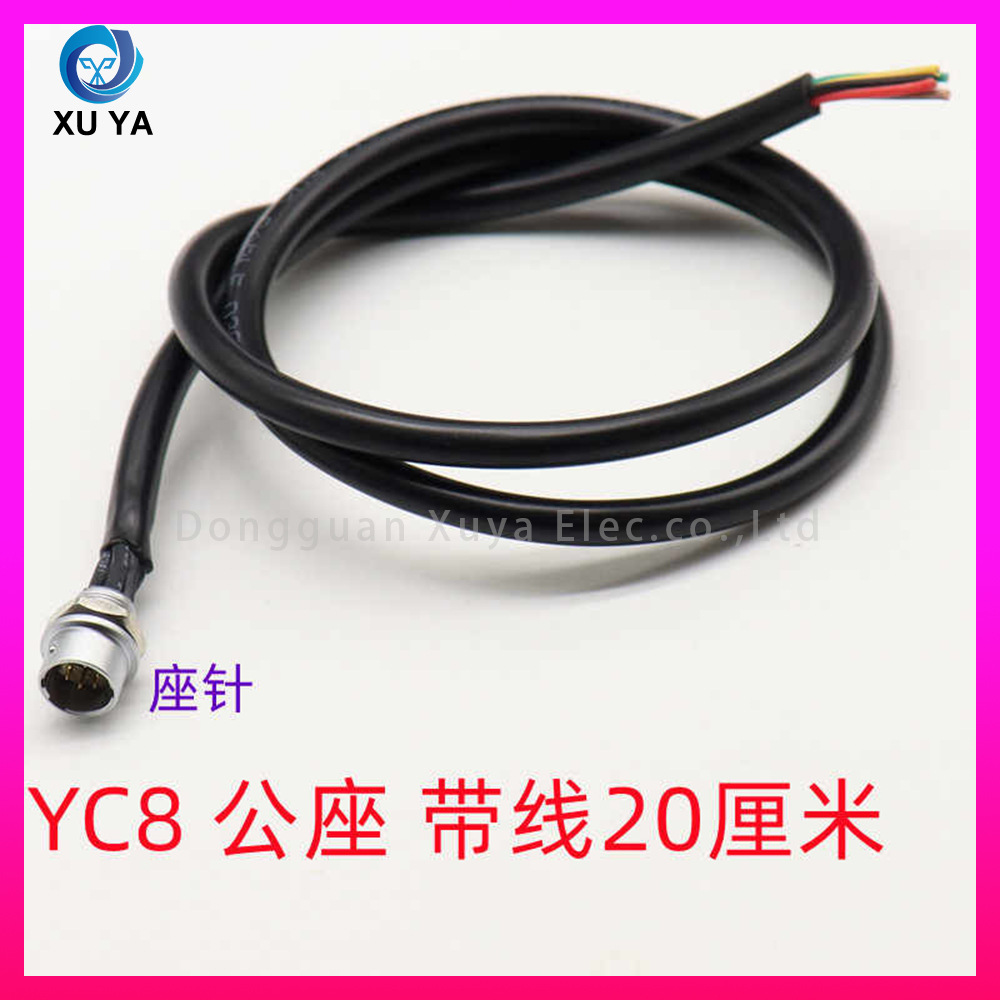

YC8 Male Aviation Connector Cable 8Pin 20cm Multi-color Wires

       YC8 型 8 芯航空公座成品线束，前端金属螺纹锁紧针式公座底座，现货标准总长 20cm；外层黑色加厚耐油 PVC 护套，内部 8 根独立分色绝缘导线，末端裸线分色便于电路区分接线；金属航空接头带螺纹锁紧结构，安装锁紧后抗震防松、防尘防潮，8 芯线缆可同步传输多路控制信号与供电电源；支持定制线束总长、芯数、线径、末端 XH/PH 端子 / 裸线镀锡款式，适配工业控制设备、检测仪器、安防监控、小型工控模组的信号供电对接。
      Finished wire harness with YC8 8-core male aviation connector. The front end adopts metal threaded locking pin-type male base, standard stock total length 20cm. The outer layer is thickened oil-resistant black PVC sheath, with 8 independent color-coded insulated inner wires, color-distinguished bare wire ends for easy circuit wiring identification. The metal aviation connector is equipped with threaded locking structure, anti-loosening and shockproof after locking, dustproof and moisture resistant. 8-core wires can transmit multi-channel control signals and power supply simultaneously. Customization of harness total length, core count, wire gauge and terminal styles (XH/PH plastic terminals or tinned bare wire) is supported, suitable for signal and power connection of industrial control equipment, testing instruments, security monitoring and small industrial control modules.

Q1：YC8 航空连接器线束核心规格参数是什么？
型号 YC8，8 针针型公座，金属螺纹锁紧外壳；单芯额定电压 250V，单芯额定载流 5A；标配 8 根分色信号电源线，现货标准长度 20cm；金属接头密封性良好，锁紧后可抵御设备震动脱落，适配中小型设备多路信号传输供电。
What are the core specification parameters of YC8 aviation connector wire harness?
Model YC8, 8-pin male socket with metal threaded locking housing. Rated voltage per core 250V, rated current 5A per core. Equipped with 8 color-coded signal and power wires, standard stock length 20cm. The metal connector has good sealing performance, anti-drop against equipment vibration after locking, applicable for multi-channel signal transmission and power supply of small and medium-sized equipment.

Q2：线材材质、护套性能有哪些优势？
线束外层采用加厚黑色耐油 PVC 绝缘护套，耐弯折、耐磨损、耐油污，长期设备内部使用不易老化开裂；内部 8 根独立绝缘分色导线，线芯纯铜材质导电损耗低，分色外皮便于现场接线区分正负极与信号通道；接头与线缆衔接处注塑加固，反复弯折不易断线。
What advantages do the wire material and sheath performance have?
The outer layer of the harness adopts thickened black oil-resistant PVC insulation sheath, which is bending-resistant, wear-resistant and oil-resistant, and will not crack and age easily after long-term use inside equipment. There are 8 independent color-coded insulated inner wires, pure copper wire core brings low conductive loss, color-coded jacket facilitates on-site wiring to distinguish positive/negative poles and signal channels. The joint between connector and wire is reinforced by injection molding to avoid wire breakage after repeated bending.

Q3：线束长度、出线末端款式是否支持定制？
全部支持定制：现货标准长度 20cm，可按需定制 0.15m/0.3m/0.5m/1m/2m 等任意总长；末端出线可选择裸线镀锡、XH2.54/PH2.0 塑胶端子、杜邦公母插头；同时可调整内部芯数（2~12 芯可选）、铜丝粗细线径，护套颜色可定制灰色、白色。
Can we customize harness length and wire end outlet styles?
All items support customization: standard stock length is 20cm, arbitrary total lengths such as 0.15m/0.3m/0.5m/1m/2m can be customized as required. Wire end outlets can choose tinned bare wire, XH2.54/PH2.0 plastic terminals or DuPont male/female plugs. We can also adjust internal core count (2~12 cores optional) and copper wire gauge, gray and white sheath colors are available for customization.

Q4：YC8 8 芯航空公座线束适配哪些设备场景？
1. 工业自动化：小型伺服驱动器、温度采集模块、检测传感器信号连接线； 2. 仪器设备：实验室检测仪器、美容理疗设备、医用小型恒温器械； 3. 安防设备：监控云台、门禁控制盒、车载监控主机供电信号线； 4. 小型电控模组：新能源小型控制板、智能家居主控模块； 8 芯多通道可同时传输多路信号与供电，螺纹锁紧接头适合设备频繁拆装场景。
What equipment and scenarios are suitable for YC8 8-core male aviation connector harness?

1. Industrial automation: signal connecting wire for small servo drives, temperature acquisition modules and detection sensors;
2. Instruments & equipment: laboratory testing instruments, beauty physiotherapy equipment, small medical constant temperature devices;
3. Security equipment: power and signal wire for monitoring PTZ cameras, access control boxes and vehicle monitoring main units;
4. Small electronic control modules: new energy small control boards, smart home main control modules. The 8-core multi-channel design can transmit multiple signals and power supply at the same time, and the threaded locking connector is suitable for equipment that requires frequent disassembly and assembly.

Q5：现货订单、全规格定制 OEM 交期以及标准装箱数量是多少？
20cm 标准长度 YC8 8 芯航空线束现货订单 3 个工作日内完成发货；线束长度、芯数、末端端子、护套颜色全规格定制 OEM 批量订单交期 4-7 个工作日；单条线束独立捆扎，标准出口纸箱每箱 1200PCS。
What are the delivery time for stock orders, lead time for fully customized OEM orders and standard packing quantity?
In-stock orders of YC8 8-core aviation harness with standard 20cm length will be shipped within 3 working days. Bulk OEM orders with fully customized harness length, core count, wire end terminals and sheath color take 4-7 working days. Each harness is bundled separately, 1200 PCS per standard export carton.
