M6 螺纹防水 NTC 温度传感器

M6 螺纹防水 NTC 温度传感器 10K B3950 XH2.54 端子
M6 Thread Waterproof NTC Temperature Sensor 10K B3950 With XH2.54 Connector

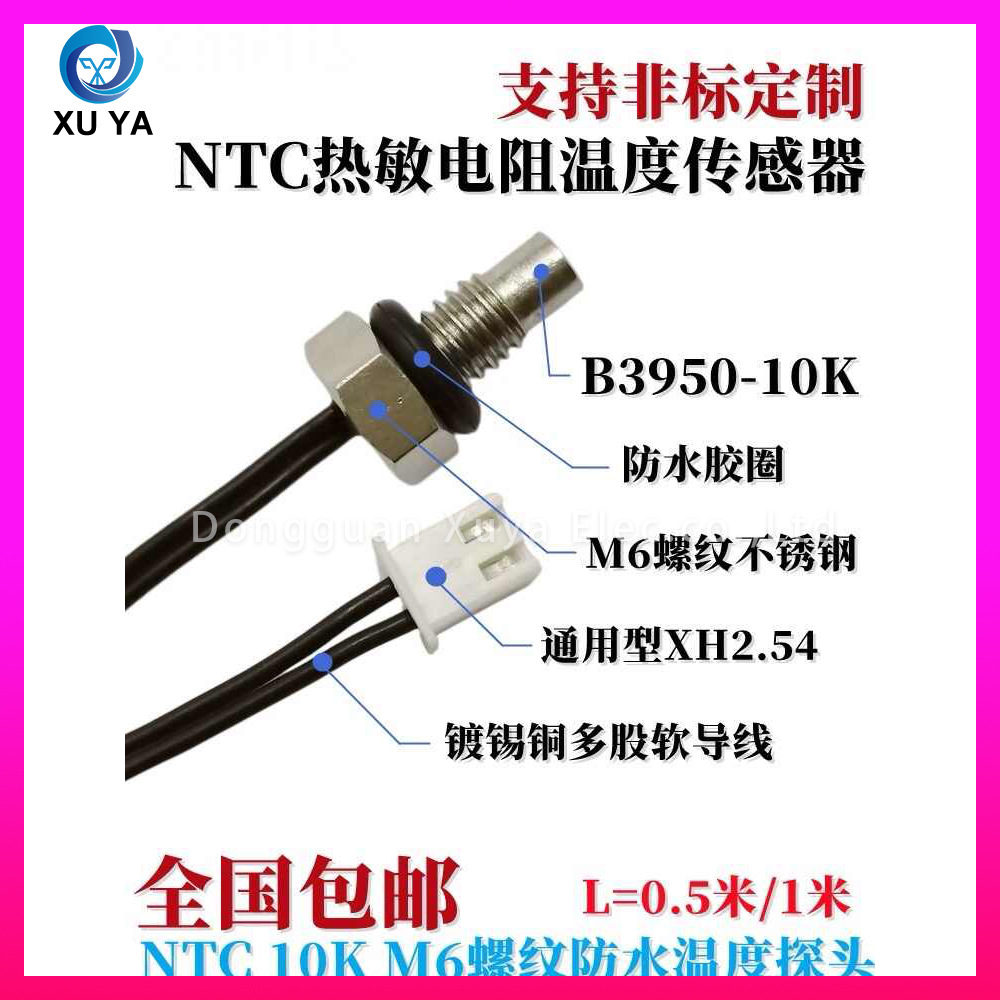

        M6 螺纹不锈钢防水 NTC 温度传感器，标准参数 10K@25℃、B 值 3950；探头为不锈钢 M6 外螺纹结构，配套橡胶防水密封圈，螺纹安装后密封防水；线材为多股镀锡铜软导线，黑色耐温 PVC 护套，末端预装 XH2.54-2P 白色塑胶端子，装配即插即用；现货标准线长 0.5m、1m，支持非标定制螺纹规格、线长、阻值、B 值、端子款式，适配壁挂炉、热水器、空压机、工业水箱螺纹测温场景。
       M6 threaded stainless steel waterproof NTC temperature sensor, standard parameters: 10K resistance at 25℃, B value 3950. The probe adopts stainless steel M6 external thread structure, equipped with rubber waterproof sealing ring for waterproof sealing after threaded installation. The wire is multi-strand tinned copper flexible wire with black high temperature resistant PVC jacket, pre-installed XH2.54-2P white plastic terminal at wire end for plug-and-play assembly. Standard stock wire lengths are 0.5m and 1m, non-standard customization of thread specification, wire length, resistance, B value and terminal style is supported, suitable for threaded temperature measurement of wall-hung boilers, water heaters, air compressors and industrial water tanks.

Q1：M6 螺纹 NTC 温度传感器核心电气与结构规格是什么？
电气参数：25℃标称阻值 10K，B 值 3950，精度可选 1%/3%/5%；结构规格：不锈钢 M6 外螺纹探头，自带橡胶防水胶圈，防水密封；出线为多股镀锡铜软线，末端配 XH2.54 间距 2Pin 塑胶端子；标准现货线长 0.5 米、1 米。
What are the core electrical and structural specifications of M6 threaded NTC temperature sensor?
Electrical parameters: nominal resistance 10K at 25℃, B value 3950, tolerance optional 1%/3%/5%. Structural specifications: stainless steel M6 external thread probe with built-in rubber waterproof sealing ring for waterproof sealing. The outlet wire is multi-strand tinned copper flexible wire, equipped with 2Pin plastic terminal with XH2.54 pitch at the end. Standard stock wire lengths: 0.5m, 1m.

Q2：螺纹探头防水结构、线材有哪些性能优势？

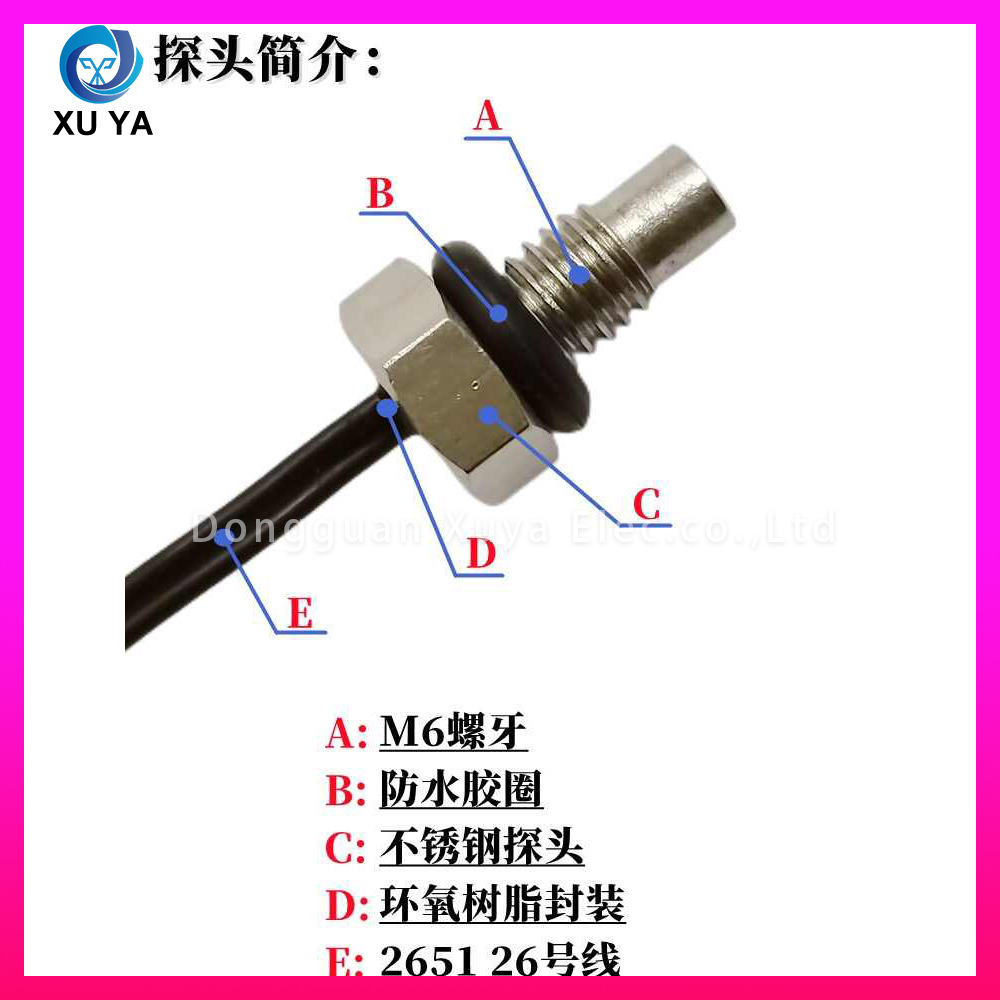

1. 防水结构：M6 不锈钢螺纹搭配橡胶密封胶圈，拧入设备螺纹孔后，胶圈挤压填充缝隙，阻隔水汽、液体进入探头内部，可用于水环境设备测温； 2. 线材性能：多股镀锡铜软导线，导电损耗低、弯折耐疲劳不易断线；外层黑色耐温 PVC 护套，长期耐温 - 20℃~105℃，抗老化、耐油污； 3. 端子优势：XH2.54 标准端子，市场通用配件，设备组装无需焊接，提升装配效率。
What performance advantages does the threaded probe waterproof structure and wire have?

1. Waterproof structure: M6 stainless steel thread matched with rubber sealing ring. After screwing into the threaded hole of equipment, the sealing ring extrudes to fill gaps and block water vapor and liquid from entering the probe, suitable for temperature measurement of water environment equipment.
2. Wire performance: Multi-strand tinned copper flexible wire features low conductive loss and anti-fatigue bending resistance without easy breakage. The outer black high temperature resistant PVC jacket has long-term temperature resistance from -20℃ to 105℃, anti-aging and oil resistance.

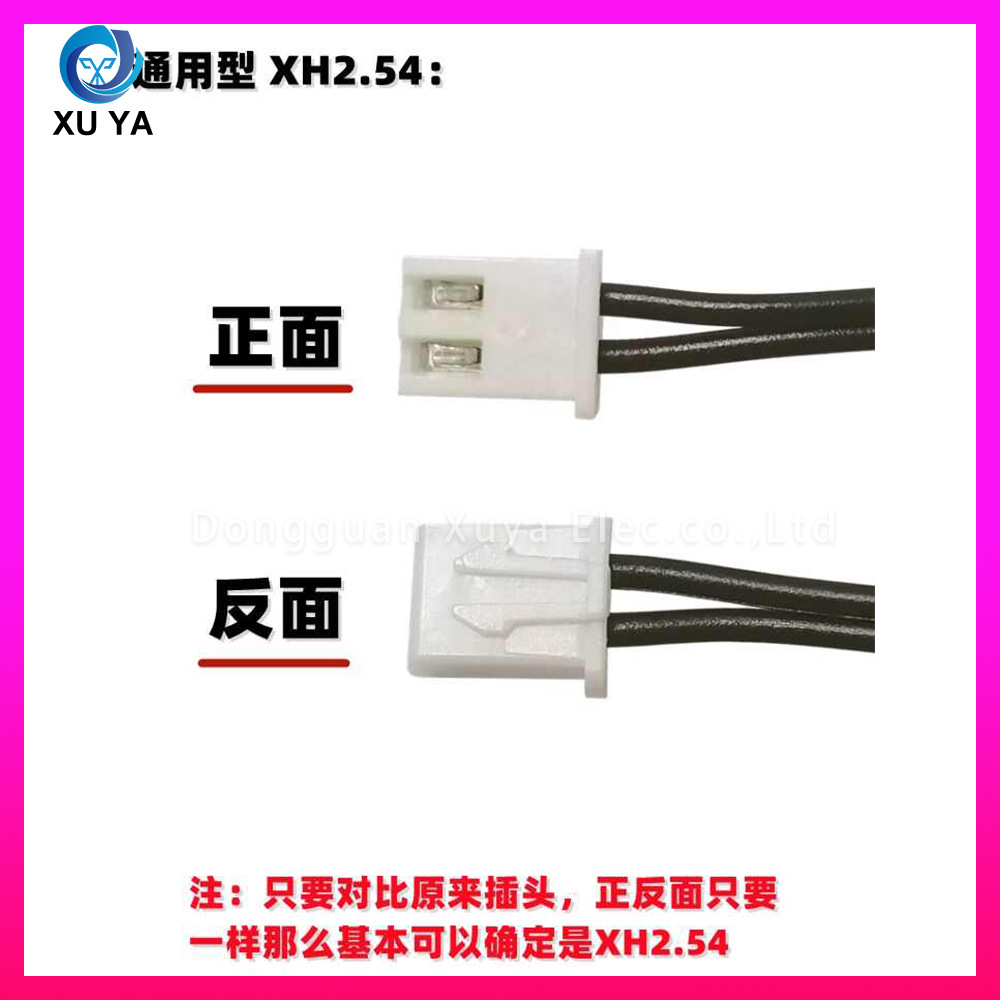

3. Terminal advantage: XH2.54 standard terminal is a universal accessory in the market, no welding is required for equipment assembly to improve assembly efficiency.

Q3：产品支持哪些非标定制内容？
全规格非标定制：可更改螺纹规格（M4/M8/M10 等）、螺纹长度；线材总长可定制 0.3m~5m 任意长度，也可调整铜丝线径；电气参数可定制 1K~200K 阻值、3435/3977/4100 等 B 值；末端端子可替换 PH2.0、ZH1.5 端子或改为裸线镀锡；还可定制不同硬度、厚度防水胶圈。
What non-standard customization contents are supported for this product?
Full-spec non-standard customization: thread specifications (M4/M8/M10 etc.) and thread length can be modified; total wire length from 0.3m to 5m can be customized arbitrarily, and copper wire gauge can also be adjusted. Electrical parameters support resistance from 1K to 200K, B values such as 3435/3977/4100. Wire end terminals can be replaced with PH2.0, ZH1.5 terminals or changed to tinned bare wire. Waterproof sealing rings with different hardness and thickness can also be customized.

Q4：M6 螺纹防水 NTC 温度传感器适配哪些设备测温？
1. 家用采暖供水设备：燃气壁挂炉、电热水器、空气能热泵、恒温水箱； 2. 工业流体设备：空压机、液压油箱、冷却循环水机组、注塑机水路； 3. 小型工控温控设备：温度控制柜、模温机、换热管道螺纹安装测温； M6 标准螺纹孔为行业通用安装孔，直接旋入固定，密封防水，长期监测液体、金属腔体温度。
What equipment temperature measurement is M6 threaded waterproof NTC temperature sensor suitable for?

1. Household heating and water supply equipment: gas wall-hung boilers, electric water heaters, air-source heat pumps and constant temperature water tanks.
2. Industrial fluid equipment: air compressors, hydraulic oil tanks, cooling circulating water units and injection molding machine water circuits.
3. Small industrial control temperature control equipment: temperature control cabinets, mold temperature machines and heat exchange pipeline temperature measurement with threaded installation. M6 standard threaded hole is a general industry mounting hole, which can be directly screwed and fixed with sealed waterproof performance for long-term temperature monitoring of liquid and metal cavities.

Q5：现货订单、非标定制 OEM 交期以及标准装箱数量是多少？
0.5m/1m 标准线长 10K B3950 现货订单 3 个工作日内发货；螺纹、线长、阻值、端子全非标定制 OEM 批量订单交期 5-8 个工作日；单支独立中性塑料袋分装，标准出口纸箱每箱 9200PCS。
What are the delivery time for stock orders, lead time for fully non-standard customized OEM orders and standard packing quantity?
In-stock orders with standard 0.5m/1m wire length, 10K B3950 parameters will be shipped within 3 working days. Bulk OEM orders with fully customized thread, wire length, resistance and terminal take 5-8 working days. Each sensor is packed in independent neutral polybag, 9200 PCS per standard export carton.
