CAT6 千兆万兆 GigE 工业相机带锁高柔网线
CAT6 Gigabit 10GigE Lockable High-Flex Network Cable for CCD Industrial Camera
产品详情描述
本款 CAT6 六类工业网线专为 GigE Vision 工业相机设计，兼容海康、大华全系网口工业 CCD 相机，支持千兆、万兆高速图像数据传输，传输带宽充足，大分辨率图像无丢包、无延迟。

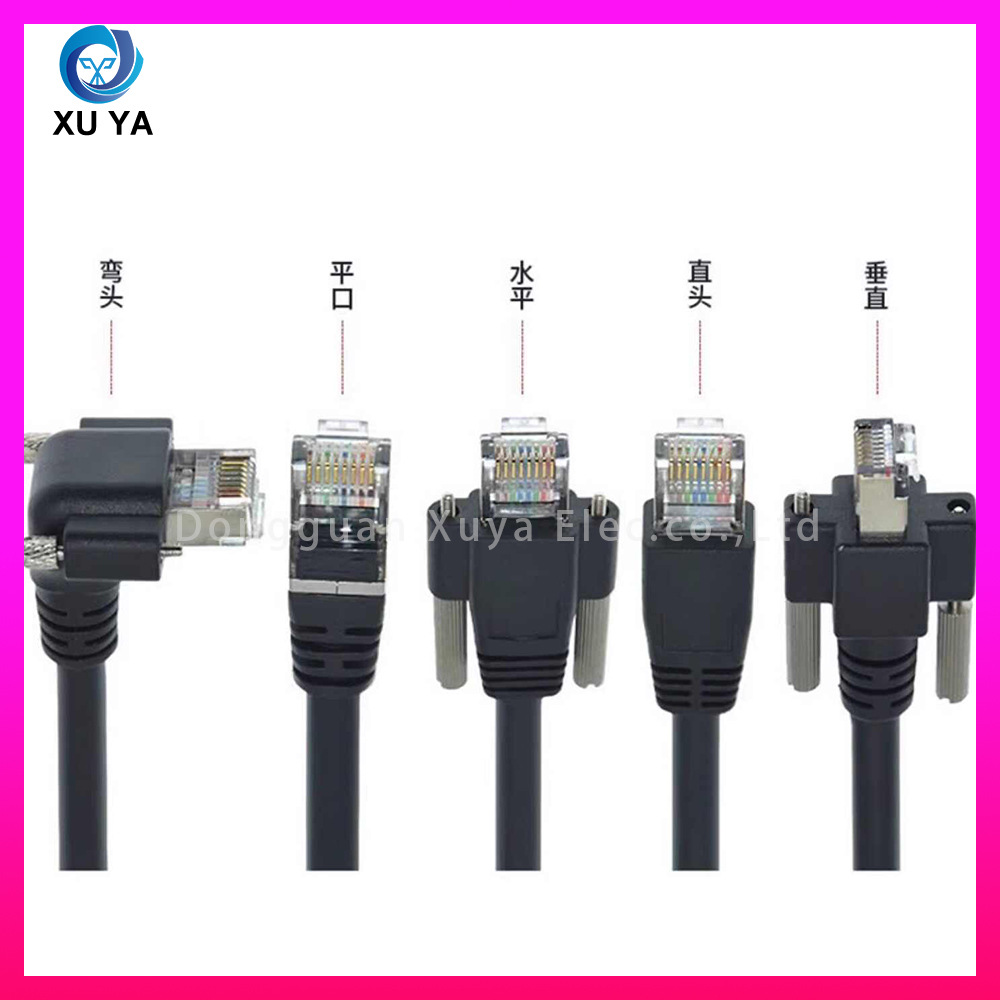

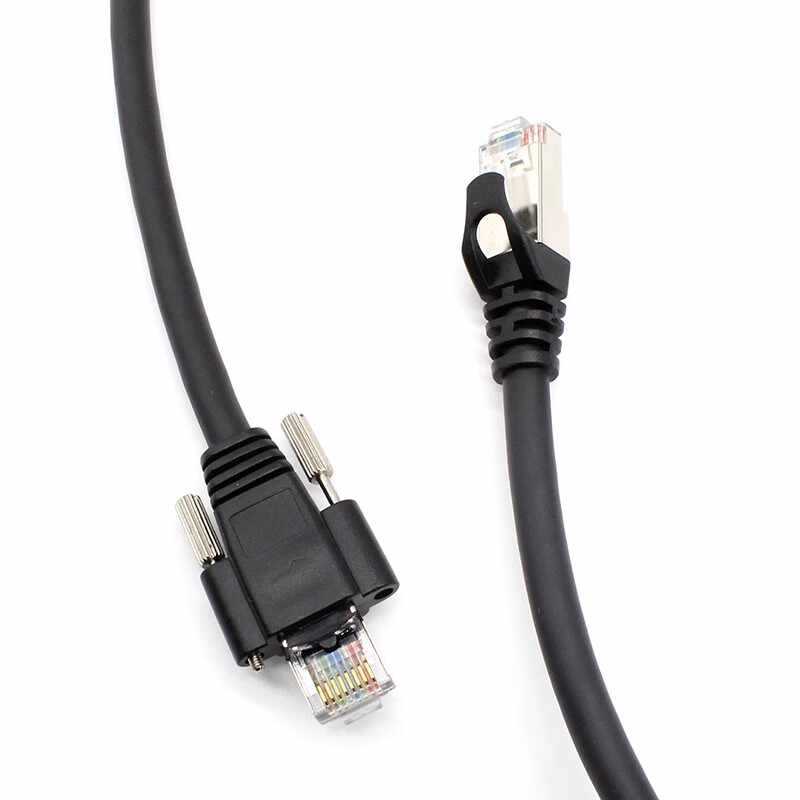

接头配备双边金属锁紧螺丝，包含弯头、平口、水平、直头、垂直五种接头款式，适配狭小控制柜、设备侧装、嵌入式安装等各类空间受限场景；拧紧螺丝后接口牢牢锁死，设备震动、拖链往复移动时不会松动掉线。

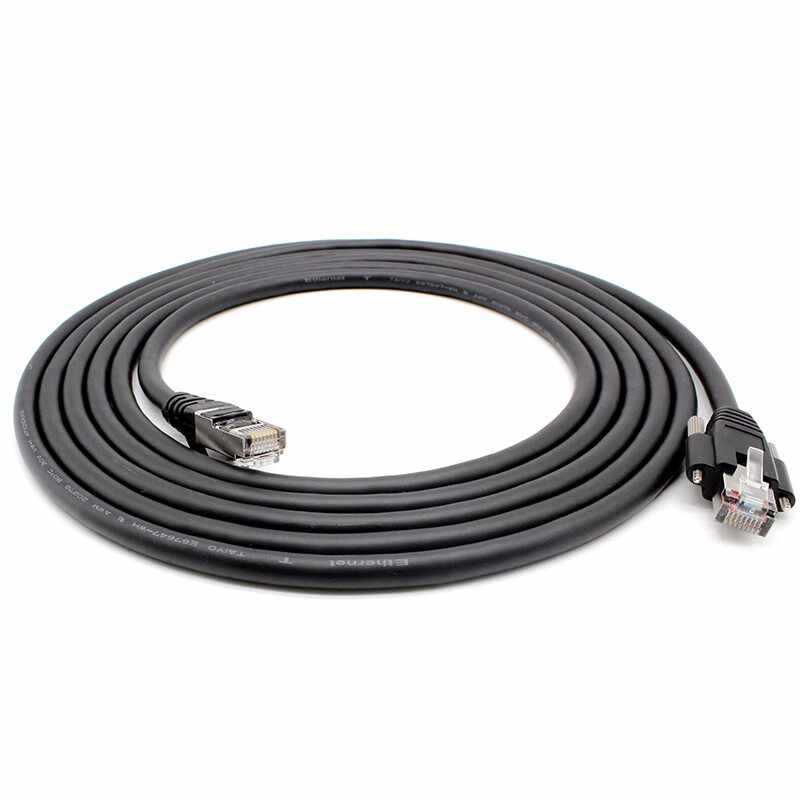

线缆采用黑色工业耐磨护套，内部 8 芯双绞屏蔽结构，抗变频器、伺服电机电磁干扰；高柔多股超细铜丝导体，可承受上万次拖链弯折，自动化流水线视觉设备长期移动布线专用。
常备多种标准长度现货，可按需定制任意长度、不同接头角度、高柔拖链加强款；支持定制橙色、灰色外皮，源头工厂可开具增值税发票，大批量机器视觉项目线束可优惠排产。
English Description
This CAT6 category 6 industrial network cable is specially designed for GigE Vision industrial cameras, compatible with all GigE port CCD cameras of Hikvision and Dahua. It supports Gigabit and 10-Gigabit high-speed image transmission with sufficient bandwidth to avoid packet loss and delay for high-resolution images.
The connector is equipped with double-side metal locking screws, available in five styles: elbow, flat, horizontal, straight and vertical, suitable for limited-space installation such as compact control cabinets, side-mounted equipment and embedded installation. The tight-locking screw prevents disconnection caused by equipment vibration and reciprocating drag chain movement.
The cable adopts black wear-resistant industrial jacket with 8-core twisted-pair shielding structure inside, which effectively resists electromagnetic interference from inverters and servo motors. Built with high-flex multi-strand ultra-fine copper conductors, it can withstand tens of thousands of drag chain bends, ideal for long-term mobile wiring of automatic production line vision equipment.
Various standard lengths are in stock, custom lengths, different connector angles and reinforced high-flex drag chain versions are available. Orange and gray jackets can be customized. As direct manufacturer, VAT invoices can be issued, and preferential production schedules are offered for bulk wire harness orders of machine vision projects.
1.Q：这款网线适配哪些工业相机品牌与协议？
A：支持 GigE Vision 千兆网口协议，完美兼容海康、大华各类 CCD 工业面阵、线阵相机。
Q: Which industrial camera brands and protocols does this network cable support?
A: It supports GigE Vision Gigabit Ethernet protocol, fully compatible with all CCD area scan and line scan industrial cameras from Hikvision and Dahua.
2.Q：五种不同角度接头分别适合什么安装场景？
A：弯头、垂直、水平款用于狭小空间侧装、嵌入式设备；直头、平口用于常规控制柜、标准相机接口安装。
Q: What installation scenarios are the five types of angled connectors suitable for respectively?
A: Elbow, vertical and horizontal connectors are for side-mounted and embedded equipment in narrow spaces; straight and flat connectors are for standard control cabinets and regular camera port installation.
3.Q：带锁紧螺丝的接头有什么优势？
A：双边金属螺丝锁紧固定 RJ45 接口，工业设备持续震动、拖链来回移动时不会松脱，保障图像持续稳定传输，杜绝掉线丢帧。
Q: What are the advantages of connectors with locking screws?
A: Double-side metal screws lock the RJ45 port tightly to prevent loosening under continuous industrial equipment vibration and drag chain reciprocating movement, ensuring stable continuous image transmission without disconnection or frame loss.
4.Q：线缆是高柔拖链专用线吗，屏蔽结构有什么作用？
A：属于高柔拖链专用线缆，耐反复弯折不易断裂；双层屏蔽结构隔绝车间伺服、变频器产生的电磁干扰，避免图像信号失真。
Q: Is this cable a special high-flex drag chain cable, and what is the function of the shielding structure?
A: It is a dedicated high-flex cable for drag chains, resistant to repeated bending and breakage. The double-layer shielding structure isolates electromagnetic interference generated by servos and inverters in the workshop to prevent image signal distortion.
5.Q：现货和定制线材的发货周期分别多久？
A：常规标准长度现货当天 / 次日发货；定制特殊长度、特殊接头角度、彩色外皮订单交期 3-7 个工作日。
Q: What are the delivery lead times for stock cables and customized cables respectively?
A: Standard-length stock cables can be shipped on the same day or the next day; orders with customized special lengths, special connector angles and colored jackets take 3-7 working days.
