IDC 牛角排线 双绞屏蔽 PLC 通讯连接线
IDC Flat Ribbon Cable Twisted Shielded PLC Communication Wire
产品详情描述

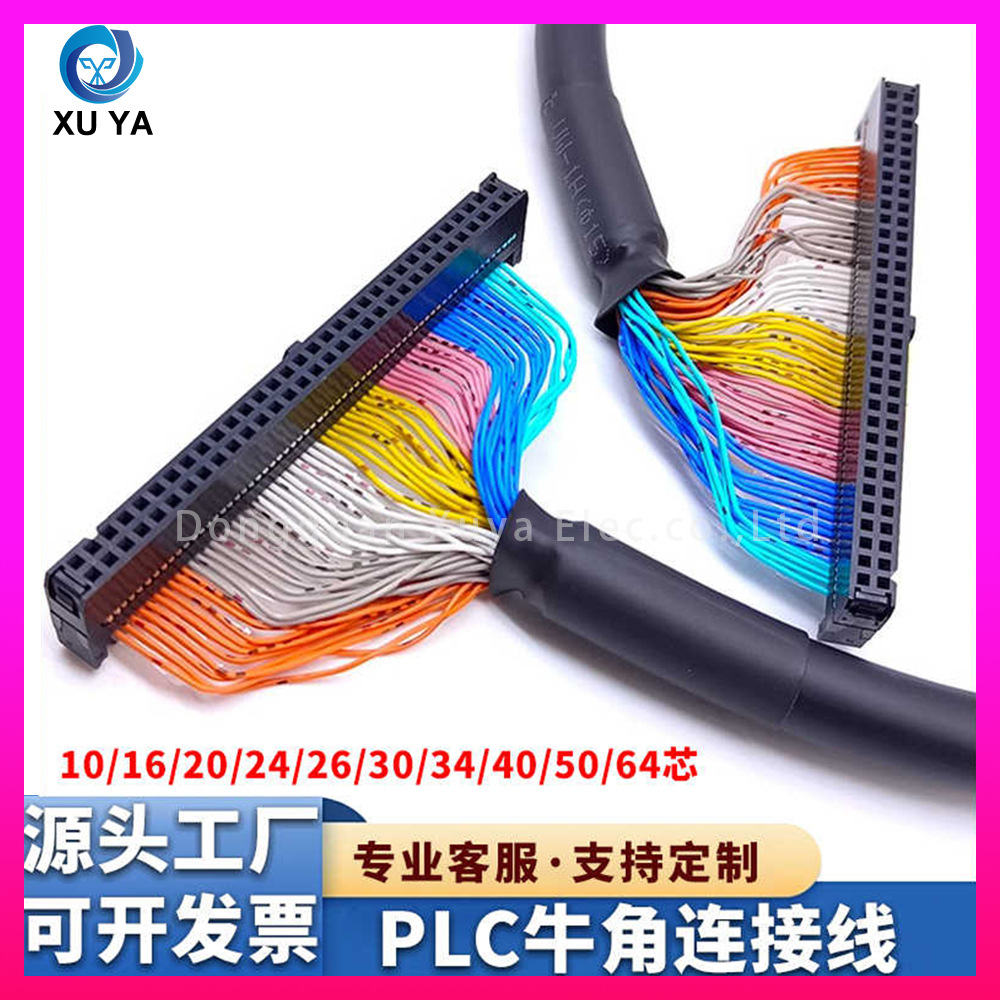

本款 IDC 牛角排线采用标准牛角 IDC 刺破式接头，分为 10 芯、20 芯、30 芯、64 芯多规格可选，支持单端、双端对接方案，广泛用于 PLC 控制柜通讯、工业控制板卡信号传输、仪器设备内部信号连接。

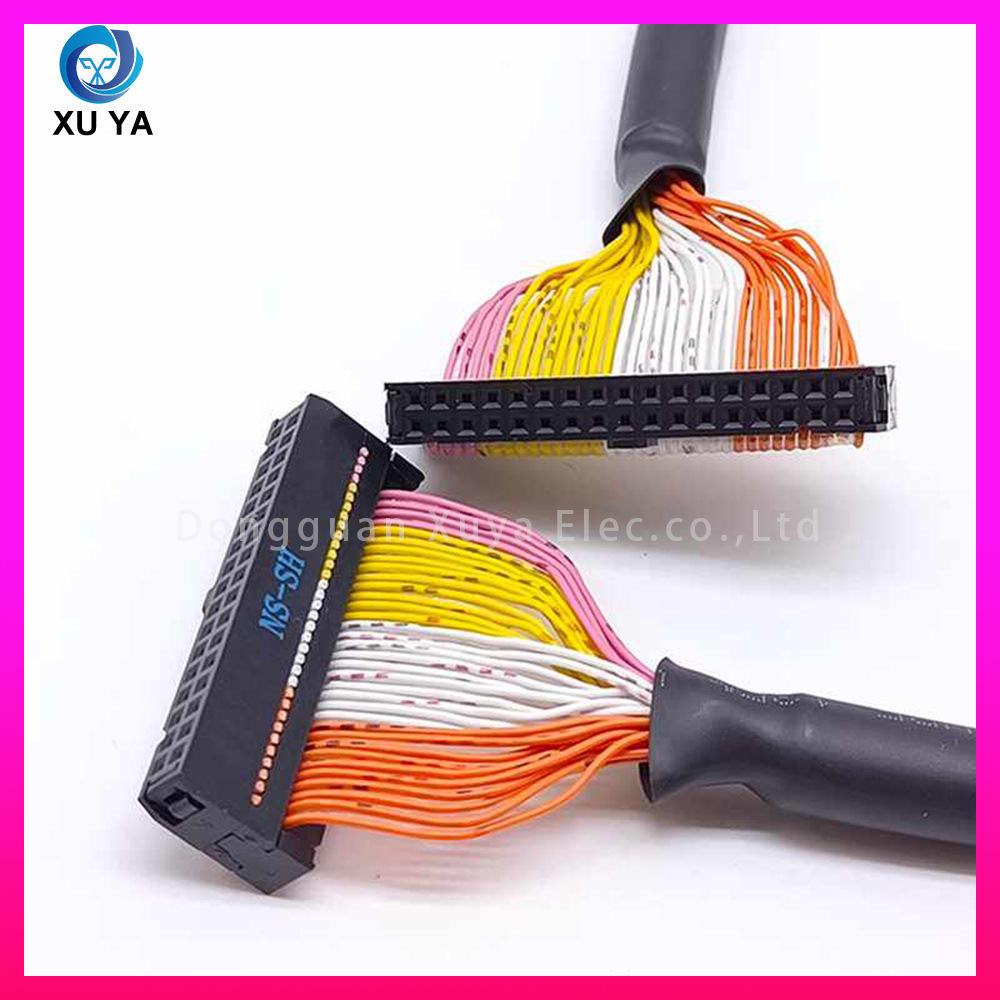

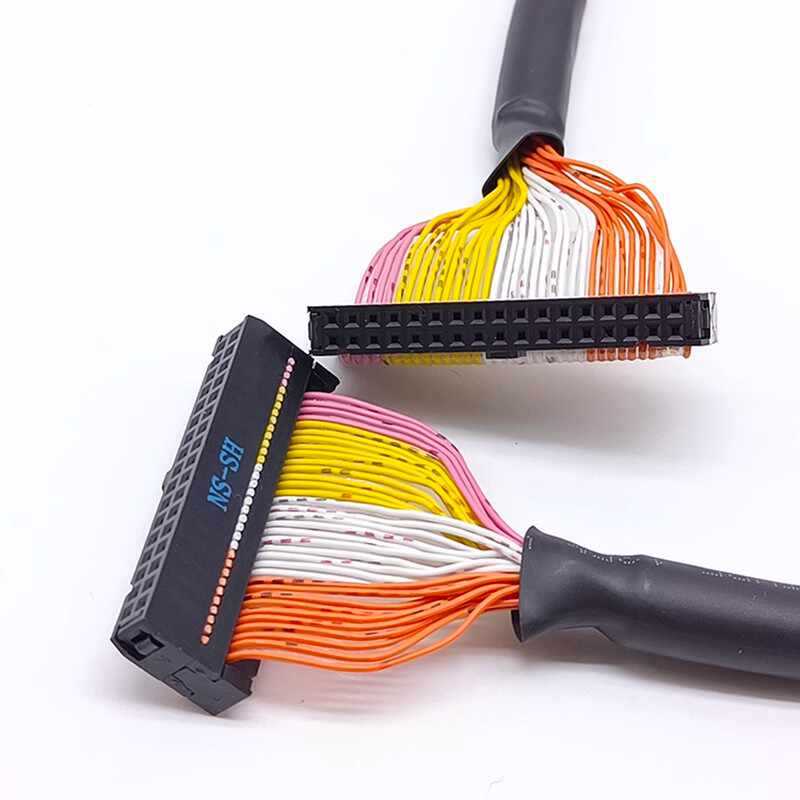

线材采用多色分线设计，橙、白、黄、粉区分线芯，接线检修辨识度高；内部信号芯线做分组双绞处理，搭配整体屏蔽层，有效抵御变频器、伺服电机电磁干扰，保障微弱控制信号稳定传输，无信号错乱、丢脉冲问题。

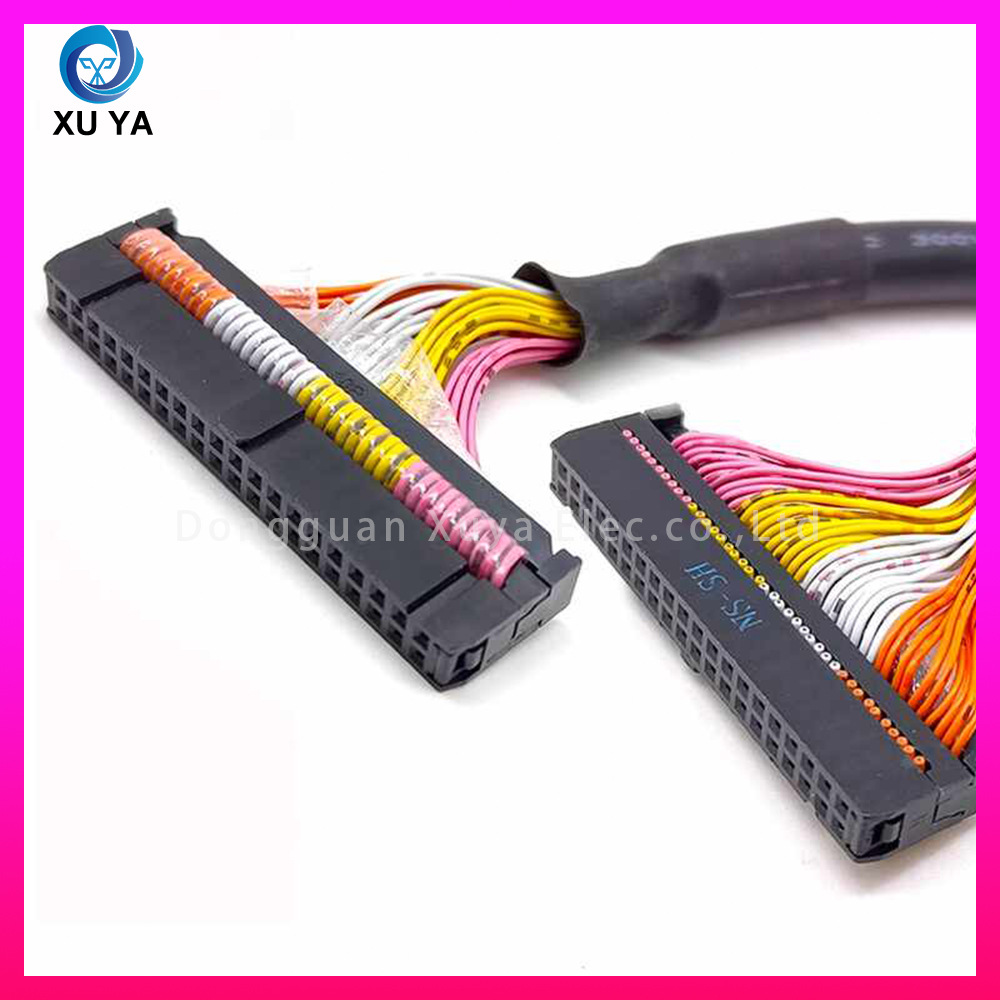

黑色 IDC 牛角接头卡扣式锁线，刺破端子无需焊锡，压接快速牢固，不易脱线断线；外层采用耐磨绝缘护套，分段热缩管加固线材根部，弯折拉扯不易开裂。
常规 10/20/30/64 芯标准长度常备现货，可按需定制任意长度、单头 / 双头、高柔拖链款，支持定制非标准芯数；源头工厂可开具增值税发票，大批量工控柜线束项目可优惠排产。
English Description
This IDC flat ribbon cable is equipped with standard IDC insulation displacement connectors, available in multiple specifications including 10-core, 20-core, 30-core and 64-core, supporting single-end and double-end connection schemes. It is widely applied for PLC cabinet communication, signal transmission of industrial control boards and internal signal wiring of testing instruments.
The cable adopts multi-color wire separation design with orange, white, yellow and pink cores for high recognition during wiring and maintenance. Inner signal wires are grouped and twisted, matched with overall shielding layer to effectively resist electromagnetic interference from inverters and servo motors, ensuring stable transmission of weak control signals without signal disorder or pulse loss.
The black IDC connector adopts snap locking design. The insulation displacement terminals require no soldering, featuring fast and firm crimping that prevents wire shedding and breakage. The outer wear-resistant insulating jacket is reinforced with heat-shrink tubes at cable roots to avoid cracking under bending and pulling.
Standard lengths of 10/20/30/64-core cables are in stock. Custom lengths, single/double-end cables and high-flex drag chain versions are available, as well as non-standard core counts. As direct manufacturer, VAT invoices can be issued, and preferential production schedules are offered for bulk wire harness orders of industrial control cabinets.
1.Q：这款 IDC 牛角排线适用于哪些设备？
A：主要用于 PLC 控制柜、工业控制板卡、检测仪器、自动化设备内部信号通讯传输。
Q: What equipment is this IDC ribbon cable suitable for?
A: It is mainly used for internal signal communication transmission of PLC control cabinets, industrial control boards, testing instruments and automation equipment.
2.Q：线材双绞屏蔽结构有什么作用？
A：线芯分组双绞降低串扰，外层整体屏蔽隔绝车间伺服、变频器电磁干扰，避免控制信号失真错乱。
Q: What is the function of the cable's twisted shielded structure?
A: Grouped twisted cores reduce crosstalk, and the overall outer shielding isolates electromagnetic interference from servos and inverters to prevent distortion and disorder of control signals.
3.Q：IDC 牛角接头刺破式端子需要焊接吗？
A：无需焊锡，通过压接刺破绝缘皮导通，装配简单高效，卡扣锁线牢固不易脱落。
Q: Is soldering required for the insulation displacement terminals of IDC connectors?
A: No soldering is needed. The terminals pierce wire insulation for conduction via crimping, with simple and efficient assembly. The snap lock firmly fixes wires against shedding.
4.Q：有哪些常规芯数，能否定制特殊芯数与长度？
A：现货标准芯数：10 芯、20 芯、30 芯、64 芯；支持定制任意长度、非标准芯数、高柔拖链专用排线。
Q: What standard core counts are available, can special core counts and lengths be customized?
A: Standard stock core counts: 10-core, 20-core, 30-core, 64-core. Custom lengths, non-standard core counts and high-flex drag chain cables are available for customization.
5.Q：现货与定制线束发货周期分别多久？
A：标准芯数常规长度现货当天或次日发货；定制特殊长度、非标芯数、高柔款订单交期 3-7 个工作日。
Q: What are the delivery lead times for stock cables and customized cables respectively?
A: Standard core-count stock cables can be shipped same day or next day; orders with customized special lengths, non-standard core counts and high-flex versions take 3-7 working days.
