HR10A-7P-6S 工业相机电源 IO 触发线缆 12 芯高柔屏蔽线
HR10A-7P-6S Industrial Camera Power IO Trigger Cable 12-Core High-Flex Shielded Wire
产品详情描述

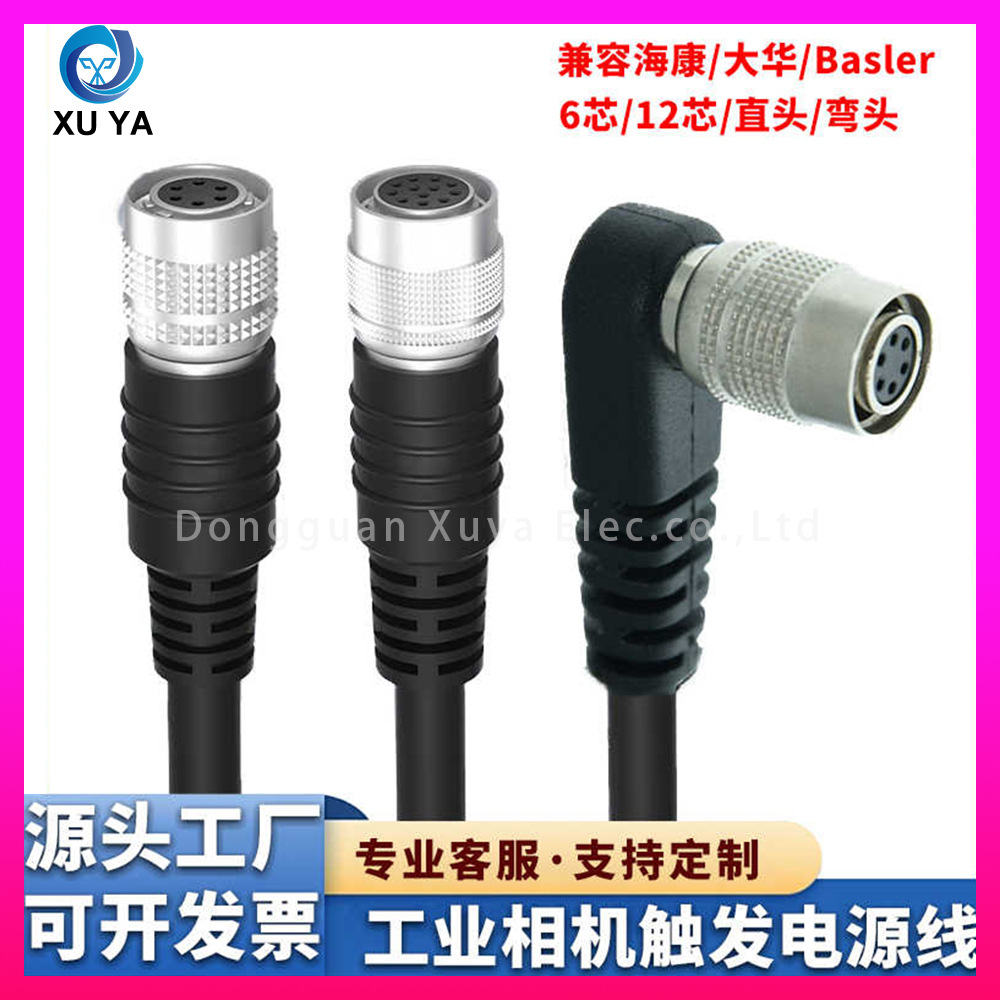

本款 12 芯工业相机专用线束，接头型号 HR10A-7P-6S，直头 / 弯头两种接头可选，适配海康、Basler 巴斯勒全系工业相机，集成电源供电、IO 信号、外部触发信号传输三合一功能，简化设备布线。

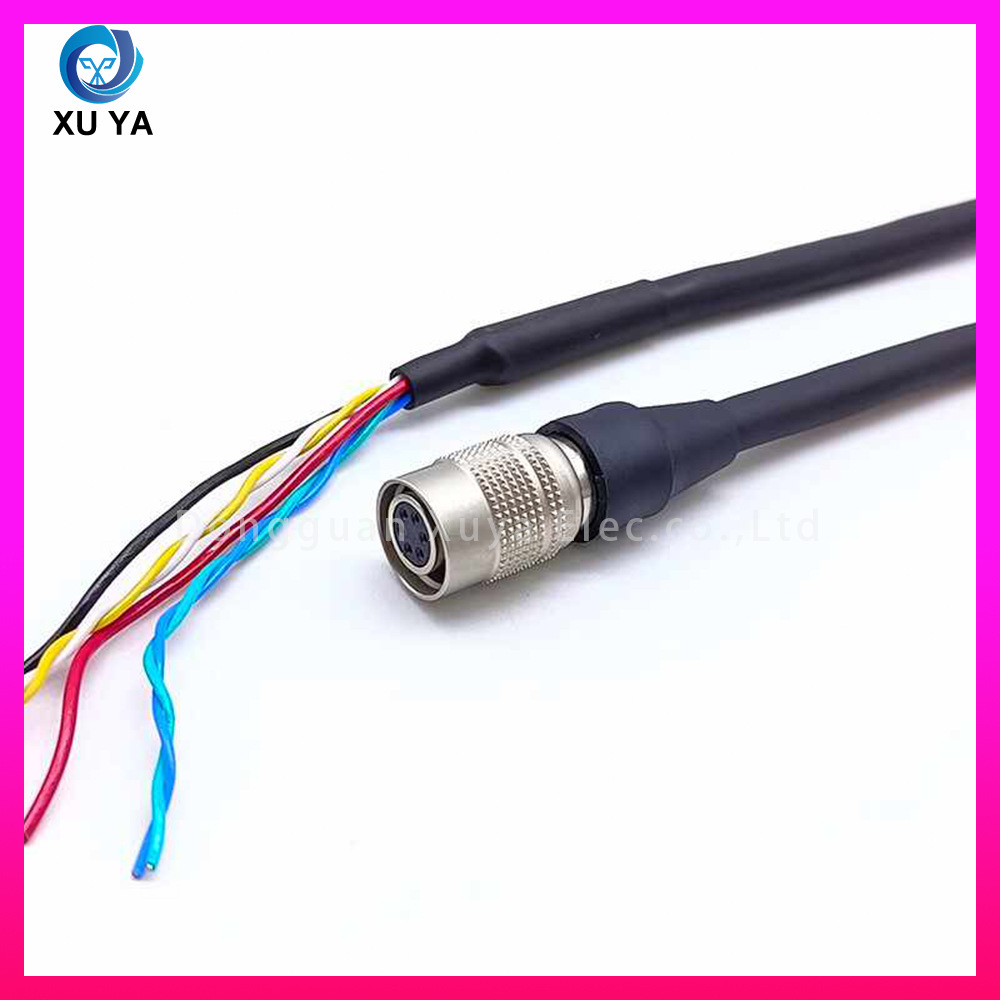

线材采用黑色高柔性耐磨护套，内部 12 芯分组双绞屏蔽结构，多股超细镀锡铜导体，可承受上万次拖链往复弯折，适配自动化视觉流水线移动布线；双层屏蔽设计，有效隔绝伺服、变频器电磁干扰，避免触发信号误触发、IO 信号错乱。

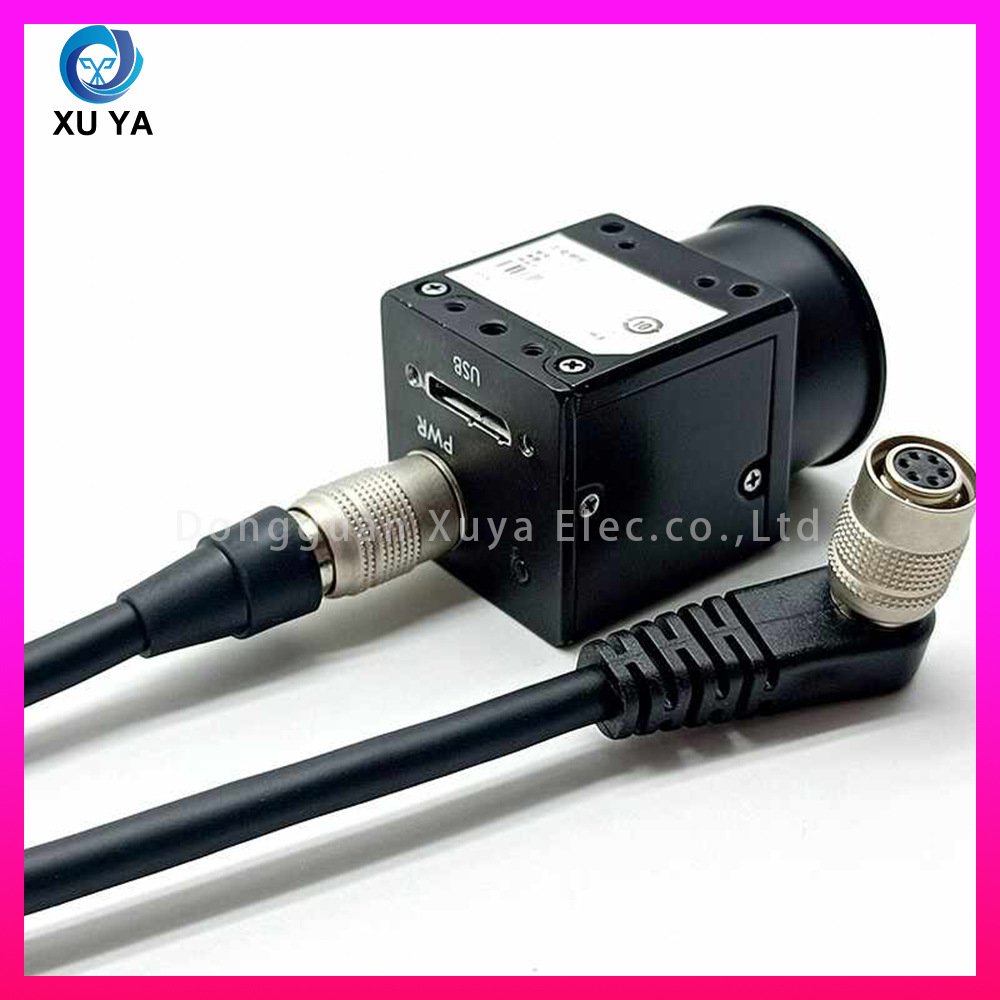

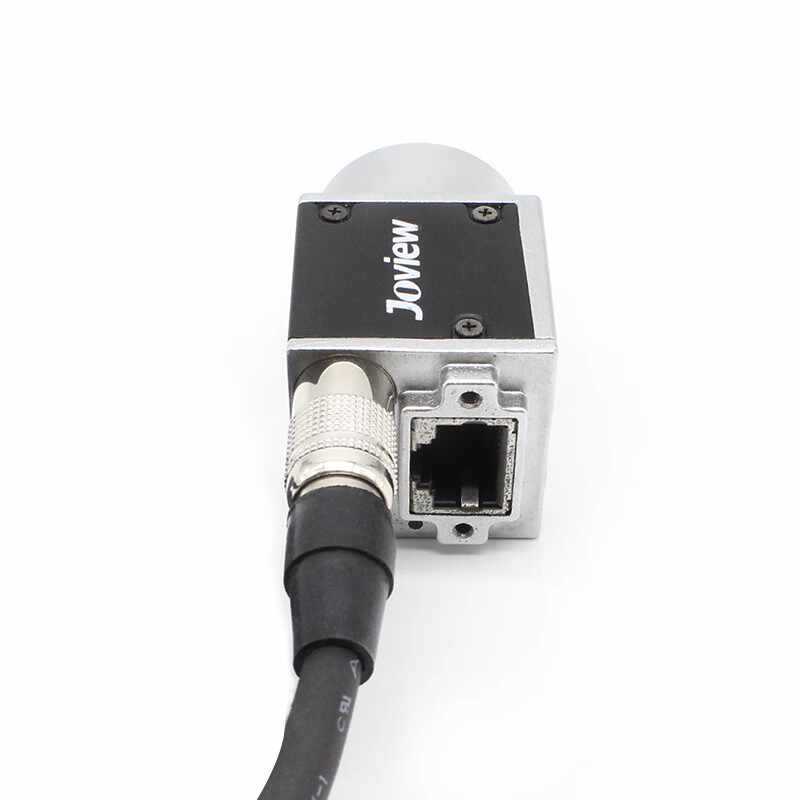

金属航空接头带防滑滚花外壳，插拔顺滑，搭配螺纹锁紧结构，拧紧后牢固锁死相机接口，设备震动、拖链移动时不会松动脱落；弯头款适配狭小安装空间，直头款适配常规控制柜布线。
常备多种标准长度现货，支持定制任意长度、直头 / 弯头款式、高柔拖链加强款；可定制外皮颜色，源头工厂可开具增值税发票，大批量机器视觉项目线束可优惠排产。
English Description
This 12-core special wire harness for industrial cameras adopts HR10A-7P-6S connector, available in straight and elbow styles. It is compatible with all industrial cameras of Hikvision and Basler, integrating three functions of power supply, IO signal and external trigger signal transmission to simplify equipment wiring.
The cable features a black high-flex wear-resistant jacket and 12 grouped twisted shielded cores inside with multi-strand ultra-fine tinned copper conductors. It can withstand tens of thousands of reciprocating drag chain bends, suitable for mobile wiring of automatic visual production lines. The double-layer shielding design effectively isolates electromagnetic interference from servos and inverters to prevent false triggering of trigger signals and disorder of IO signals.
The metal aviation connector is equipped with anti-slip knurled shell for smooth plugging and unplugging, as well as thread locking structure to firmly lock the camera port after tightening, avoiding loosening and disconnection during equipment vibration and drag chain movement. The elbow type fits narrow installation spaces, and the straight type is for standard control cabinet wiring.
Various standard lengths are in stock. Custom lengths, straight/elbow connectors and reinforced high-flex drag chain versions are available, as well as customizable jacket colors. As direct manufacturer, VAT invoices can be issued, and preferential production schedules are offered for bulk wire harness orders of machine vision projects.
1.Q：这款 HR10A-7P-6S 线缆适配哪些工业相机品牌？
A：完美适配 Basler 巴斯勒、海康威视工业相机，用于相机供电、IO 控制、外部拍照触发。
Q: Which industrial camera brands is this HR10A-7P-6S cable compatible with?
A: Fully compatible with Basler and Hikvision industrial cameras, used for camera power supply, IO control and external capture triggering.
2.Q：12 芯线缆同时具备哪些功能？
A：集成相机直流供电、多路 IO 输入输出、外部硬件触发信号传输，一根线替代多组独立线束。
Q: What functions does the 12-core cable realize simultaneously?
A: It integrates DC power supply for cameras, multi-channel IO input & output and external hardware trigger signal transmission, replacing multiple separate wire harnesses with one cable.

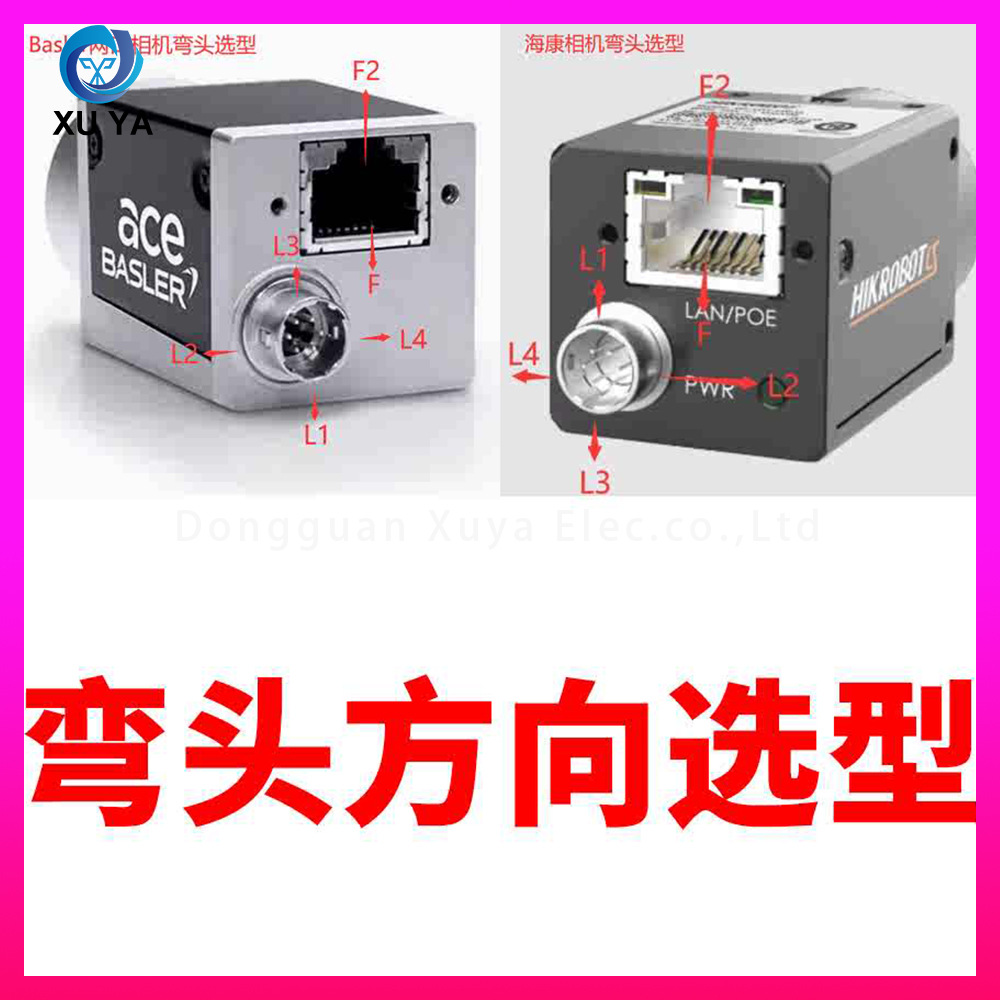

3.Q：弯头航空头适合什么安装场景？
A：弯头 90° 出线设计，节省设备狭小安装空间，相机贴壁、嵌入式设备紧凑布线专用；直头适合常规宽敞控制柜走线。
Q: What installation scenarios are the elbow aviation connectors suitable for?
A: The 90° elbow outlet design saves narrow installation space of equipment, specially for compact wiring of wall-mounted cameras and embedded equipment; straight connectors are for regular spacious control cabinet wiring.
4.Q：线材高柔屏蔽结构有什么优势？
A：多股超细铜丝耐反复弯折，拖链长期移动不易断线；双绞屏蔽层隔绝车间电磁干扰，杜绝相机误触发、信号丢失问题。
Q: What are the advantages of the cable's high-flex shielded structure?
A: Multi-strand ultra-fine copper wires resist repeated bending and are not easy to break under long-term drag chain movement. The twisted shielding layer isolates workshop electromagnetic interference to eliminate camera false triggering and signal loss.
5.Q：现货与定制线束发货周期分别多久？
A：常规长度直头 / 弯头现货当天或次日发货；定制特殊长度、特殊外皮颜色、加厚高柔拖链款订单交期 3-7 个工作日。
Q: What are the delivery lead times for stock cables and customized cables respectively?
A: Standard-length straight and elbow stock cables can be shipped same day or next day; orders with customized special lengths, special jacket colors and thickened high-flex drag chain versions take 3-7 working days.
