超六类 / 七类极细工业屏蔽拖链网线 28AWG/32AWG
Cat6a / Cat7 Ultra-Thin Industrial Shielded Drag Chain Cable 28AWG / 32AWG
产品详情描述
本款极细工业网线分两大规格：超六类 28AWG、七类 32AWG，外径可选 5.2mm/2.8mm 超细款，支持千兆、万兆高速数据传输，专为机器视觉、工业自动化拖链移动布线设计。

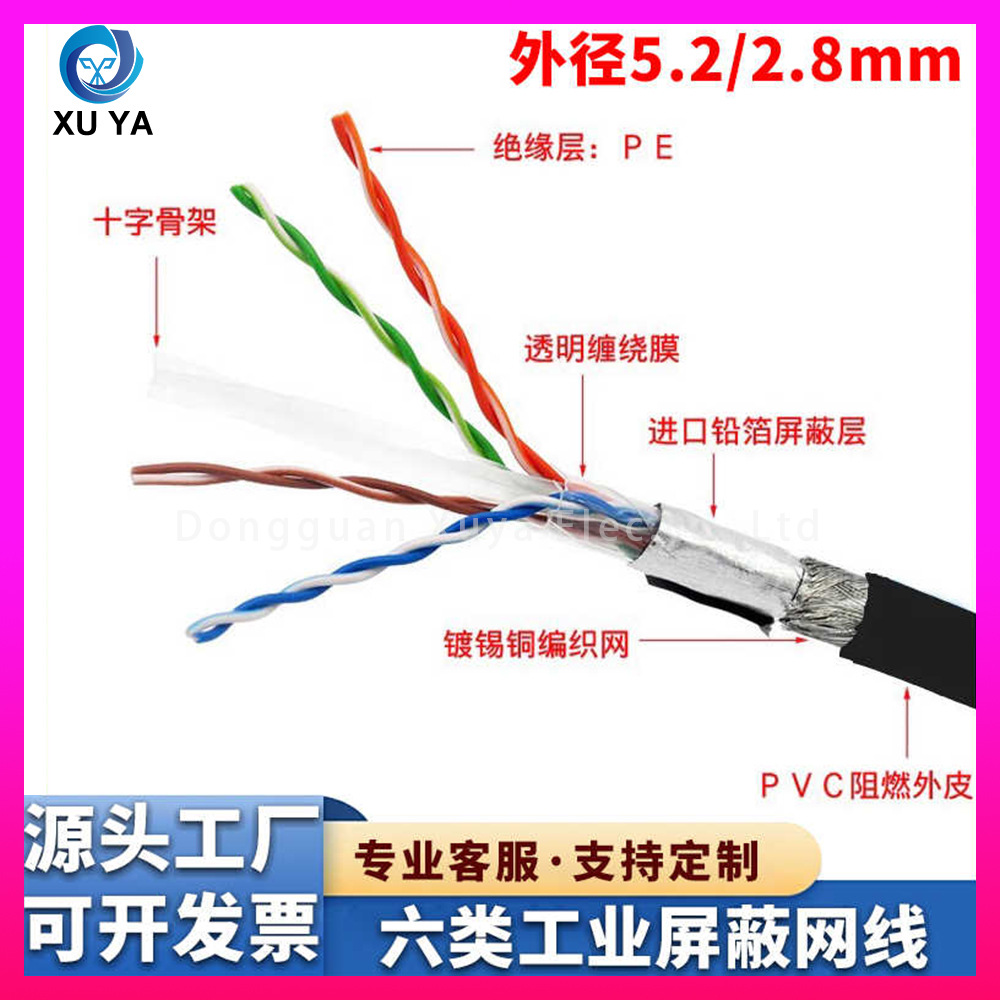

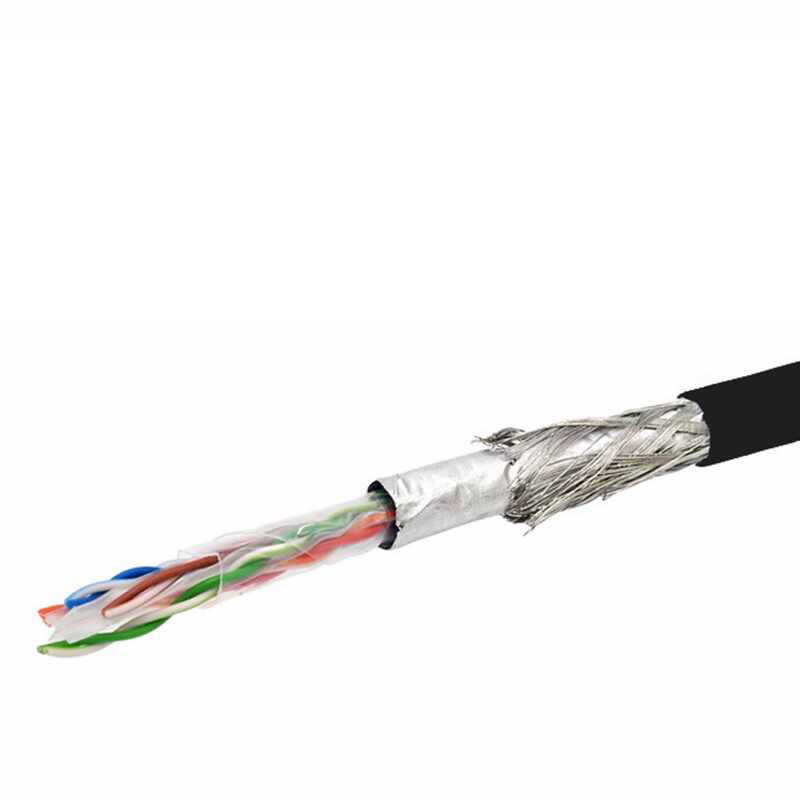

内部搭配十字骨架隔离四对双绞信号线，有效降低线间串扰；线芯绝缘层采用 PE 材质，外层依次包覆透明缠绕膜、进口铝箔屏蔽层、镀锡铜编织网，双层复合屏蔽结构，强力隔绝变频器、伺服电机产生的电磁干扰，图像传输无丢包、无延迟。

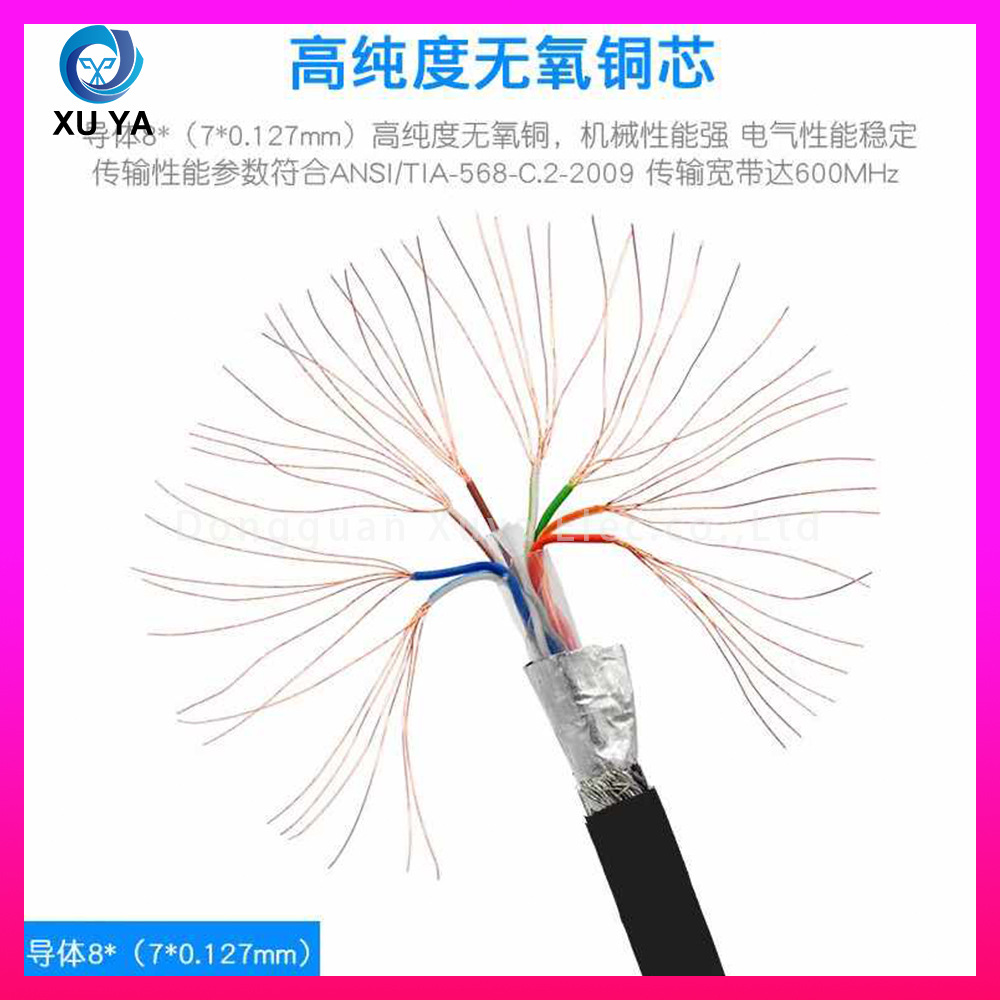

外被为 PVC 阻燃护套，柔软耐磨；28AWG、32AWG 超细多股镀锡铜导体，弯折半径小，耐上万次拖链往复弯折，狭小设备、嵌入式设备紧凑布线专用。
常备 28AWG 超六类、32AWG 七类标准长度现货，可定制不同外径、外皮颜色、加强高柔拖链版本；源头工厂可开具增值税发票，大批量视觉设备、自动化项目线束可优惠排产。
English Description
This ultra-thin industrial network cable has two main specifications: Cat6a 28AWG and Cat7 32AWG, with optional outer diameters of 5.2mm / 2.8mm. It supports Gigabit and 10-Gigabit high-speed data transmission, specially designed for drag chain mobile wiring of machine vision and industrial automation equipment.
A cross filler separates four pairs of twisted signal wires inside to effectively reduce crosstalk between cores. The wire core insulation layer is made of PE material, and the outer layers are covered with transparent wrapping film, imported aluminum foil shielding layer and tinned copper braided mesh in sequence. The double-layer composite shielding structure strongly isolates electromagnetic interference generated by inverters and servo motors, realizing packet-loss-free and low-latency image transmission.
The outer jacket is made of flame-retardant PVC with soft and wear-resistant features. The ultra-fine multi-strand tinned copper conductors of 28AWG and 32AWG have small bending radius and can withstand tens of thousands of reciprocating drag chain bends, ideal for compact wiring of narrow and embedded equipment.
Standard lengths of Cat6a 28AWG and Cat7 32AWG cables are in stock. Custom outer diameters, jacket colors and reinforced high-flex drag chain versions are available. As direct manufacturer, VAT invoices can be issued, and preferential production schedules are offered for bulk wire harness orders of vision equipment and automation projects.
1.Q：28AWG 和 32AWG 线材有什么区别？
A：28AWG 为超六类标准线径，外径 5.2mm，万兆稳定传输；32AWG 七类超细款，外径仅 2.8mm，空间紧凑设备专用，同样支持万兆通讯。
Q: What is the difference between 28AWG and 32AWG cables?
A: 28AWG is Cat6a standard wire gauge with 5.2mm outer diameter for stable 10Gigabit transmission. 32AWG is ultra-thin Cat7 cable with only 2.8mm outer diameter for space-limited equipment, also supporting 10-Gigabit communication.
2.Q：双层铝箔加编织网屏蔽结构作用是什么？
A：内层铝箔隔绝外部高频干扰，外层镀锡铜编织网进一步抗低频电机干扰，双重防护，避免工业环境下网络信号衰减、图像丢帧。
Q: What is the function of double shielding structure with aluminum foil and braided mesh?
A: The inner aluminum foil isolates external high-frequency interference, and the outer tinned copper braided mesh resists low-frequency motor interference for double protection, preventing network signal attenuation and image frame loss in industrial environments.
3.Q：十字骨架的设计优势是什么？

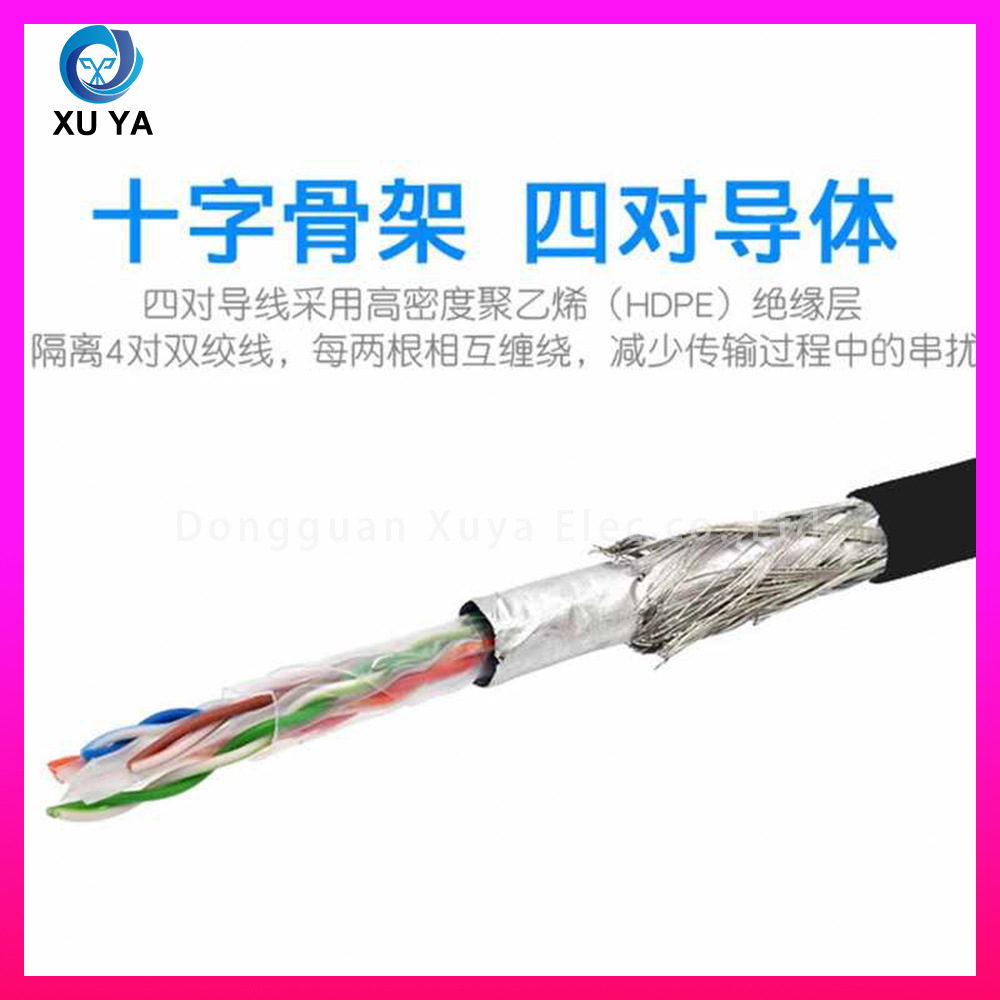

A：十字骨架将四组双绞线分隔固定，防止线材弯折时线芯挤压变形，降低串扰，保证长期高速传输性能稳定。
Q: What are the advantages of cross filler design?
A: The cross filler separates and fixes four pairs of twisted wires to avoid core extrusion deformation during cable bending, reduce crosstalk and ensure stable long-term high-speed transmission performance.
4.Q：这款细线是否适合拖链长期往复运动？
A：适配拖链使用，内部多股超细镀锡铜丝，柔韧性强，耐上万次反复弯折，不易断线开裂，适配自动化流水线移动布线。
Q: Is this ultra-thin cable suitable for long-term reciprocating movement inside drag chains?
A: It is designed for drag chain application. The internal multi-strand ultra-fine tinned copper wires feature great flexibility, resisting tens of thousands of repeated bends without wire breakage or cracking, suitable for mobile wiring of automatic production lines.
5.Q：现货与定制线材发货周期分别多久？
A：28AWG、32AWG 常规长度现货当天 / 次日发货；定制特殊外径、彩色外皮、高柔加强款订单交期 3-7 个工作日。
Q: What are the delivery lead times for stock cables and customized cables respectively?
A: Standard-length 28AWG and 32AWG stock cables can be shipped same day or next day; orders with customized special outer diameters, colored jackets and reinforced high-flex versions take 3-7 working days.
