多端口网络连接器，工业级以太网接口，千兆内置集成磁环，带金属屏蔽外壳
Multi-Port Network Connector, Industrial Ethernet Port, Gigabit Integrated Magnetics, with Shield

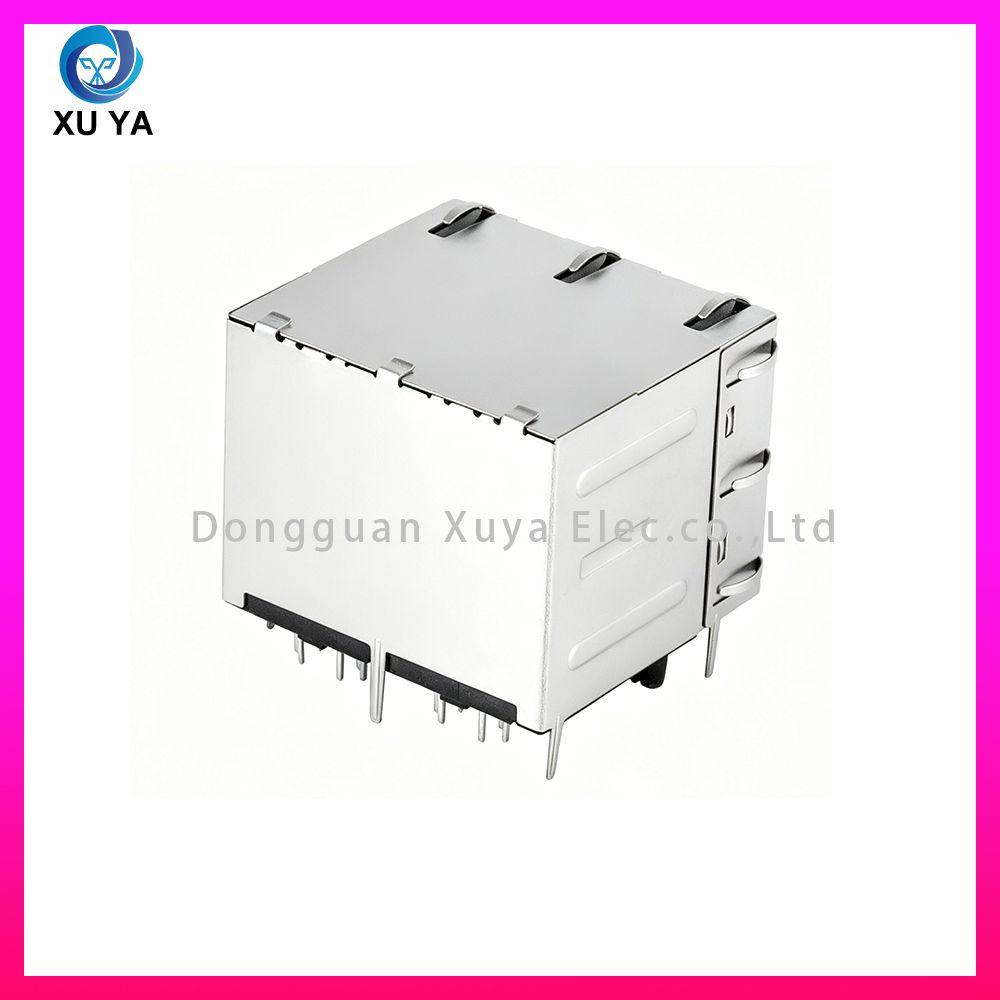

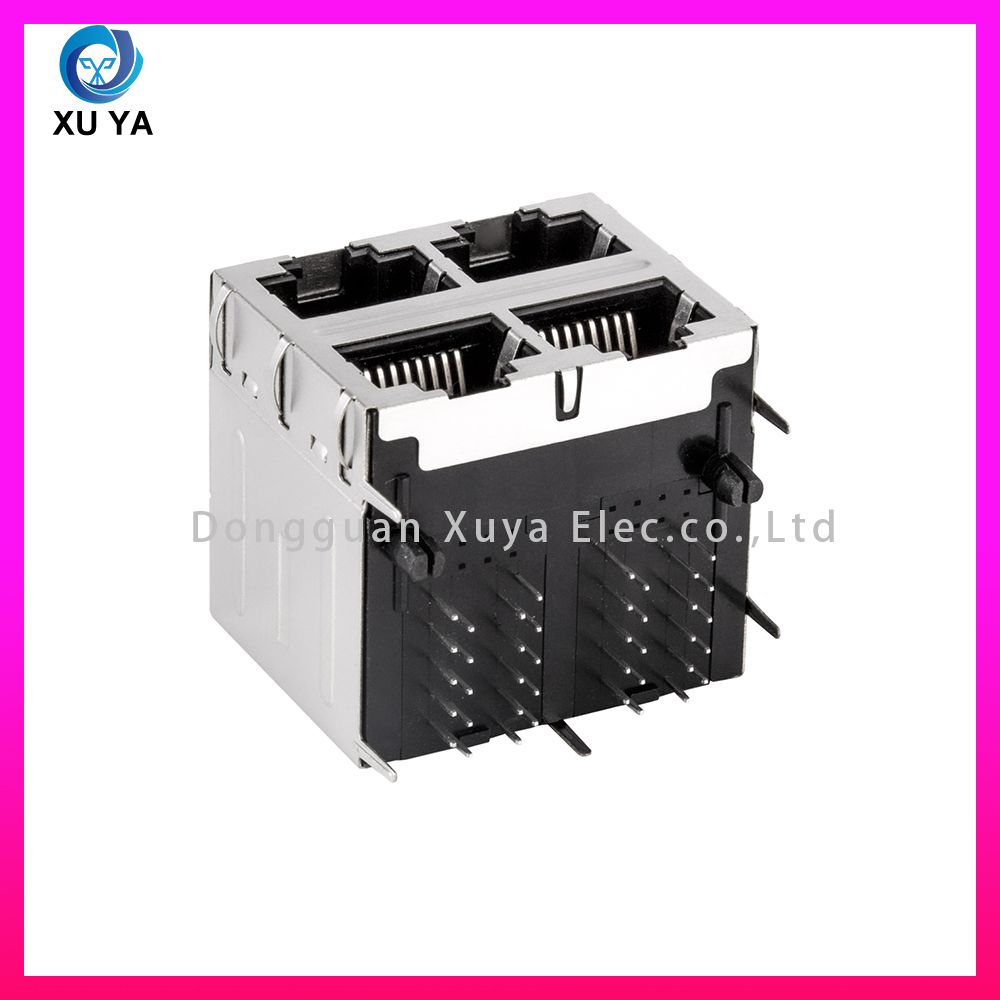

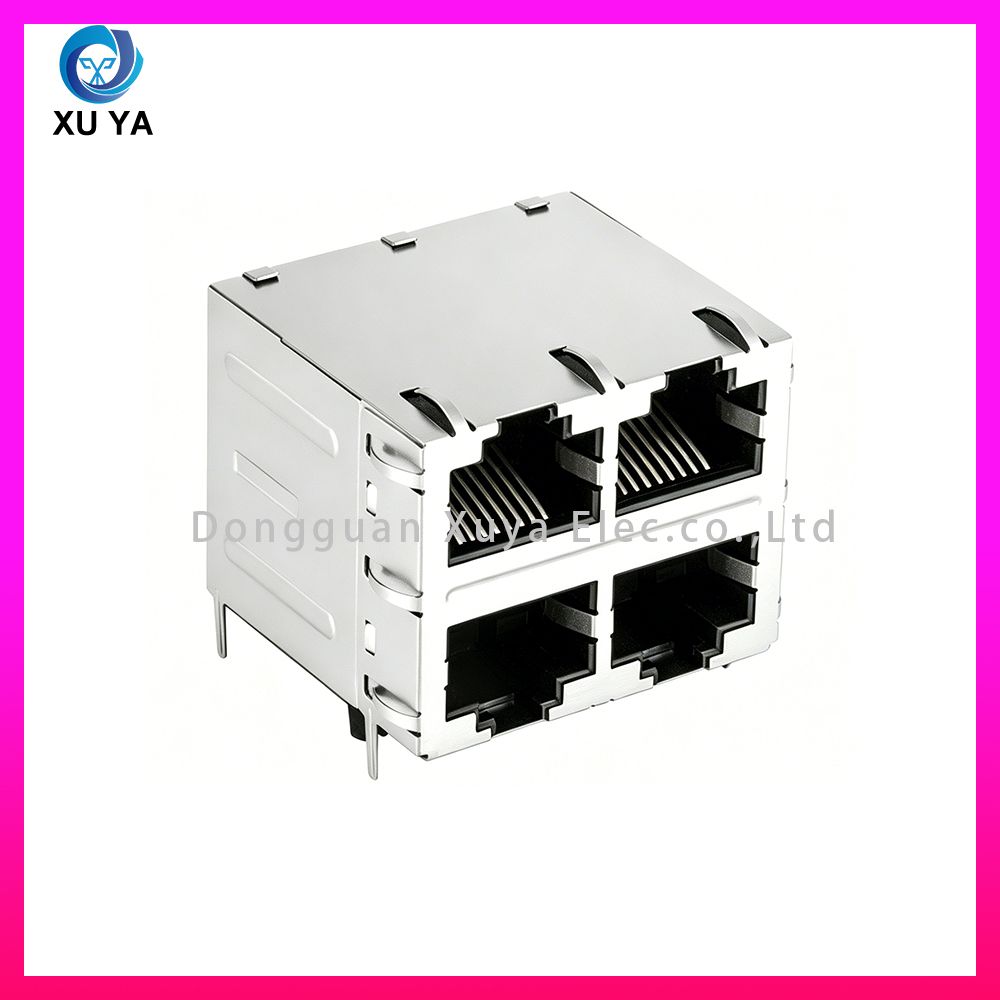

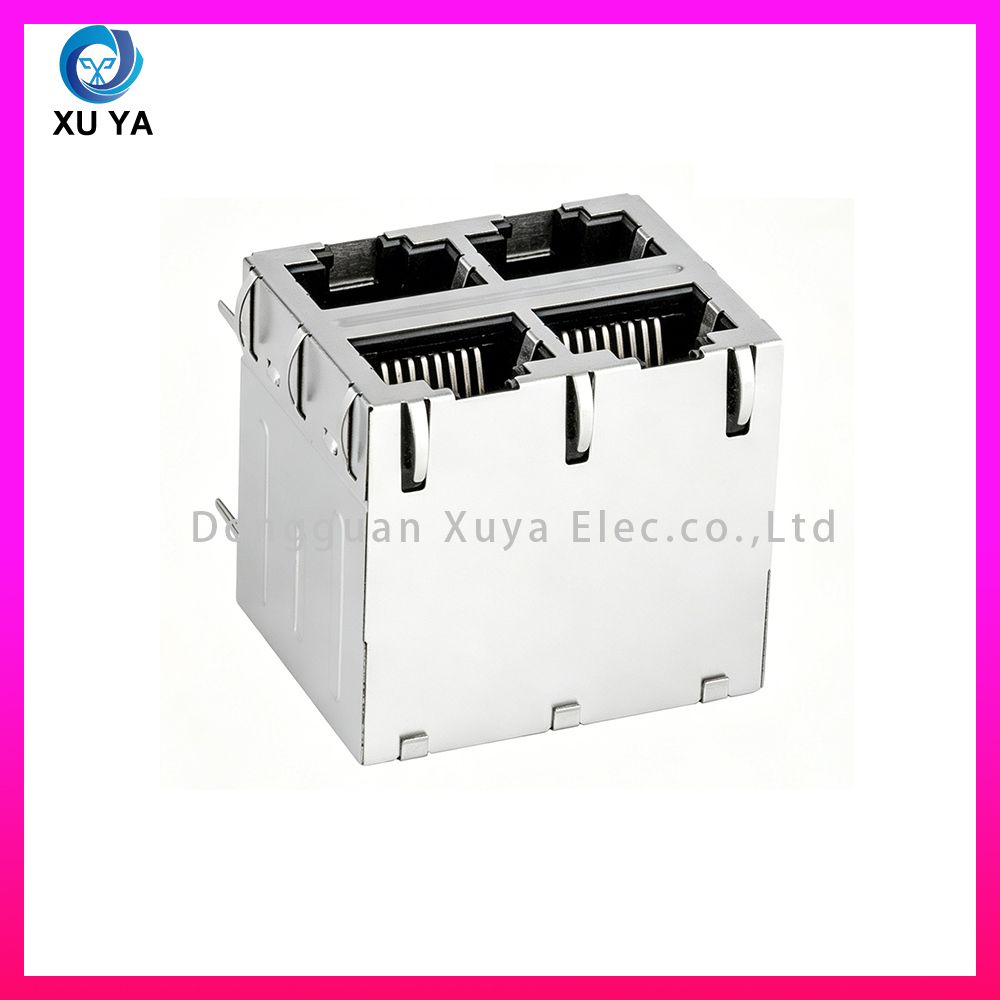

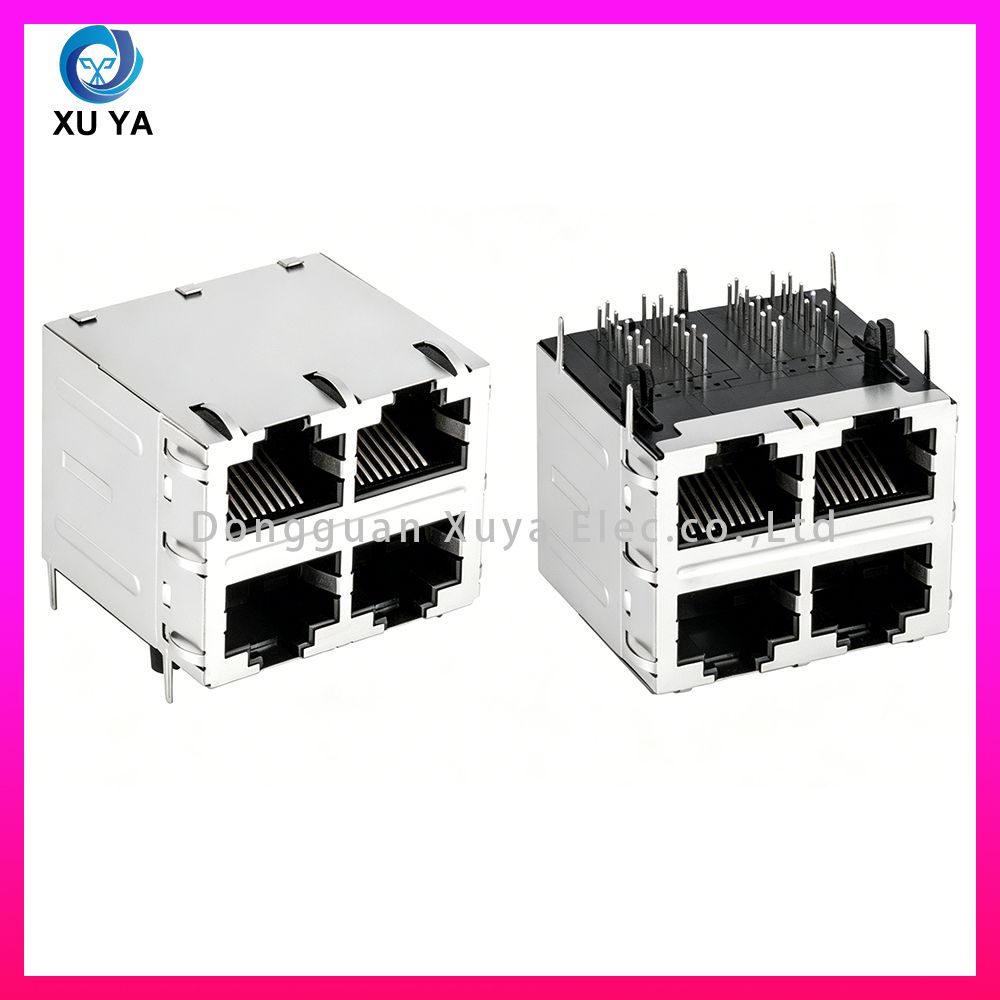

2×2 四端口工业级屏蔽 RJ45 连接器，多端口集成一体设计，节省 PCB 布局空间；内置一体式千兆网络隔离滤波磁环，支持 10/100/1000M 自适应千兆以太网传输，满足工业设备高速通信需求；全包金属屏蔽外壳搭配多组接地弹片，有效抵御工业环境复杂电磁干扰，信号传输稳定；内部 8P8C 加厚镀金接触弹片，耐磨抗氧化，可承受工业场景长期反复插拔；内部采用耐高温阻燃塑胶，耐高低温，适配严苛工业工况；DIP 直插针脚适配 PCB 波峰焊工艺，广泛用于工业交换机、PLC 工控主板、工业网关、自动化通信设备；标准装箱 800PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
2×2 four-port industrial shielded RJ45 connector with integrated multi-port design to save PCB layout space. Built-in integrated gigabit network isolation magnetic ring supports 10/100/1000M adaptive gigabit ethernet transmission to meet high-speed communication requirements of industrial equipment. Full metal shielding shell with multiple grounding springs effectively resists complex electromagnetic interference in industrial environments for stable signal transmission. Internal 8P8C thick gold-plated contact shrapnel is wear-resistant and anti-oxidation, capable of long-term repeated plugging in industrial scenarios. High-temperature resistant flame-retardant plastic inside withstands high and low temperatures to adapt to harsh industrial working conditions. DIP through-hole pins are compatible with PCB wave soldering process. Widely applied to industrial switches, PLC industrial control mainboards, industrial gateways and automation communication equipment. Standard packing: 800 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款网络连接器端口布局、产品定位与传输规格是什么？
2 行 2 列共 4 端口集成一体，工业级以太网专用接口，内置千兆集成磁环，支持 10/100/1000M 自适应传输。
What are the port layout, product positioning and transmission specifications of this network connector?
Integrated 4 ports in 2 rows and 2 columns, special industrial-grade ethernet port, built-in gigabit integrated magnetic ring, supporting 10/100/1000M adaptive transmission.
Q2：产品屏蔽结构与环境适配优势？
全包金属屏蔽壳体搭配多组接地弹片，抗电磁干扰能力强；内部阻燃耐高温塑胶，耐高低温，适配工业恶劣工况。
What are the advantages of the shielding structure and environmental adaptability?
Full metal shielding shell with multiple grounding springs provides strong anti-electromagnetic interference performance. Internal flame-retardant and high-temperature resistant plastic withstands high and low temperatures to adapt to harsh industrial working conditions.
Q3：适配哪种 PCB 焊接工艺？
DIP 立式直插针脚设计，适配 PCB 波峰焊批量焊接加工。
Which PCB soldering process is it compatible with?
Designed with DIP vertical through-hole pins, suitable for mass PCB wave soldering processing.
