黑色直通 RJ45 网口，56 系列全塑带 LED 指示灯，无内置集成磁环，上开口以太网插座
Black RJ45 Straight Through, 56 Series Full Plastic with LED, Without Integrated Magnetics, Upward Port Ethernet Jack

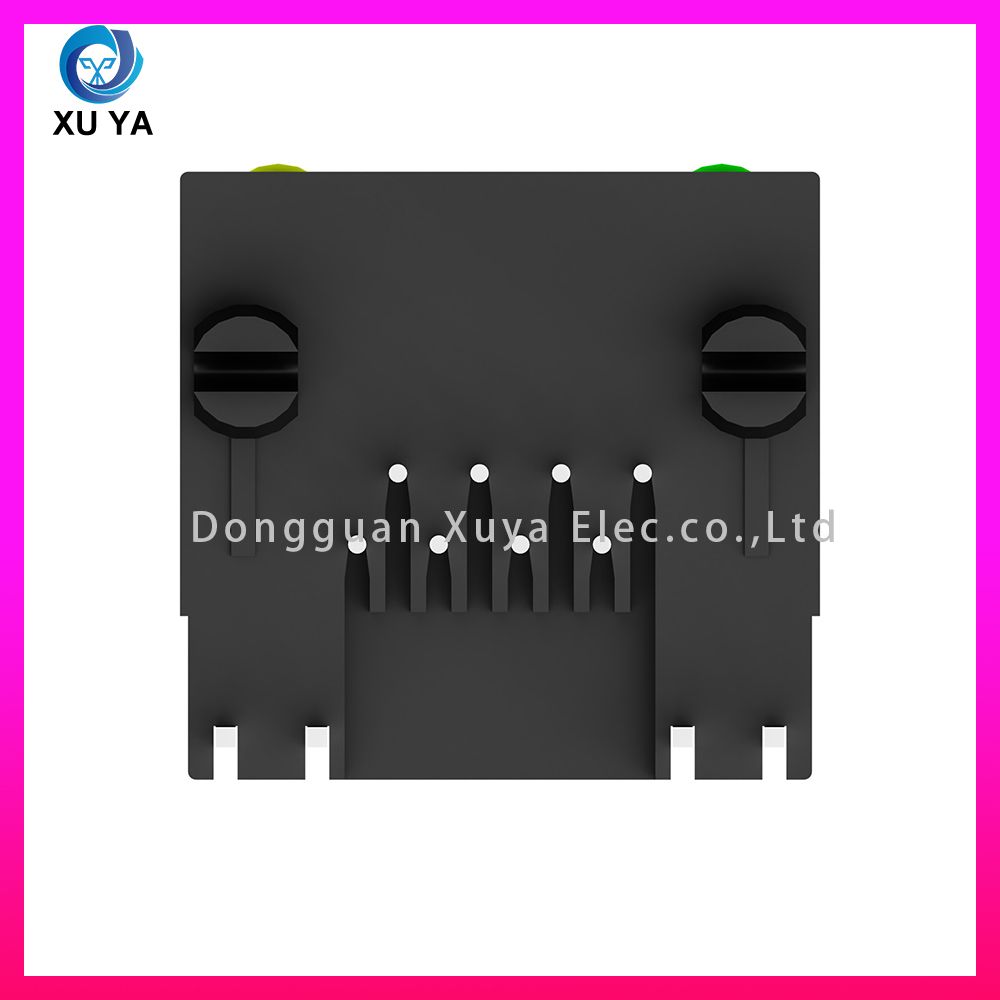

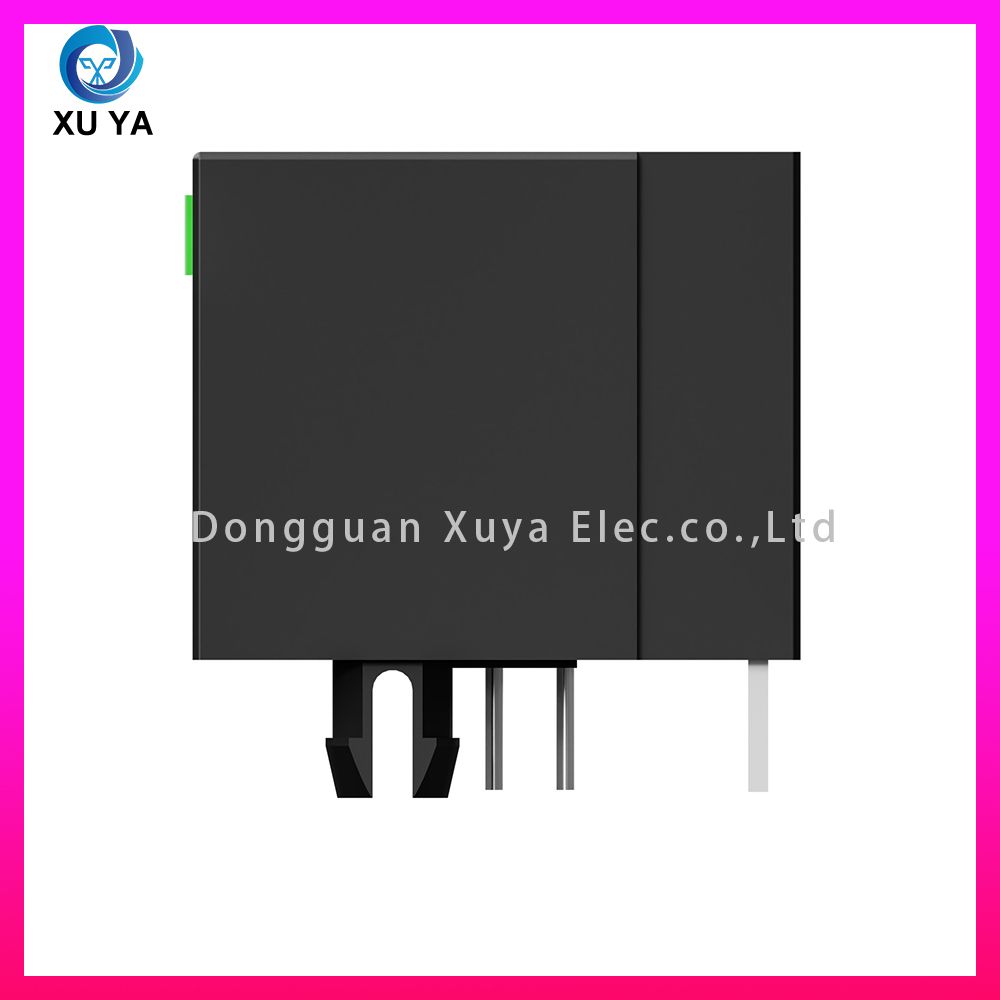

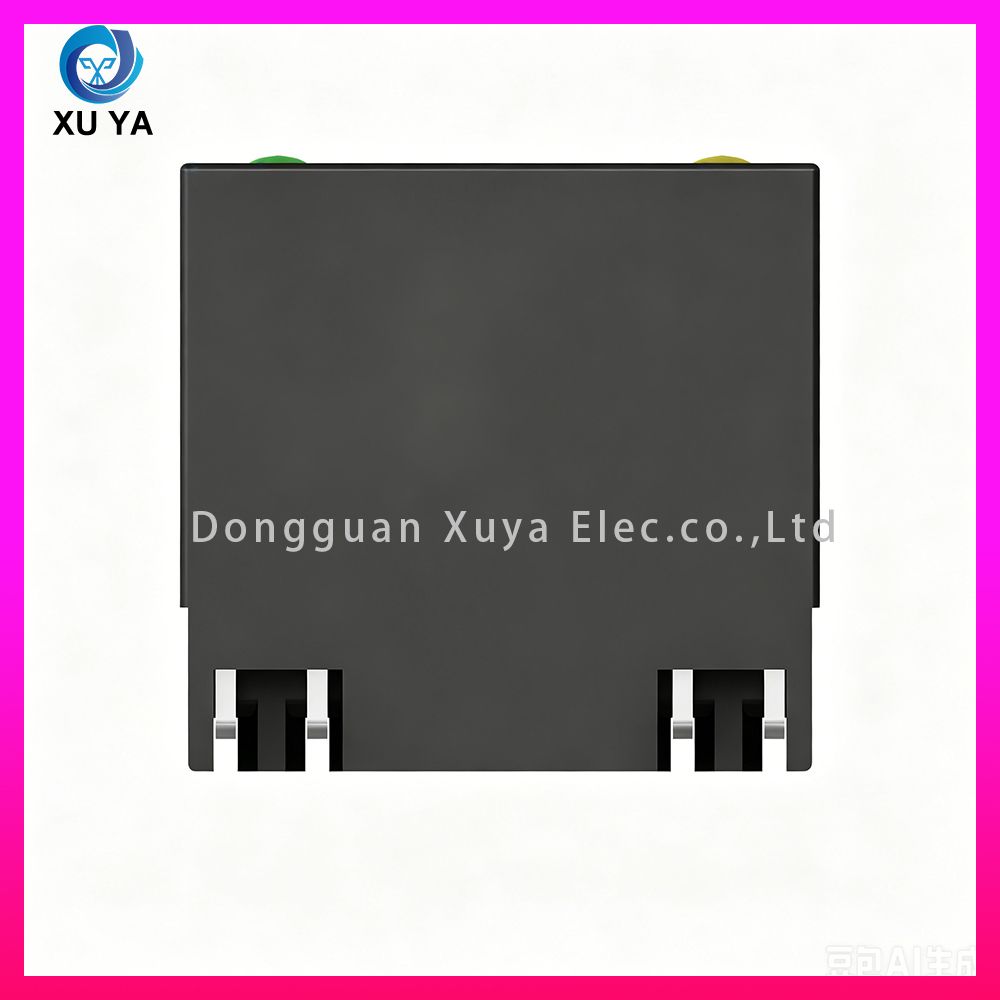

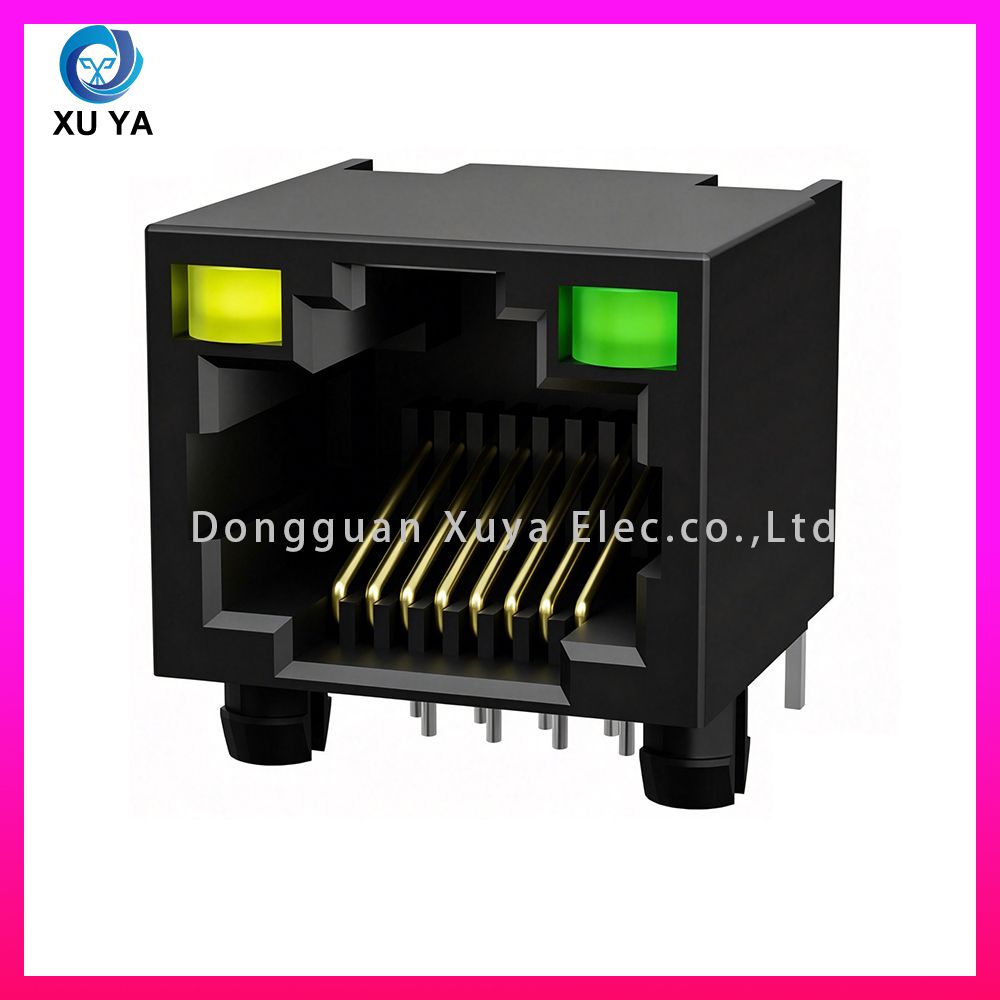

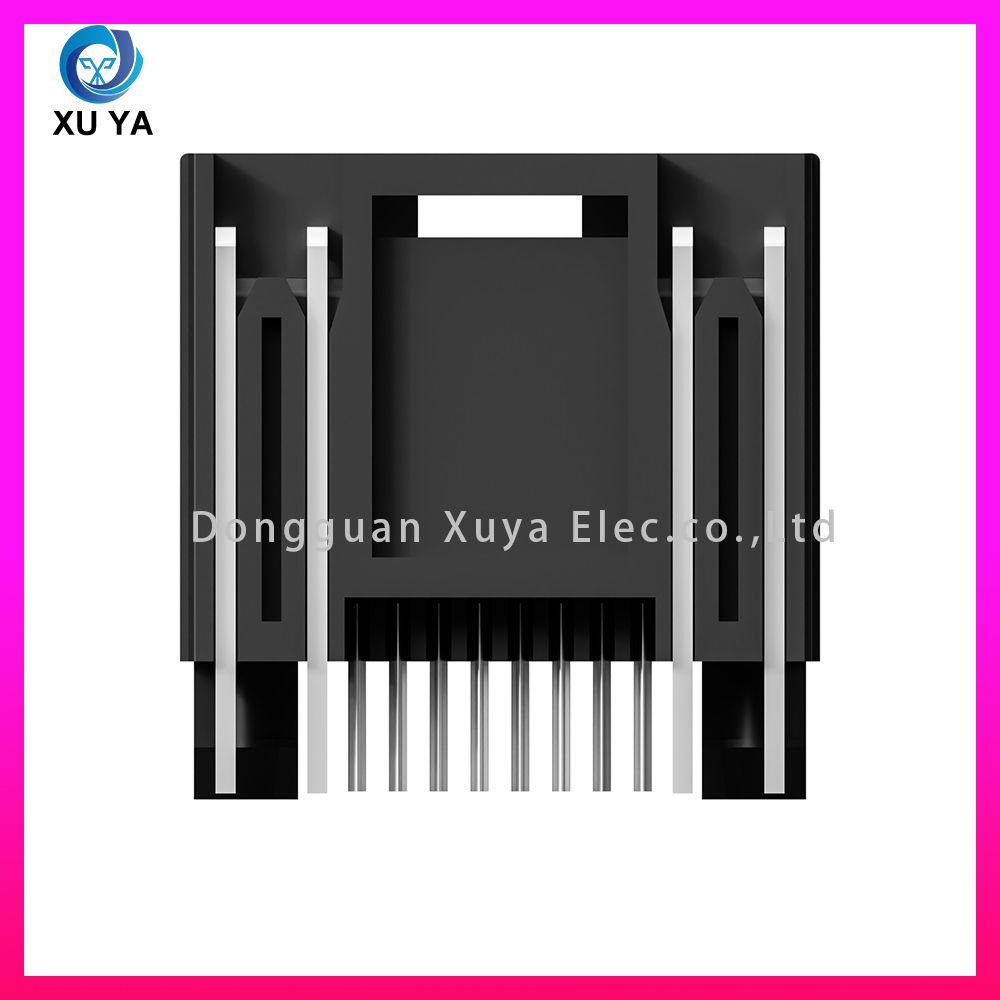

56 系列黑色全塑上开口 RJ45 以太网插座，标准 8P8C 线路一对一直通设计；整体一体黑色阻燃塑胶外壳，无金属屏蔽壳体，内部无集成网络隔离滤波磁环；端口左右分别配备绿色、黄色双 LED 指示灯，实时显示链路连通与数据传输状态；内部接触弹片镀金处理，插拔顺滑耐磨，导电稳定，适配百兆网络传输；网口朝上开口结构，网线向上插入，适配设备空间受限、下置 PCB 的结构设计；立式 DIP 直插针脚适配 PCB 波峰焊工艺，耐高温塑胶不易变形开裂，适用于简易网络设备、小家电、桌面通信设备、普通家用路由器拓展网口；标准装箱 1550PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
56 series black full-plastic upward port RJ45 ethernet jack with standard 8P8C 1-to-1 straight-through circuit. The integrated black flame-retardant plastic housing has no metal shielding shell, and there is no built-in network isolation magnetic ring inside. Dual green and yellow LED indicators are installed on both sides of the port to display link connection and data transmission status in real time. Gold-plated internal contact shrapnel ensures smooth and wear-resistant plugging with stable conductivity, compatible with fast ethernet transmission. The upward opening design allows network cables to be plugged from top, matching equipment with limited internal space and bottom-mounted PCB. Vertical DIP through-hole pins are compatible with PCB wave soldering process, and high-temperature resistant plastic resists deformation and cracking. Widely applied to simple network equipment, small home appliances, desktop communication devices and ordinary household router port expansion. Standard packing: 1550 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器所属系列、壳体材质与开口方向是什么？
56 系列规格，一体黑色阻燃全塑胶外壳，无金属屏蔽；上开口结构，网线从上方插入。
What are the series, housing material and port direction of this RJ45 connector?
56 series specification, integrated black flame-retardant full-plastic housing without metal shielding; upward port design for top cable plug-in.
Q2：线路、内置配件与指示灯配置特点？
8P8C 一对一直通线路，内部无集成滤波磁环；端口配备绿、黄双色独立 LED 状态指示灯。
What are the features of circuit, built-in parts and indicator lights?
8P8C 1-to-1 straight-through circuit without built-in filter magnetic ring; independent green and yellow dual LED status indicators on port.
Q3：适配哪种 PCB 焊接工艺与适用场景？
立式 DIP 直插针脚，适配 PCB 波峰焊；适用于家用简易网络设备、小家电、桌面通信设备。
Which PCB soldering process is it compatible with, and what are its applicable scenarios?
Vertical DIP through-hole pins compatible with PCB wave soldering; suitable for household simple network equipment, small home appliances and desktop communication devices
