带 LED 屏蔽型 8P8C RJ45 连接器，双口卧式网口插座
RJ45 8p8c Connector with LED & Shield, Dual-Port Horizontal Socket Supplier

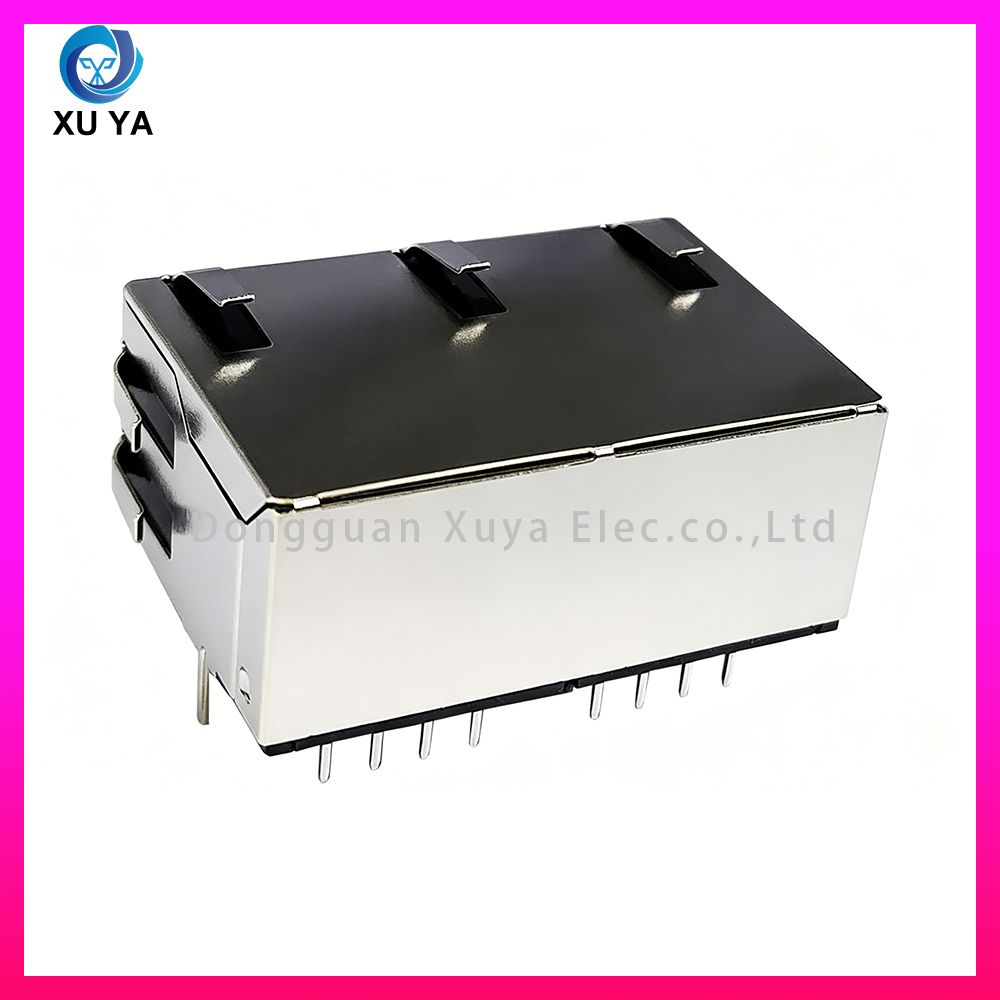

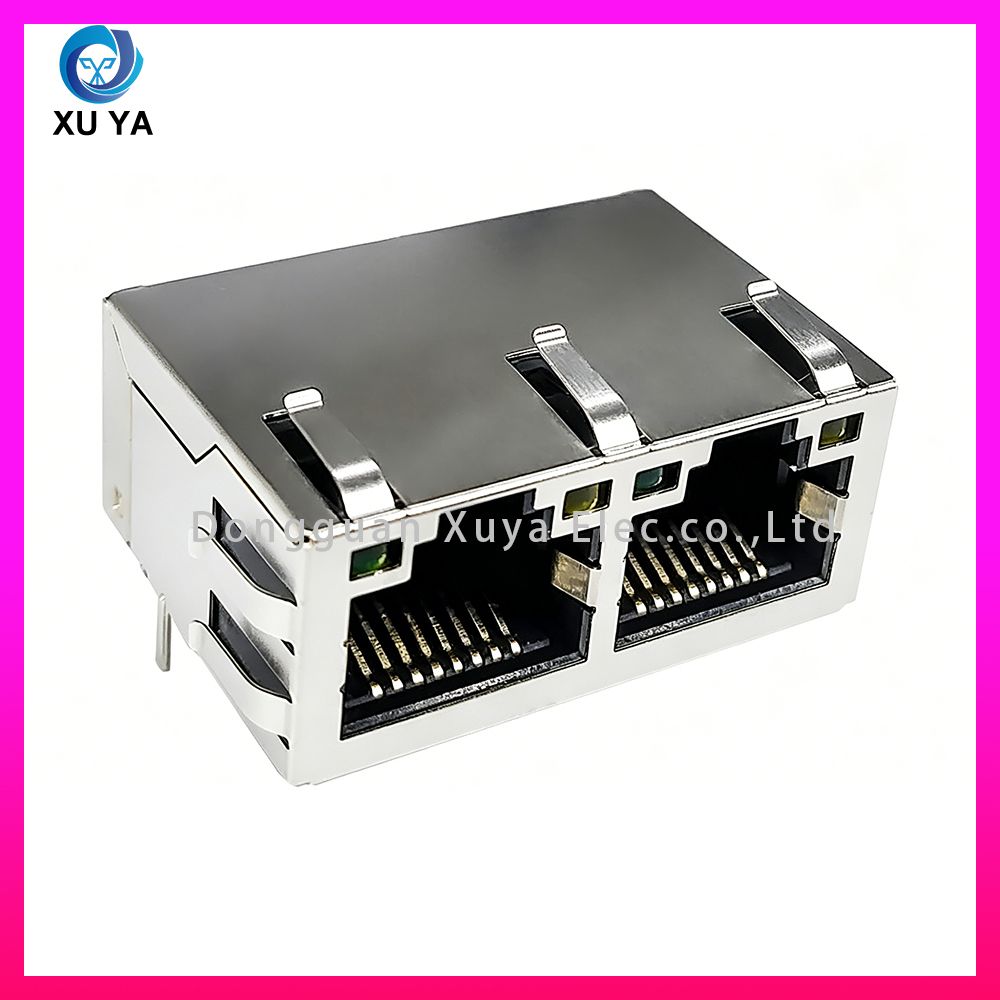

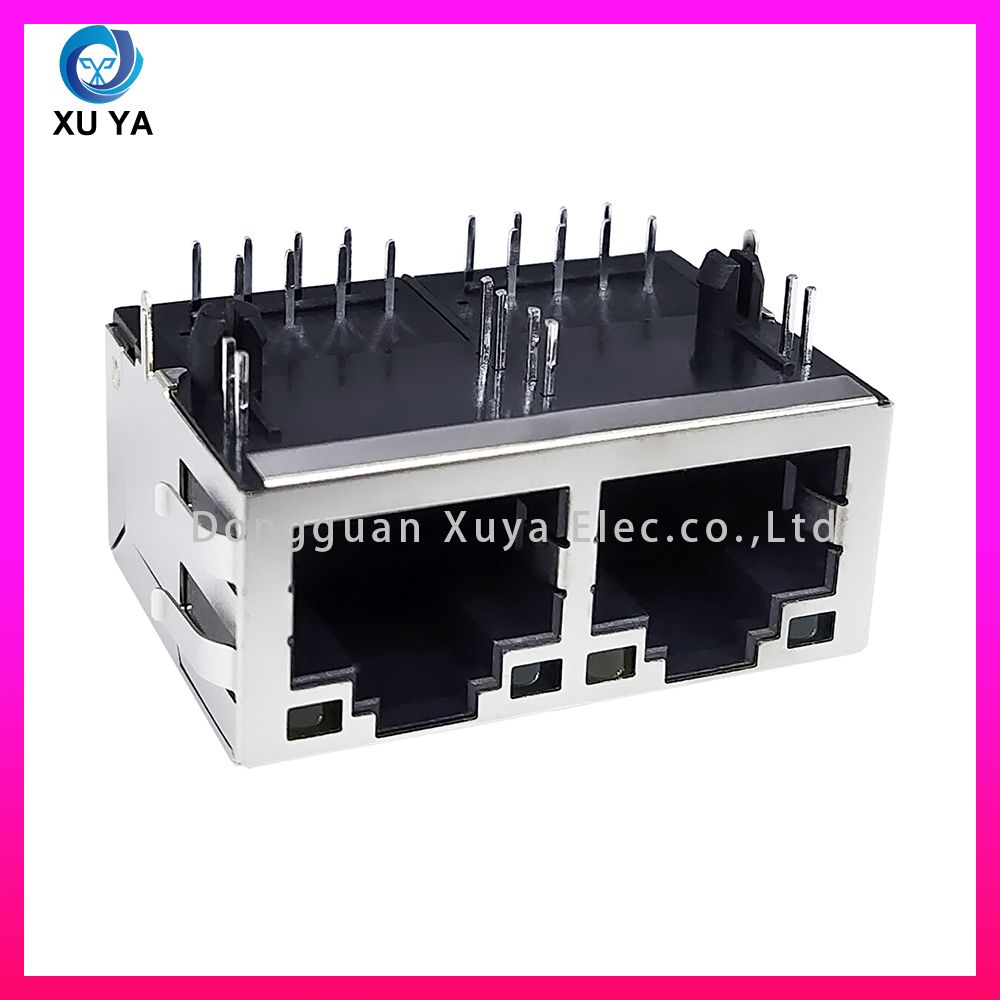

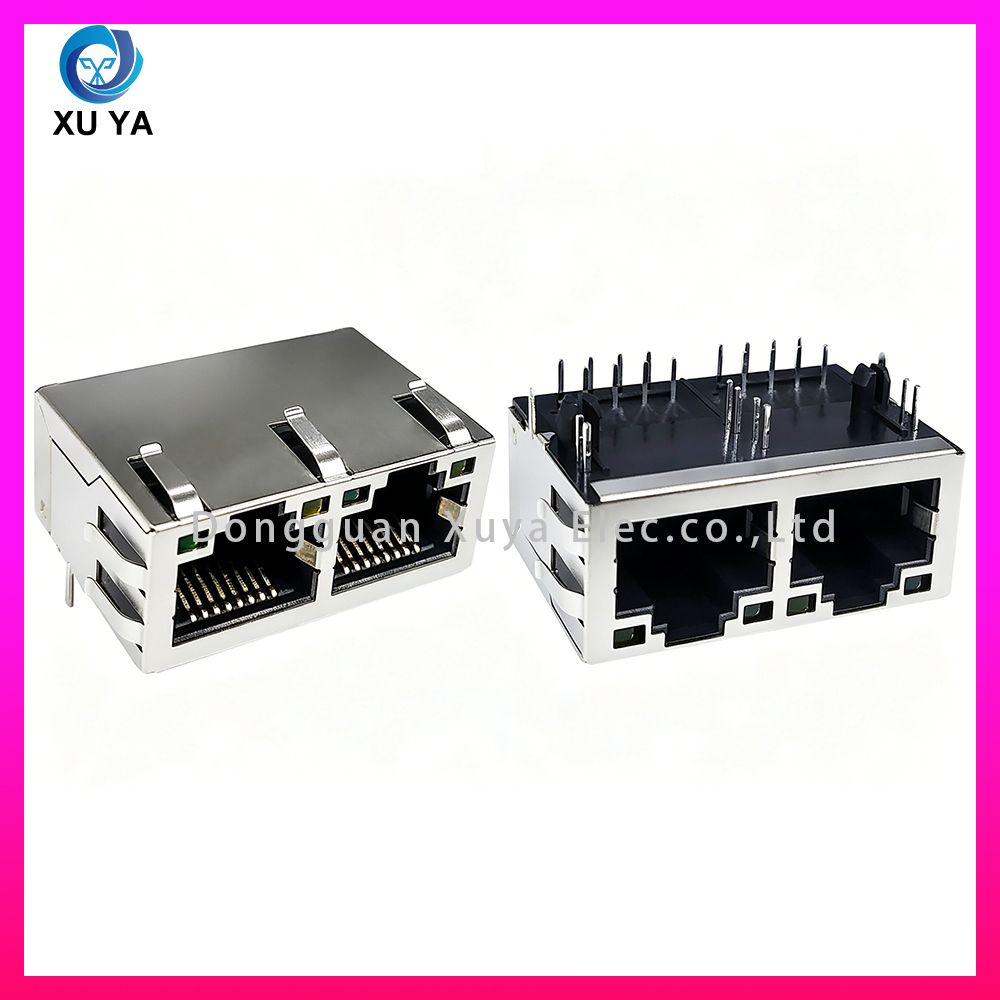

双口卧式屏蔽 RJ45 以太网插座，2×1 并排双端口一体化集成设计，节省 PCB 布局空间；全包金属屏蔽壳体搭配侧边接地弹片，有效阻隔环境电磁干扰，保障网络信号稳定传输；每个端口均配备独立双色 LED 指示灯，可分别直观显示链路连通状态与数据收发状态；内部标准 8P8C 加厚镀金接触弹片，耐磨抗氧化，可长期反复插拔，适配百兆、千兆网络传输；内置一体式千兆网络隔离滤波磁环，可过滤传输杂波，提升高速通信稳定性；卧式 DIP 直插针脚适配 PCB 波峰焊批量焊接工艺，内部耐高温阻燃黑色塑胶，耐高低温，适配商用、工业多类设备工况；广泛用于多口交换机、工控通信主板、网关、网络拓展设备、安防监控主机；标准装箱 900PCS / 箱，交期 3-7 个工作日，符合 RoHS 环保认证。
Dual-port horizontal shielded RJ45 ethernet jack with integrated 2×1 side-by-side dual-port design to save PCB layout space. Full metal shielding shell with side grounding springs effectively blocks environmental electromagnetic interference to ensure stable network signal transmission. Each port is equipped with independent dual-color LED indicators to visually display link connection status and data transmission status respectively. Internal standard 8P8C thick gold-plated contact shrapnel is wear-resistant and anti-oxidation for long-term repeated plugging, compatible with fast ethernet and gigabit network transmission. Built-in integrated gigabit network isolation magnetic ring filters transmission clutter and improves stability of high-speed communication. Horizontal DIP through-hole pins are compatible with mass PCB wave soldering processing. The inner high-temperature resistant flame-retardant black plastic withstands high and low temperatures to adapt to commercial and industrial equipment working conditions. Widely applied to multi-port switches, industrial communication mainboards, gateways, network expansion equipment and security monitoring hosts. Standard packing: 900 PCS per carton, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 连接器端口布局、屏蔽与指示灯配置是什么？
2×1 并排双端口卧式结构，全包金属屏蔽外壳带接地弹片，每个端口独立配备双色 LED 状态指示灯，标准 8P8C 接口 What are the port layout, shielding and indicator configuration of this RJ45 connector?
Horizontal structure with 2×1 side-by-side dual ports, full metal shielding shell with grounding springs, each port independently equipped with dual-color LED status indicators, standard 8P8C interface.
Q2：内置配件、弹片与传输性能优势？
内置千兆集成滤波磁环，过滤信号杂波；加厚镀金接触弹片耐磨抗氧化，同时兼容百兆、千兆网络高速传输。
What are the advantages of built-in accessories, shrapnel and transmission performance?
Built-in gigabit integrated filter magnetic ring filters signal clutter.
Thick gold-plated contact shrapnel is wear-resistant and anti-oxidation, supporting high-speed transmission of both fast ethernet and gigabit network.
Q3：适配焊接工艺与适用设备场景？
卧式 DIP 直插针脚适配 PCB 波峰焊；适用于多口交换机、工控通信主板、网关、网络拓展设备、安防监控主机。
Which PCB soldering process is it compatible with, and what applicable equipment scenarios?
Horizontal DIP through-hole pins compatible with PCB wave soldering.
Suitable for multi-port switches, industrial communication mainboards, gateways, network expansion equipment and security monitoring hosts.
Q4：标准包装、交期与环保认证？
标准装箱 900PCS / 箱，交期 3-7 个工作日，产品符合 RoHS 环保认证。
What about standard packing, lead time and environmental certification?
Standard packing: 900 PCS per carton, lead time 3-7 working days, the product complies with RoHS environmental certification.
