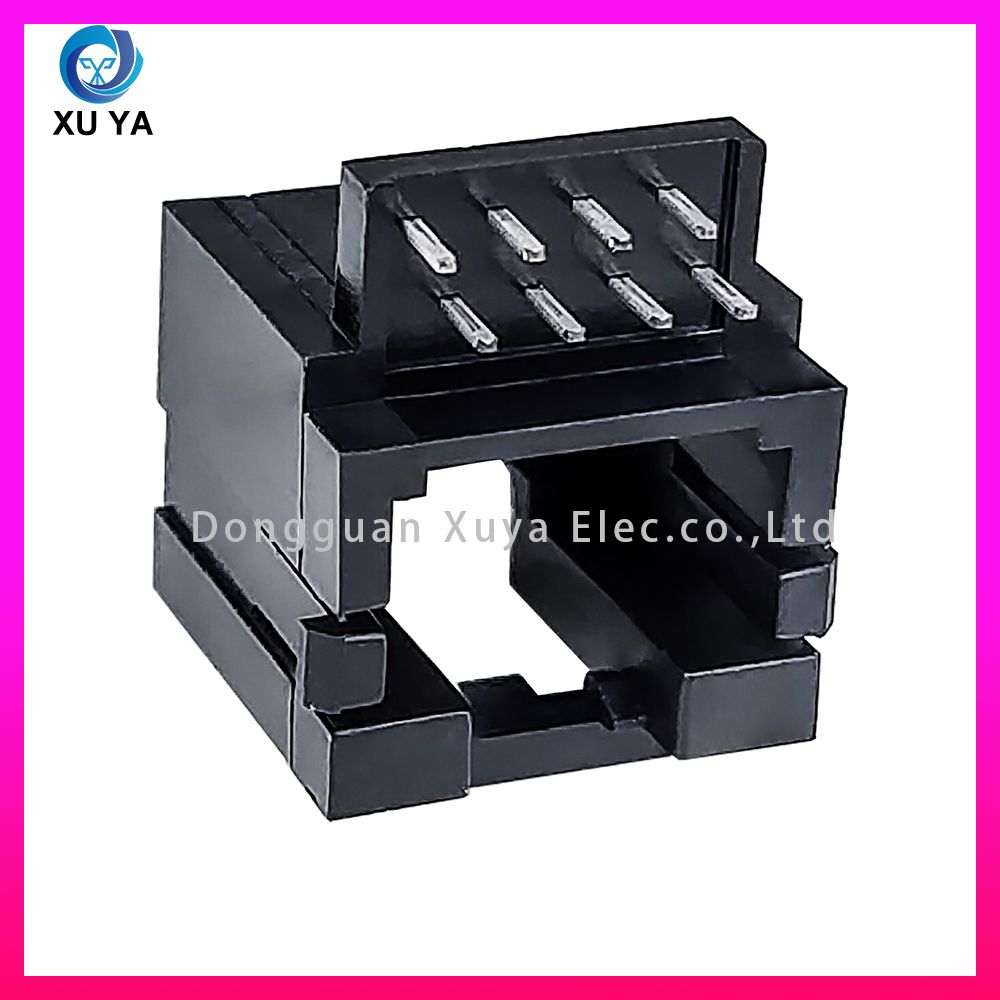

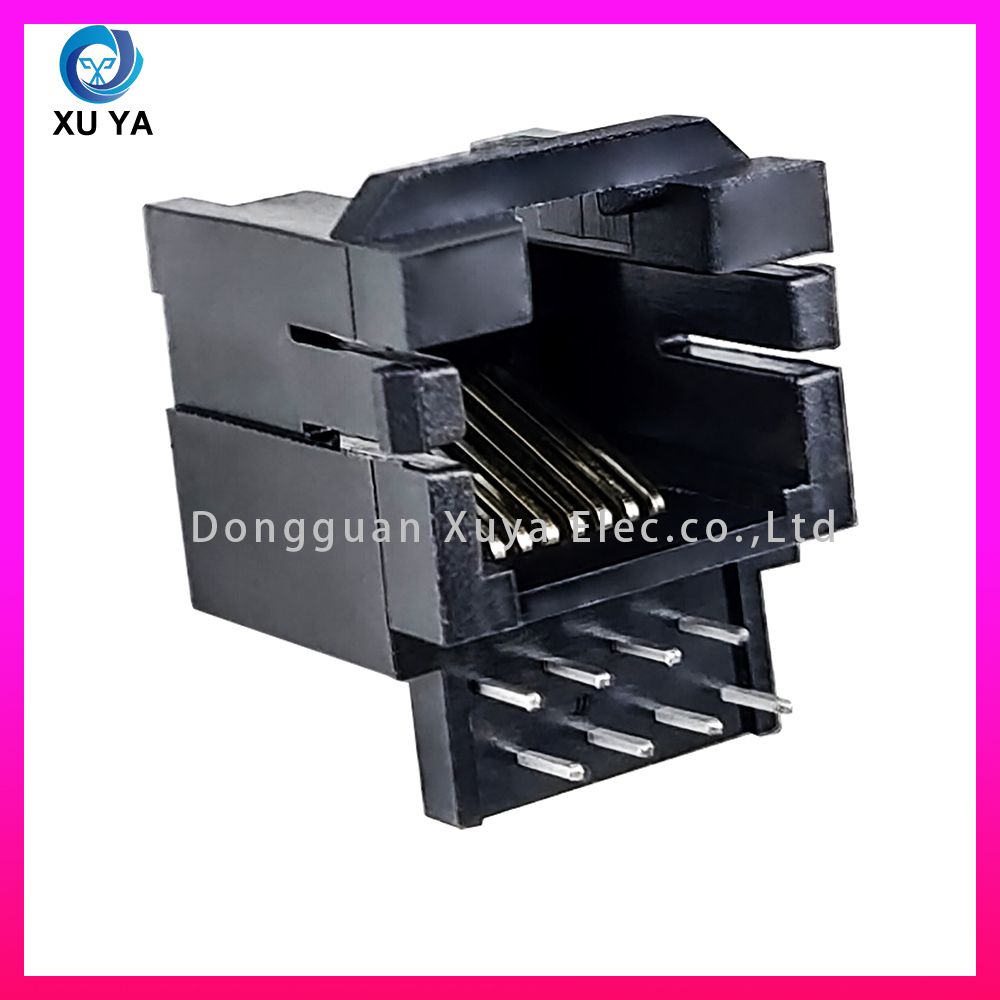

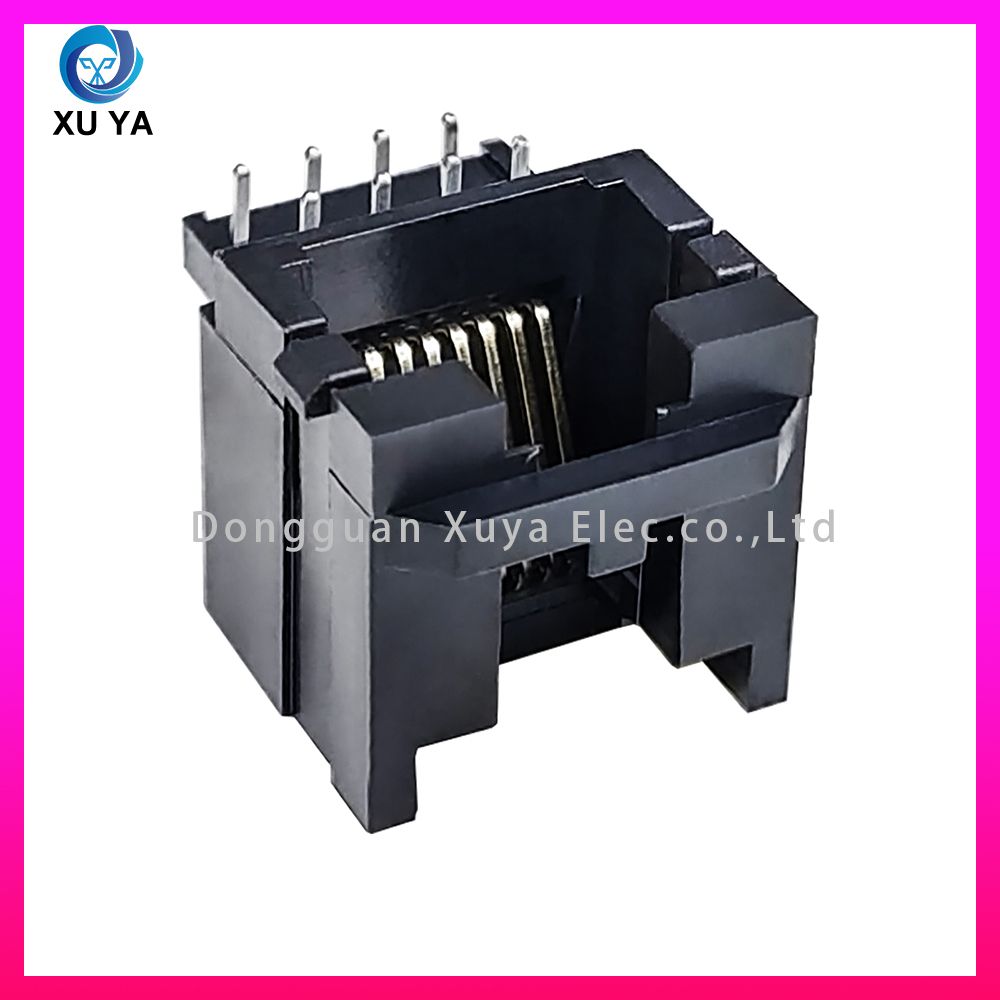

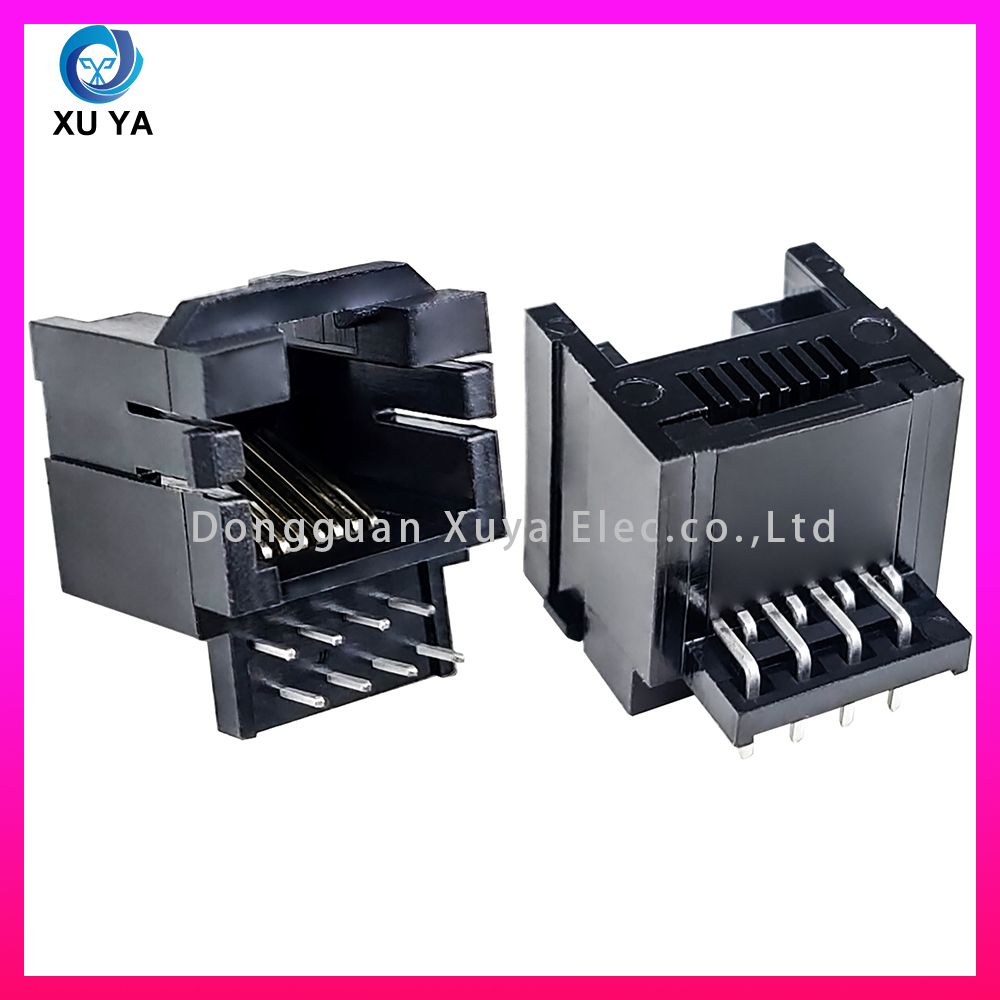

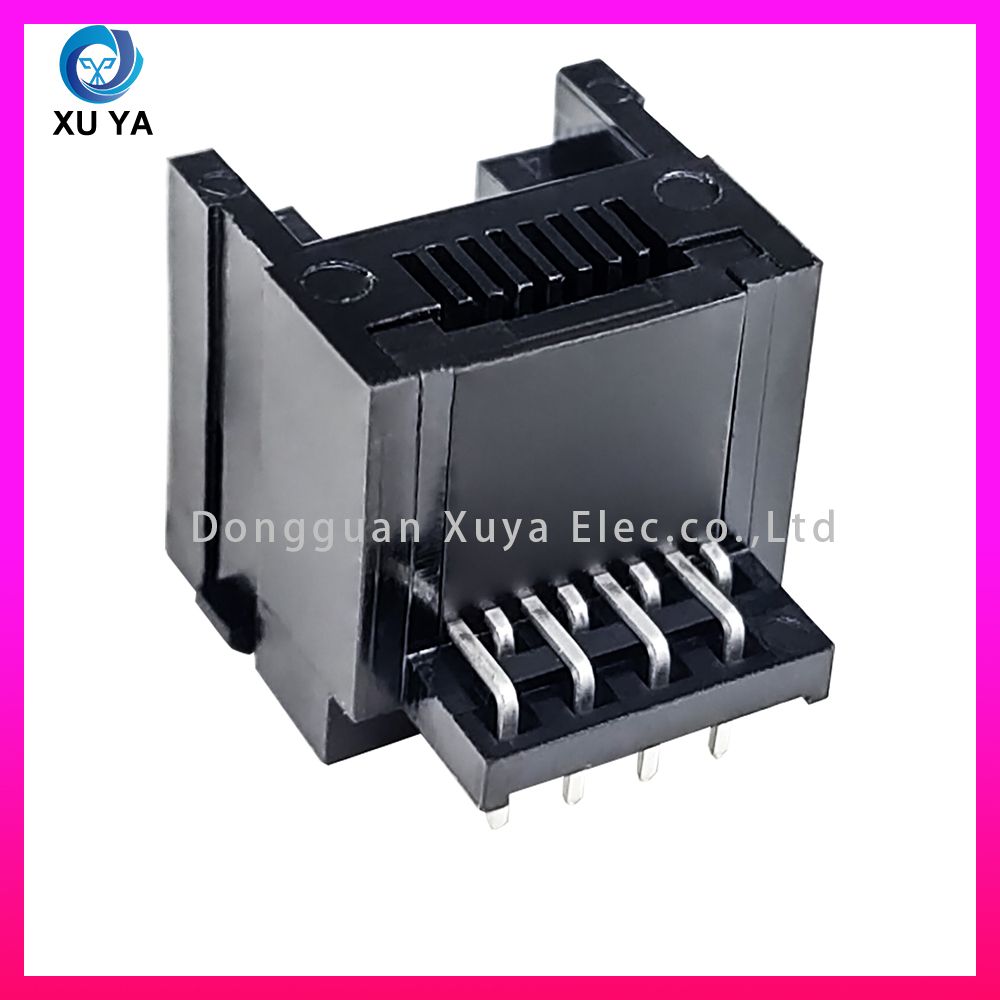

0 度底部插板黑色 RJ45 插座，8P8C 无滤波变压器散装款
RJ45 Bottom Socket 0° Black 8p8c Without Filter Bulk
0 度底部直插式黑色 RJ45 网络插座，标准 8P8C 八针八芯直通结构，底部插针与网口呈 0 度平行卧式布局；一体成型黑色阻燃塑胶壳体，无金属屏蔽外壳，内部无集成网络滤波隔离变压器，结构简约、成本低廉，散装供货适配大批量生产装配；内部金属接触弹片电镀加厚处理，插拔顺滑耐磨，抗氧化不易生锈，线路一对一直通导通，稳定传输百兆网络信号；壳体顶部预留多条散热通风槽，设备长时间运行可有效散热，避免内部积热老化；底部卧式 DIP 直插针脚适配 PCB 波峰焊批量焊接工艺，塑胶材质耐高低温、抗弯折，长期使用不易开裂变形；适用于简易家用网络设备、小家电、桌面网络拓展设备、普通监控终端等无强电磁干扰场景；标准散装袋装包装，交期 3-7 个工作日，符合 RoHS 环保认证。
0-degree bottom vertical plug black RJ45 network socket with standard 8P8C 8-pin 8-core straight-through structure. The bottom pins are horizontally parallel to the port at 0°. The integrally molded black flame-retardant plastic housing has no metal shielding shell, and there is no built-in network filter isolation transformer inside. It features simple structure and low cost, and bulk supply is suitable for mass production and assembly. Electroplated thickened internal metal contact shrapnel ensures smooth, wear-resistant plugging and anti-rust performance. The 1-to-1 straight-through circuit stably transmits fast ethernet signals. Multiple heat dissipation ventilation slots are reserved on the top of the housing to effectively dissipate heat during long-term equipment operation and prevent internal heat accumulation and aging. Horizontal DIP through-hole pins at the bottom are compatible with mass PCB wave soldering processing. The plastic material withstands high and low temperatures and bending, resisting cracking and deformation after long-term use. Widely applied to simple household network equipment, small home appliances, desktop network expansion devices, ordinary monitoring terminals and other scenarios without strong electromagnetic interference. Standard bulk bag packaging, lead time 3-7 working days, RoHS compliant.
Q1：这款 RJ45 插座插板角度、接口规格与内置配件特点？
0 度底部卧式直插安装，黑色一体阻燃塑胶壳体，标准 8P8C 八针八芯，无金属屏蔽、无内置滤波变压器，散装供货。
What are the insertion angle, interface specifications and built-in accessory features of this RJ45 socket?
0-degree horizontal bottom plug-in installation, integrated black flame-retardant plastic housing, standard 8P8C 8-pin 8-core, no metal shielding and no built-in filter transformer, supplied in bulk.
Q2：弹片性能与壳体散热结构优势？
加厚电镀金属弹片耐磨防锈，8P8C 直通线路稳定传输百兆信号；壳体顶部多道通风槽，持续散热延缓设备老化。
What are the advantages of shrapnel performance and housing heat dissipation structure?
Thick electroplated metal shrapnel is wear-resistant and rust-proof, and the 8P8C straight-through circuit stably transmits fast ethernet signals.
Multiple ventilation slots on the top of the housing provide continuous heat dissipation to slow down equipment aging.
Q3：适配焊接工艺与适用设备场景？
底部卧式 DIP 直插针脚适配 PCB 波峰焊；适用于家用简易网络、小家电、桌面拓展网口、普通监控终端。
Which PCB soldering process is it compatible with, and what applicable equipment scenarios?
Horizontal bottom DIP through-hole pins compatible with PCB wave soldering.
Suitable for simple household network equipment, small home appliances, desktop network expansion ports and ordinary monitoring terminals.
