工业相机专用推拉自锁金属圆形航空连接器
Push-Pull Self-Locking Metal Circular Aviation Connector for Industrial Camera

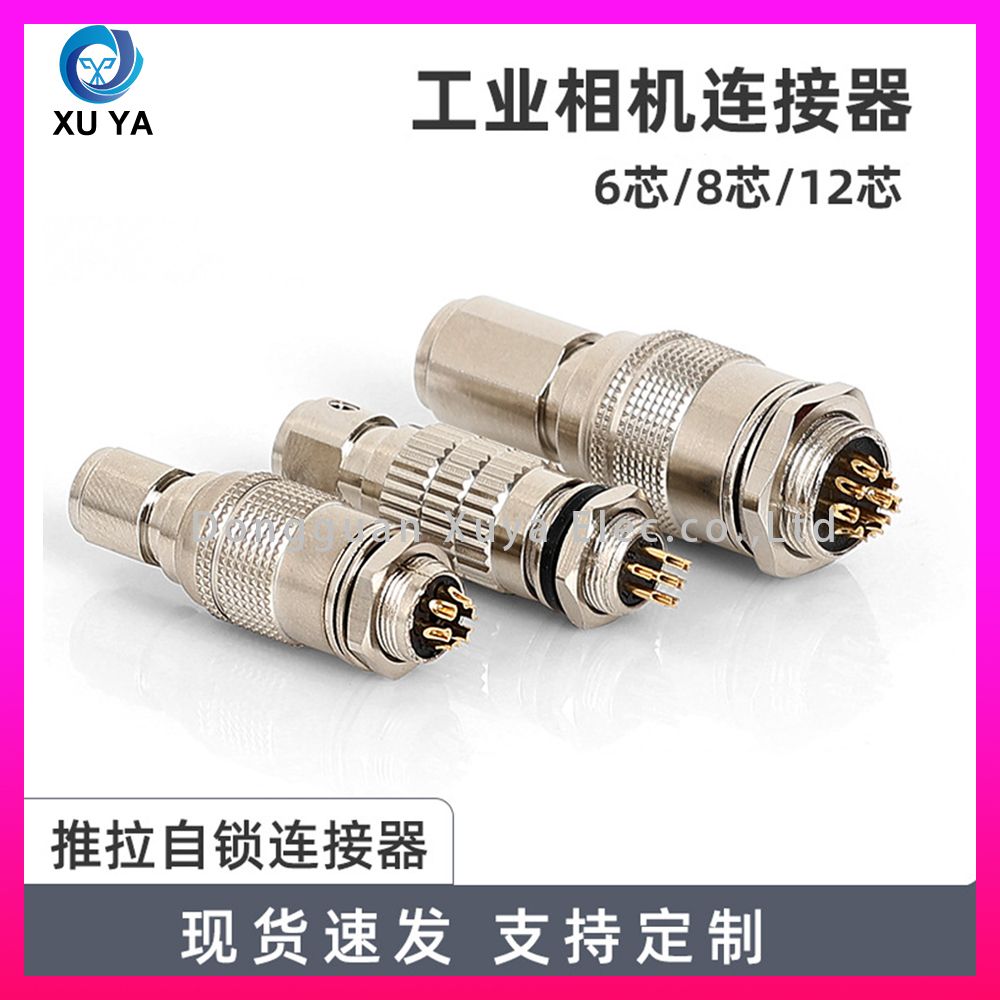

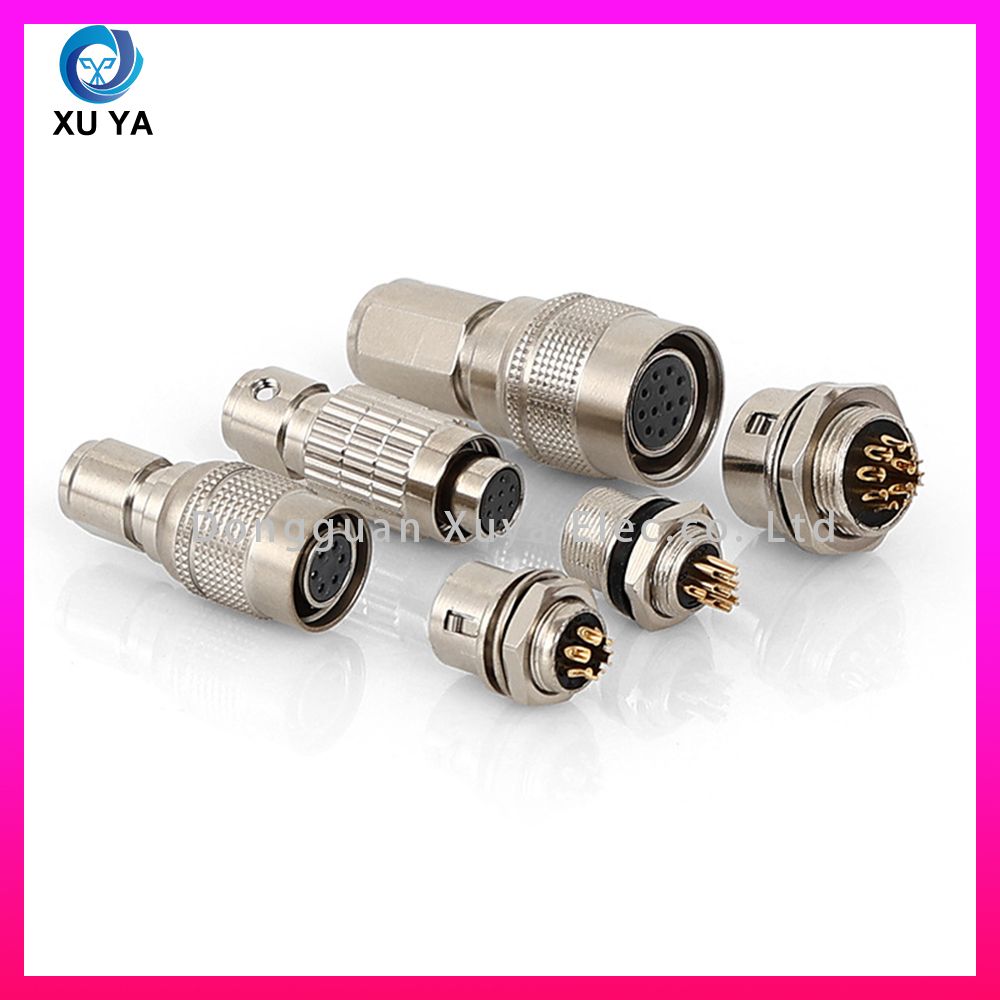

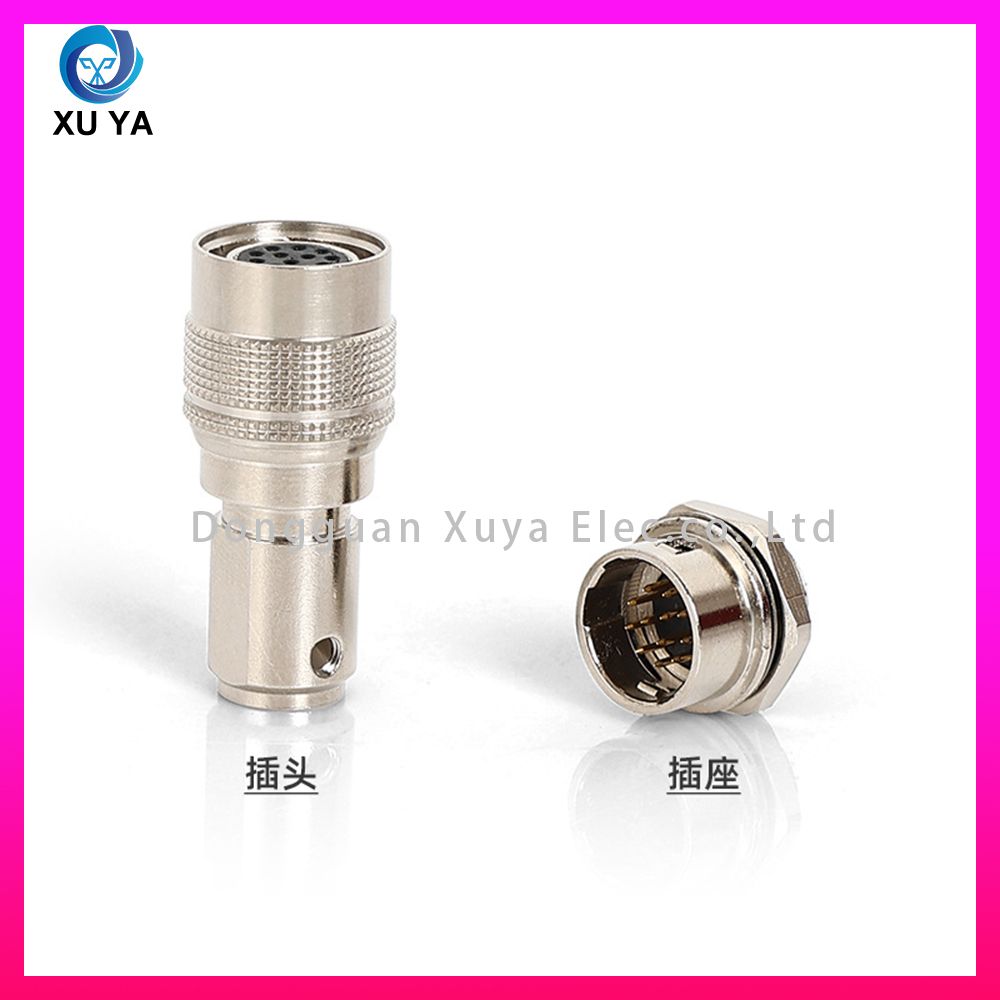

工业相机专用推拉自锁金属圆形航空连接器，成套分为线缆公插头与面板母插座，配套橡胶应力护套、密封垫片、六角锁紧螺母全套散件，适配工业相机设备面板嵌入式固定安装；采用推拉快速自锁锁止结构，插头插入自动咬合锁死，向外轻拉即可快速解锁分离，无需工具、拆装快捷，适配产线相机频繁插拔调试场景；整体外壳采用精密数控车削黄铜金属壳体，表面镀镍防锈处理，中部滚花纹理防滑设计，插拔握持不易打滑，抗腐蚀、耐磨损，长期工业环境使用不易氧化生锈；内部接触针采用加厚镀金工艺，导电阻抗低、信号传输稳定，抗氧化、耐腐蚀，万次反复插拔无信号衰减，多芯针位可选，适配工业相机图像数据、电源同步传输需求；面板安装端搭配硅胶密封垫片，装配后实现防尘防潮防护，可适配车间轻度潮湿、粉尘工业环境；配套黑色锥形橡胶应力缓解护套，有效缓冲线材弯折、拉扯外力，保护内部焊接点位，避免线材断线、焊点脱落；内部绝缘胶芯采用耐高温阻燃绝缘塑料，绝缘性能稳定，耐高低温，适配工业相机长时间持续工作工况；广泛适配巴斯勒 Basler、海康威视等各类工业相机、机器视觉检测设备、视觉传感器、自动化视觉检测仪器；产品独立 PE 袋分装，交期 5-10 个工作日，支持芯数、壳体尺寸、出线规格个性化定制，符合 RoHS 环保认证。
Push-Pull Self-Locking Metal Circular Aviation Connector specially designed for industrial cameras. The complete set consists of cable male plug and panel female socket, with full spare parts including rubber strain relief boot, sealing gasket and hexagonal locking nut, suitable for embedded fixed installation on industrial camera equipment panels. Adopt push-pull quick self-locking structure: the plug automatically locks after insertion, and can be quickly unlocked and separated by gentle outward pulling, no tools required for fast assembly and disassembly, ideal for frequent plugging and debugging of production line cameras. The overall housing is precision CNC turned brass metal shell with nickel-plated anti-rust surface. The knurled anti-slip texture in the middle ensures stable grip during plugging and unplugging. It features corrosion resistance and wear resistance, resisting oxidation and rust after long-term use in industrial environments. The internal contact pins are thick gold-plated with low conductive impedance and stable signal transmission, anti-oxidation and anti-corrosion. No signal attenuation occurs after ten thousand times of repeated plugging. Multiple pin core options are available to meet power supply and image data synchronous transmission requirements of industrial cameras. The panel mount side is equipped with silicone sealing gasket to achieve dustproof and moistureproof performance after assembly, adapting to slightly humid and dusty workshop industrial environments. The matching black conical rubber strain relief boot effectively buffers external bending and pulling force of cables, protects internal solder joints and prevents wire breakage and solder joint detachment. The internal insulating core is made of high-temperature resistant flame-retardant insulating plastic with stable insulation performance and wide temperature resistance range, suitable for long-term continuous working conditions of industrial cameras. Widely compatible with all types of industrial cameras such as Basler and Hikvision, machine vision inspection equipment, vision sensors and automatic visual testing instruments. Each product is packed in independent PE bag, lead time 5-10 working days. Customization of pin core count, housing size and cable outlet specifications is supported, RoHS compliant.
Q1：这款工业相机航空连接器锁止结构、外壳材质与防护配置是什么？
推拉一键自锁分离结构，黄铜镀镍金属壳体带防滑滚花纹理，面板配备硅胶密封垫片，配套橡胶应力缓解护套，防尘防潮。 What are the locking structure, housing material and protection configuration of this aviation connector for industrial cameras?
One-touch push-pull self-locking separation structure, nickel-plated brass metal housing with knurled anti-slip texture. Silicone sealing gasket equipped on panel, matched with rubber strain relief boot for dust and moisture resistance.
Q2：插针工艺、芯数规格与工业相机适配性能优势？
接触针加厚镀金，阻抗低、图像数据信号传输稳定，万次插拔性能不衰减；多芯针位可定制，同时传输相机供电与高清图像信号。
What are the advantages of pin process, core specifications and adaptation performance for industrial cameras?
Thick gold-plated contact pins feature low impedance and stable transmission of image data signals without performance degradation after ten thousand plug cycles. Custom multi-core pin configurations are available to simultaneously transmit camera power supply and high-definition image signals.
Q3：成套配件、安装方式与适配设备工况场景？

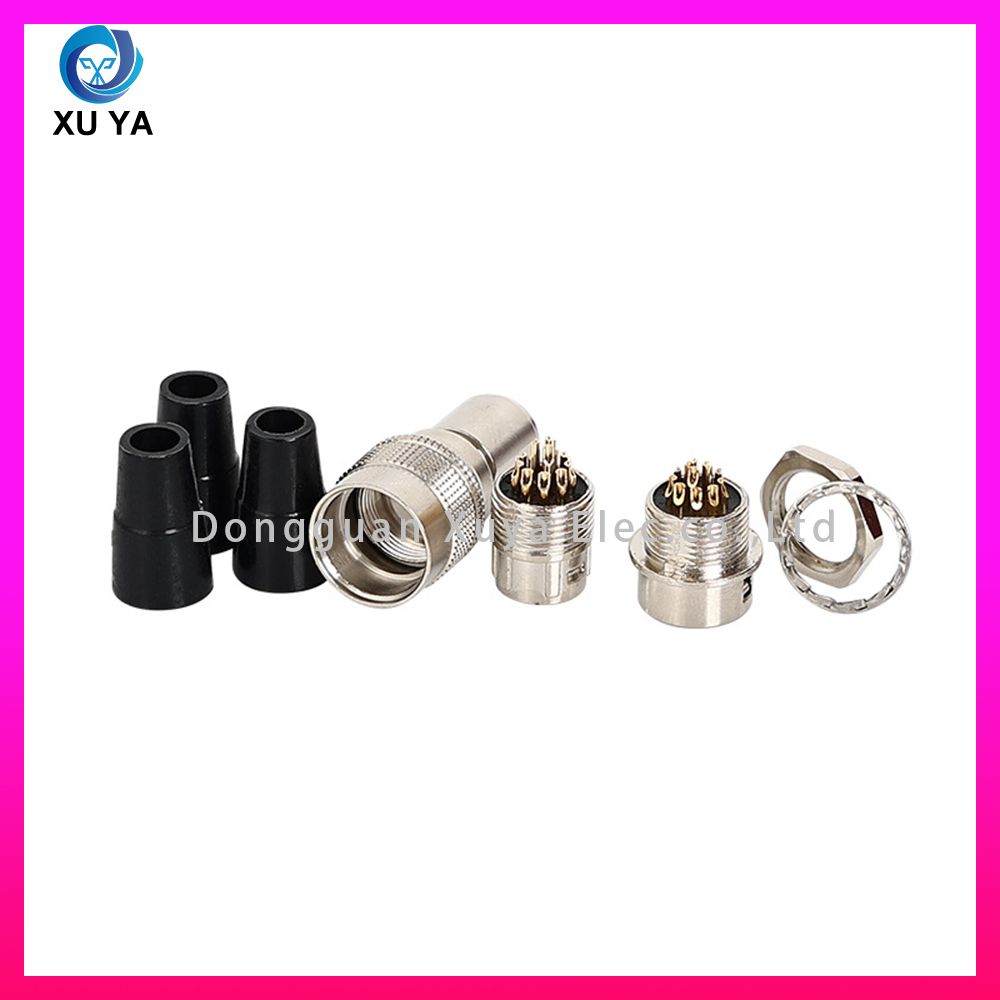

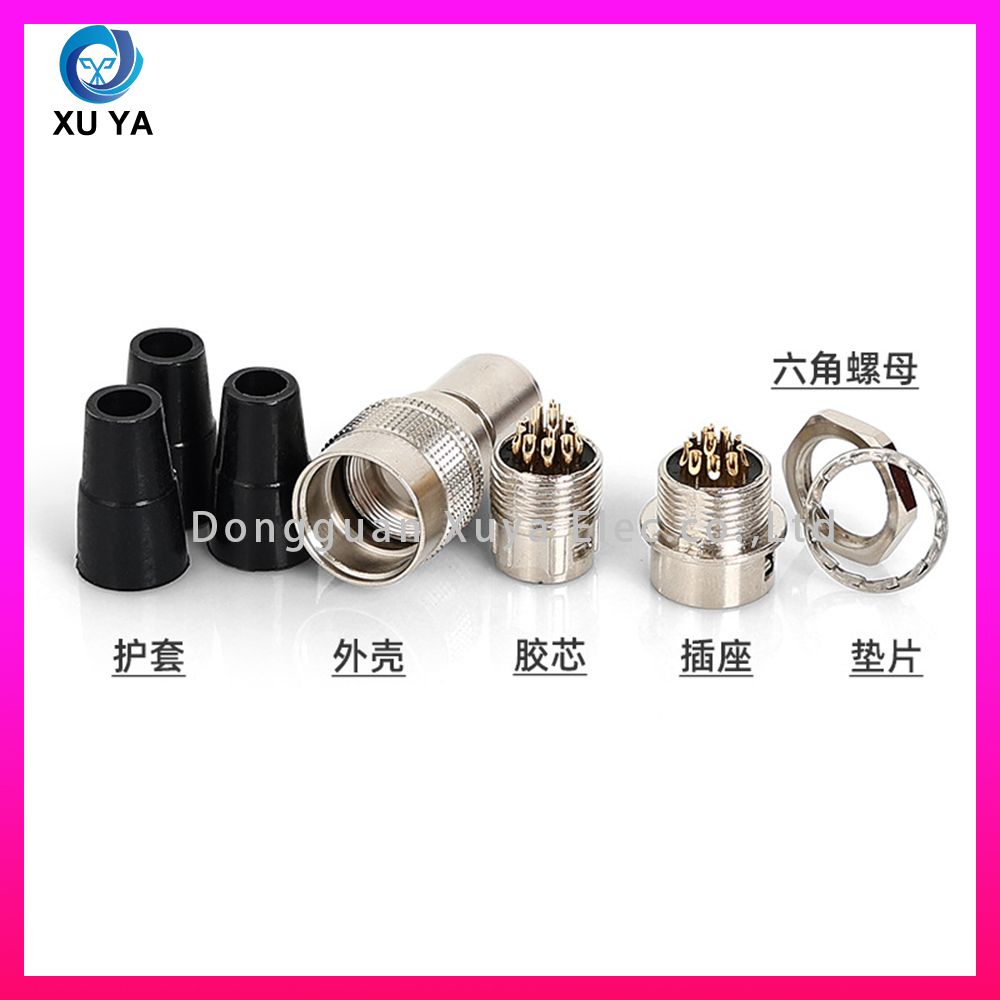

成套包含公插头、面板母座、橡胶护套、密封垫片、六角锁紧螺母，支持设备面板嵌入式锁紧安装；防尘防潮，适配车间工业环境，专供工业相机、机器视觉检测设备使用。
What are the complete matching accessories, installation method and applicable equipment working scenarios?
Complete set includes male plug, panel female socket, rubber boot, sealing gasket and hexagonal locking nut for embedded locking installation on equipment panels. Dust and moisture resistant for workshop industrial environments, specially used for industrial cameras and machine vision inspection equipment.
Q4：包装、交期、定制服务与环保认证标准？
独立 PE 袋分装，交期 5-10 个工作日，支持针芯、壳体、出线规格定制，产品符合 RoHS 环保认证标准。
What about packaging, lead time, customization service and environmental certification standards?
Individually packed in PE bags, lead time 5-10 working days. Customization of pin core, housing and cable outlet specifications is supported, the product complies with RoHS environmental certification standards.
