OEM 厂家推拉自锁防水金属圆形多芯航空连接器
Push-Pull Self-Locking Waterproof Metal Circular Multi-Core Aviation Connector OEM Factory
推拉自锁式防水金属圆形多芯航空连接器，支持 OEM/ODM 定制代工，整套包含线缆公插头、面板嵌入式母插座、黑色橡胶应力缓解护套全套配件，适配医疗仪器、工业自动化、户外检测设备等各类设备面板安装；采用推拉快锁结构，插入自动锁止，轻拉即可解锁分离，无需螺丝工具，插拔操作简单高效，适合设备频繁检修调试场景；壳体采用高精度铝合金数控车削加工，表面阳极氧化哑光处理，外壳多道环形防滑纹路，插拔握持防滑不打滑，具备耐磨、耐腐蚀、抗氧化特性，长期工业户外工况不易生锈损坏；内部接触针采用加厚镀金工艺，导电阻抗低，信号传输稳定，抗氧化、耐腐蚀，可承受上万次反复插拔，信号无衰减；支持 2~12 多种芯数规格定制，可同时传输电源、模拟信号、数字高清数据，适配多类精密设备传输需求；面板安装位置内置硅胶密封垫圈，尾部搭配防水橡胶护线套，整体防护等级达到 IP67，可抵御喷水、潮湿、粉尘、轻微溅水环境，满足户外、车间潮湿工况使用；配套加长锥形橡胶应力护套，缓冲线材弯折、拉扯外力，保护内部焊点，有效防止线材断线、脱焊；内部绝缘胶芯选用耐高温阻燃工程塑料，耐高低温，绝缘性能稳定，适配设备 24 小时连续运行；广泛应用于医疗检测设备、工业相机、自动化传感器、安防户外仪器、精密检测仪表；产品独立 PE 袋分装，交期 5-10 个工作日，全规格支持 OEM 贴牌、ODM 结构定制，可按需调整芯数、壳体尺寸、出线孔径，产品符合 RoHS 环保认证。

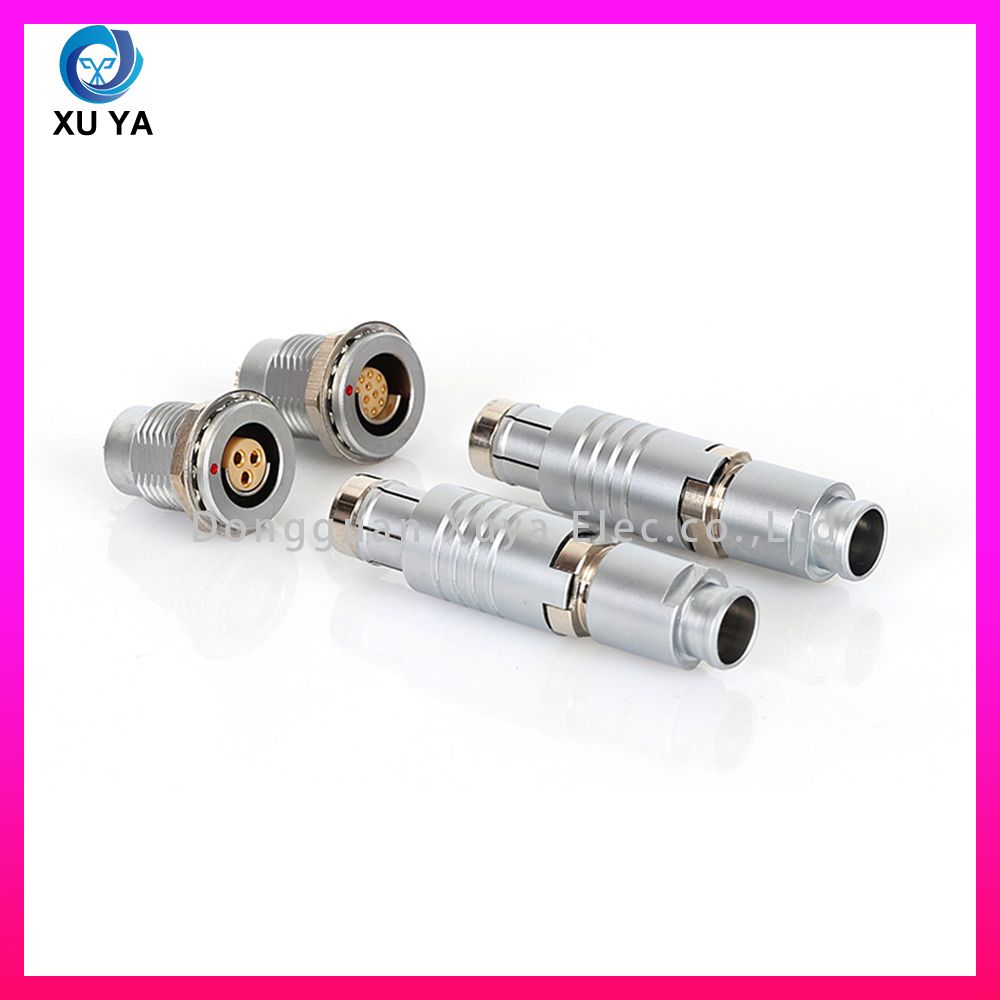

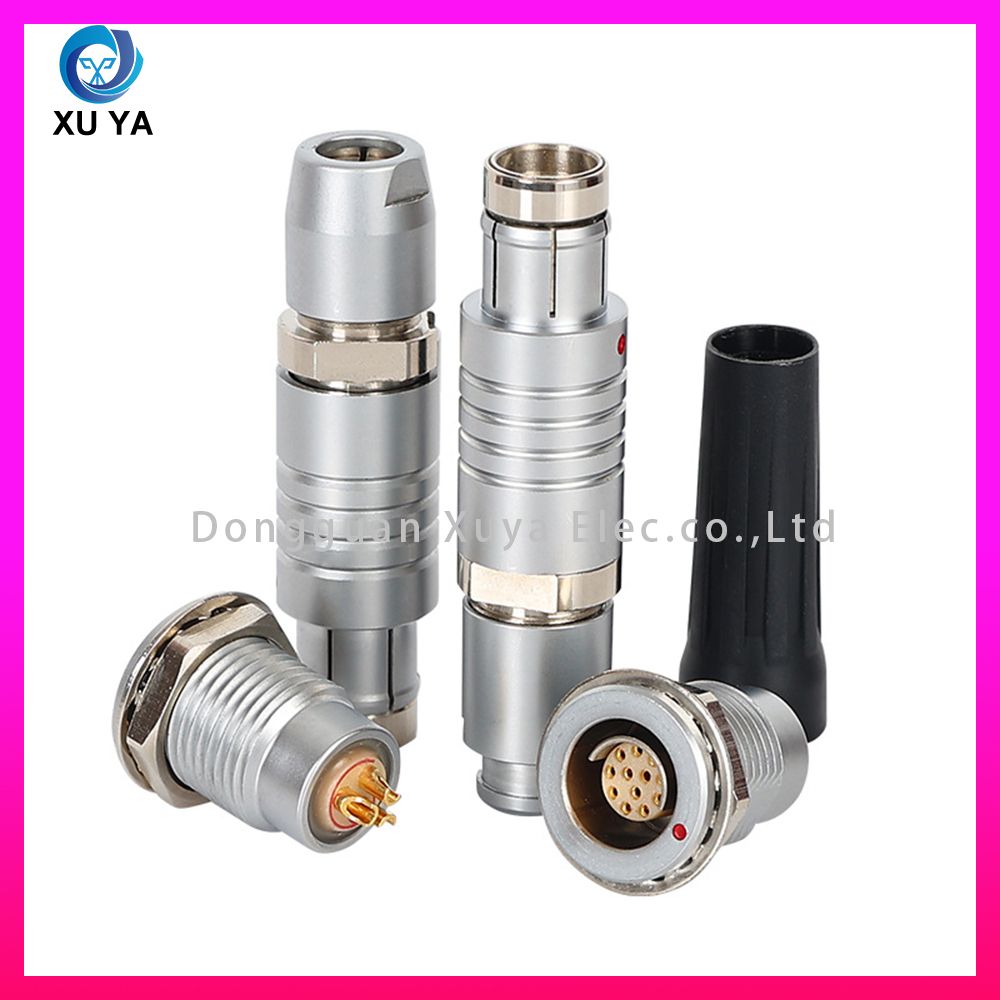

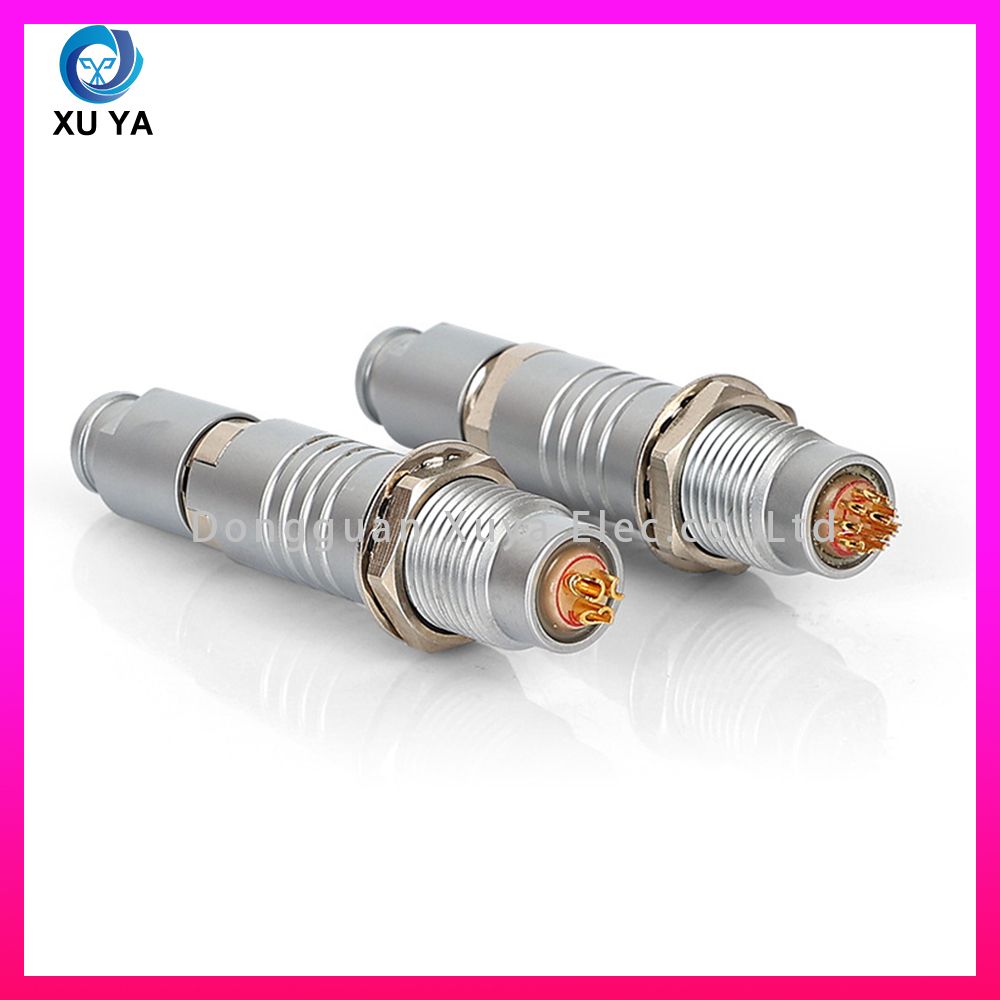

Push-pull self-locking waterproof metal circular multi-core aviation connector, supporting OEM/ODM custom processing. The complete set includes cable male plug, embedded panel female socket and black rubber strain relief boot. It is suitable for panel installation of medical instruments, industrial automation, outdoor testing equipment and other devices. Adopt push-pull quick-lock structure, automatically lock after insertion, unlock and separate by gentle pulling without screws or tools. Simple and efficient plugging operation, ideal for frequent equipment maintenance and debugging scenarios. The housing is precision CNC turned from aluminum alloy with matte anodized surface. Multiple annular anti-slip grooves on the shell ensure stable grip during plugging, with wear resistance, corrosion resistance and anti-oxidation performance, resisting rust and damage under long-term industrial and outdoor working conditions. The internal contact pins are thick gold-plated with low conductive impedance and stable signal transmission, anti-oxidation and anti-corrosion, capable of withstanding tens of thousands of repeated plugging cycles without signal attenuation. Customization of 2~12 multi-core specifications is supported, which can transmit power, analog signals and digital high-definition data simultaneously to meet the transmission requirements of various precision equipment. Silicone sealing gasket is built-in at the panel mounting position, and waterproof rubber cable boot is equipped at the tail, achieving IP67 overall protection rating, resisting splashing water, humidity, dust and slight water splash environments, suitable for outdoor and humid workshop working conditions. The matching extended conical rubber strain relief boot buffers external bending and pulling force of cables, protects internal solder joints and effectively prevents wire breakage and desoldering. The internal insulating core is made of high-temperature resistant flame-retardant engineering plastic with stable insulation performance under wide temperature range, suitable for 24-hour continuous operation of equipment. Widely applied to medical testing equipment, industrial cameras, automation sensors, outdoor security instruments and precision testing meters. Each product is packed in independent PE bag, lead time 5-10 working days. All specifications support OEM labeling and ODM structural customization. The number of cores, housing size and cable outlet aperture can be adjusted on demand, and the product complies with RoHS environmental certification.
Q1：这款航空连接器锁止结构、外壳材质与防水防护等级是什么？
推拉一键自锁解锁结构，铝合金阳极氧化金属壳体带环形防滑纹路，面板硅胶密封垫圈 + 尾部防水护套，整体 IP67 防水防尘。
What are the locking structure, housing material and waterproof rating of this aviation connector?
One-touch push-pull self-locking and unlocking structure, anodized aluminum alloy metal housing with annular anti-slip grooves. Silicone sealing gasket on panel and waterproof cable boot at the tail, overall IP67 waterproof and dustproof.
Q2：插针工艺、芯数规格与 OEM 定制优势？
接触针加厚镀金，阻抗低、信号传输稳定，万次插拔性能无衰减；2~12 芯多规格可选；支持 OEM 贴牌、ODM 结构改型，可定制壳体、针芯、出线尺寸。
What are the advantages of pin process, core specifications and OEM customization?
Thick gold-plated contact pins deliver low impedance and stable signal transmission without performance degradation after ten thousand plug cycles.
Multiple specifications of 2~12 cores are available.
OEM labeling and ODM structural modification are supported, housing, pin core and cable outlet size can be customized.
Q3：成套配件、安装方式与适配设备工况场景？
成套包含线缆公头、面板母座、橡胶应力护套，支持设备面板嵌入式锁紧安装；IP67 防水防尘，适配潮湿车间、户外设备，多用于医疗仪器、工业自动化、工业相机、精密传感器。
What are the complete matching accessories, installation method and applicable equipment working scenarios?

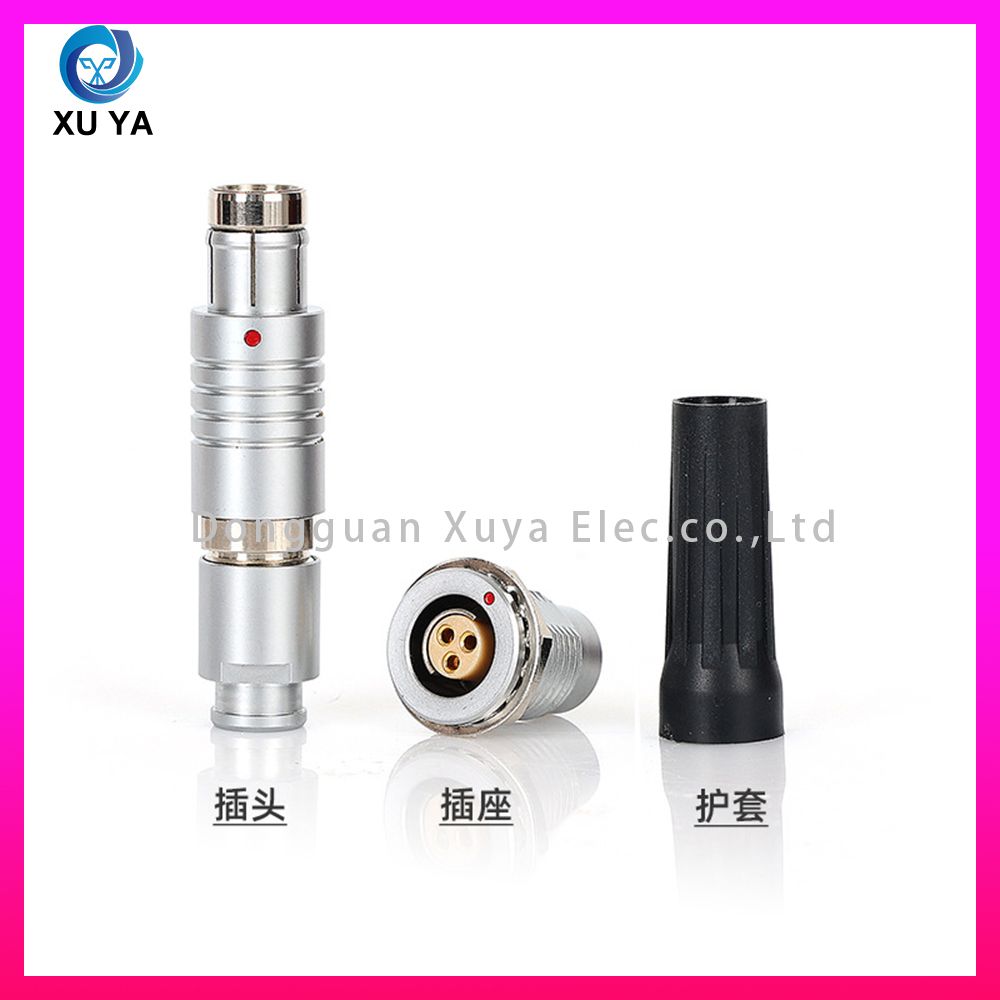

The complete set includes cable male plug, panel female socket and rubber strain relief boot for embedded locking installation on equipment panels.
IP67 waterproof and dustproof, adapting to humid workshops and outdoor equipment, widely used in medical instruments, industrial automation, industrial cameras and precision sensors.
Q4：包装、交期、代工定制服务与环保认证标准？
独立 PE 袋分装，交期 5-10 个工作日，全系列支持 OEM 贴牌、ODM 结构定制，产品符合 RoHS 环保认证标准。
What about packaging, lead time, OEM custom service and environmental certification standards?
Individually packed in PE bags, lead time 5-10 working days.
The full series supports OEM labeling and ODM structural customization, the product complies with RoHS environmental certification standards.
