厂家直供多芯推拉自锁金属圆形航空连接器
Manufacturer Circular Metal Aviation Connector, Multi-Core, Push-Pull Self-Locking Structure

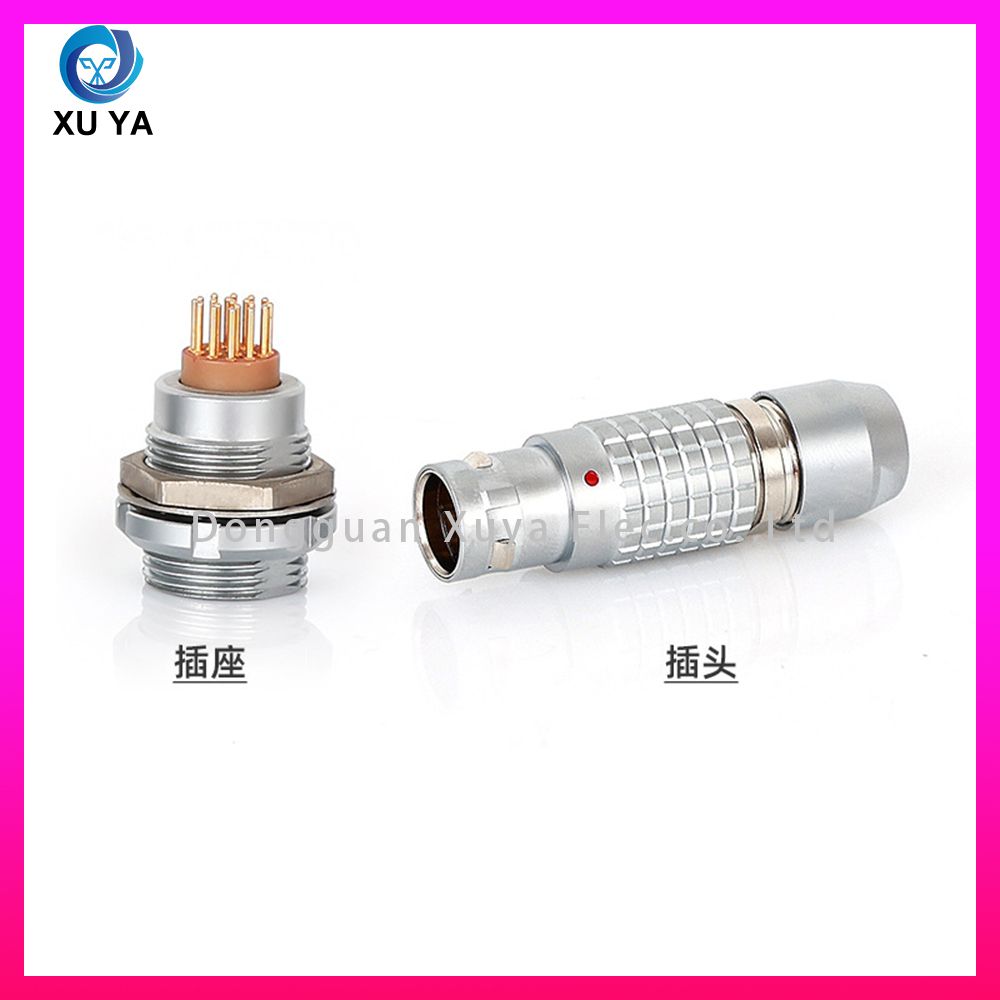

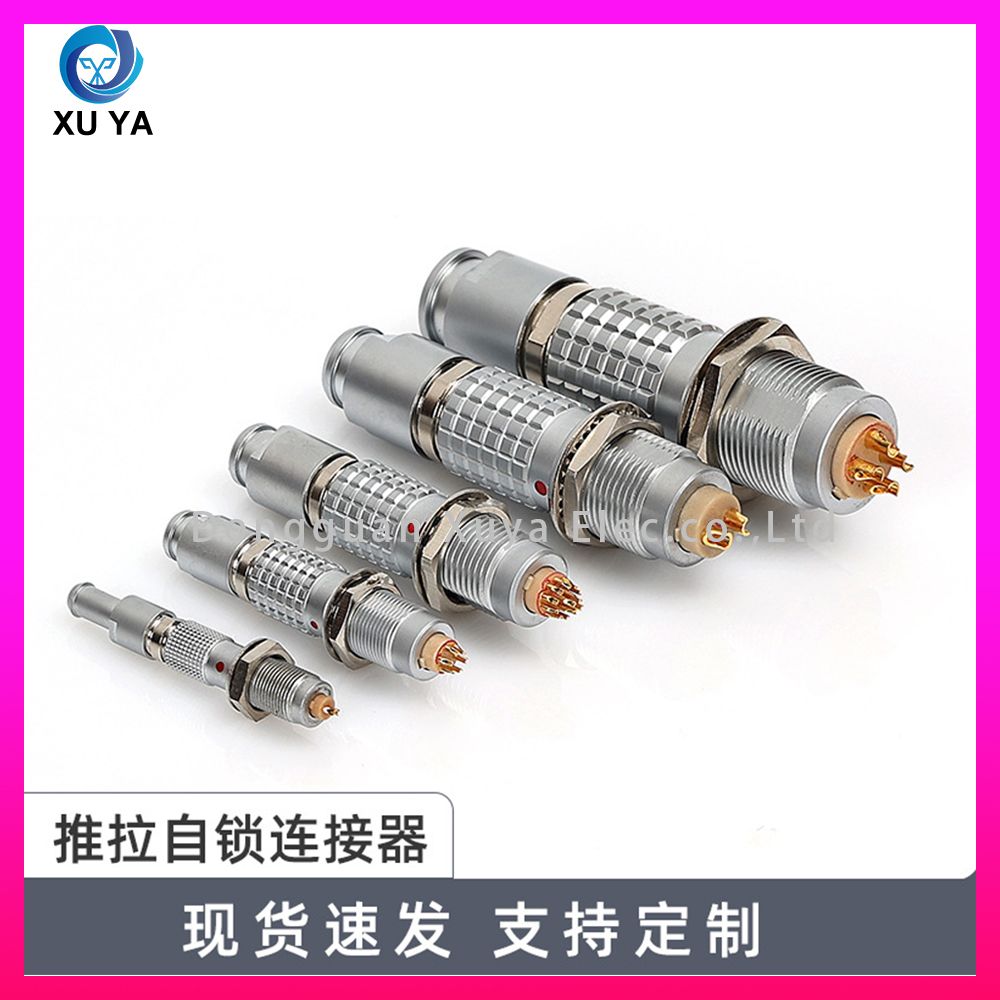

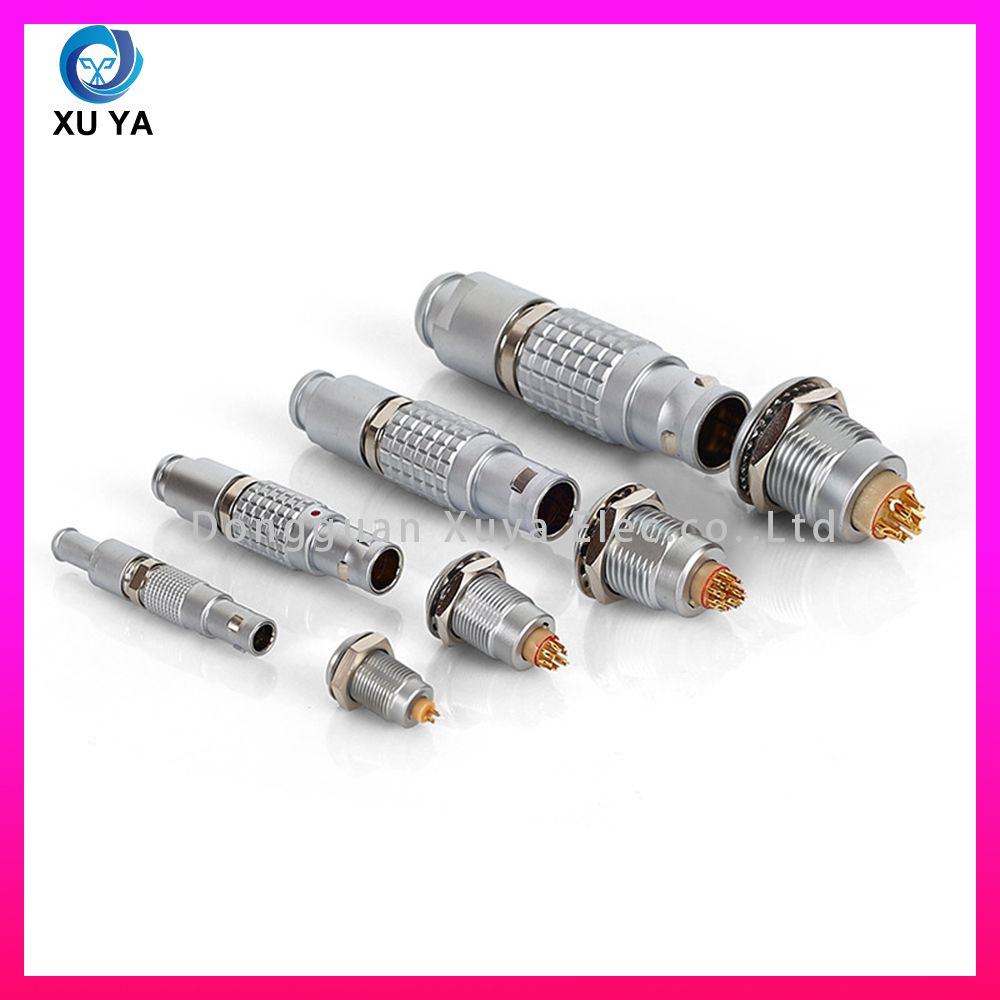

多芯推拉自锁金属圆形航空连接器，全套包含线缆公插头、螺纹面板母插座、锥形橡胶应力缓解护套，多尺寸规格现货库存，支持全规格个性化定制；采用推拉快锁自锁结构，插头插入自动咬合锁死，向外轻拉即可快速解锁分离，无需螺丝、扳手等装配工具，插拔操作简单高效，适合设备频繁检修、线材反复拆装调试场景；壳体采用高精度铝合金数控车削一体成型，表面阳极氧化哑光金属表层，外壳网格防滑凹凸纹理，插拔握持防滑不打滑，具备耐磨、耐腐蚀、抗氧化特性，长期工业、精密仪器工况下不易生锈损坏；内部导电插针采用加厚镀金工艺，导电阻抗低，电源、模拟信号、数字数据传输稳定，抗氧化、耐腐蚀，上万次反复插拔后电气性能无衰减；支持 2~12 多种芯数规格可选，可同时传输供电电源、控制信号、高清数据信号，适配各类精密设备多通道传输需求；面板螺纹安装端内置硅胶密封垫圈，装配后实现防尘防潮防护，可应对车间常温轻微粉尘、潮湿环境；配套加长锥形橡胶应力护套，缓冲线材弯折、拉扯外力，保护内部焊接点位，有效避免线材拉扯断线、焊点脱落；内部绝缘胶芯选用耐高温阻燃工程塑料，耐高低温冲击，绝缘安全稳定，适配精密仪器 24 小时连续运行工况；广泛适配便携式医疗检测设备、工业相机、自动化传感器、实验室精密检测仪表、小型工业自动化设备；产品独立 PE 袋分装，现货可快速发货，常规定制交期 3-7 个工作日，支持芯数、壳体尺寸、出线孔径按需定制，符合 RoHS 环保认证。
Multi-core push-pull self-locking metal circular aviation connector. The complete set consists of cable male plug, threaded panel female socket and conical rubber strain relief boot. Multiple sizes are in stock with fast delivery, and full-spec customizations are supported. Adopt push-pull quick self-locking structure: the plug automatically locks after insertion, and can be quickly unlocked and separated by gentle outward pulling without assembly tools such as screws and wrenches. Simple and efficient plugging operation, ideal for frequent equipment maintenance and repeated cable disassembly and debugging. The housing is integrally precision CNC turned from aluminum alloy with matte anodized metal surface. Grid anti-slip concave-convex texture on the shell ensures stable grip during plugging and unplugging, with wear resistance, corrosion resistance and anti-oxidation performance, resisting rust and damage under long-term industrial and precision instrument working conditions. The internal conductive pins are thick gold-plated with low conductive impedance for stable transmission of power supply, analog signals and digital data, anti-oxidation and anti-corrosion. The electrical performance will not decay after tens of thousands of repeated plug cycles. Multiple core specifications from 2 to 12 pins are available, which can transmit power supply, control signals and high-definition data signals simultaneously to meet multi-channel transmission requirements of various precision equipment. The threaded panel mounting end is equipped with a silicone sealing gasket to achieve dustproof and moistureproof performance after assembly, adapting to normal temperature workshop environments with slight dust and humidity. The matching extended conical rubber strain relief boot buffers external bending and pulling force of cables, protects internal solder joints and effectively prevents wire breakage and solder joint detachment caused by pulling. The internal insulating core is made of high-temperature resistant flame-retardant engineering plastic, resistant to high and low temperature impact with stable insulation safety, suitable for 24-hour continuous operation of precision instruments. Widely applied to portable medical testing equipment, industrial cameras, automation sensors, laboratory precision testing meters and small industrial automation equipment. Each product is packed in independent PE bag. In-stock goods can be delivered quickly, regular custom lead time is 3-7 working days. Customization of pin core count, housing size and cable outlet aperture is supported on demand, RoHS compliant.
Q1：这款金属航空连接器锁止结构、外壳材质与防尘防潮配置是什么？
推拉一键自锁解锁结构，铝合金阳极氧化金属壳体带网格防滑纹理；面板内置硅胶密封垫圈，配套橡胶应力缓解护套，实现防尘防潮防护。
What are the locking structure, housing material and dust & moisture resistance configuration of this metal aviation connector?
One-touch push-pull self-locking and unlocking structure, anodized aluminum alloy metal housing with grid anti-slip texture. Silicone sealing gasket built-in panel, matched with rubber strain relief boot to realize dust and moisture resistance protection.
Q2：插针工艺、芯数规格与现货定制优势？
导电插针加厚镀金，低阻抗、多类型信号传输稳定，万次插拔电气性能无衰减；2~12 芯多规格可选；多尺寸现货速发，支持芯数、壳体、出线尺寸个性化定制。
What are the advantages of pin process, core specifications and stock & customization?
Thick gold-plated conductive pins feature low impedance and stable transmission of multiple types of signals, electrical performance will not decay after ten thousand plug cycles. Multiple specifications of 2~12 cores are available. Multiple sizes are in stock for fast delivery, personalized customization of pin core, housing and cable outlet size is supported.
Q3：成套配件、安装方式与适配设备工况场景？

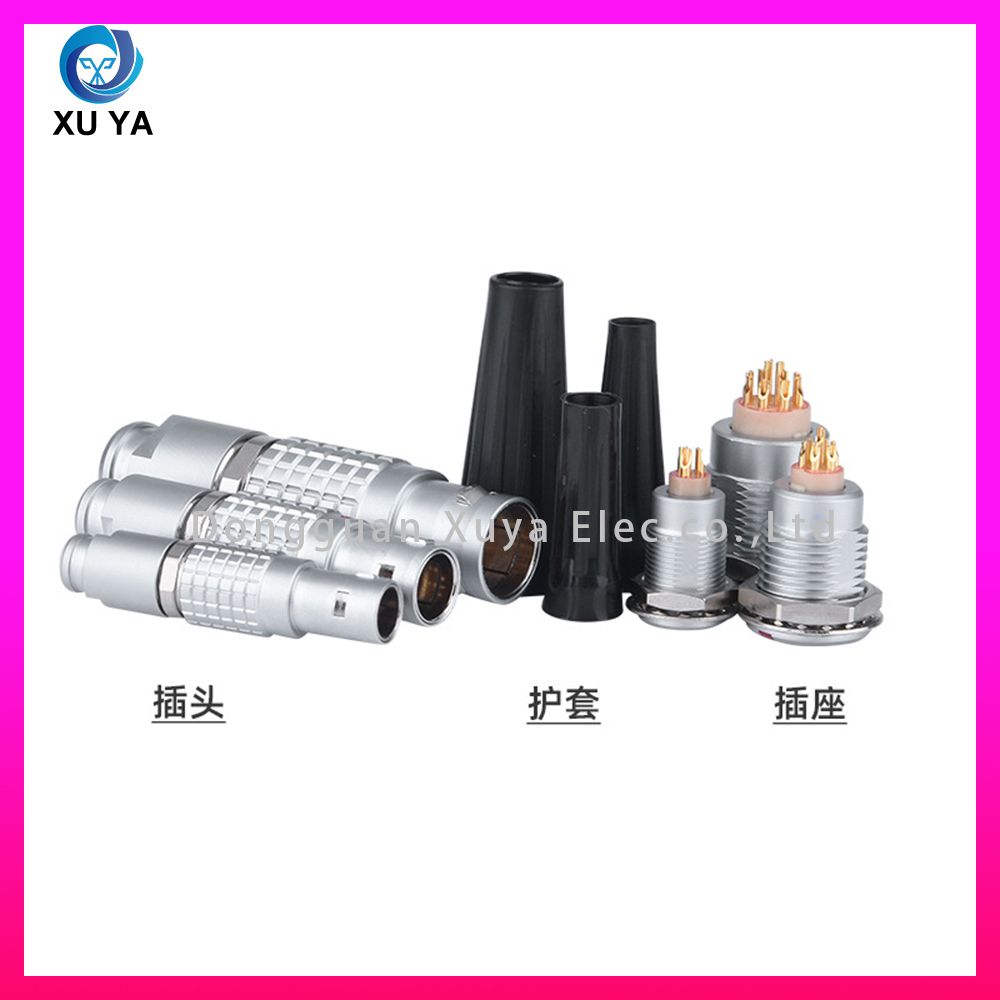

成套包含线缆公插头、螺纹面板母插座、橡胶应力护套，螺纹锁紧式面板嵌入式安装；防尘防潮，适用于常温室内精密仪器、便携医疗设备、工业相机、自动化传感器。
What are the complete matching accessories, installation method and applicable equipment working scenarios?
The complete set includes cable male plug, threaded panel female socket and rubber strain relief boot for threaded locking embedded panel installation. Dust and moisture resistant, suitable for normal temperature indoor precision instruments, portable medical equipment, industrial cameras and automation sensors.
Q4：包装、交期、现货服务与环保认证标准？
独立 PE 袋分装，现货快速发货，常规定制交期 3-7 个工作日，产品符合 RoHS 环保认证标准。
What about packaging, lead time, in-stock service and environmental certification standards?
Individually packed in PE bags, in-stock goods delivered quickly, regular custom lead time 3-7 working days, the product complies with RoHS environmental certification standards.
