厂家直供同轴半月型金属圆形推拉自锁航空连接器
Reliable Factory Coaxial Circular Metal Half-Moon Aviation Plug Push-Pull Self-Locking Connector

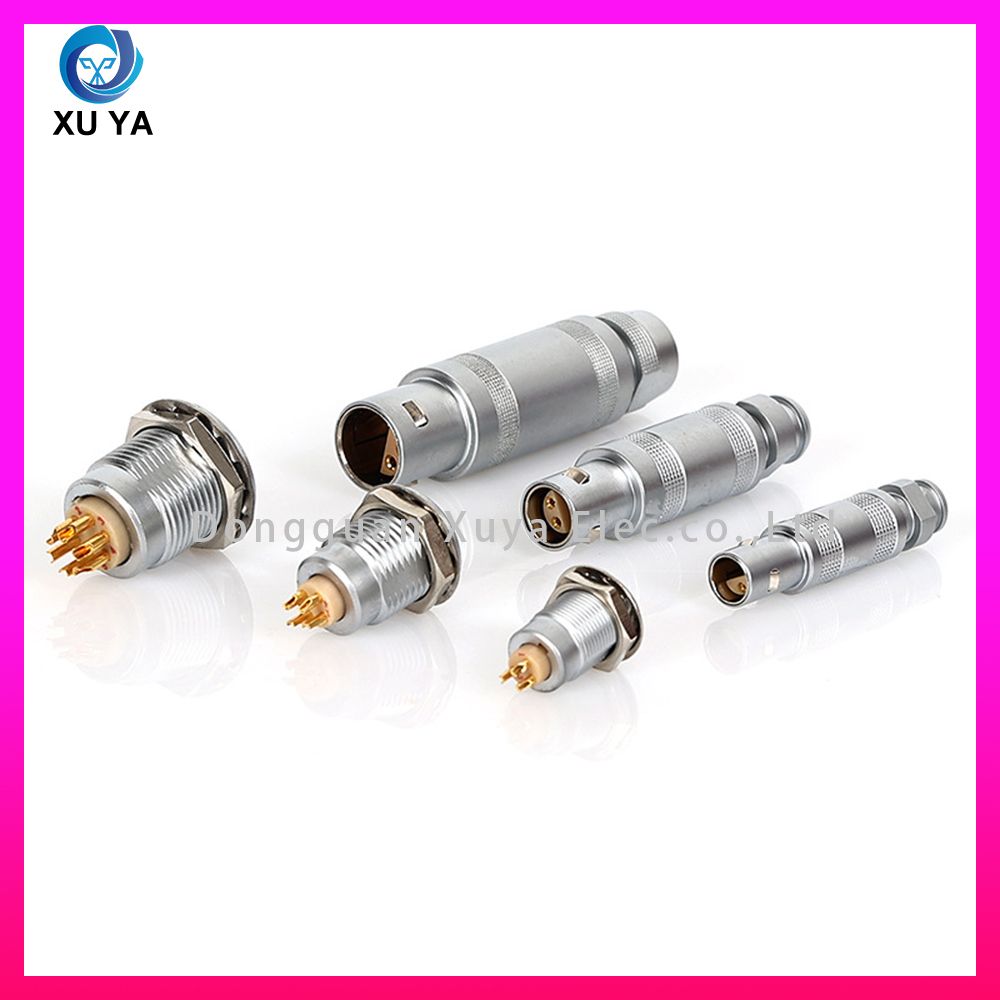

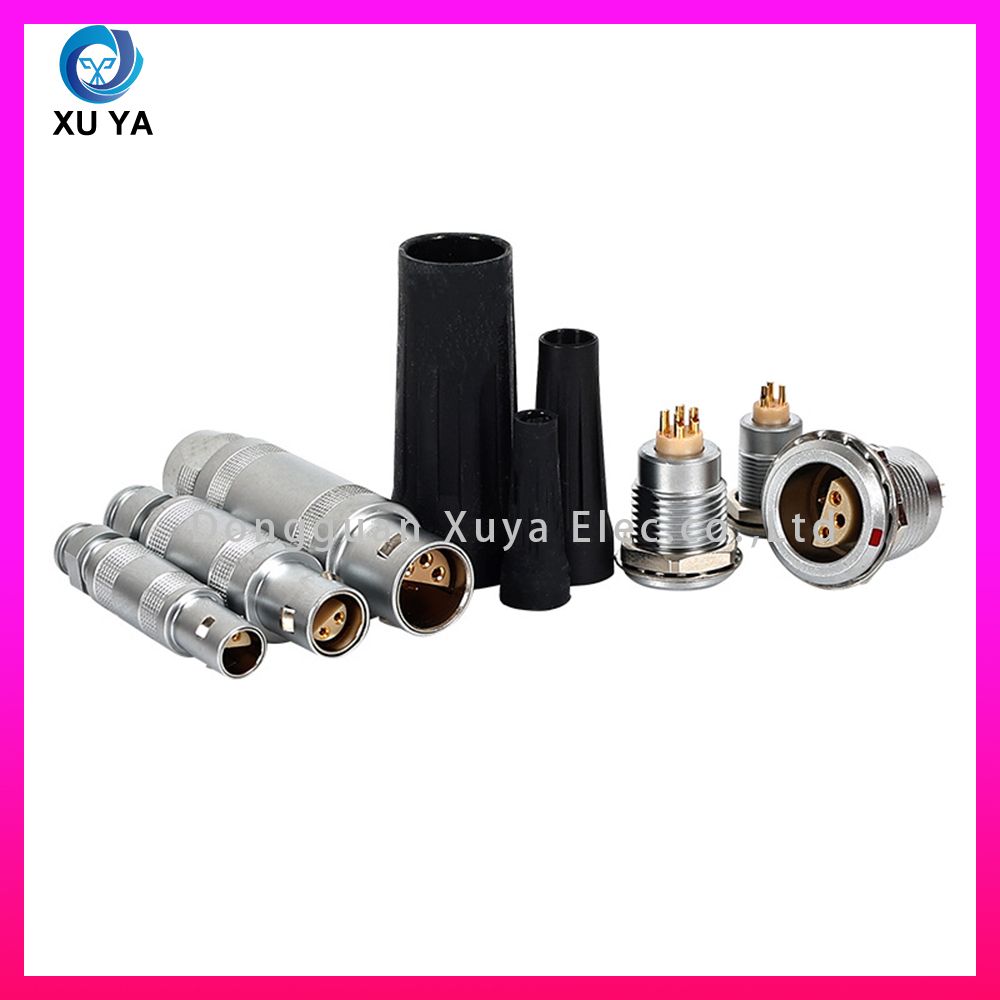

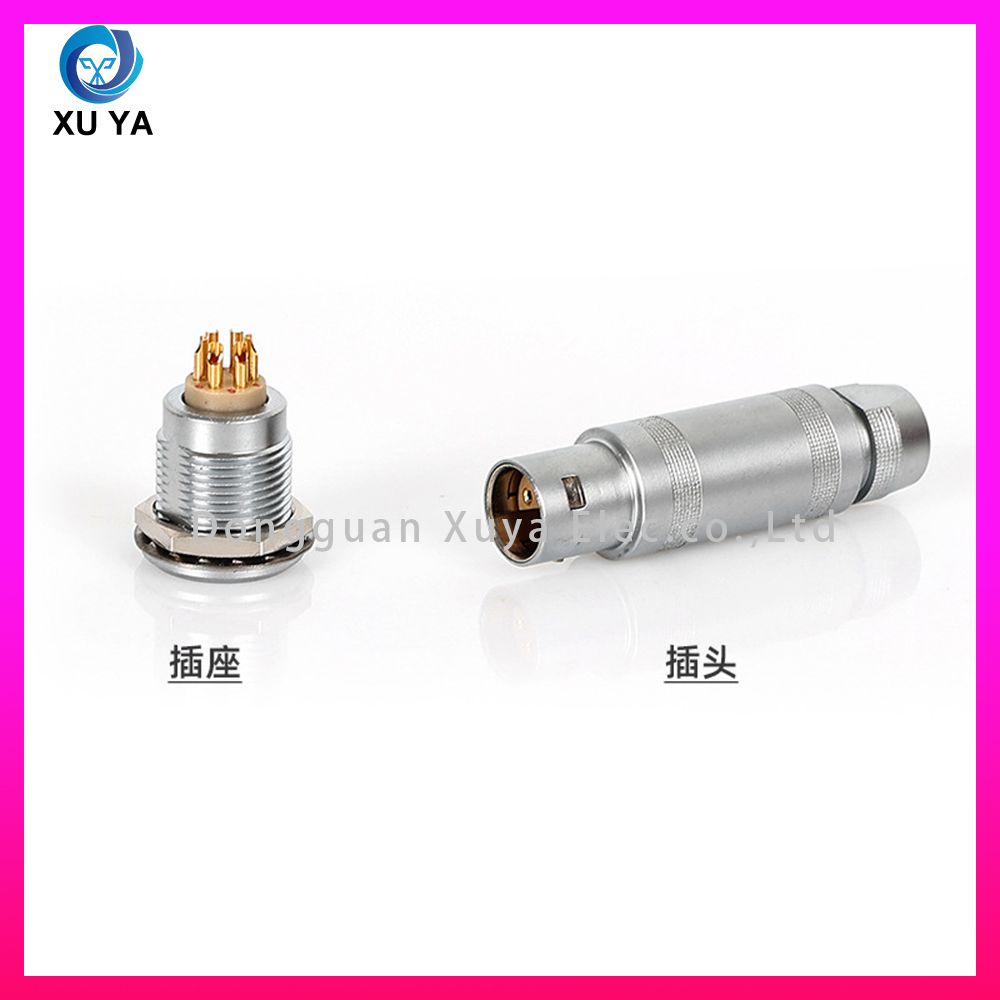

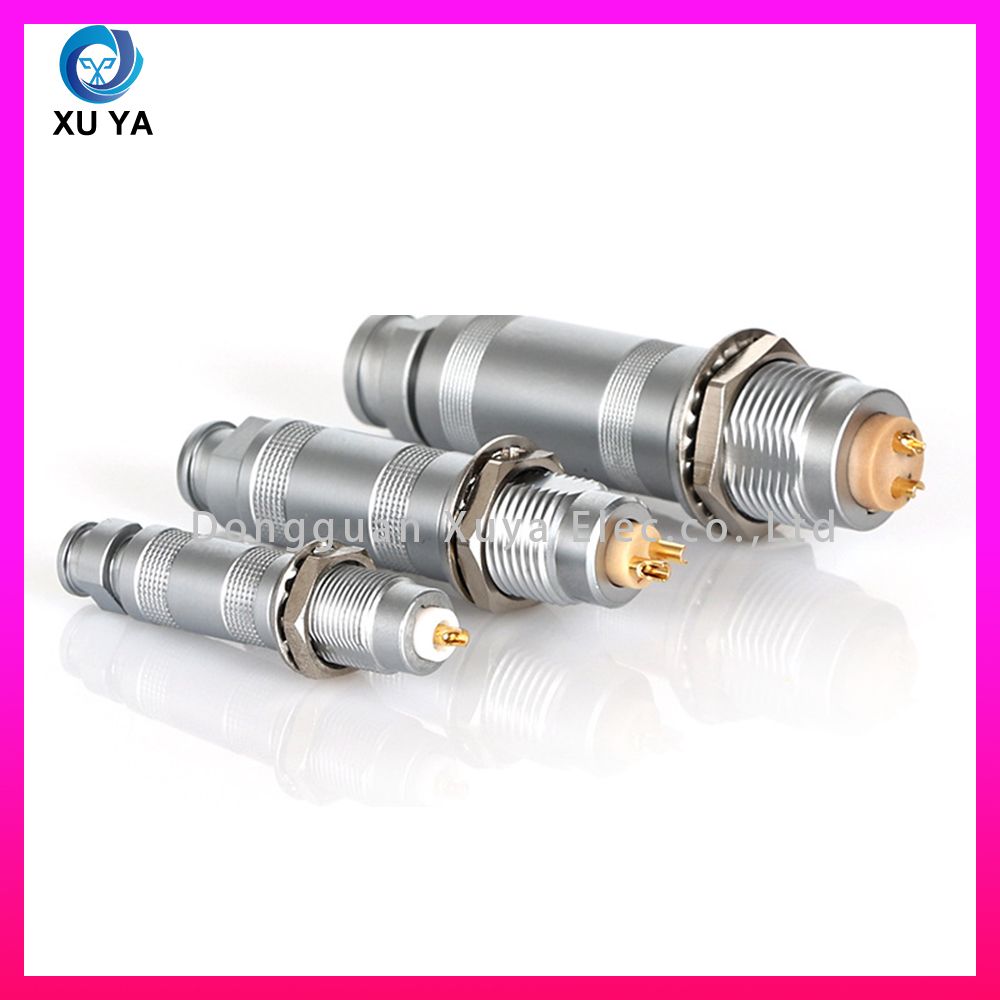

半月卡位推拉自锁同轴金属航空连接器，采用半月亮点定位防呆结构，成套包含线缆公插头、螺纹面板母插座、黑色橡胶应力缓解护套，多尺寸规格齐全，适配精密检测、射频信号传输设备；推拉式快速锁止结构，插入后半月卡位精准对位自动锁死，轻拉即可解锁分离，无需额外工具，防呆卡位杜绝插反错插，适合精密仪器频繁拆装调试；壳体采用高精度铝合金数控车削成型，表面阳极氧化哑光金属质感，外壳双层滚花纹理防滑设计，插拔握持稳固不打滑，耐磨防腐抗氧化，长期工业、精密实验室环境使用不易锈蚀损坏；内部采用同轴式信号传输结构，中心信号针搭配环形接地层，阻抗匹配度高，射频、模拟信号传输损耗极低，抗干扰能力优异；接触针采用加厚镀金工艺，导电性能稳定，抗氧化耐腐蚀，可承受上万次反复插拔，信号无衰减；支持单芯同轴、多芯同轴多种针位规格定制，可同时传输射频信号、供电电源；面板螺纹安装端内置硅胶密封垫圈，搭配尾部防水橡胶护线套，具备防尘防潮防护性能，可应对车间、实验室轻度潮湿粉尘工况；配套加长锥形橡胶应力护套，有效缓冲线材弯折、拉扯外力，保护内部焊接点位，避免线材断线、焊点脱落；内部绝缘胶芯选用耐高温阻燃工程塑料，耐高低温冲击，绝缘性能稳定，适配精密设备 24 小时不间断运行；广泛适配射频检测仪器、医疗精密设备、工业相机、自动化传感器、实验室信号检测仪表；产品独立 PE 袋分装，交期 5-10 个工作日，支持芯数、壳体尺寸、出线孔径个性化定制，符合 RoHS 环保认证。
Half-moon positioning push-pull self-locking coaxial metal aviation connector adopts half-moon foolproof positioning structure. The complete set includes cable male plug, threaded panel female socket and black rubber strain relief boot with full range of sizes, suitable for precision testing and RF signal transmission equipment. Push-pull quick locking structure: the half-moon positioning clip aligns accurately and locks automatically after insertion, and can be unlocked and separated by gentle pulling without extra tools. The foolproof structure prevents reverse insertion, ideal for frequent disassembly and debugging of precision instruments. The housing is precision CNC turned from aluminum alloy with matte anodized metal surface. Double-layer knurled anti-slip texture on shell ensures stable grip during plugging and unplugging, featuring wear resistance, corrosion resistance and anti-oxidation, resisting rust and damage under long-term industrial and laboratory environments. Adopt internal coaxial signal transmission structure with central signal pin and annular ground layer, high impedance matching, extremely low loss for RF and analog signal transmission and excellent anti-interference performance. Contact pins are thick gold-plated with stable conductivity, anti-oxidation and anti-corrosion, capable of withstanding tens of thousands of repeated plug cycles without signal attenuation. Customization of single-core coaxial and multi-core coaxial pin specifications is supported, which can transmit RF signals and power supply simultaneously. Silicone sealing gasket is built-in at threaded panel mounting end, matched with waterproof rubber cable boot at the tail for dust and moisture resistance, adapting to slightly humid and dusty working conditions in workshops and laboratories. The matching extended conical rubber strain relief boot effectively buffers external bending and pulling force of cables, protects internal solder joints and prevents wire breakage and solder joint detachment. The internal insulating core is made of high-temperature resistant flame-retardant engineering plastic, resistant to high and low temperature impact with stable insulation performance, suitable for 24-hour uninterrupted operation of precision equipment. Widely applied to RF testing instruments, precision medical equipment, industrial cameras, automation sensors and laboratory signal testing meters. Each product is packed in independent PE bag, lead time 5-10 working days. Customization of pin core count, housing size and cable outlet aperture is supported, RoHS compliant.
Q1：这款半月同轴航空连接器锁止定位结构、外壳材质与防护配置是什么？
半月型防呆卡位推拉自锁结构，铝合金阳极氧化金属壳体双层防滑滚花纹理；面板内置硅胶密封垫圈，配套橡胶应力缓解护套，防尘防潮。
What are the locking positioning structure, housing material and protection configuration of this half-moon coaxial aviation connector?
Half-moon foolproof clip push-pull self-locking structure, anodized aluminum alloy metal housing with double-layer knurled anti-slip texture. Silicone sealing gasket built-in panel, matched with rubber strain relief boot for dust and moisture resistance.
Q2：同轴传输结构、插针工艺与芯数定制优势？
内部同轴传输结构，阻抗匹配，射频信号低损耗抗干扰；接触针加厚镀金，万次插拔信号稳定；支持单芯、多芯同轴规格定制。
What are the advantages of coaxial transmission structure, pin process and core customization?
Internal coaxial transmission structure with high impedance matching, low loss and strong anti-interference for RF signals. Thick gold-plated contact pins deliver stable signals after ten thousand plug cycles. Customization of single-core and multi-core coaxial specifications is supported.
Q3：成套配件、安装方式与适配设备工况场景？

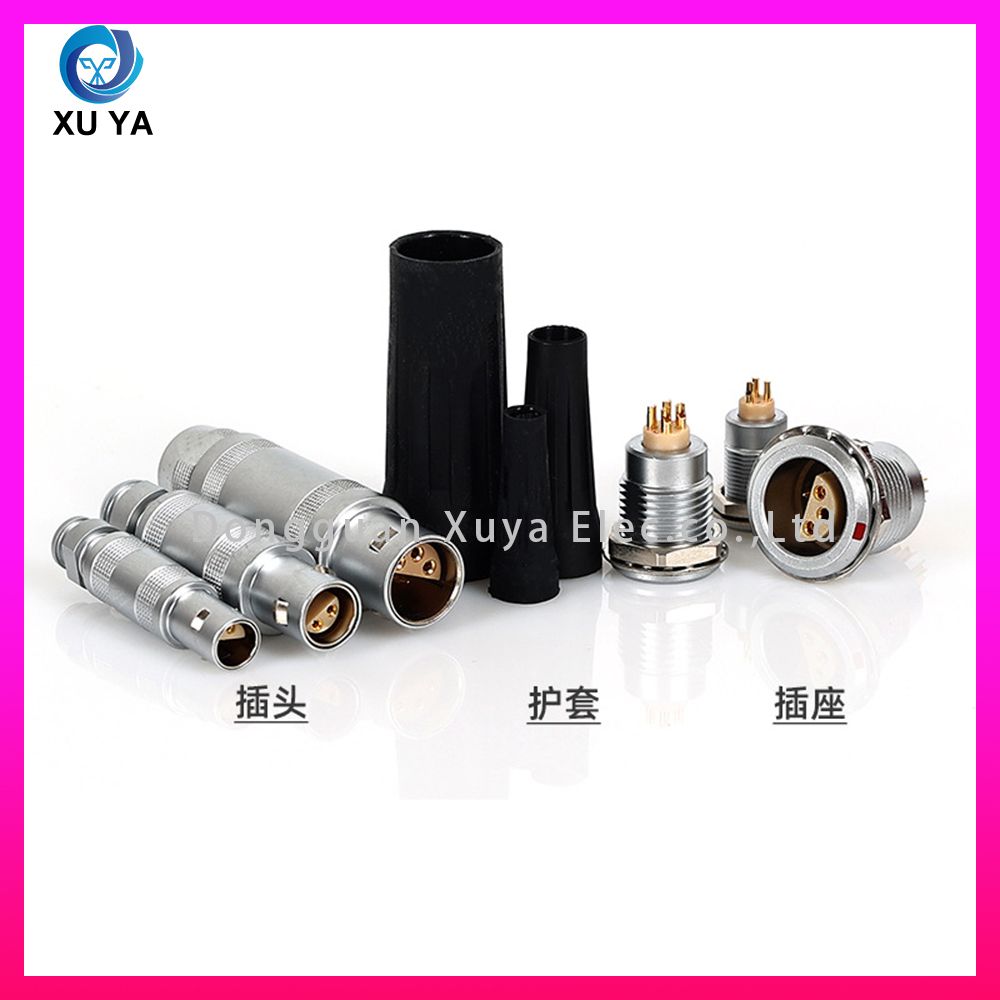

成套包含线缆公插头、螺纹面板母座、橡胶应力护套，螺纹锁紧式面板嵌入式安装；防尘防潮，适配实验室、车间环境，多用于射频仪器、精密医疗设备、工业相机、信号传感器。
What are the complete matching accessories, installation method and applicable equipment working scenarios?
The complete set includes cable male plug, threaded panel female socket and rubber strain relief boot for threaded locking embedded panel installation. Dust and moisture resistant for laboratory and workshop environments, widely used in RF instruments, precision medical equipment, industrial cameras and signal sensors.
